BZBGEAR BG-4KCH USB-C 4K UHD HDMI Video Capture Card with Scaler

Description

.whbthbgc img{max-width:450px!important}.ntcamwrap{max-width:1170px;margin:auto;}img{max-width:100%}.ncamdescr{max-width:1000px;margin:auto;line-height:30px!important;font-size:16px}.template2icimwr{width:100%;background-color:efefef;margin-top:50px}.template2icim{max-width:1140px;margin:auto;padding-top:50px;background-color:efefef}.template2icim1,.template2icim3{max-width:297px;width:100%;float:left;text-align:center;color:626262;font-size:18px;margin-bottom:30px}.picoht{min-height:225px!important}.template2icim1,.template2icim3{text-align:center;color:626262;font-size:18px}.picbrt{margin-top:14px;font-size:15px}.picoht img{max-width:95px!important;margin:auto}.nnfeat ul li{font-size:19px;list-style:none;padding:7px 0 10px 45px;color:585858;margin-left:10px;line-height:28px;background-size:26px auto!important;background:url(https://bzbexpress.com/img/icotp2sp.png) no-repeat left 8px top 8px;background-size:auto}.nnfeat{margin-top:45px;padding-bottom:45px}.nnfeatwrap2{padding-left:10px!important;padding-right:10px!important}.t2comptim img{max-width:230px!important;display:inline-block}.t2compth{margin-left:100px;font-size:24px;font-weight:700;margin-bottom:35px}.whbthbg{width:1190px;height:546px;background-image:url(https://bzbexpress.com/img/bgwht2.png);margin:auto}.idbuyt{font-weight:400!important;font-size:18px!important;margin-top:30px;line-height:32px}.fllt2{float:left;width:49%;margin-top:50px}.idbuyim{margin:0 30px 0 90px}.idbuyim,.idbuyc{float:left}.whbthbgc{margin-top:90px;margin-left:20px;text-align:center}.fllt2{float:left;width:49%;margin-top:80px}.idbuyc{font-weight:700;font-size:32px;margin-top:20px}.ttintwr p{font-weight:700;font-size:24px}.ttintwr{width:385px;min-height:175px;color:444446;text-align:left;line-height:22px}.ttintwr_l{margin-left:10px}.ttintwr_l,.ttintwr_r{display:inline-block;vertical-align:top}.ttintwrimg{float:left;margin-right:10px;width:160px;height:120px}.vd1{max-width:683px;margin:auto;border:1px solid ccc;max-height:380px}.tmopuntwr{margin:20px;background:f0f4f7;margin-top:50px;padding-top:30px;padding-bottom:30px;min-height:300px}.tmopuntwr img{display:inline-block;max-width:350px}.t2faqsb{margin-left:150px;line-height:40px;font-size:20px}
@media screen and (max-width: 1000px){
.whbthbgc img{display:none}.template2icim {display: none;}.picoht {min-height: 150px !important;}.template2icim1, .template2icim3 {width: 230px!important;margin-left:60px;margin-bottom: 0px;}.whbthbg {max-width: 98%!important;}.fllt2 {width: 95%!important;}.template2icim2{display:none}.t2compth{margin-left:15px!important}.t2faqsb{margin-left:15px!important}.nnfeatwrap2{padding-left:0!important}.idbuyim{margin:0 3px 0 15px !important}.ttintwr{width:inherit!important}.tmopuntwr img{display:inline-block;max-width:250px!important}.ntcamwrap{color:000!important}.t2comptim img{max-width:155px!important .ncamdescr {font-size: 16px!important;color:000!important}
}

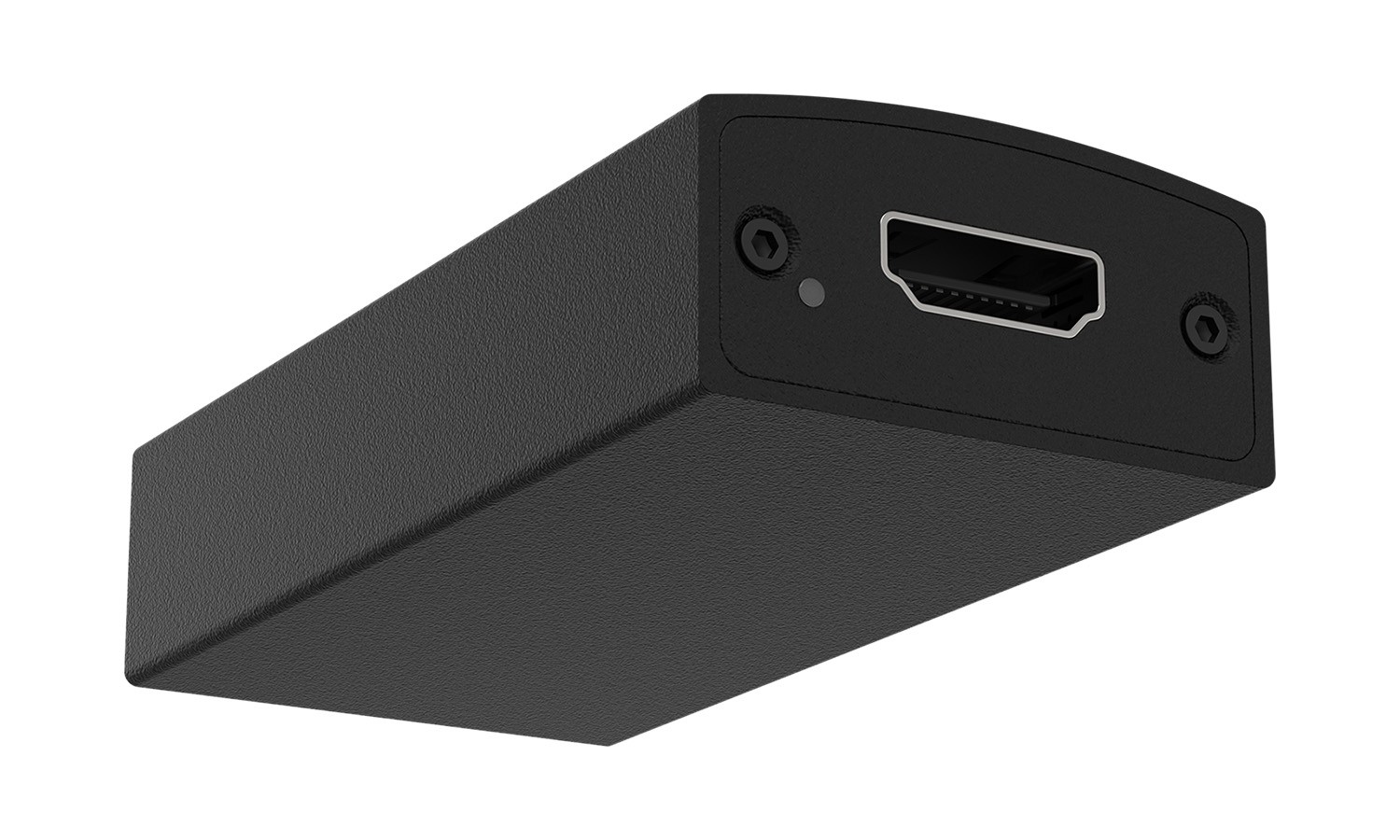

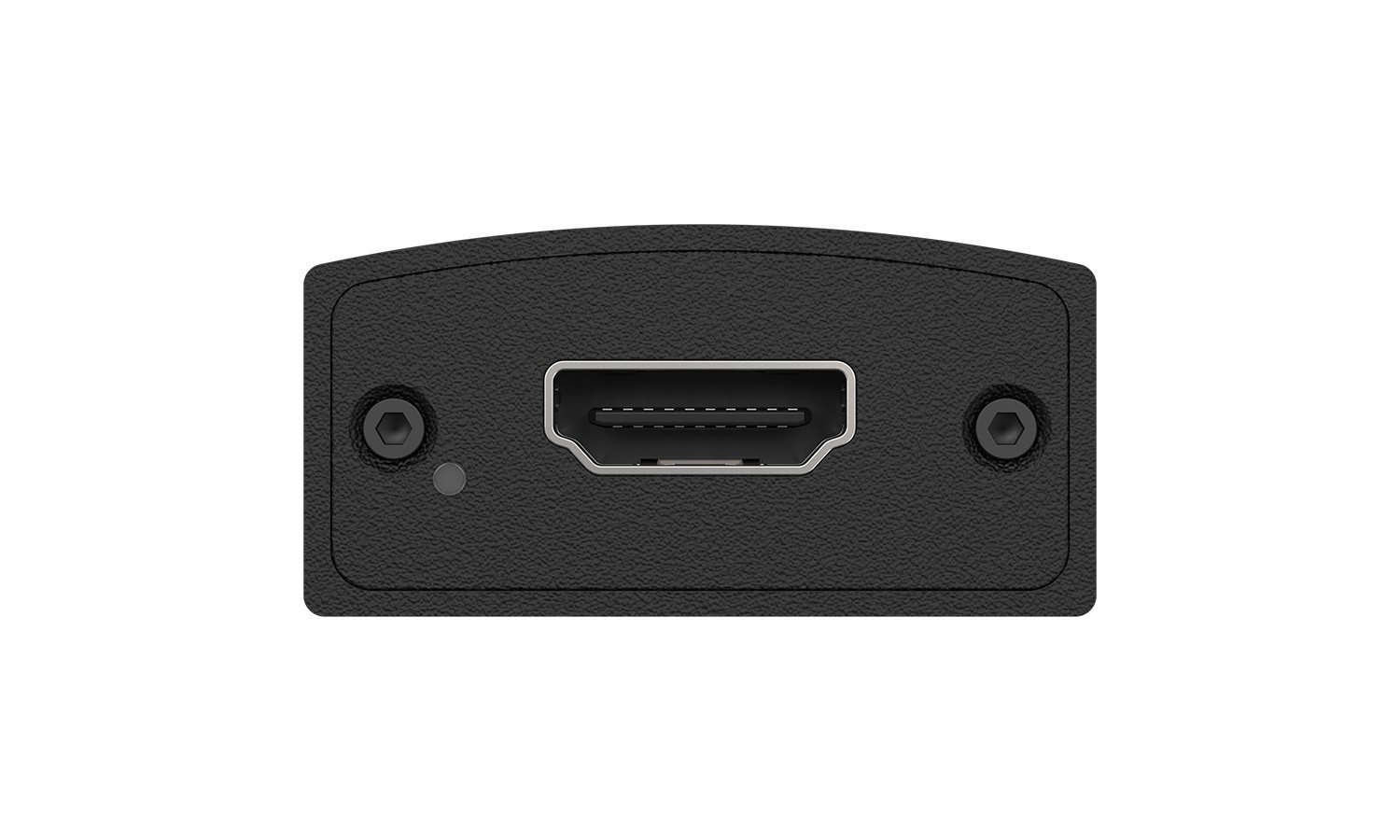

The BG-4KCH is a compact 4K video capture device that allows users to capture HDMI signals from sources such as gaming consoles, cameras, computers, and media players, and transfer them to a laptop via USB-C for recording or streaming. Designed for versatility and ease of use, this unit delivers crisp 4K video quality while maintaining a portable form factor ideal for both stationary and on-the-go applications.

Connectivity and Quality

Supporting resolutions up to 4K2K at 30Hz, the BG-4KCH offers flexible connectivity through both USB 3.1 Gen 1 and USB 2.0 interfaces. Over USB 3.1, the device supports RGB, YUY2, and NV12 video formats, while USB 2.0 supports YUY2 and NV12 with a maximum resolution of 720p at 30Hz. HDMI audio is captured in 2-channel, 16-bit PCM format, and the unit is fully compliant with UVC 1.0, 1.1, and 1.5 standards. With a maximum data rate of 350Mbps and broad compatibility across Windows, macOS, and Linux, the BG-4KCH is suitable for virtually any streaming or capture setup.

Features In-Depth

Beyond its basic capture capabilities, the BG-4KCH features several advanced enhancements that improve its performance and usability. The unit supports automatic video format detection, enabling true plug-and-play operation by recognizing the input signal without requiring manual configuration. It also features deinterlacing support, which converts interlaced video into a smoother progressive format for cleaner visuals during playback. Additionally, the built-in upscaling function can scale lower-resolution inputs up to 1080p at 60Hz, providing flexibility when working with a variety of source resolutions. With its compact size, automatic configuration features, and video enhancement capabilities, the BG-4KCH is a reliable and efficient solution for high-quality video capture in any environment.

TAA Compliant Product.

This product meets the standards of the Trade Agreement Act (TAA).

Streaming:

Compatible with YouTube, Twitch, Facebook, Zoom, and more

Plug and Play:

No setup required

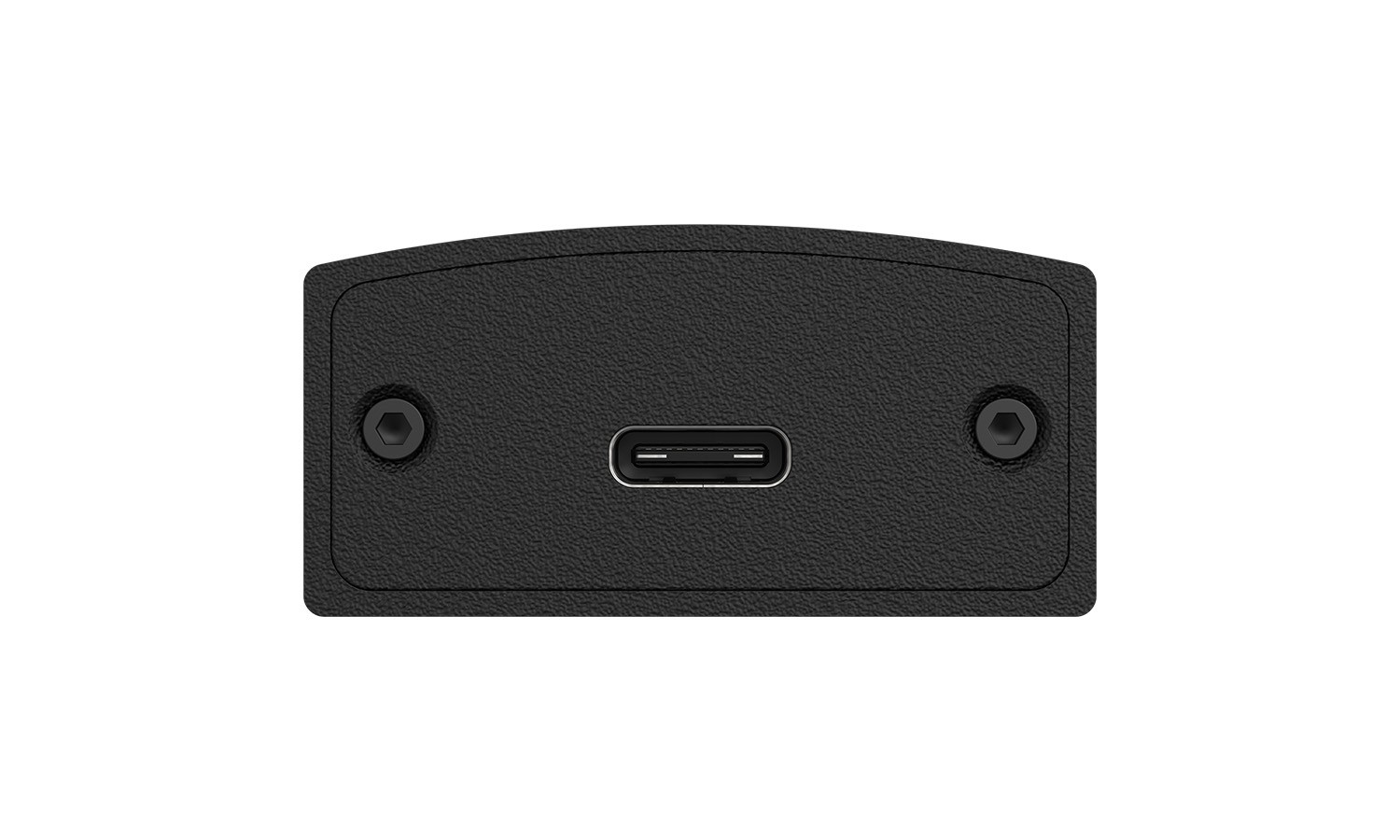

USB Type-C:

USB 3.1 Gen 1 (RGP/YUY2/NV12)

Compatibility:

Works with Windows 7 and up, Mac OS, and Linux

Portable:

Ideal for recording in the field or on-the-go

Crystal Clear Image Capture:

Capture resolutions up to 4K @ 30Hz

• Low Latency (3~4ms at 1080P)
• Supports USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K @ 30) and USB 2.0 (YUY2/NV12) (capture up to 720P @ 30)
• Auto-detection of video format ensures plug and play operations
• Supports deinterlace & scaler (Note: Scale-up feature supports up to 1080P @ 60)
• Supports video resolution up to 4K2K @ 30
• Supports UVC1.0/1.1/1.5

Video
