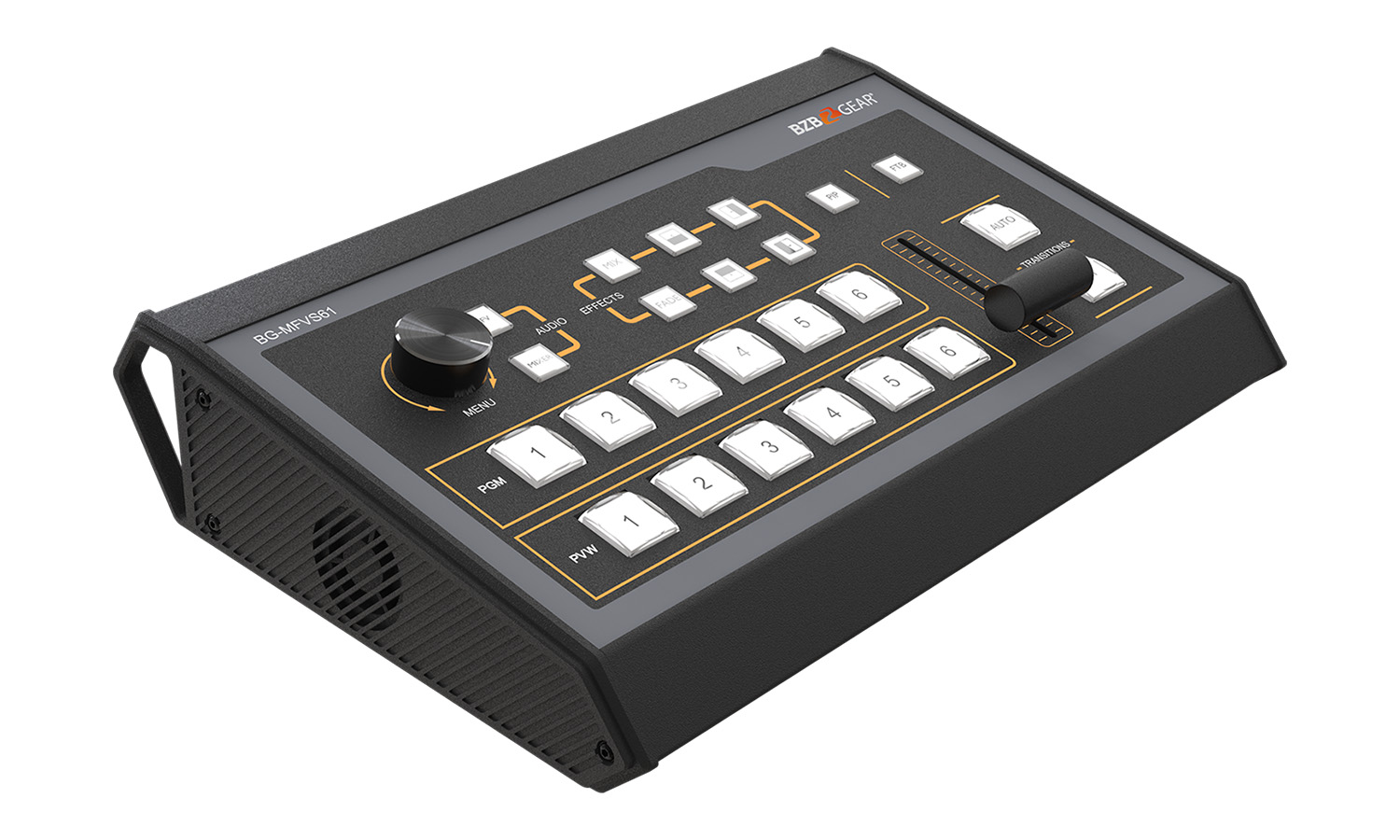

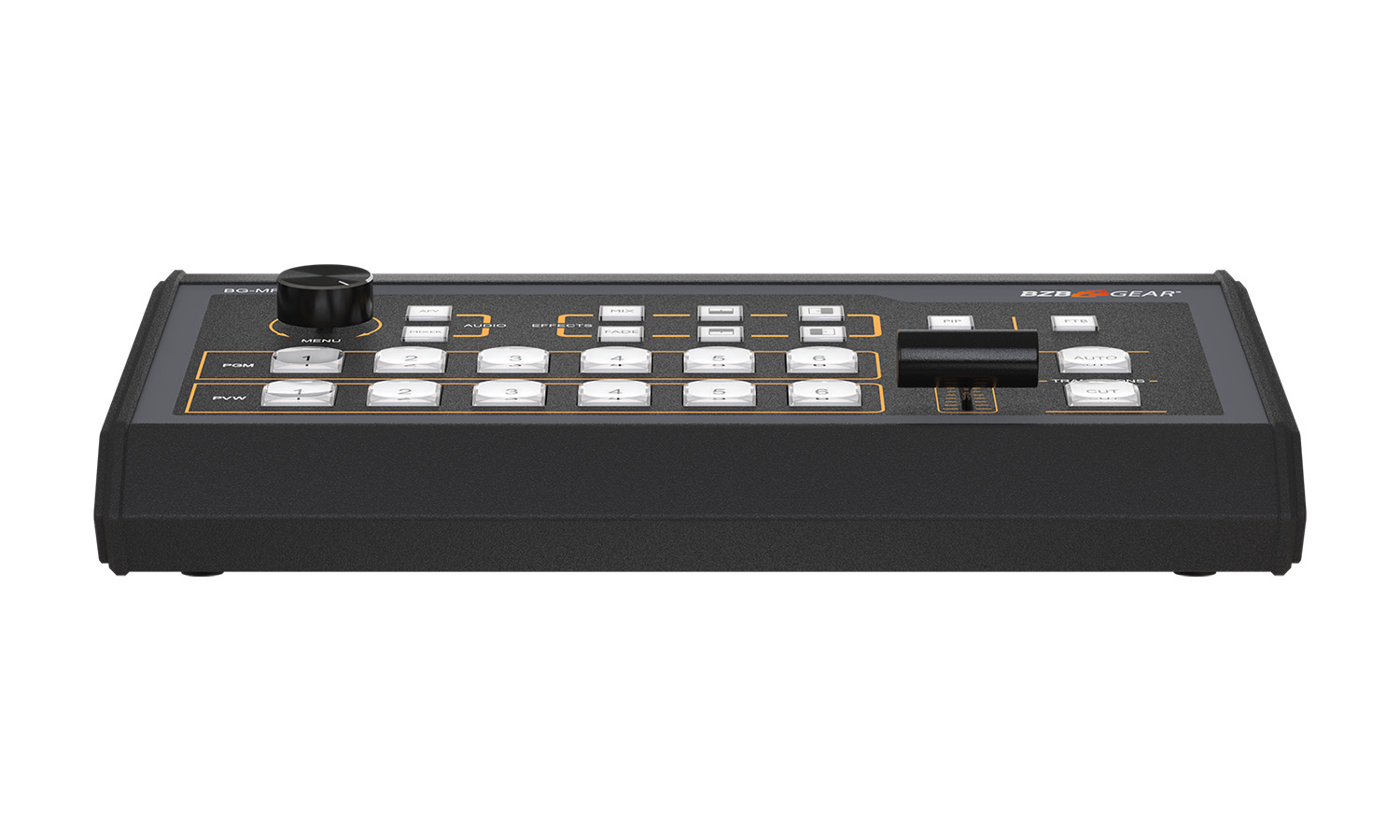

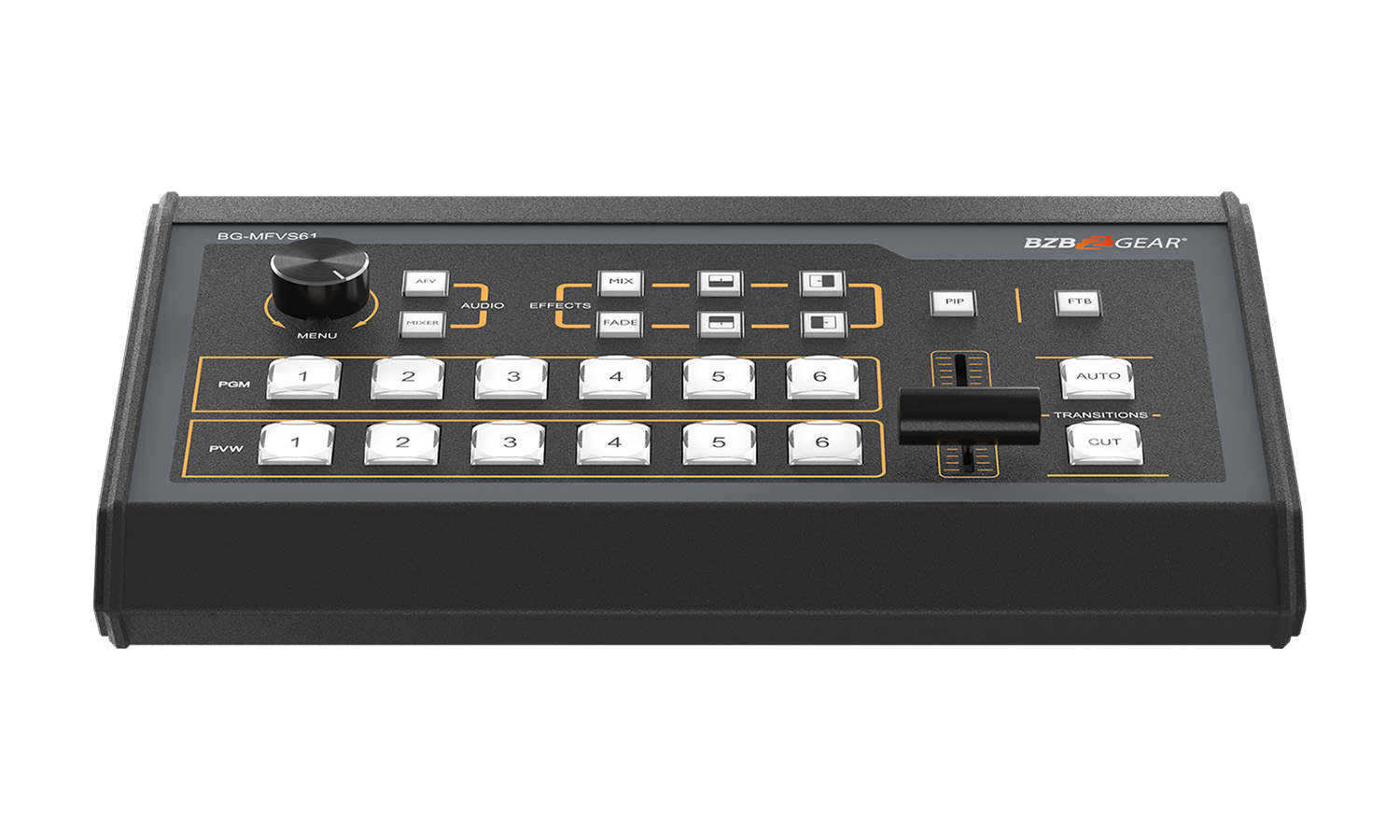

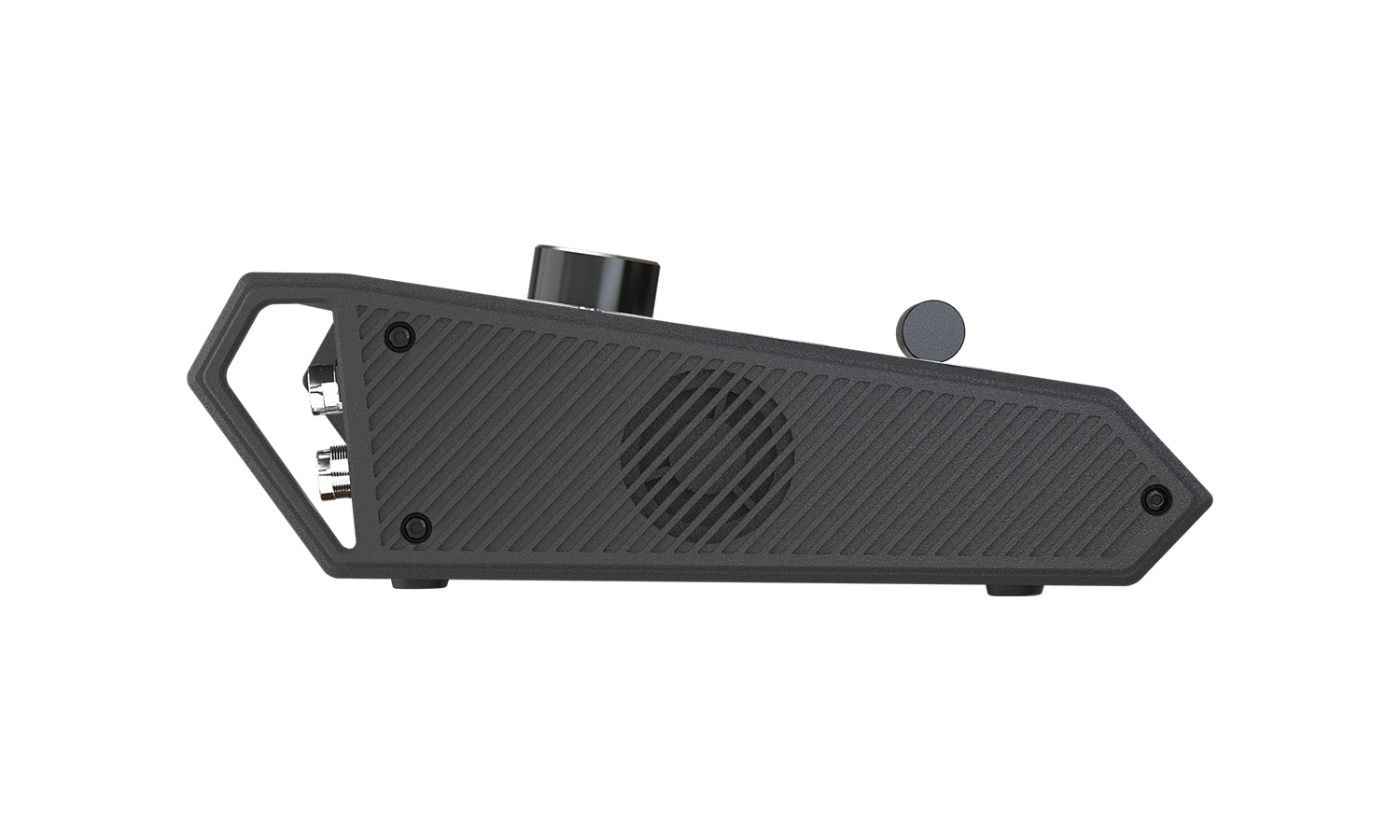

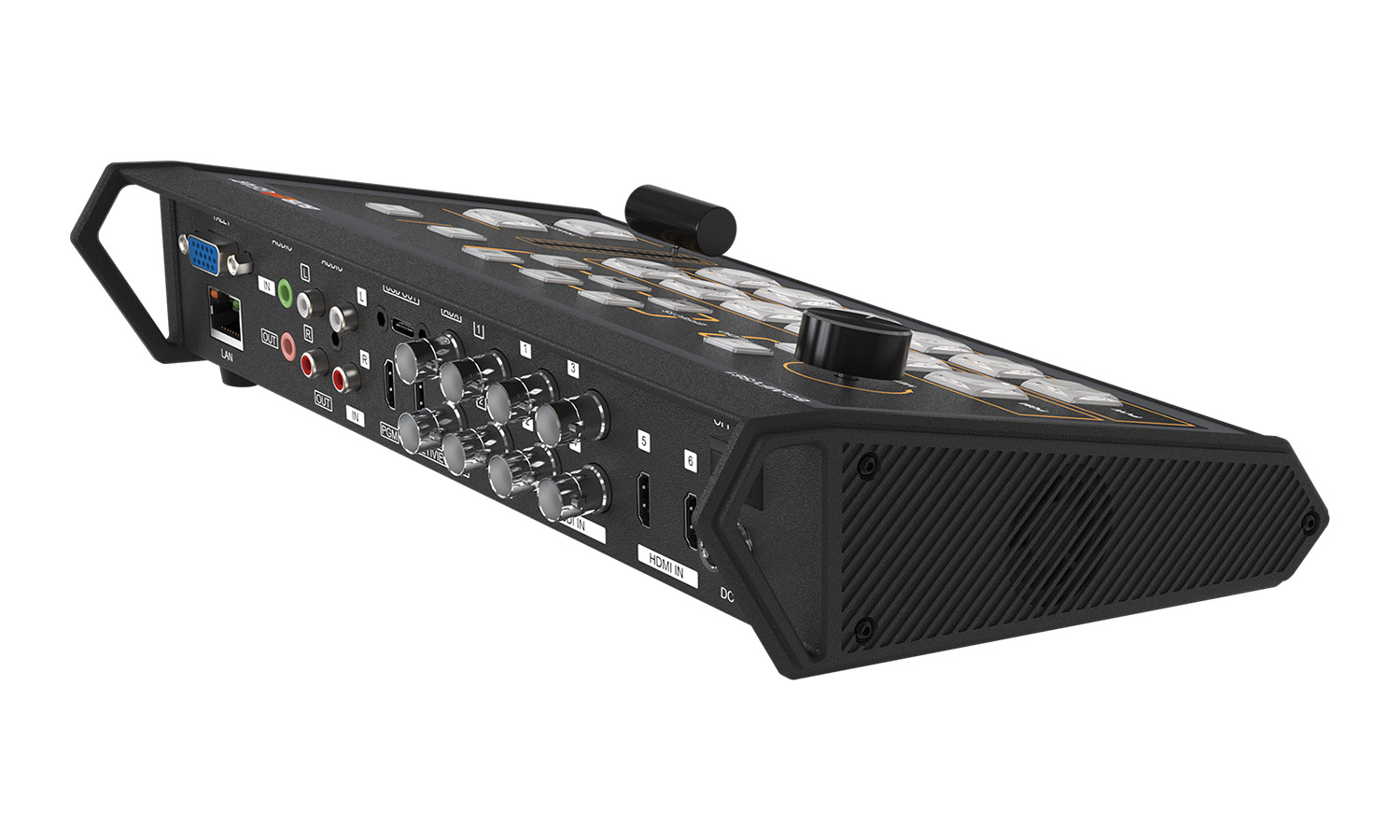

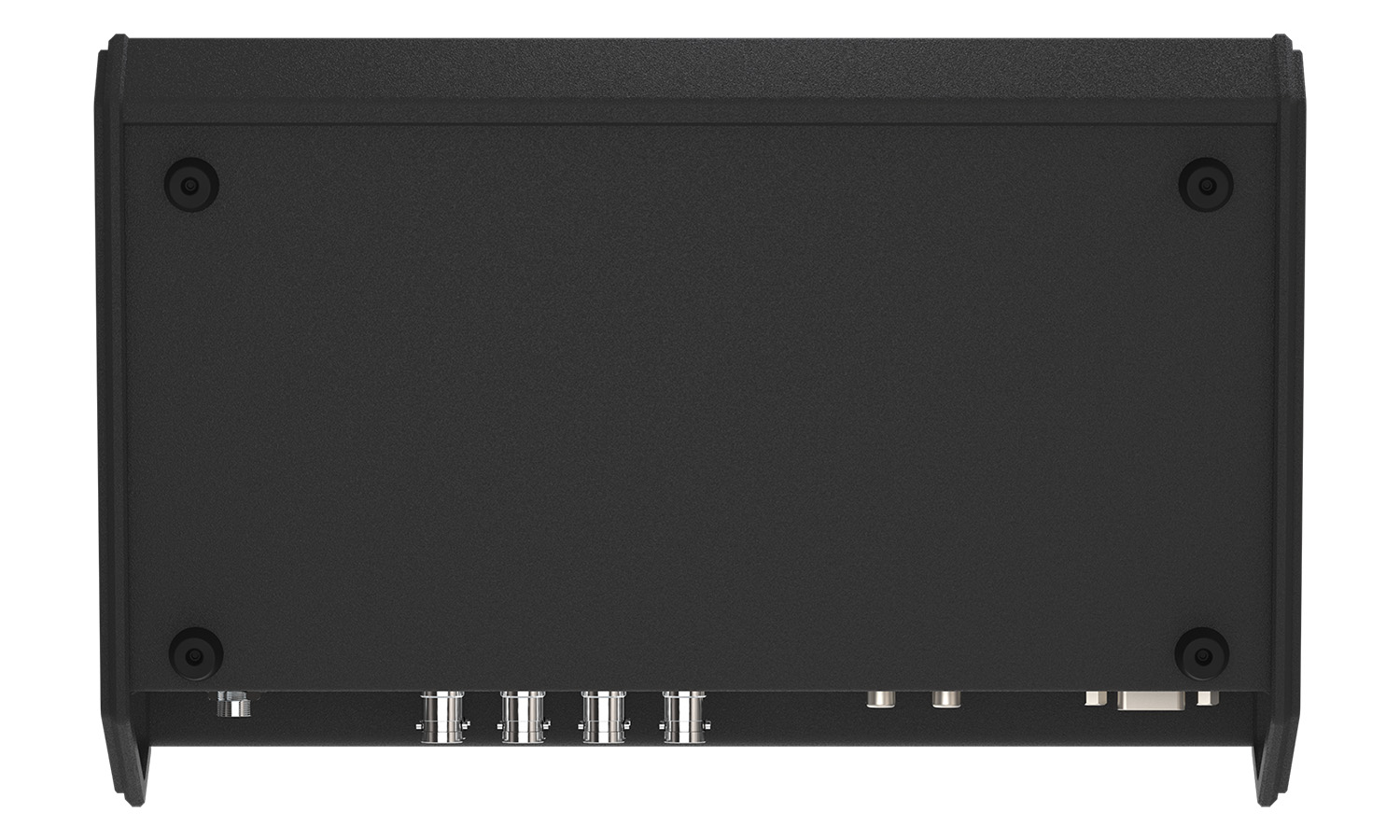

BZBGEAR BG-MFVS61-G2 6-Channel 1080P FHD SDI/HDMI Live Streaming Multi-Format Video Switcher Mixer with PIP/USB 3.0 Capture Card

Description

.whbthbgc img{max-width:450px!important}.ntcamwrap{max-width:1170px;margin:auto;}img{max-width:100%}.ncamdescr{max-width:1000px;margin:auto;line-height:30px!important;font-size:16px}.template2icimwr{width:100%;background-color:efefef;margin-top:50px}.template2icim{max-width:1140px;margin:auto;padding-top:50px;background-color:efefef}.template2icim1,.template2icim3{max-width:297px;width:100%;float:left;text-align:center;color:626262;font-size:18px;margin-bottom:30px}.picoht{min-height:225px!important}.template2icim1,.template2icim3{text-align:center;color:626262;font-size:18px}.picbrt{margin-top:14px;font-size:15px}.picoht img{max-width:95px!important;margin:auto}.nnfeat ul li{font-size:19px;list-style:none;padding:7px 0 10px 45px;color:585858;margin-left:10px;line-height:28px;background-size:26px auto!important;background:url(https://bzbexpress.com/img/icotp2sp.png) no-repeat left 8px top 8px;background-size:auto}.nnfeat{margin-top:45px;padding-bottom:45px}.nnfeatwrap2{padding-left:10px!important;padding-right:10px!important}.t2comptim img{max-width:230px!important;display:inline-block}.t2compth{margin-left:100px;font-size:24px;font-weight:700;margin-bottom:35px}.whbthbg{width:1190px;height:546px;background-image:url(https://bzbexpress.com/img/bgwht2.png);margin:auto}.idbuyt{font-weight:400!important;font-size:18px!important;margin-top:30px;line-height:32px}.fllt2{float:left;width:49%;margin-top:50px}.idbuyim{margin:0 30px 0 90px}.idbuyim,.idbuyc{float:left}.whbthbgc{margin-top:90px;margin-left:20px;text-align:center}.fllt2{float:left;width:49%;margin-top:80px}.idbuyc{font-weight:700;font-size:32px;margin-top:20px}.ttintwr p{font-weight:700;font-size:24px}.ttintwr{width:385px;min-height:175px;color:444446;text-align:left;line-height:22px}.ttintwr_l{margin-left:10px}.ttintwr_l,.ttintwr_r{display:inline-block;vertical-align:top}.ttintwrimg{float:left;margin-right:10px;width:160px;height:120px}.vd1{max-width:683px;margin:auto;border:1px solid ccc;max-height:380px}.tmopuntwr{margin:20px;background:f0f4f7;margin-top:50px;padding-top:30px;padding-bottom:30px;min-height:300px}.tmopuntwr img{display:inline-block;max-width:350px}.t2faqsb{margin-left:150px;line-height:40px;font-size:20px}
@media screen and (max-width: 1000px){
.whbthbgc img{display:none}.template2icim {display: none;}.picoht {min-height: 150px !important;}.template2icim1, .template2icim3 {width: 230px!important;margin-left:60px;margin-bottom: 0px;}.whbthbg {max-width: 98%!important;}.fllt2 {width: 95%!important;}.template2icim2{display:none}.t2compth{margin-left:15px!important}.t2faqsb{margin-left:15px!important}.nnfeatwrap2{padding-left:0!important}.idbuyim{margin:0 3px 0 15px !important}.ttintwr{width:inherit!important}.tmopuntwr img{display:inline-block;max-width:250px!important}.ntcamwrap{color:000!important}.t2comptim img{max-width:155px!important .ncamdescr {font-size: 16px!important;color:000!important}
}

The BG-MFVS61-G2 is a 3G-SDI/HDMI video switcher with four 3G-SDI inputs, two HDMI inputs, four 3G-SDI outputs, two HDMI outputs, and one USB-C output. Durable and easy to use, this switcher is ideally suited for both mobile and fixed production environments.

Connectivity

The BG-MFVS61-G2 supports resolutions up to 1080p @ 60Hz. The integrated scaler provides compatibility with a large number of display resolutions. Featuring two multiview outputs (3G-SDI & HDMI) three program outputs (2 x 3G-SDI, HDMI), and one assignable 3G-SDI output this unit fits seamlessly in almost any production environment. The USB-C output allows a connected PC to be used to record or livestream the program output. The tally port (DB-15) provides support for compatible systems.

Audio can be de-embedded from all inputs and mixed with the 3.5mm and RCA analog inputs. Mixed audio can be output from the 3.5mm and RCA analog outputs, or embedded to the program output.

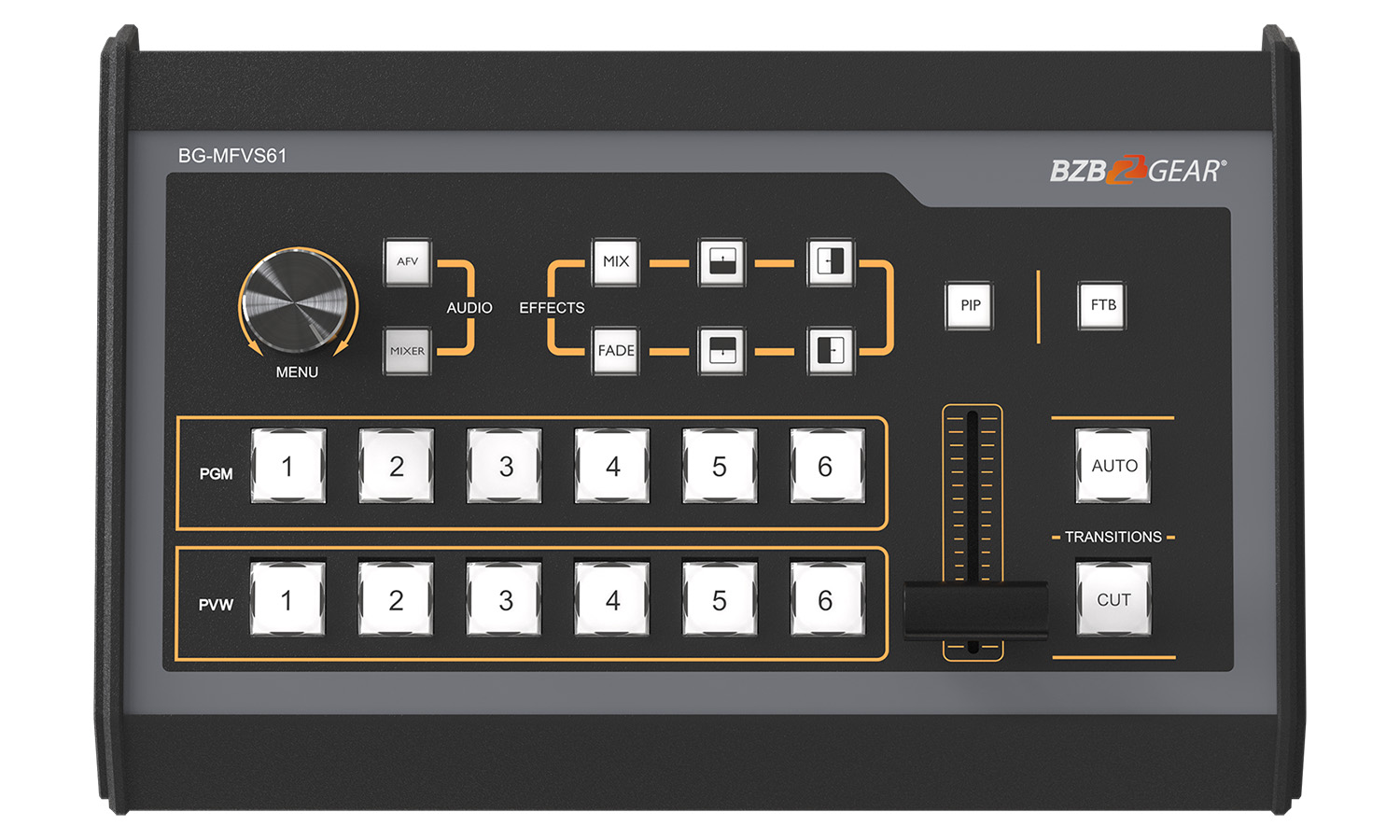

Control

The T-bar slider, auto, and cut buttons provide control for transitions using the BG-MFVS61-G2’s various wipe, mix, and fade effects. Picture in Picture (PIP) mode allows userse to easily resize and reposition the PIP window. The easy to use control layout allows even novice users to acheive professional quality results.

Integrated Audio Mixer:

3.5mm, RCA, HDMI Audio

Compact:

Lightweight and portable

Multiview Outputs:

1x SDI, 1x HDMI

Picture in Picture Mode:

Adjustable size and position

Multiple Transition Options:

T-Bar, Auto, and Cut controls for Mix, Wipe, and Fade effects

Crystal Clear Images:

Supports resolutions up to 1080p @ 60Hz

• 6 Input Channels – 4x SDI and 2x HDMI
• Multiple Outputs – 2x SDI PGM, 1x HDMI PGM, 1x SDI AUX, 1x USB Type-C
• Integrated capture card

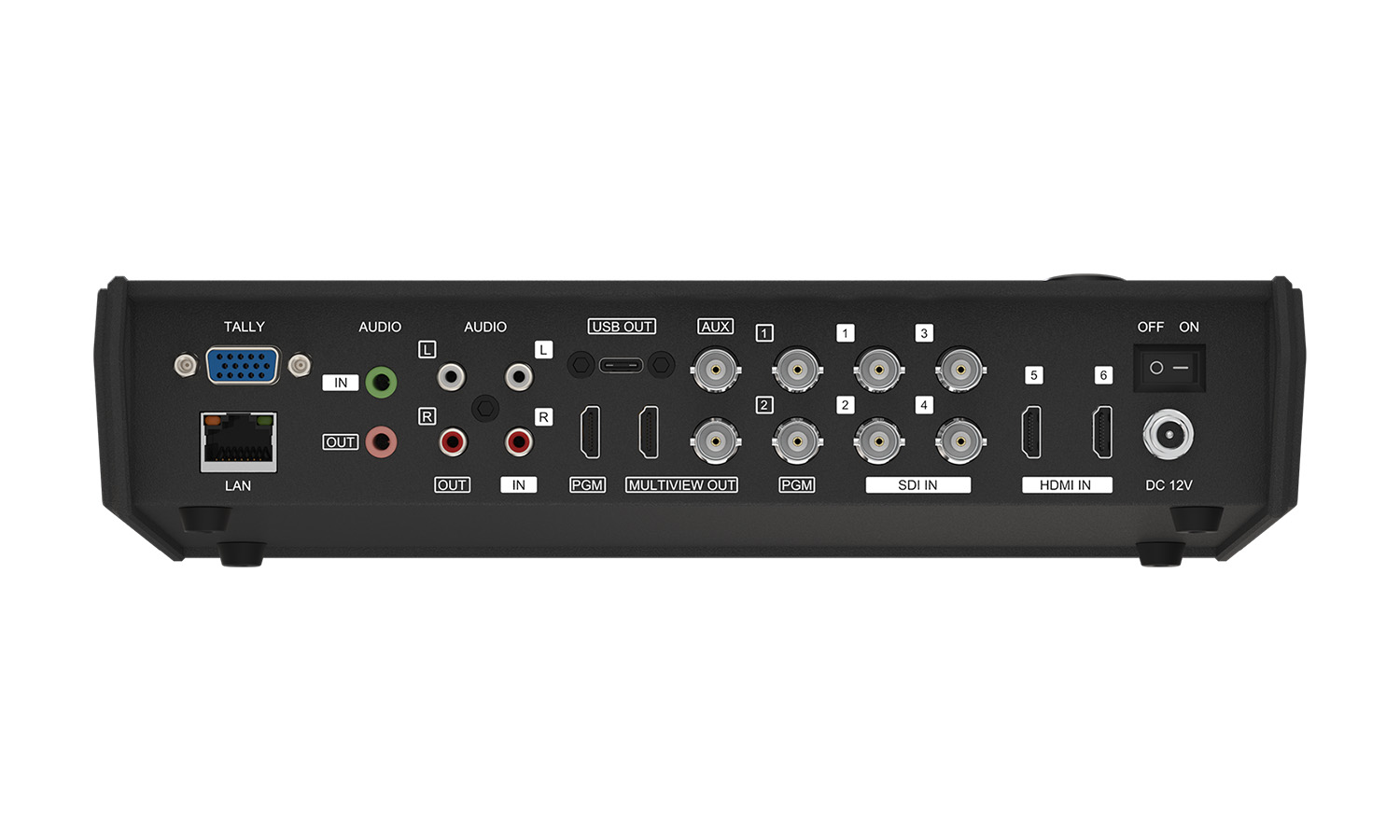

Interface

HDMI

Crystal clear image with resolutions up to 1080p @ 60.

Power

Use supplied Power Adapter.

Audio In/Out

Stereo audio input/output for connecting mics and embedding local audio.

LAN

Web Interface.

SDI

1080p @ 60 fps for distances up to 300 ft.

USB

USB-C to USB-A capture output.

Video
