BZBGEAR BG-UDA-E18 1×8 4K UHD HDMI HDBaset Splitter/Distribution Amplifier Kit with 8 Receivers and IR/RS-232/Audio De-embedding up to 390ft Over Category Cable

Description

.whbthbgc img{max-width:450px!important}.ntcamwrap{max-width:1170px;margin:auto;}img{max-width:100%}.ncamdescr{max-width:1000px;margin:auto;line-height:30px!important;font-size:16px}.template2icimwr{width:100%;background-color:efefef;margin-top:50px}.template2icim{max-width:1140px;margin:auto;padding-top:50px;background-color:efefef}.template2icim1,.template2icim3{max-width:297px;width:100%;float:left;text-align:center;color:626262;font-size:18px;margin-bottom:30px}.picoht{min-height:225px!important}.template2icim1,.template2icim3{text-align:center;color:626262;font-size:18px}.picbrt{margin-top:14px;font-size:15px}.picoht img{max-width:95px!important;margin:auto}.nnfeat ul li{font-size:19px;list-style:none;padding:7px 0 10px 45px;color:585858;margin-left:10px;line-height:28px;background-size:26px auto!important;background:url(https://bzbexpress.com/img/icotp2sp.png) no-repeat left 8px top 8px;background-size:auto}.nnfeat{margin-top:45px;padding-bottom:45px}.nnfeatwrap2{padding-left:10px!important;padding-right:10px!important}.t2comptim img{max-width:230px!important;display:inline-block}.t2compth{margin-left:100px;font-size:24px;font-weight:700;margin-bottom:35px}.whbthbg{width:1190px;height:546px;background-image:url(https://bzbexpress.com/img/bgwht2.png);margin:auto}.idbuyt{font-weight:400!important;font-size:18px!important;margin-top:30px;line-height:32px}.fllt2{float:left;width:49%;margin-top:50px}.idbuyim{margin:0 30px 0 90px}.idbuyim,.idbuyc{float:left}.whbthbgc{margin-top:90px;margin-left:20px;text-align:center}.fllt2{float:left;width:49%;margin-top:80px}.idbuyc{font-weight:700;font-size:32px;margin-top:20px}.ttintwr p{font-weight:700;font-size:24px}.ttintwr{width:385px;min-height:175px;color:444446;text-align:left;line-height:22px}.ttintwr_l{margin-left:10px}.ttintwr_l,.ttintwr_r{display:inline-block;vertical-align:top}.ttintwrimg{float:left;margin-right:10px;width:160px;height:120px}.vd1{max-width:683px;margin:auto;border:1px solid ccc;max-height:380px}.tmopuntwr{margin:20px;background:f0f4f7;margin-top:50px;padding-top:30px;padding-bottom:30px;min-height:300px}.tmopuntwr img{display:inline-block;max-width:350px}.t2faqsb{margin-left:150px;line-height:40px;font-size:20px}
@media screen and (max-width: 1000px){
.whbthbgc img{display:none}.template2icim {display: none;}.picoht {min-height: 150px !important;}.template2icim1, .template2icim3 {width: 230px!important;margin-left:60px;margin-bottom: 0px;}.whbthbg {max-width: 98%!important;}.fllt2 {width: 95%!important;}.template2icim2{display:none}.t2compth{margin-left:15px!important}.t2faqsb{margin-left:15px!important}.nnfeatwrap2{padding-left:0!important}.idbuyim{margin:0 3px 0 15px !important}.ttintwr{width:inherit!important}.tmopuntwr img{display:inline-block;max-width:250px!important}.ntcamwrap{color:000!important}.t2comptim img{max-width:155px!important .ncamdescr {font-size: 16px!important;color:000!important}
}

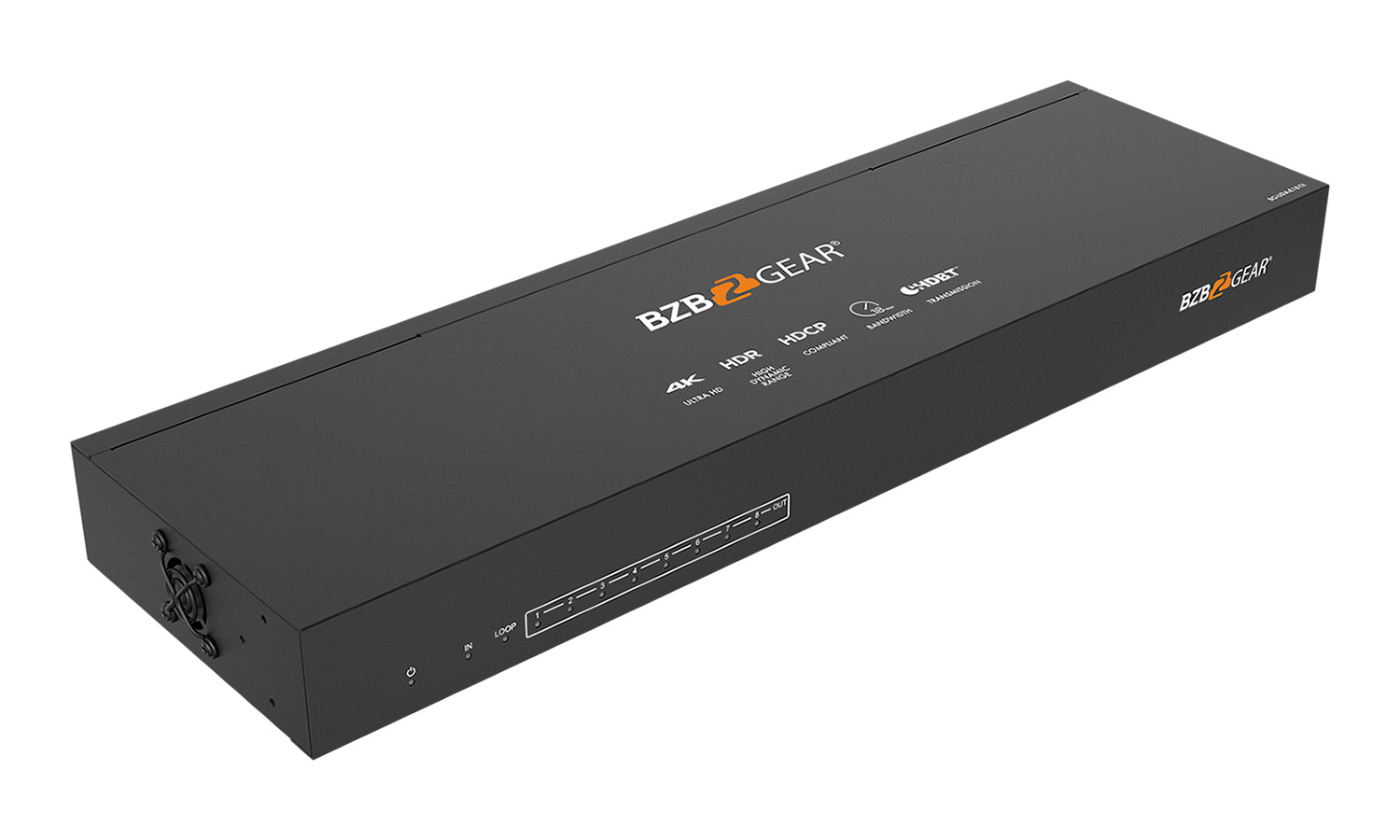

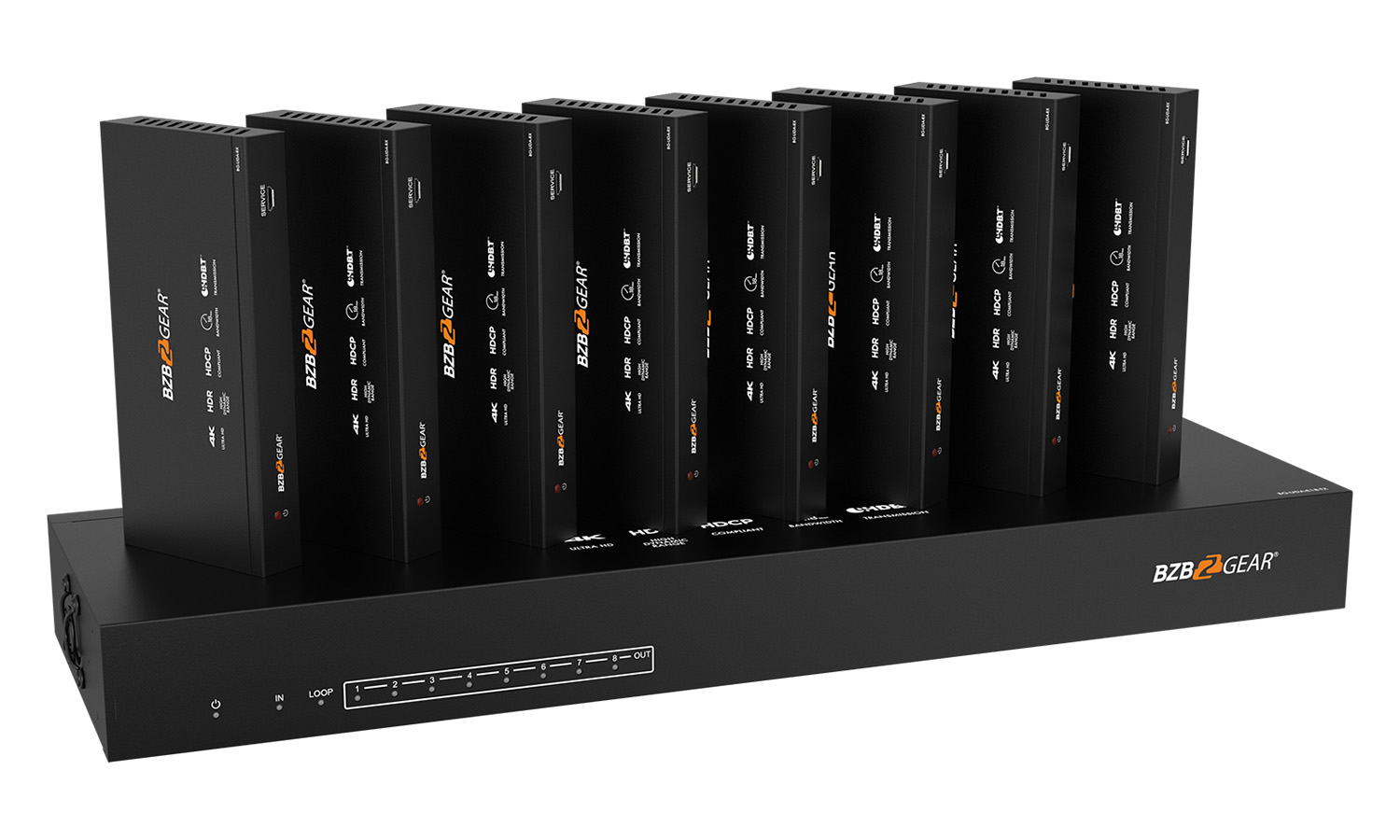

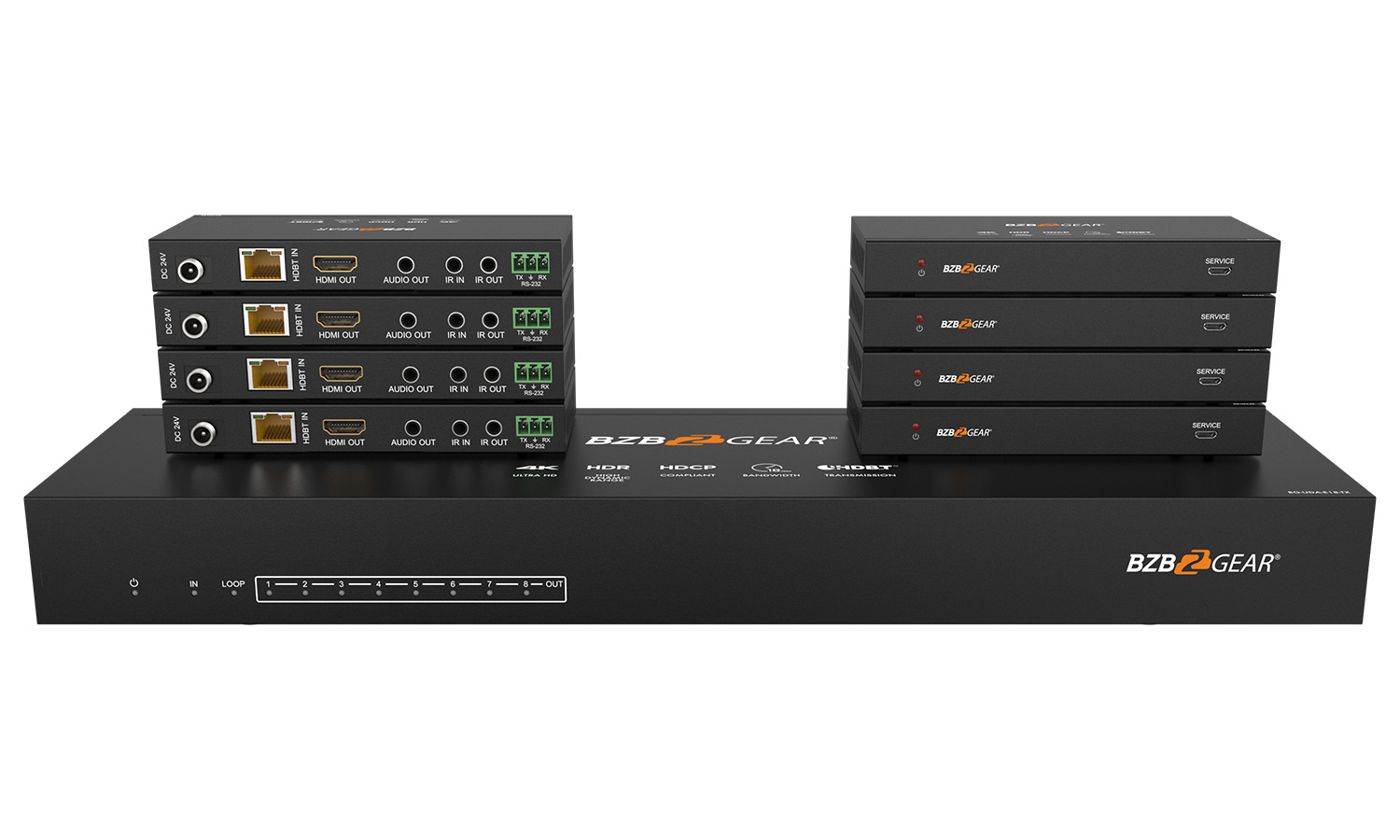

The BG-UDA-E18 is a 1×8 4K HDBaseT splitter/extender kit. Supporting resolutions up to 4K @ 60Hz, users can extend HDMI sources over category 6 cabling at distances up to 390 feet, or up to 490 feet at 1080P @ 60Hz with the included HDBaseT extenders. With the ability to connect to one local and eight remote displays, this unit is ideally suited for use in restaurants, sports bars, retail spaces, and auditoriums.

Connectivity and Features

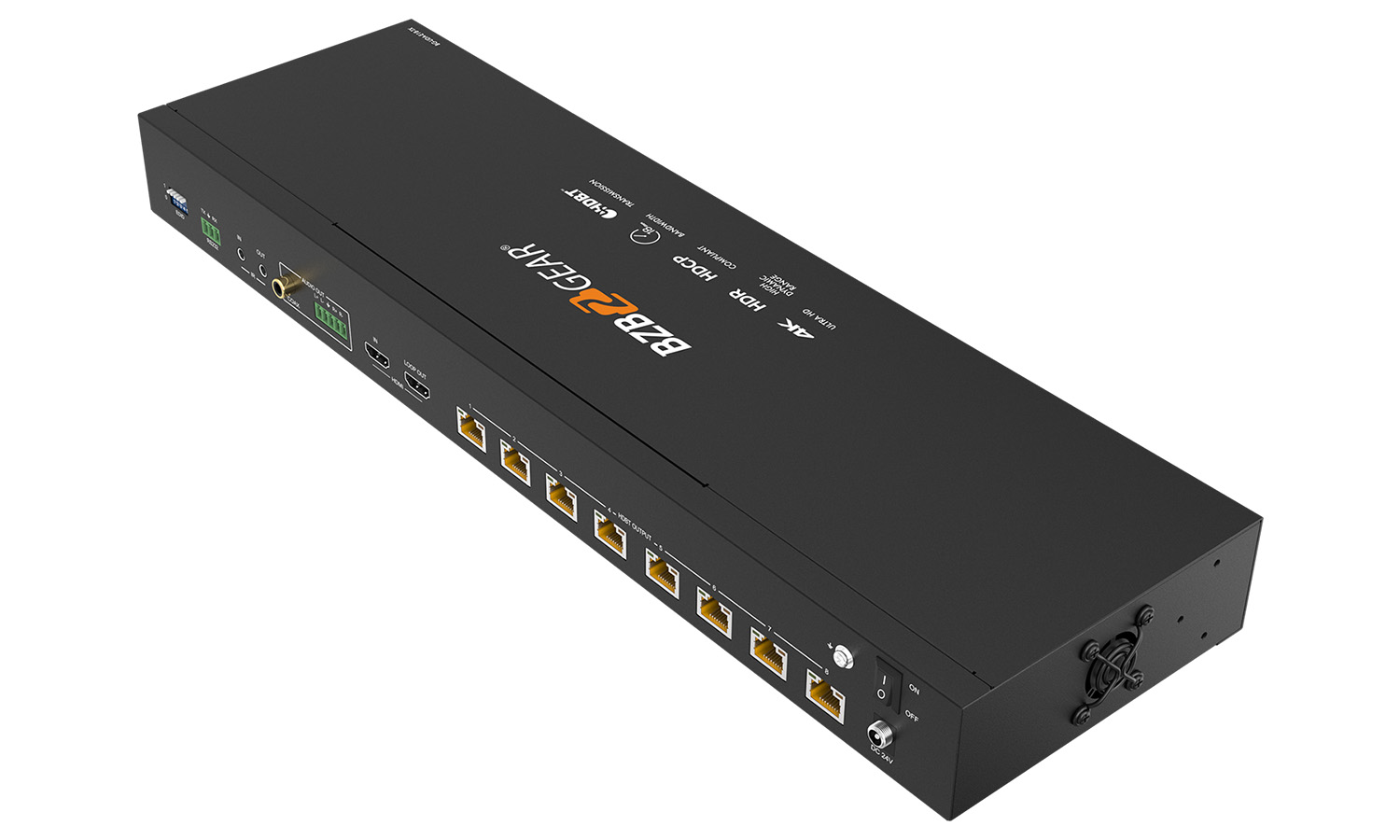

The BG-UDA-E18 supports a maximum resolution of 4K @ 60Hz 4:4:4. Compliant with HDMI 2.0b, HDCP 2.2, and HDCP 1.x, the transmitter offers EDID management to eliminate HDMI connection problems. The transmitter is equipped with an HDMI loop out connection for connection to a local display. One digital coax and one analog audio phoenix connector provide audio extraction from the source for connection to an external sound system.

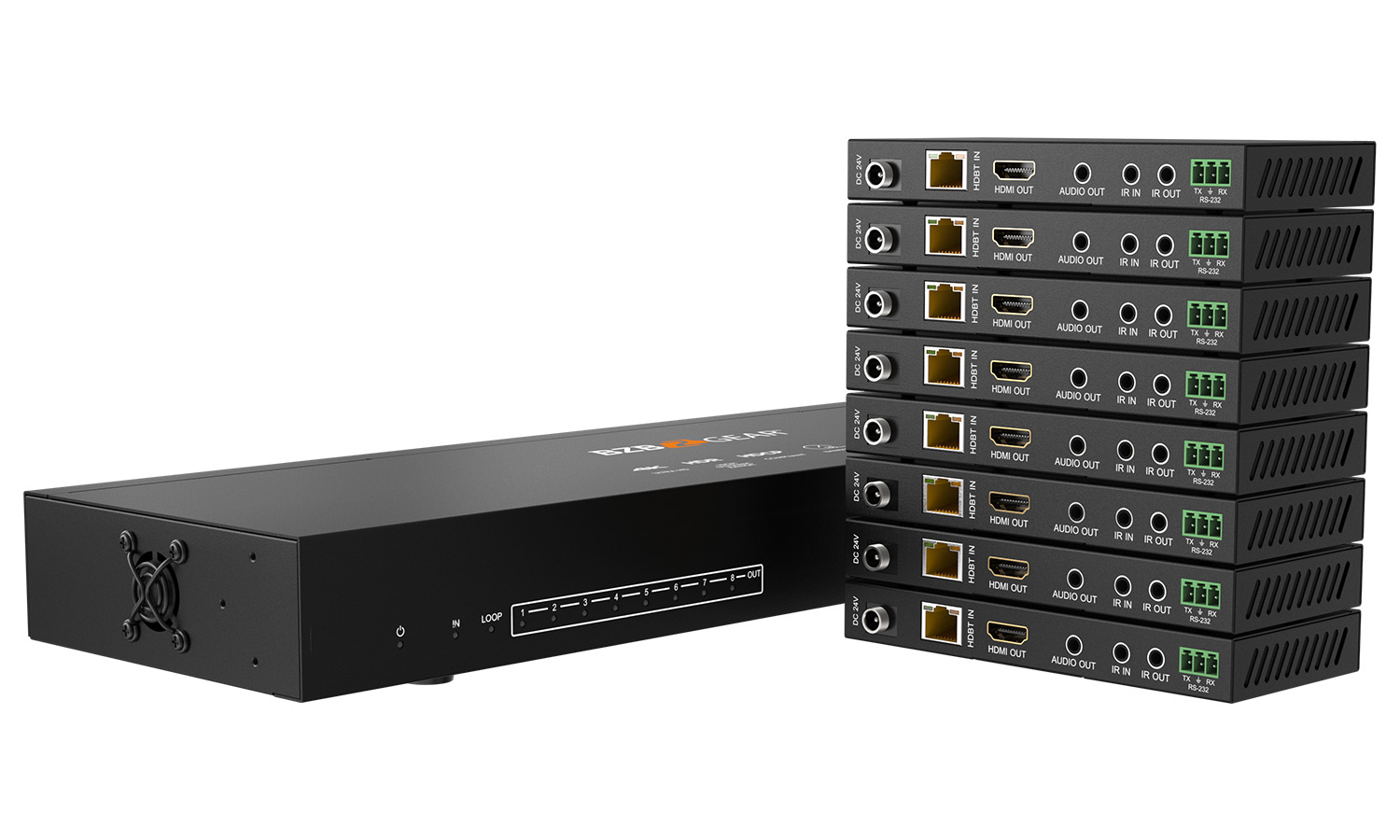

Each receiver features Power over Ethernet, eliminating the need for a power supply at the display-end and enabling a clean installation. Each receiver has a 3.5mm stereo output for connection to a local sound source. The slim design of the receivers helps them fit behind the displays, and each one is equipped with RS-232 passthrough and bi-directional IR passthrough for integration with control systems.

HDBaseT technology enhances the capabilities of the BG-UDA-E18 by providing extended transmission distances, simplifying cable management, maintaining high signal quality, enabling control signal transmission, supporting Power over Ethernet, and allowing for scalability in AV distribution setups. This makes it a valuable choice for applications where you need to distribute HDMI signals to multiple displays over long distances.

4K @ 60 4:4:4 Support:

Ultra HD refers to a TV resolution of 3840 x 2160 pixels

Multi-Channel Audio:

Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master

Long-Distance:

Transmit signal up to 120 meters (390 feet)

Compact Design:

Slim components make a clean installation easy

Power over Cable:

Receivers need no power supply

EDID Control:

Multiple selectable EDID modes ensure reliable connectivity

• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
• Support 18Gbps video bandwidth
• Support HDR, HDR10+, HLG and Dolby vision
• Support digital and analog audio de-embedded output
• Support 1 HDMI input, 1 HDMI loop output and 8 HDBaseT outputs
• IR, RS-232 routed to HDBaseT output

Interface

Video
