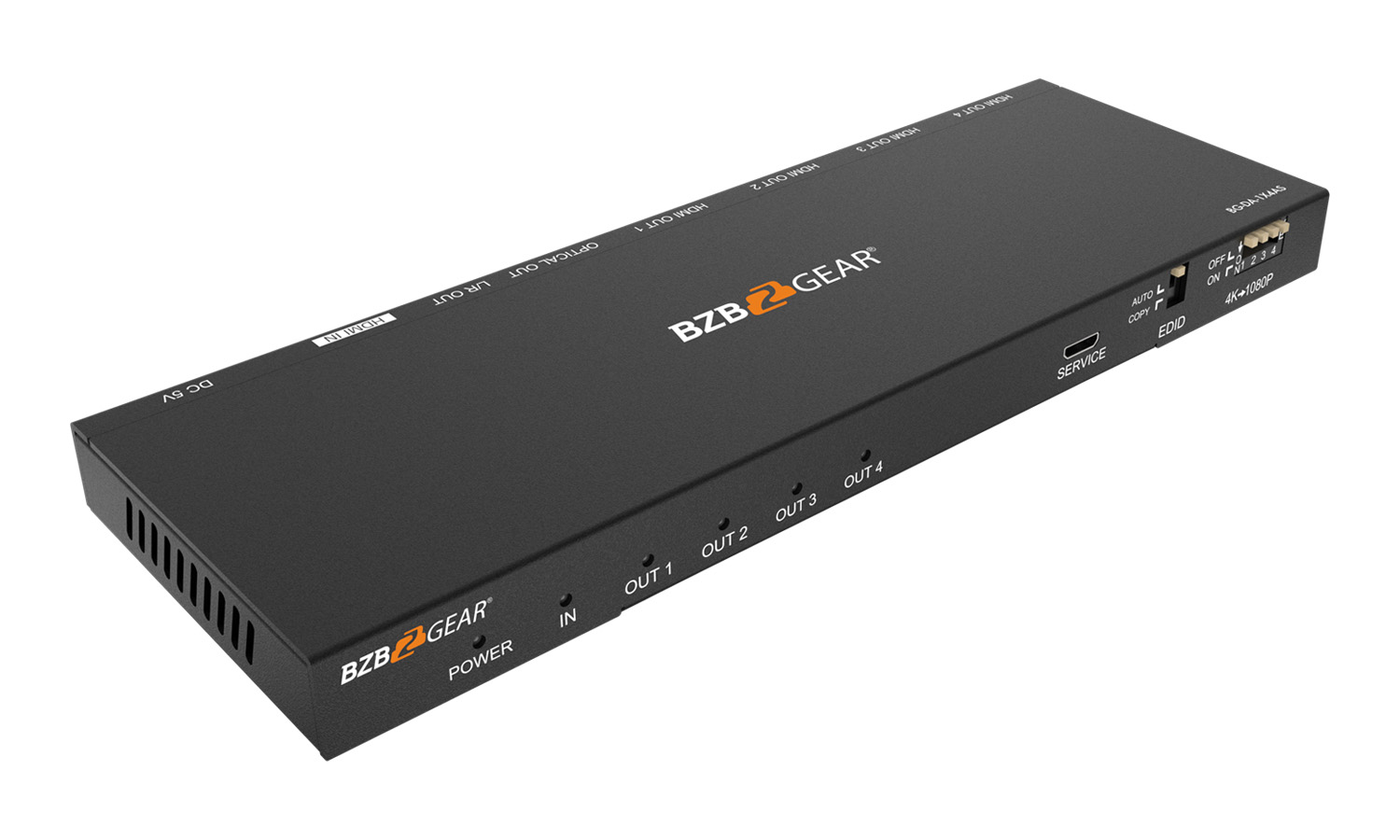

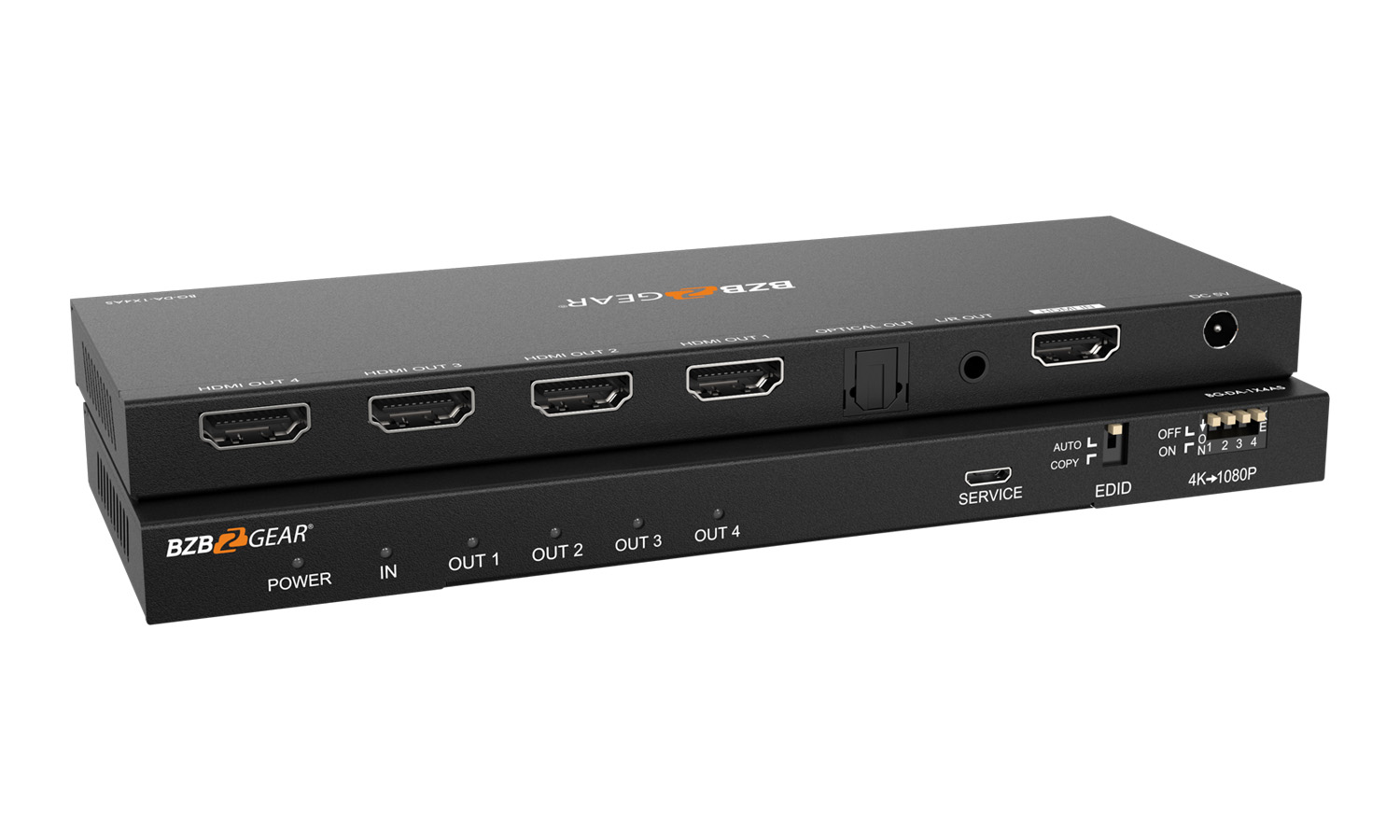

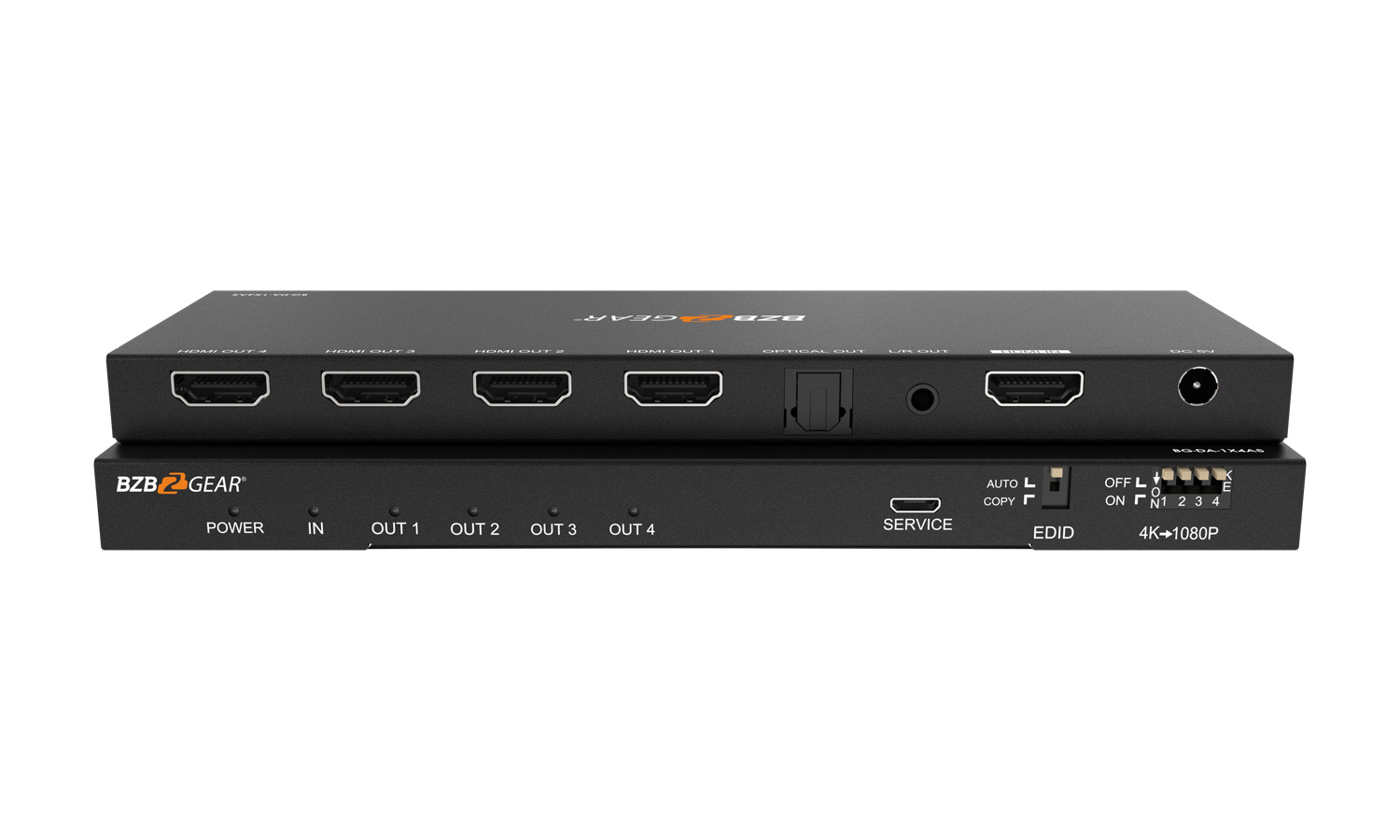

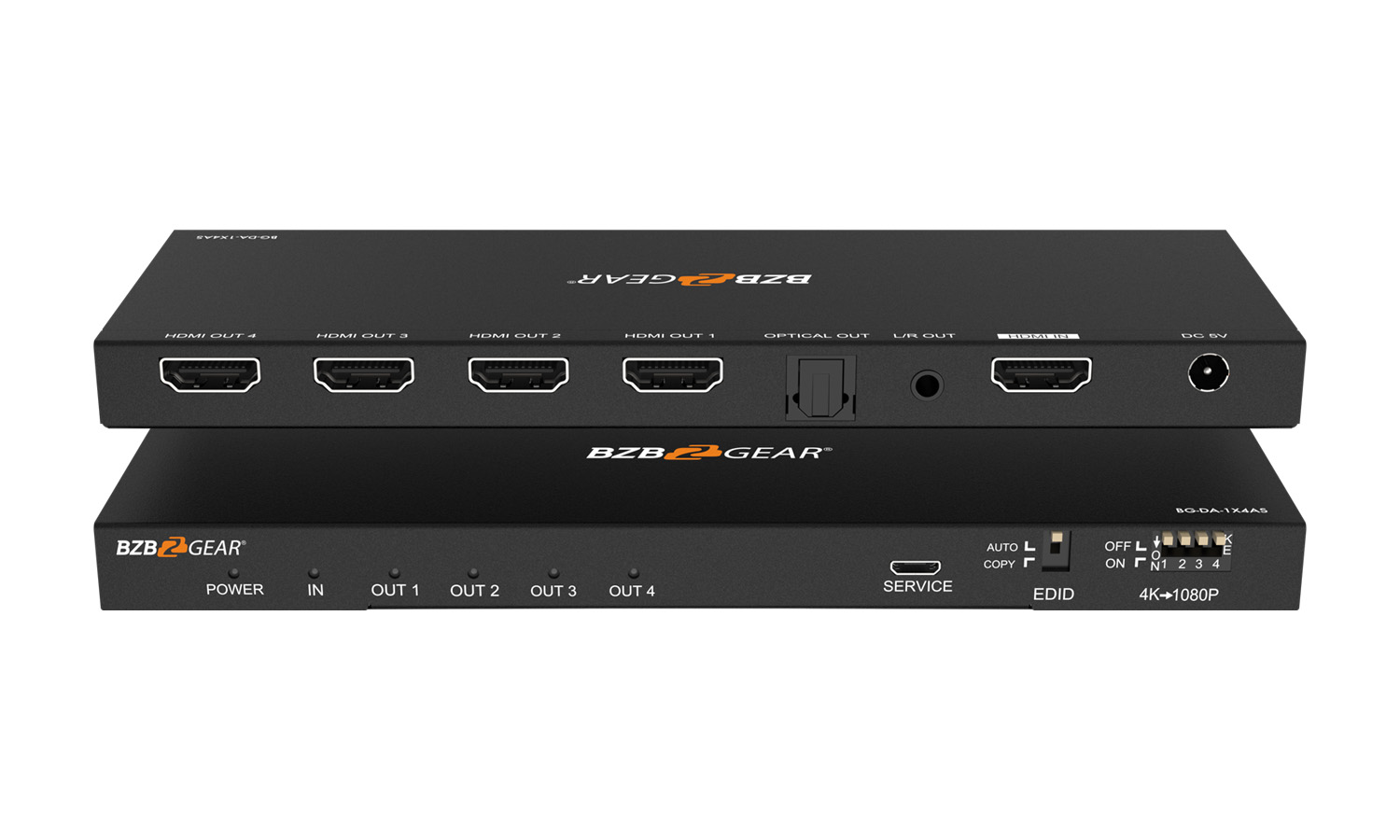

The BG-DA-1X4AS is a high-performance HDMI splitter designed for professional applications. It offers the ability to split one 4K @ 60Hz input signal into four lossless copies, making it perfect for sharing a single device with four displays. The splitter supports resolutions up to 4K @ 60Hz 4:4:4 and HDCP 2.2, providing exceptional picture quality and stability.
One of the key features of the BG-DA-1X4AS is its selectable 4K to 1080P downscaler for each output, which allows for compatibility with legacy displays. This feature makes it a versatile choice for installations that require flexible and adaptable video solutions.
The splitter also features EDID settings, which can be easily configured to COPY or AUTO modes, to help ensure more stable and seamless HDMI connections in different display situations.
In addition to its video capabilities, the BG-DA-1X4AS also provides audio extraction via optical and 3.5mm stereo outputs, enabling it to send signals to external audio systems. The splitter supports a variety of audio formats, including LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD, making it an ideal choice for professional audio and video installations.
The BG-DA-1X4AS is built with a durable metal housing, ensuring protection against everyday wear and tear, and providing long-lasting reliability. Its advanced features and robust construction make it a reliable and versatile tool for demanding professional AV installations.
Images with resolutions up to 4K @ 60Hz
Control individiual outputs to downscale from 4K to 1080P using dipswitches
High-Bandwidth digital content protection supported
Route once source to four separate HDMI outputs
Sturdy metal structure built to withstand years of operation
De-embed audio from HDMI and output via S/PDIF or 3.5mm

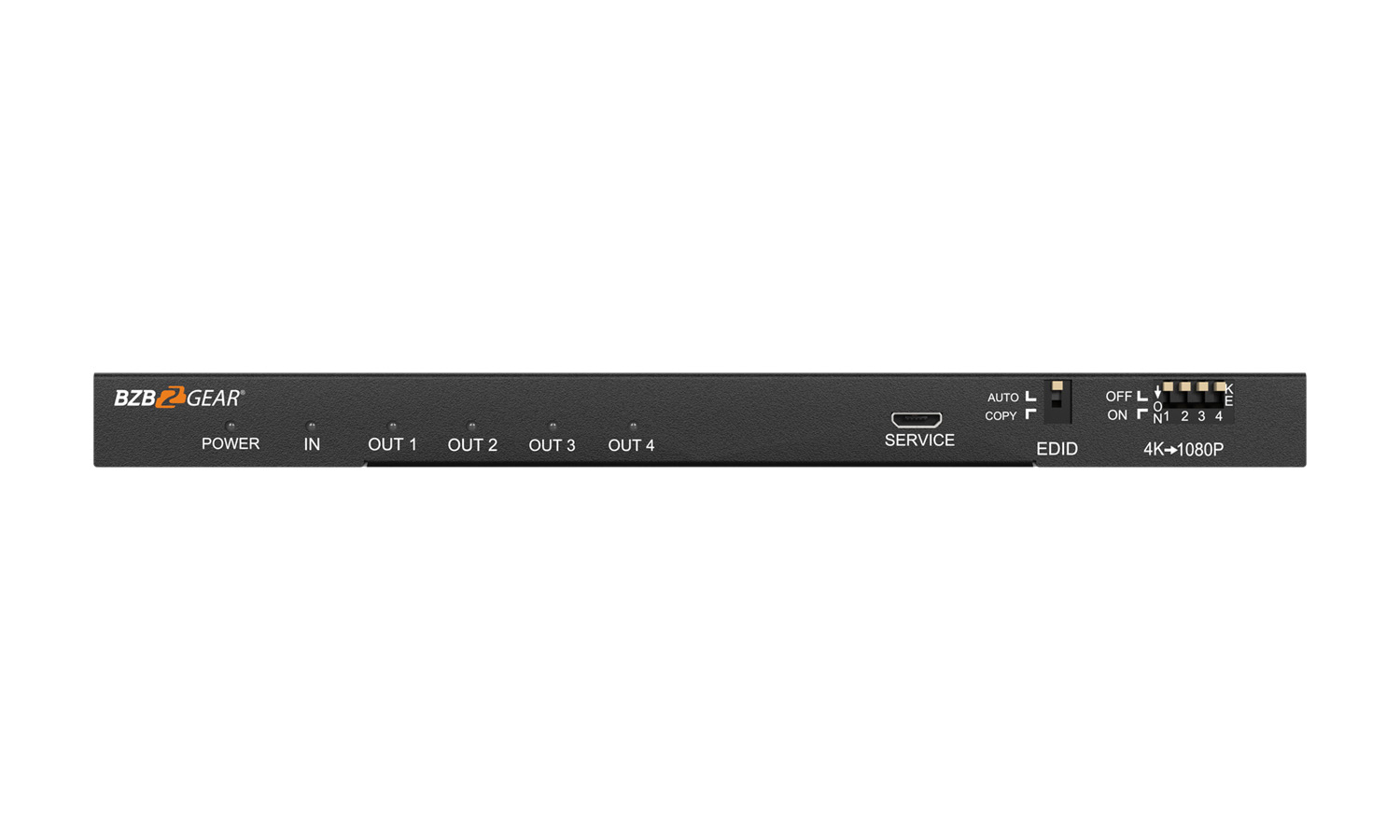

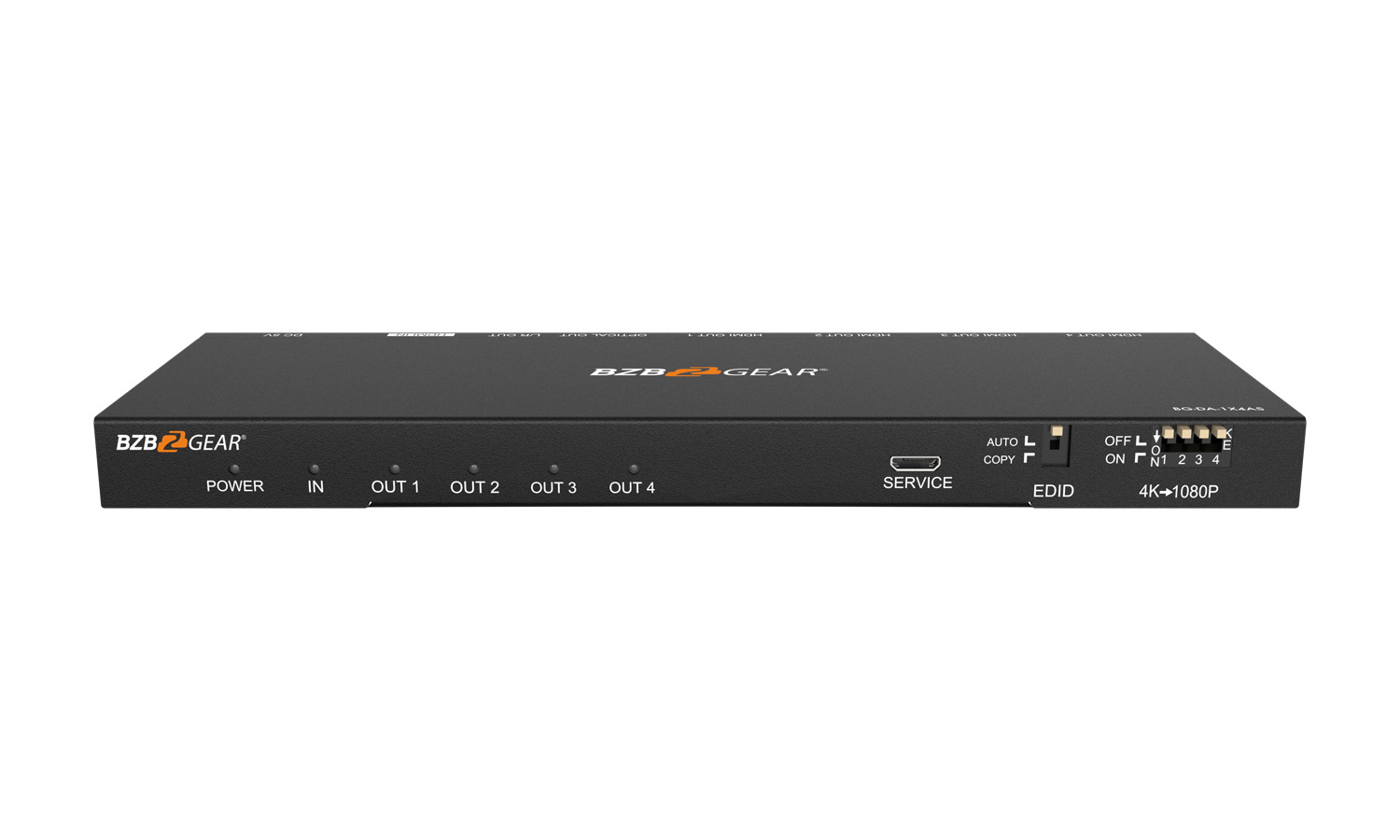

- EDID Copy, Auto, and Output downscaling via dip switches on panel

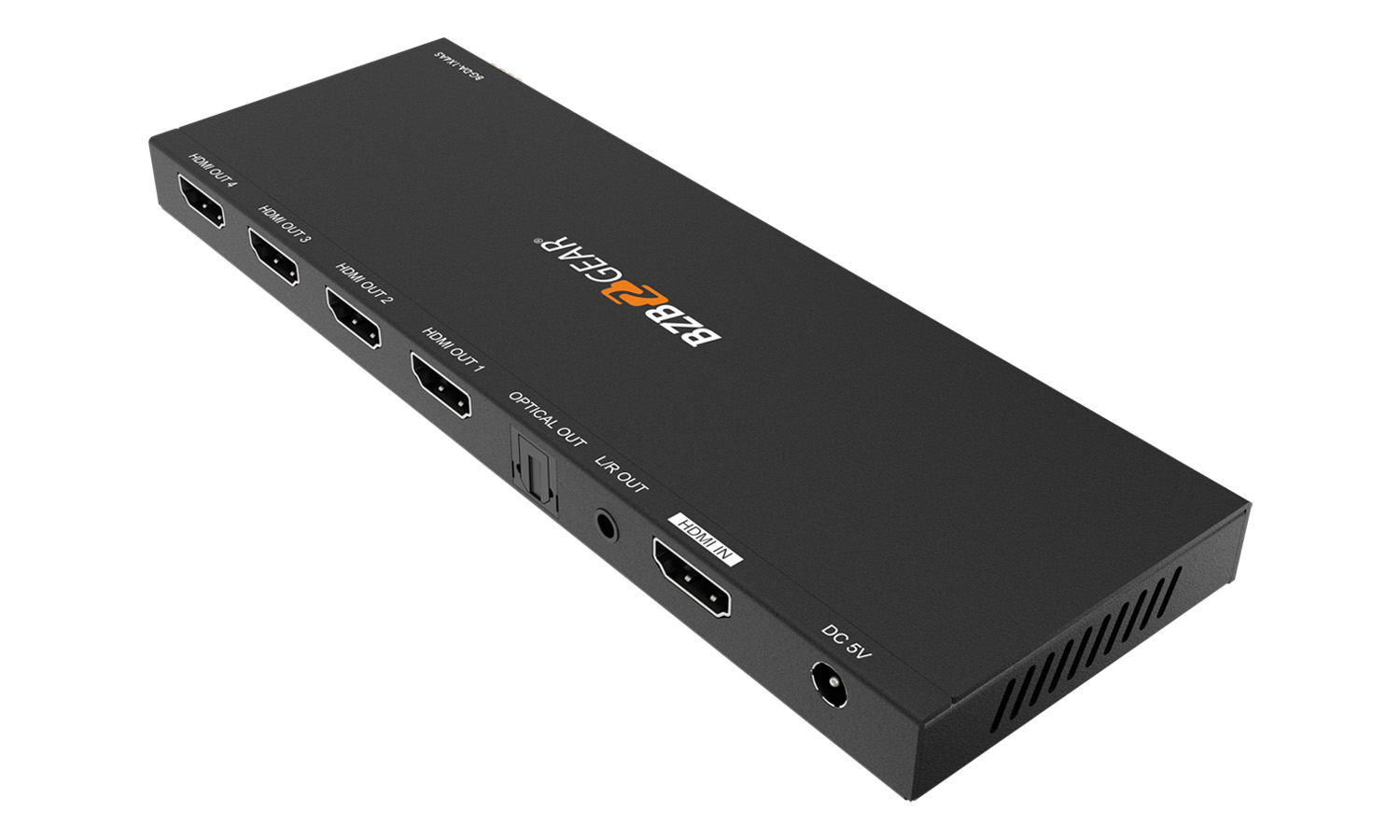

- 3.5mm stereo & S/PDIF optical output supports a variety of formats
- LED indicator lights to easily view HDMI connection status
