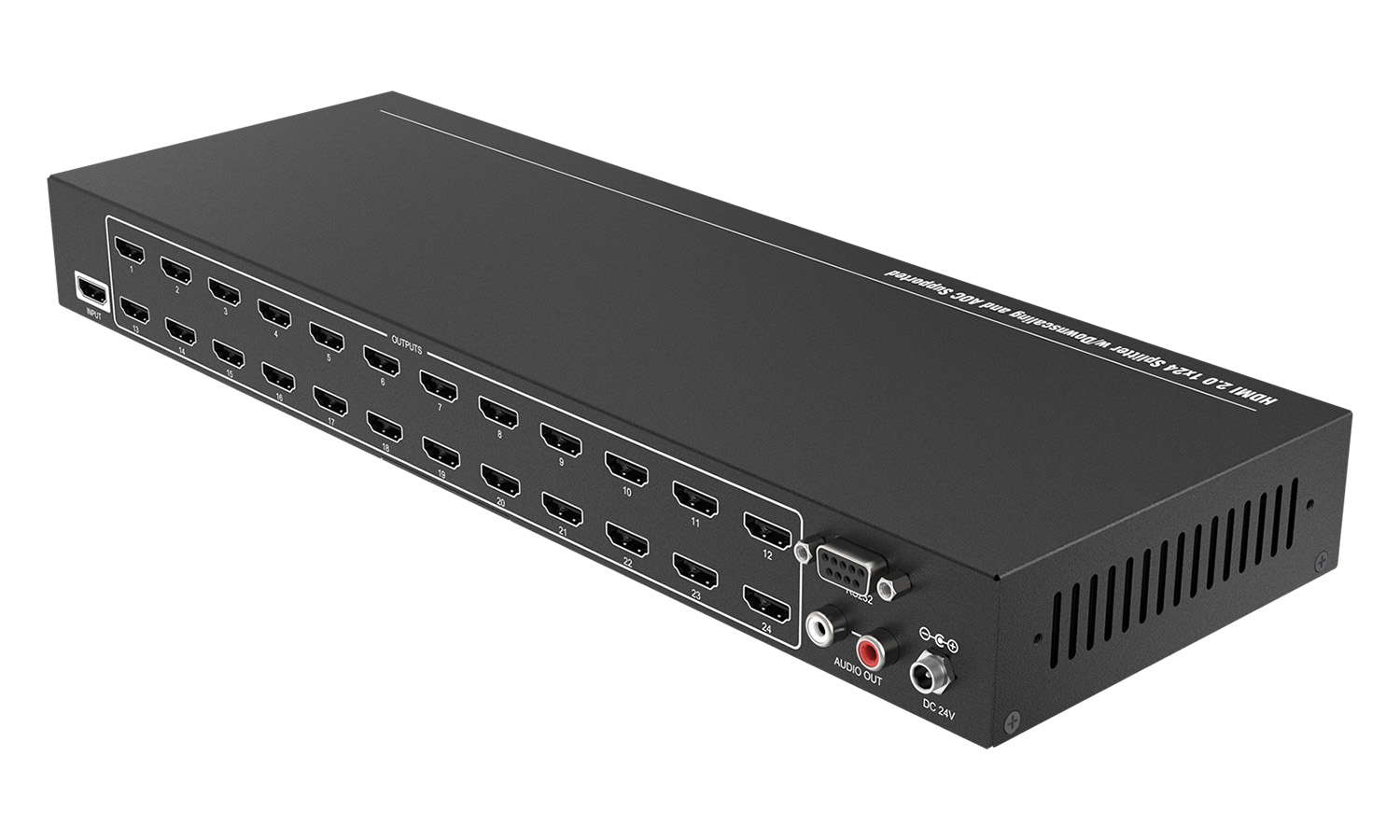

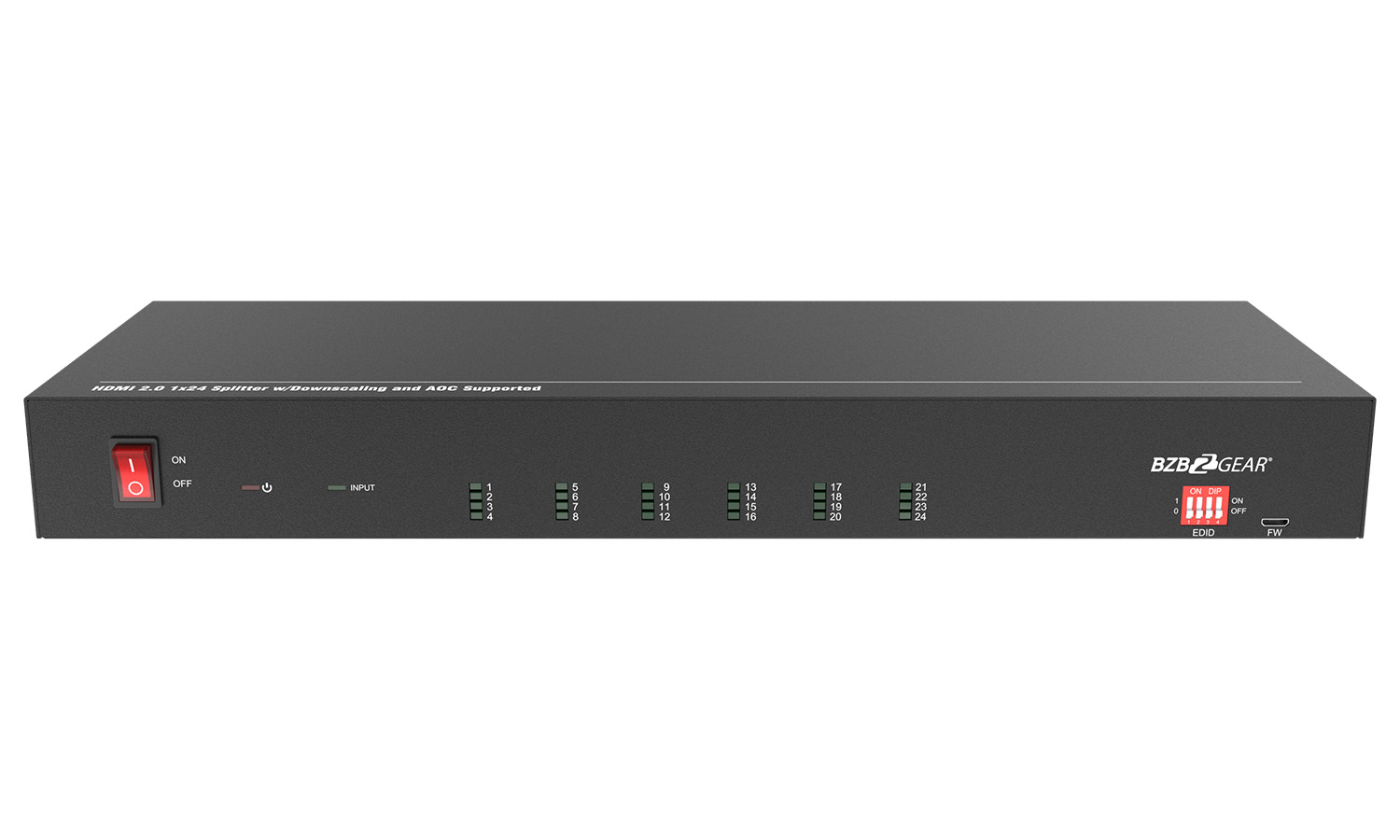

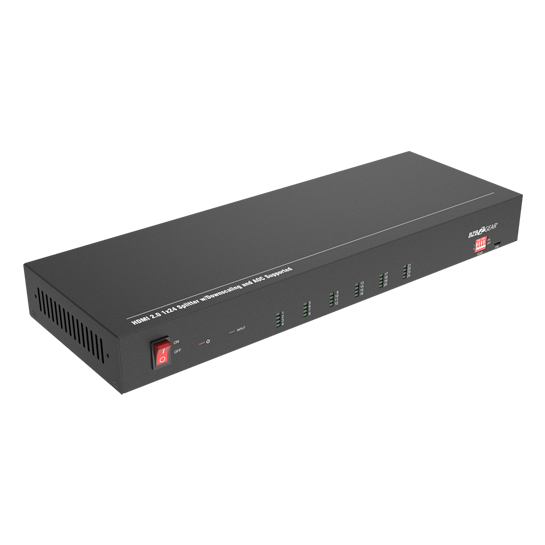

The BG-UHD-DA1X24 is a twenty-four port 4K HDMI splitter. Providing connectivity for up to twenty-four 4K displays, this device is perfect for large restaurants, bars, and retail spaces with multiple displays sharing a common video feed.

Connectivity & Features

The BG-UHD-DA1X24 supports a maximum input resolution of 4K @ 60Hz 4:4:4. It is HDCP 2.2 compliant and supports enhanced video formats including HDR 10 and Dolby Vision. With active optical cable (AOC) HDMI support, this device can be used with long-distance AOC HDMI cable runs of up to 165 feet.

The auto-downscaling function of the BG-UHD-DA1X24 provides compatibility with legacy 1080P displays. This helps eliminate compatibility issues and helps the device play nice with lower resolution screens. The device is also HDCP 2.2 compliant. When used with compatible displays, the HDMI CEC control function of the BG-UHD-DA1X24 can control power on and off for connected displays.

A set of DIP switches provide EDID management to stabilize the signal for connected devices. An analog RCA output provides audio extraction for connection to an external audio system. Essential system commands including EDID, HDCP, scaler settings, and reboot can be performed remotely via the RS232 input.
