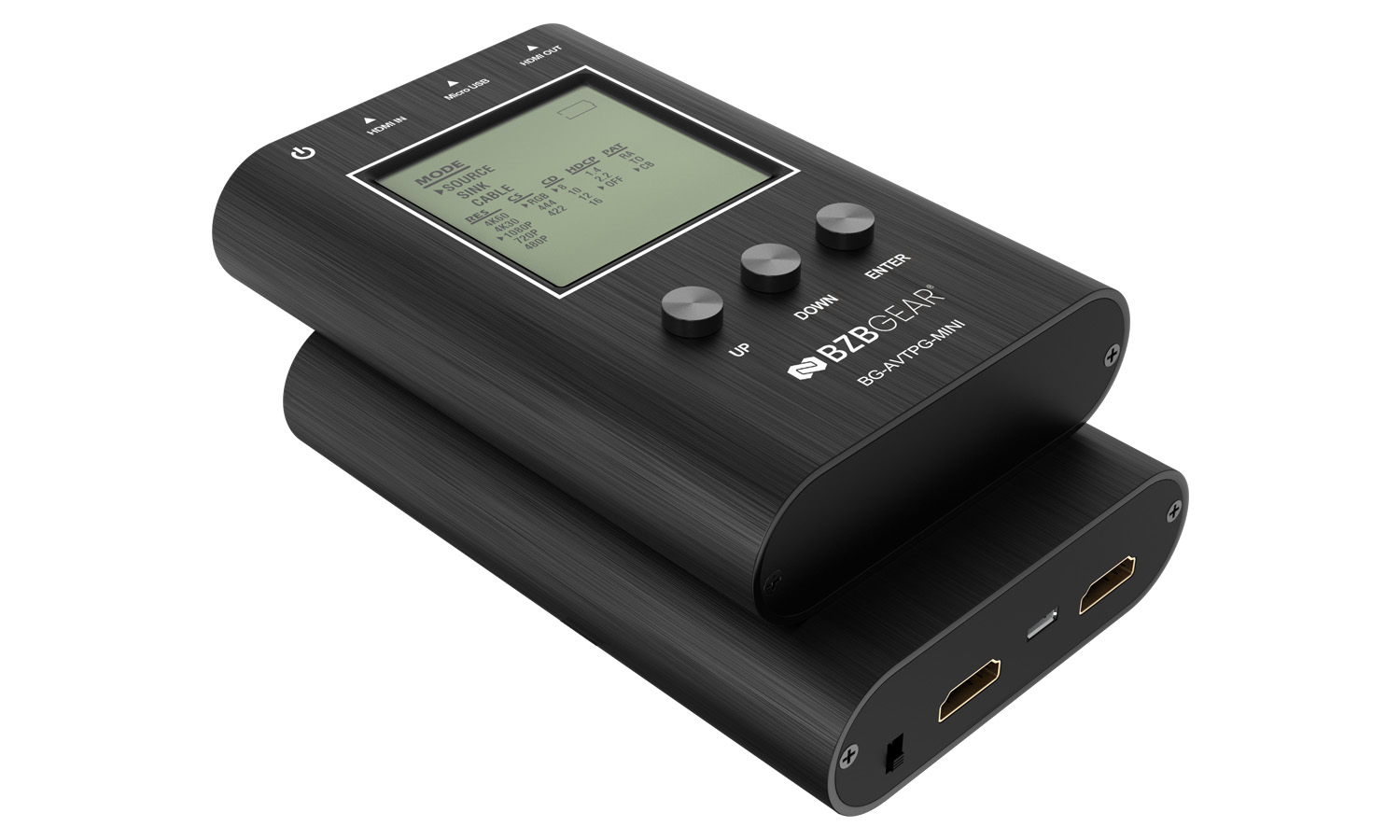

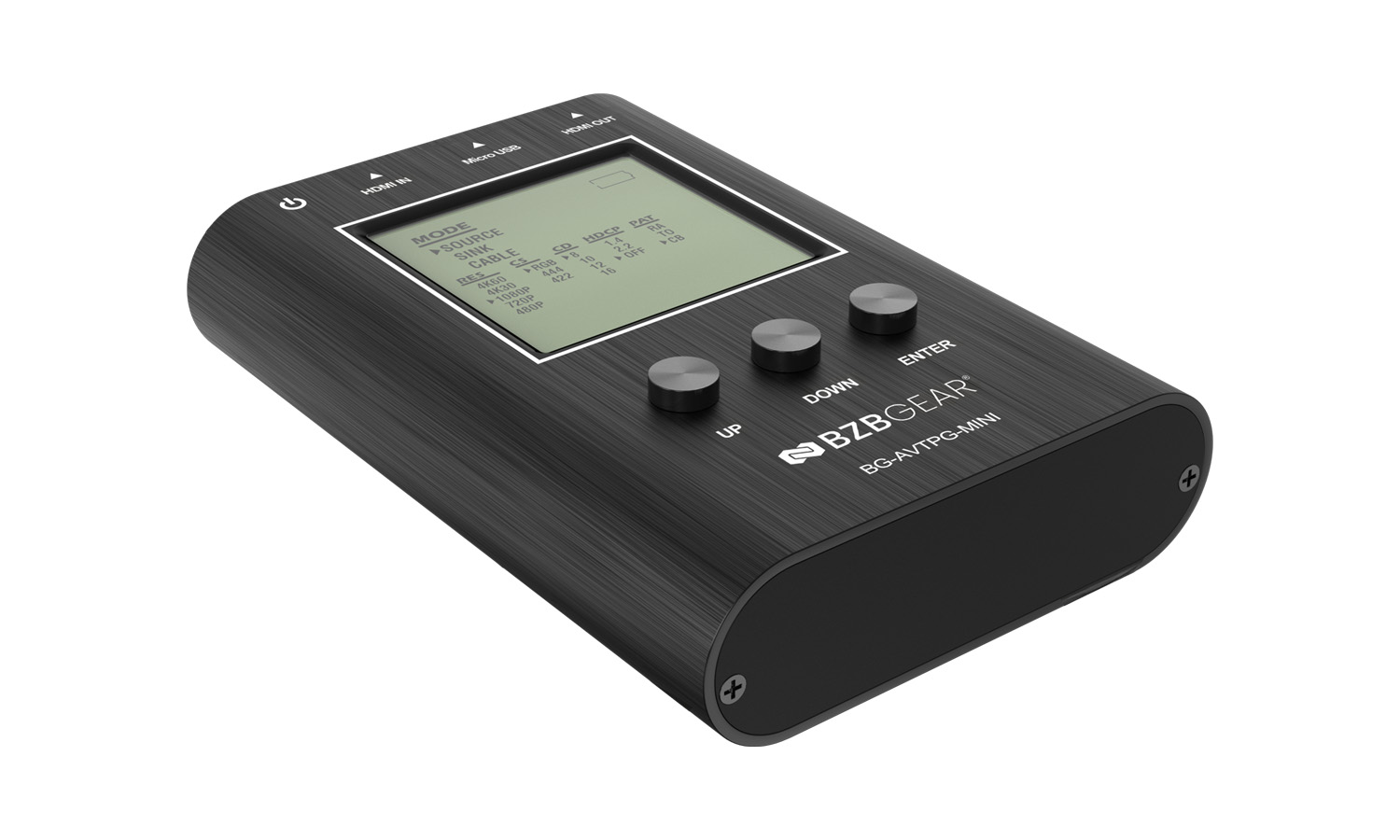

The BG-AVTPG-MINI is a portable handheld 4K signal analyzer and test pattern generator. Capable of generating and analyzing HDMI signals at resolutions up to 4096×2160 @ 60Hz 4:4:4. This powerful tool provides users with the ability to quickly test and verify HDMI cabling and equipment.

Features In-depth

Supports a maximum resolution of 4K2K @ 60Hz, the BG-AVTPG-MINI can generate and analyze signals with chroma subsampling rates of 4:4:4 8 bit and 4:2:0 16 bit (HDR). This analyzer is HDCP 1.4 and 2.2 compliant, allowing users to test a wide variety of 1080P and 4K HDMI devices. The rechargeable battery provides an operating time of up to three hours.

The BG-AVTPG-MINI features three useful video test patterns designed to demonstrate signal quality and stability. The adjustable color depth allows users to test range of the connected equipment’s capabilities. By connecting the HDMI output to the HDMI input, users receive a link quality estimate based on the HDMI 2.0 Character Error Detection.

TAA COMPLIANT PRODUCT. This product meets the standards of the Trade Agreement Act (TAA).

4K Support:

Supports up to 4K2K @ 60 4:4:4 8bit, HDR 10 bits, 12 bits 16 bits.

18Gbps/HDMI 2.0:

The maximum bandwidth possible due to the introduction of HDMI 2.0.

Easy to Use:

Simple for anyone to learn.

HDCP 2.2:

HDCP 1.4 and 2.2 compliant.

Mobile:

Hand-held pocket size with 3 hour battery life.

Multiple Patterns:

Easily and quickly test HDMI devices.

Supports video resolution outputs up to 4K2K @ 60 4:4:4 8bit, HDR 10bits, 12bits, 16bits
Fundamental HDMI feature analysis up to 4K2K @ 60 4:4:4 8bit HDMI 2.0 input
Provides statistics analysis for cable quality or connection stability
Rechargeable battery design with short charging time about 3 hours

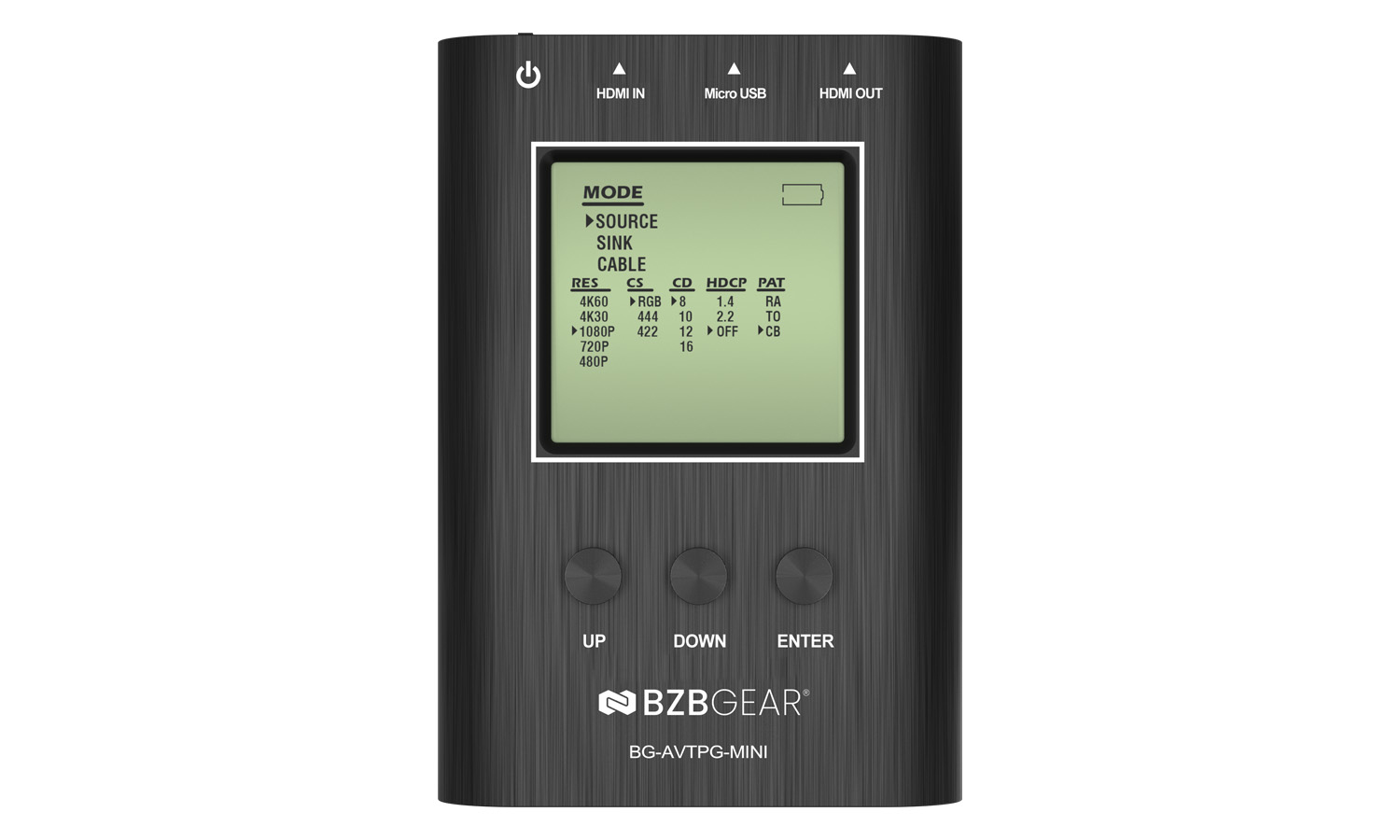

Built-in 3 video patterns
HDCP 1.4 and 2.2 compliant

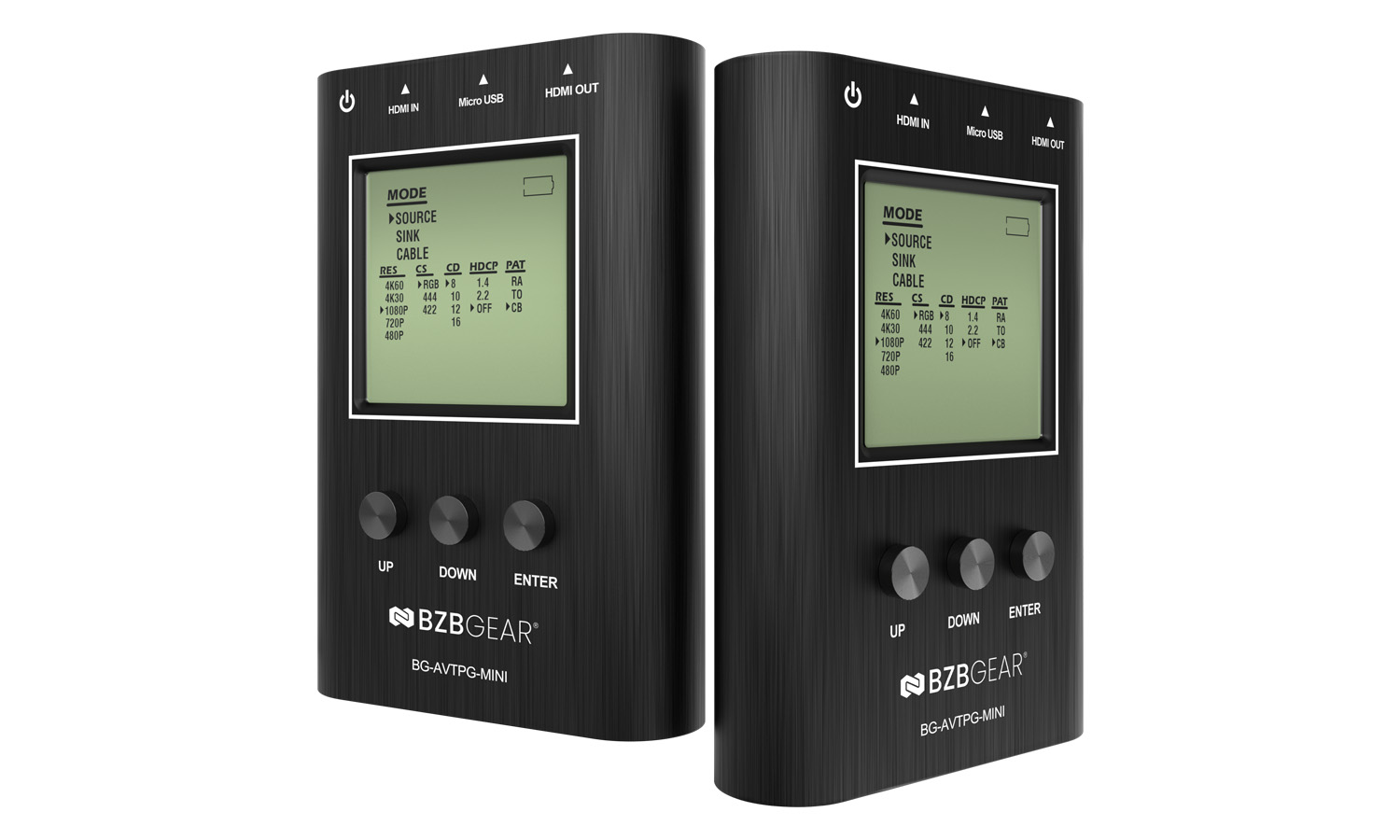

Hand-held pocket size

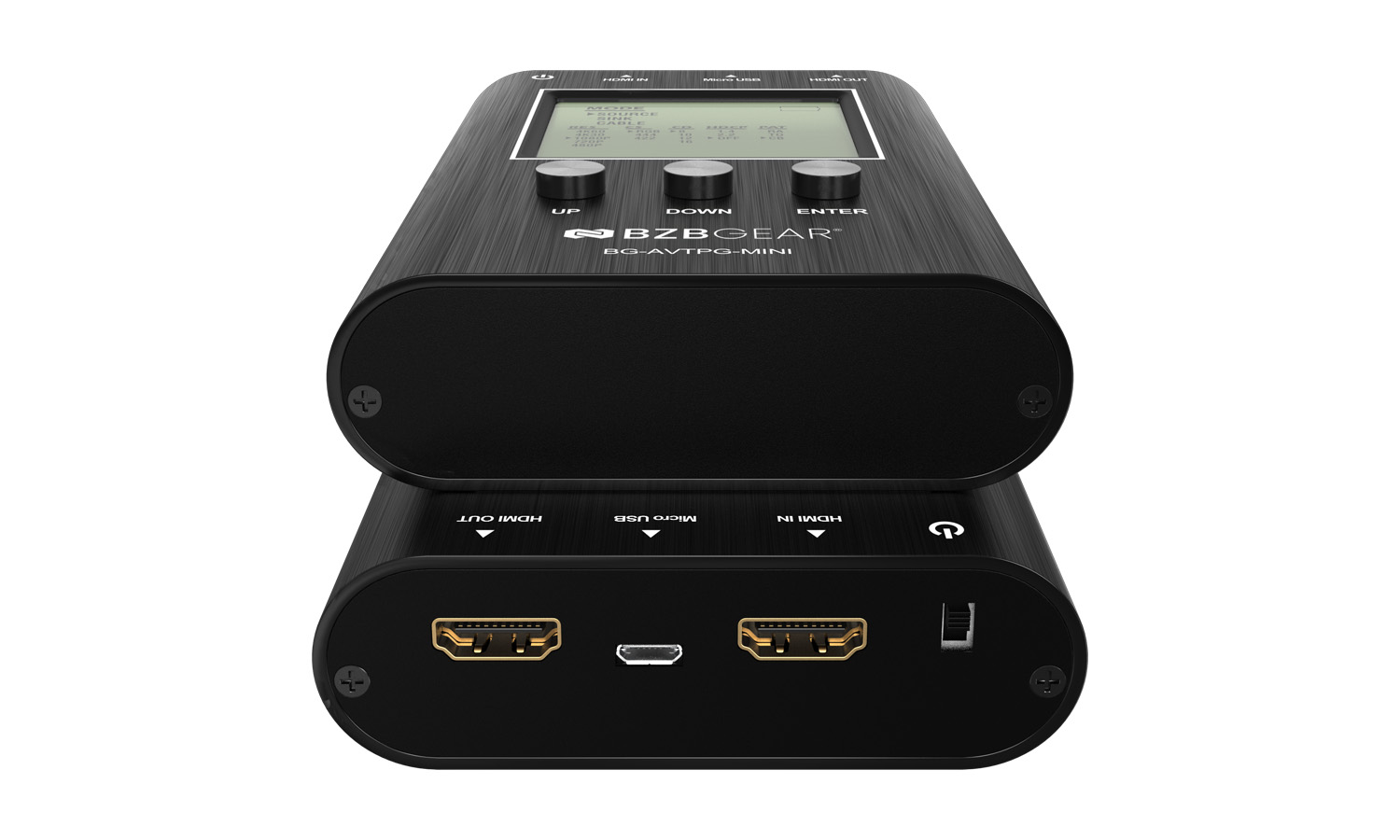

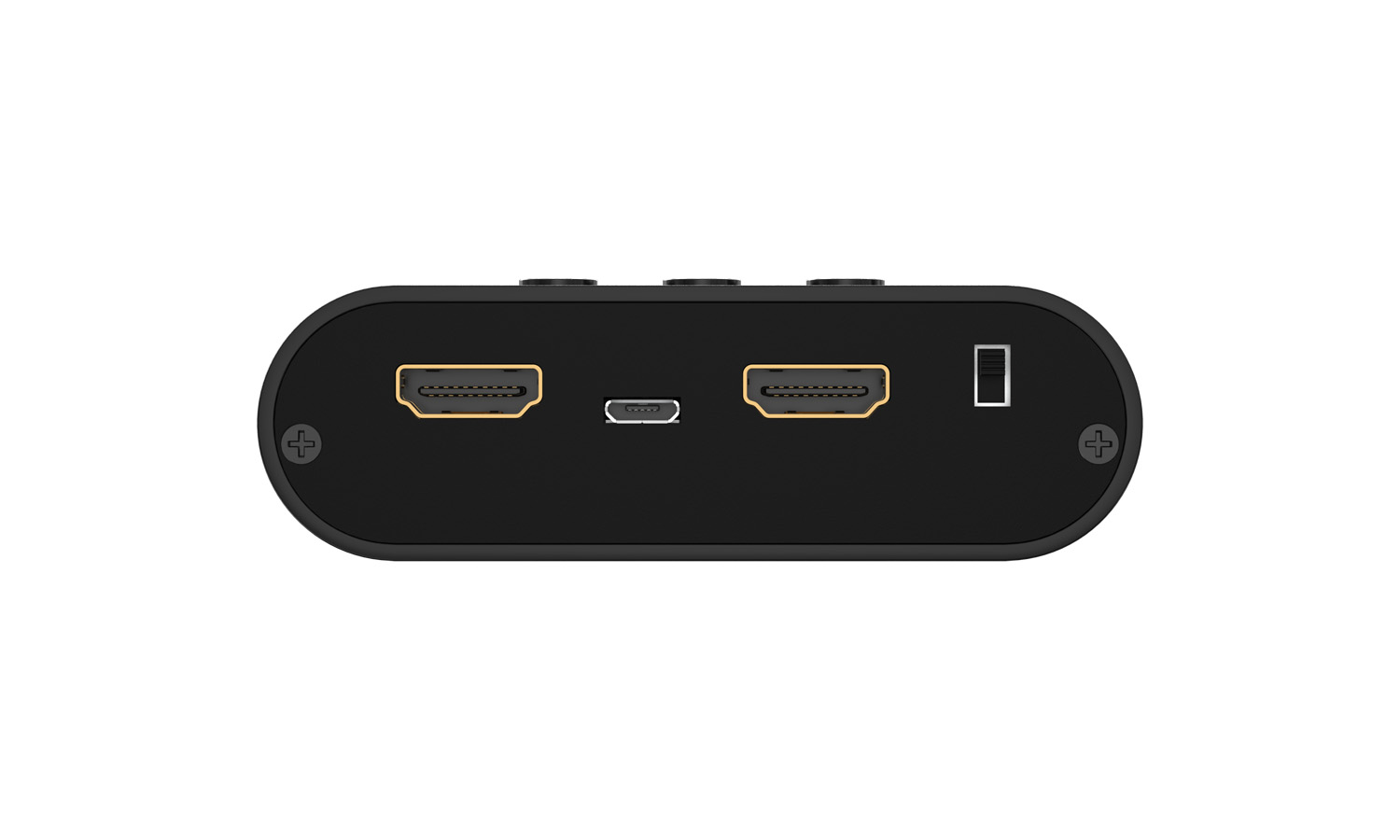

Both HDMI input and output support up to HDMI 2.0
Tests cable quality
Battery powered for portability, it can extend operation time with full load up to 3 hours
