Description

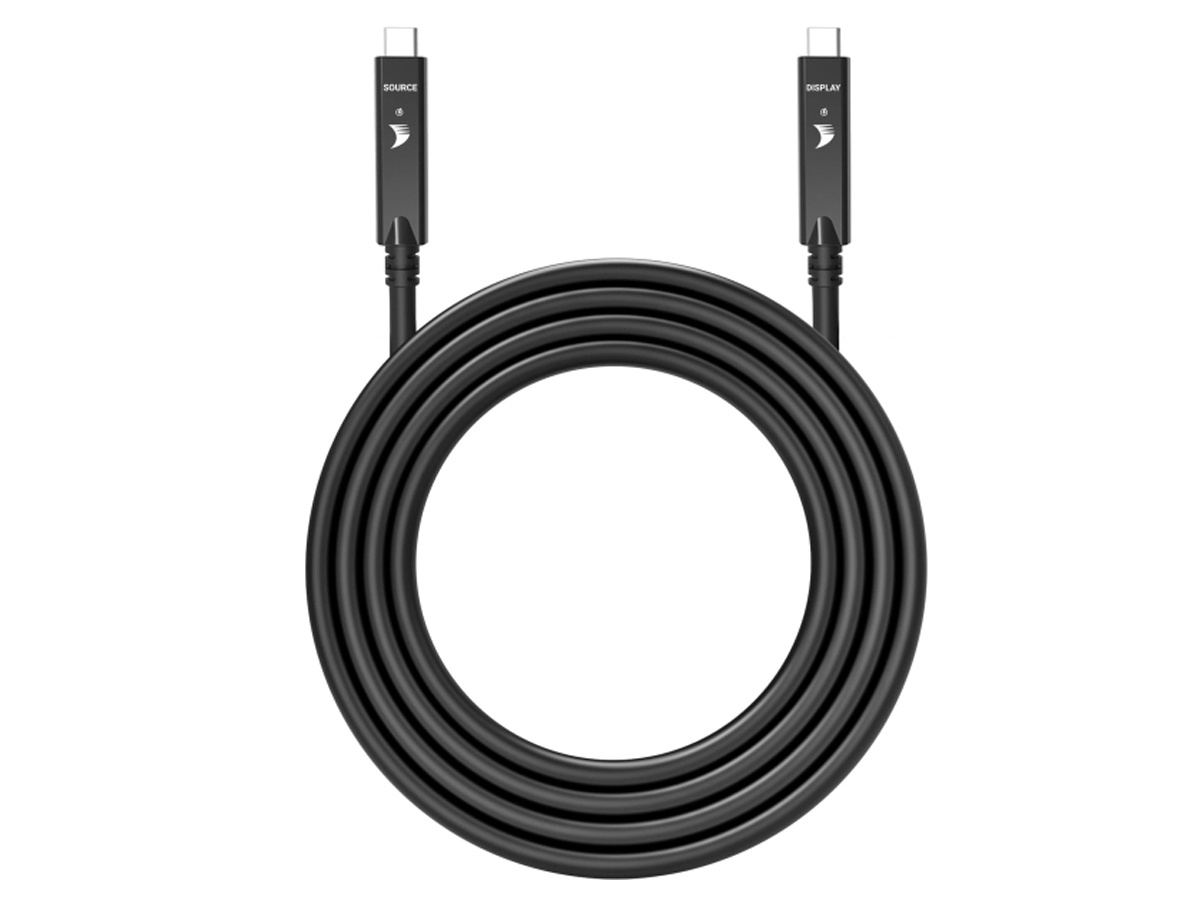

The CAB-UAOC-USBC-10 is a 10 meter USB-C active optical cable engineered for professional AV and broadcast environments. It delivers combined video, data and power over a single USB-C connection and supports modern DP Alt Mode configurations. This product is designed to provide reliable long-reach connectivity where consistent bandwidth and compatibility matter.

This cable features an adaptive dual MCU design that toggles between 2-lane DP1.4 + USB 3.2 and 4-lane DP2.1 + USB 2.0 modes to maximize compatibility across devices. It supports up to 20Gbps data transfer and provides 60W Power Delivery to connected hosts and peripherals. The adaptive mode minimizes handshake failures common with fixed-mode AOCs.

Performance characteristics include support for 8K-capable video bandwidth when operating in the appropriate DP Alt Mode and a 20Gbps data channel for high-speed transfers. Bandwidth options are specified as U3: 10Gbps x 2 + DP1.4 (8.1Gbps x 2) and U2: 480Mbps + DP2.1 (10Gbps x 4). Mechanical specs include a 6.5mm outer diameter, Kevlar filler, TPE jacket, 65mm minimum bend radius and 150N tensile strength.

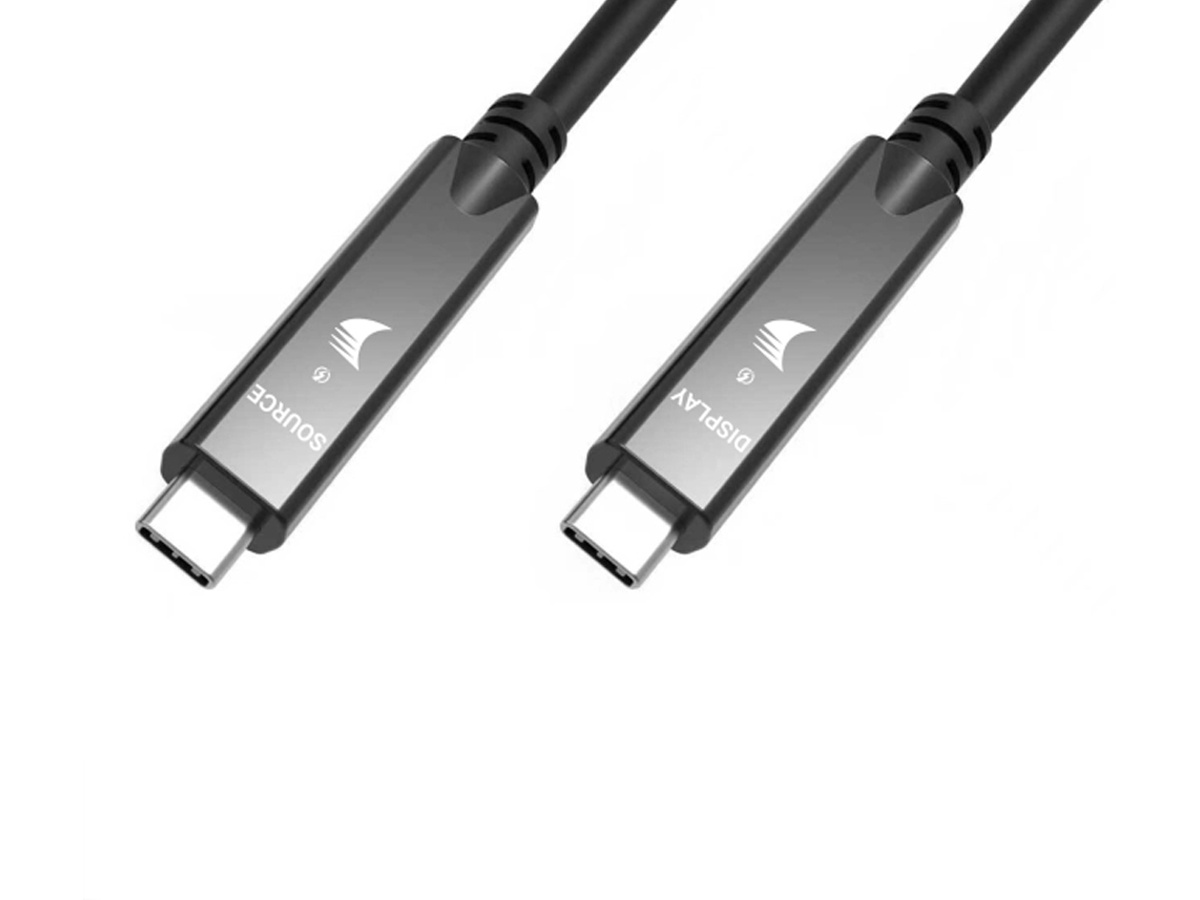

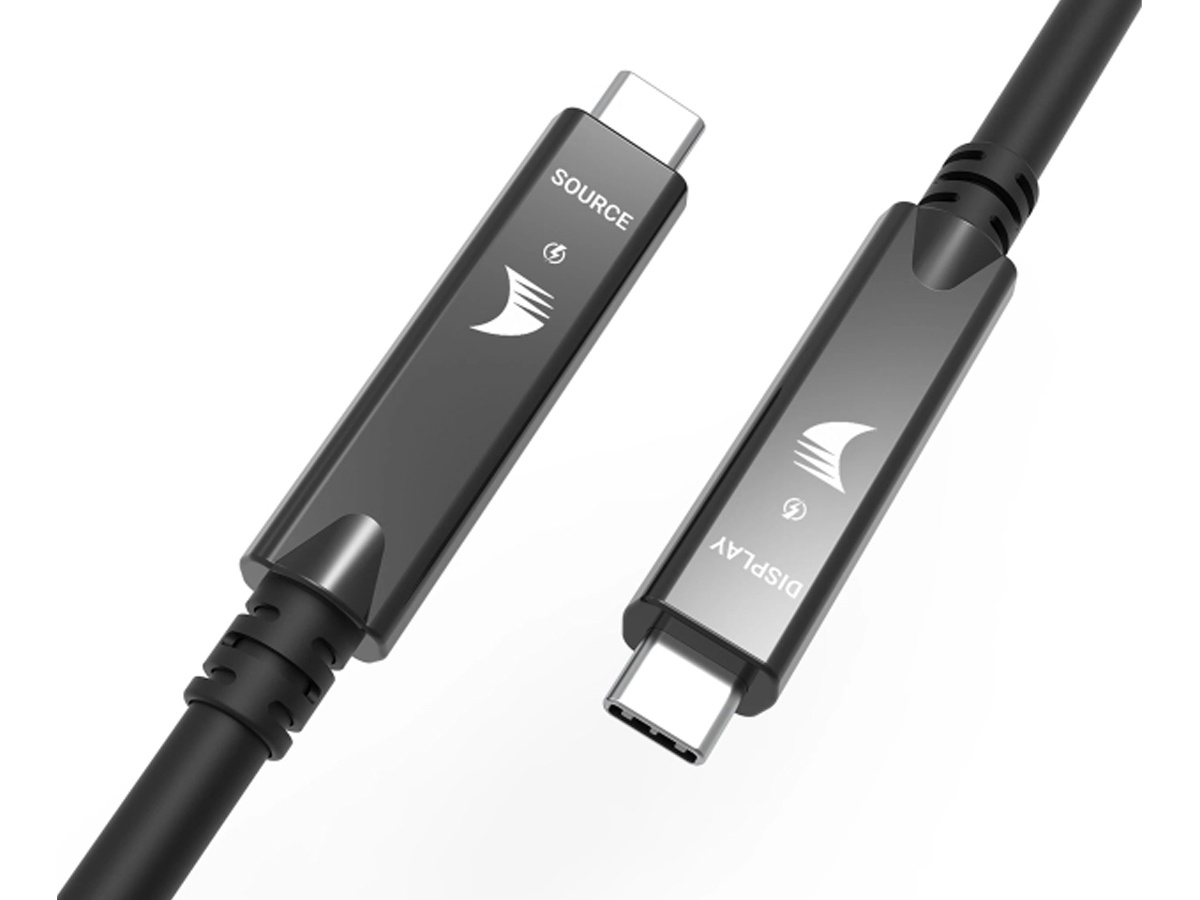

Connectivity is a USB Type-C male to USB Type-C male interface that supports DP Alt Mode and USB 3.2 host/device interactions. The cable is compatible with laptops, displays, docking stations and conferencing systems that support USB-C DP Alt Mode and PD. Regulatory certifications include CE, FCC, RoHS, RCM and EAC for broad market compliance.

The CAB-UAOC-USBC-10 is suited to conference rooms, classroom AV installs, broadcast studios and enterprise workspaces where stable video and data over long runs is required. It enables single-cable setups for displays and collaboration systems, reducing cable clutter and simplifying deployment. The adaptive behavior also helps when mixing devices with differing DP lane implementations.

Installation is plug-and-play with no drivers required and the cable is built for professional use with Kevlar reinforcement and a flexible TPE jacket. The cable maintains a small 65mm bend radius for tight routing and offers 60W PD to power compatible endpoints. These build choices deliver durability and consistent operation in integration projects.
