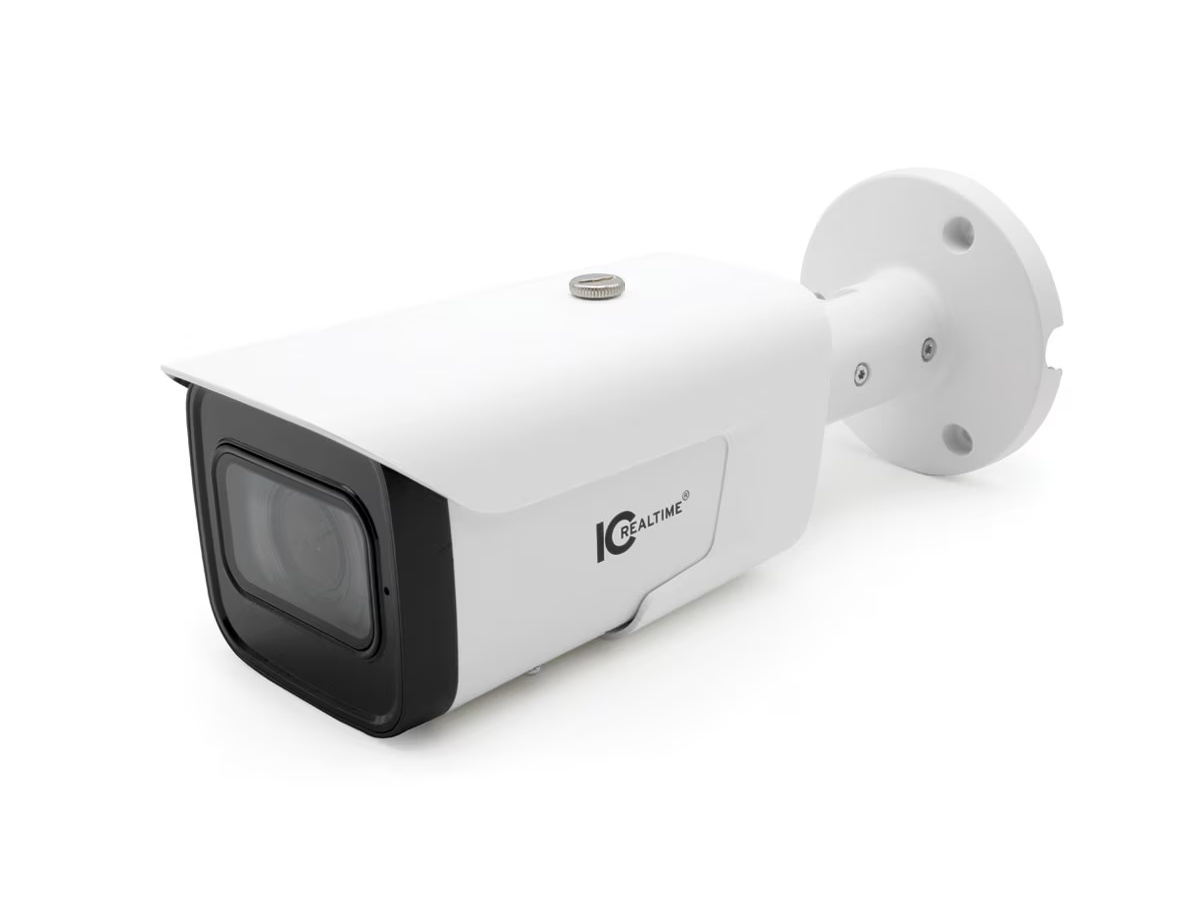

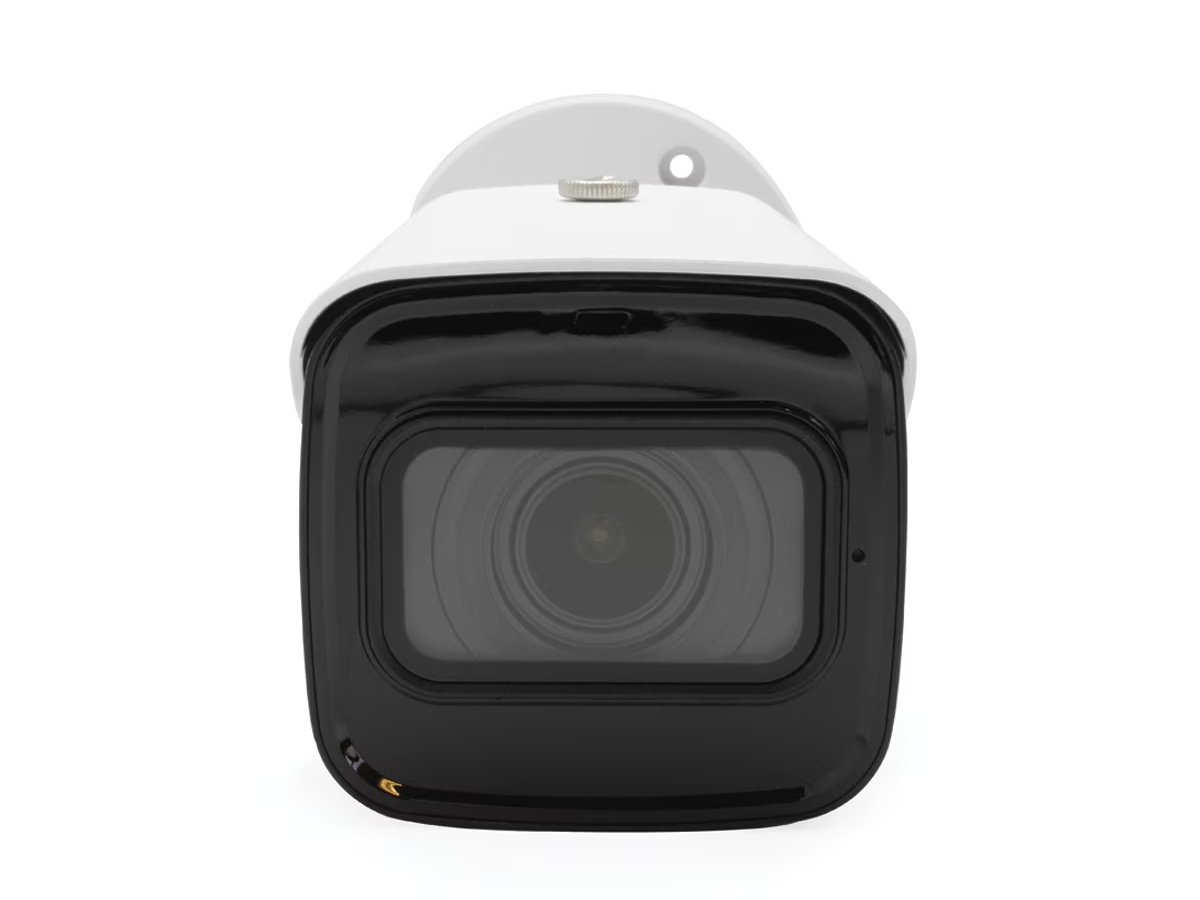

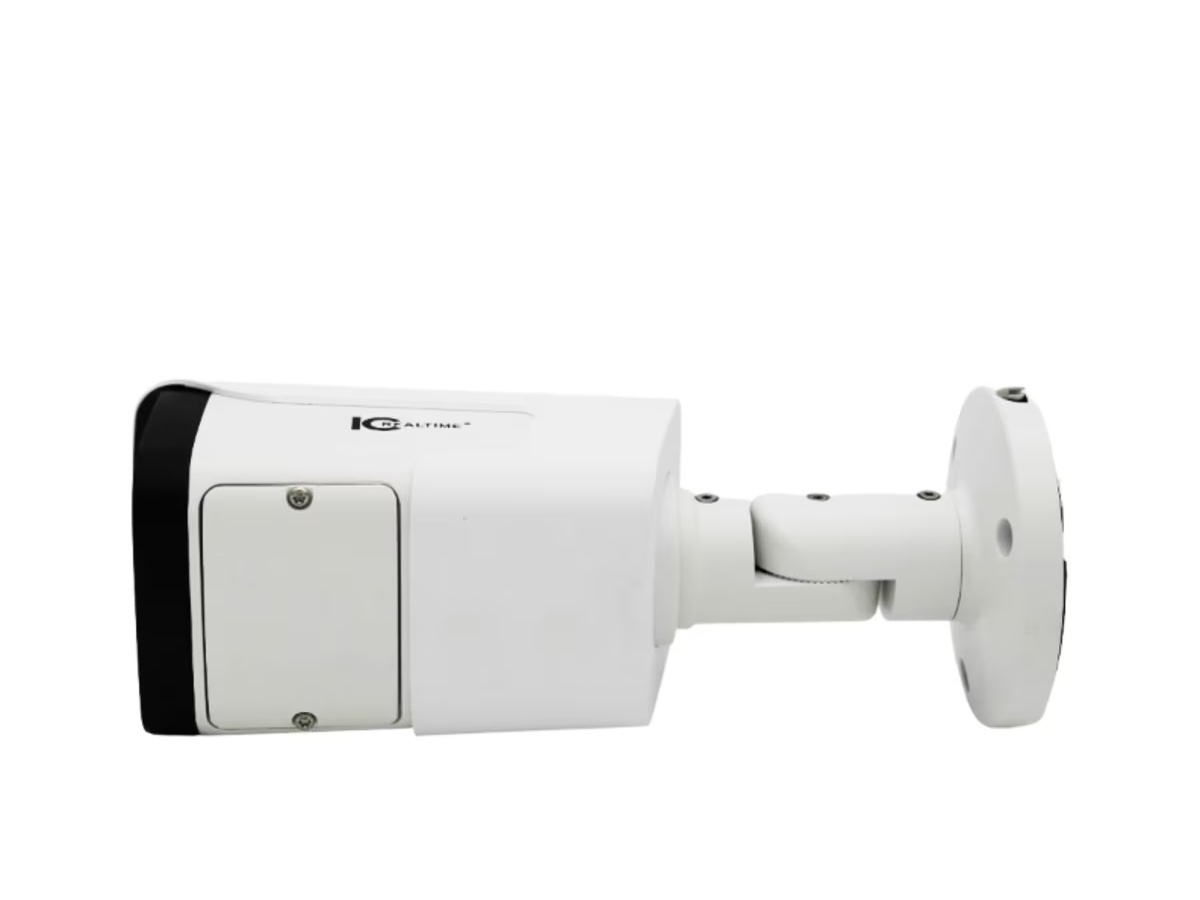

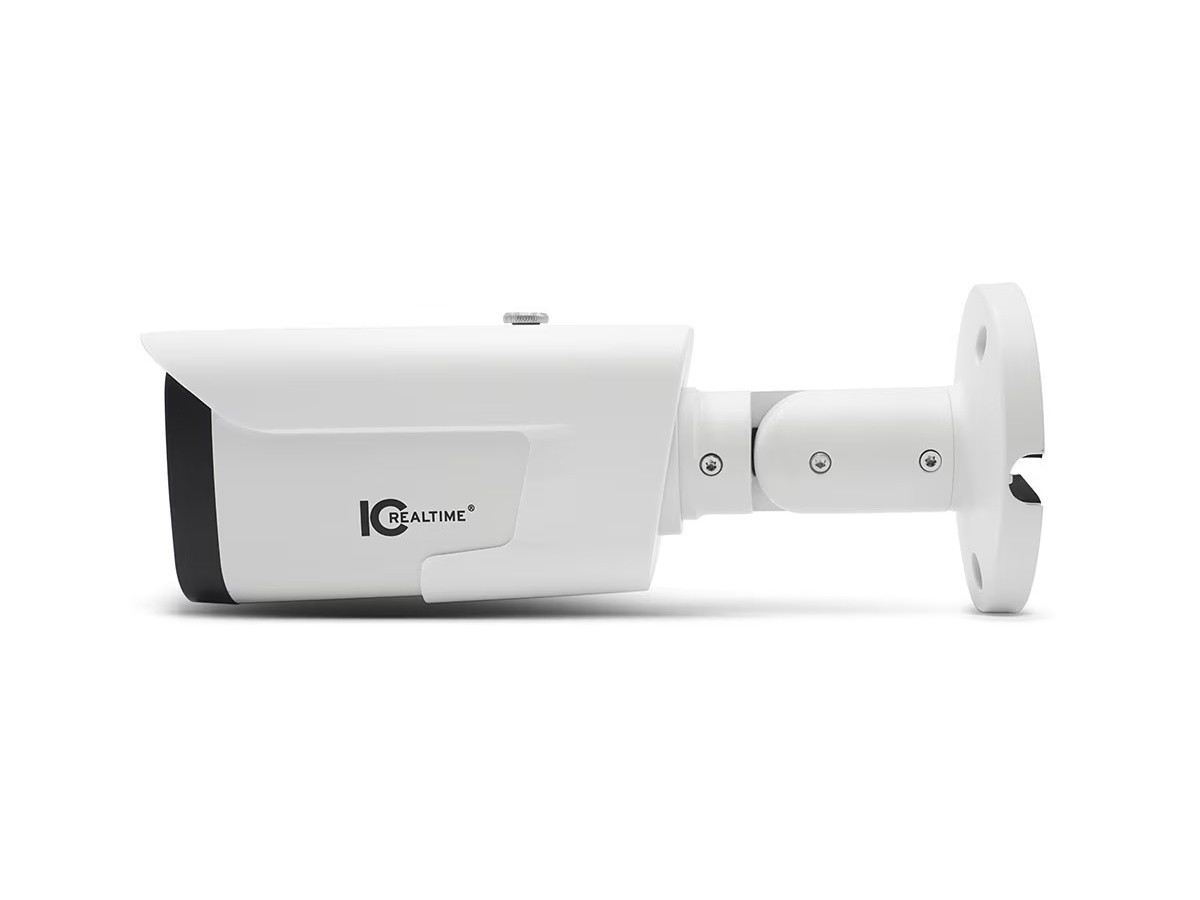

ICRealtime IPFX-B40V-IRW3 4MP IP Bullet Camera / Motorized 2.7-13.5mm Varifocal / PoE / IR 197ft / 120dB WDR

Description

Download Manual

The IPFX-B40V-IRW3 is a 4MP network bullet camera engineered to capture high-resolution surveillance video for indoor and outdoor environments. It delivers 2688 × 1520 resolution at up to 30 fps, producing clear footage for identification and evidence. The camera combines a motorized 2.7 mm–13.5 mm varifocal lens and adjustable field of view to support a range of monitoring scenarios.

Key features include H.265 compression for reduced bandwidth and storage, 120 dB true WDR for balanced scenes, and 3D noise reduction for improved low-light clarity. Integrated IR illumination extends night monitoring to approximately 197 ft and the sensor supports color imaging down to 0.005 lux at F1.5. Intelligent analytics such as Perimeter Protection and Intelligent Motion Detect 2.0 reduce false alarms and enhance event relevance.

Technical performance is driven by a 1/3″ CMOS sensor, 128 MB RAM and 512 MB ROM, and triple-stream encoding to serve multiple simultaneous viewers. The camera supports multiple resolutions including 4M, 3M, 1080p and lower substreams for efficiency. Bit rate control supports CBR and VBR and Smart H.265+ reduces storage needs through scene-adaptive encoding.

Connectivity options include 10/100Base-T Ethernet with PoE (802.3af) and a 12 VDC input for flexible installation. The unit supports ONVIF S/G/T, IPv4/IPv6, RTSP/RTMP streaming, FTP/SFTP, and edge storage via microSD up to 256 GB or NAS. A built-in microphone and RCA audio ports expand situational awareness and recording capability.

This camera is well suited to perimeter monitoring, parking lot coverage, building entry points, and critical infrastructure sites where long-range IR and analytics are required. Intelligent Tripwire and Intrusion detection distinguish people from vehicles to reduce nuisance alerts and accelerate incident response. Object Search compatibility with IC Realtime NVRs aids fast forensic retrieval of recorded events.

Installation is simplified by motorized lens control, PoE power option, and an IP67-rated metal housing for weather resistance. The camera operates from -22° F to +140° F and tolerates wide voltage variation for outdoor deployments. IC Realtime backs the Flex series with a 10-year warranty and technical support to ensure long-term reliability.
