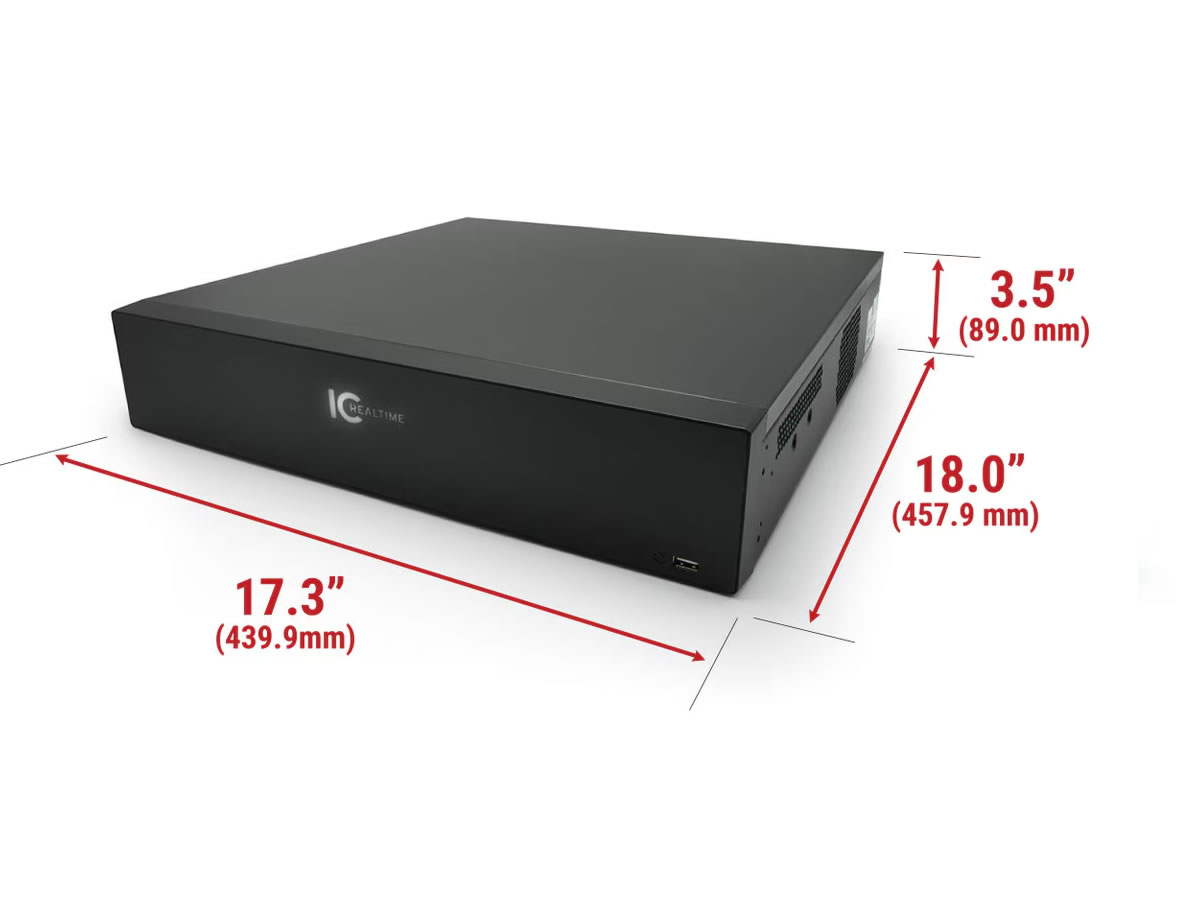

Download Manual The NVR-EL16-2U32MP1-4TB is a 16-channel rackmount network video recorder designed to centralize IP video recording and onboard AI analytics. It supports cameras up to 32MP and provides high-bandwidth stream handling for multi-channel environments. The recorder is built in a 2U chassis that accepts eight SATA III drives to provide large local storage capacities.
This NVR integrates IC Realtime ICR 4.0 operating system and a multi-core embedded processor to support Smart H.265+ H.265 H.264 and MJPEG compression. It offers on-device AI features including human detection face recognition vehicle recognition and ANPR capabilities. The unit supports recorder-based AI on selected channels and camera-based AI on all channels through FlexSmartAi.
Performance specifications include a maximum incoming bandwidth of 384 Mbps when AI is handled by cameras and 200 Mbps when AI is processed by the recorder for object search workflows. HDMI outputs support up to 4K display resolution while VGA outputs support up to 1080p. The NVR provides up to 16 IP camera inputs and concurrent playback across all channels.

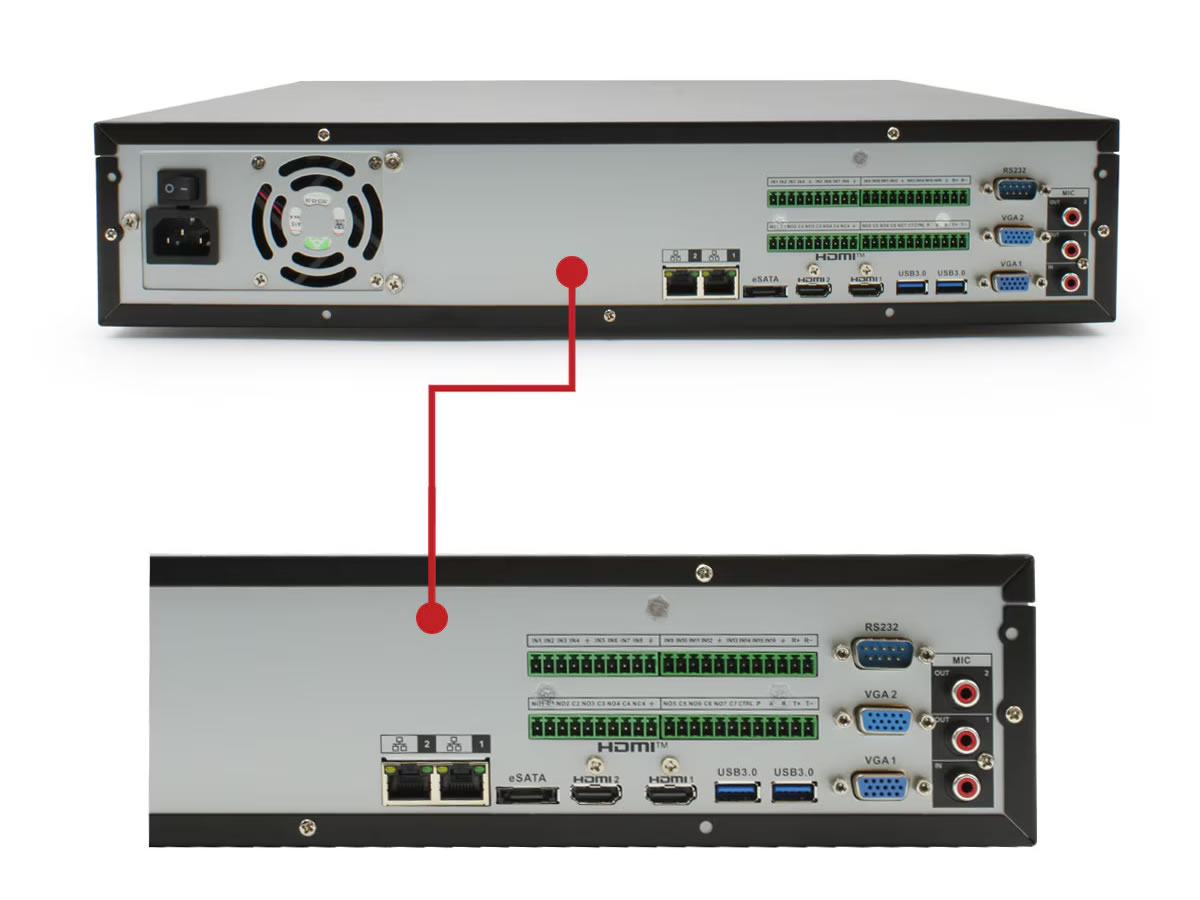

Connectivity is comprehensive with dual gigabit LAN ports dual HDMI dual VGA 16 alarm inputs 8 alarm outputs eSATA four USB ports and RCA audio I/O. Network protocols include HTTP HTTPS TCP IP IPv4 IPv6 RTSP SNMP DHCP and others and the unit is ONVIF 21.12 compatible for integration with third-party cameras and VMS systems. Web viewer support includes modern browsers and mobile apps for Android and iOS.
Typical use cases include enterprise video surveillance centralized recording for campus deployments intelligent analytics for access control and vehicle monitoring. The recorder is capable of storing metadata from AI-enabled cameras to power object search people counting heat maps and business intelligence reports. It also supports RAID modes including 0 1 5 6 10 for data protection.
The NVR-EL16-2U32MP1-4TB is built for rack installation with a robust internal power supply and SATA III drive bays to meet large retention requirements. The unit operates across a wide temperature range and includes alarm inputs outputs for integration with external devices. For integrators the unit offers SDK and CGI for custom integrations and P2P auto registration to speed deployments.
