WyreStorm EX-100-IW-USBC HDBaseT USB 3.2 Gen1 Extender 100m In-Wall Single-Gang TX/RX 4x USB-A

Description

Download Manual

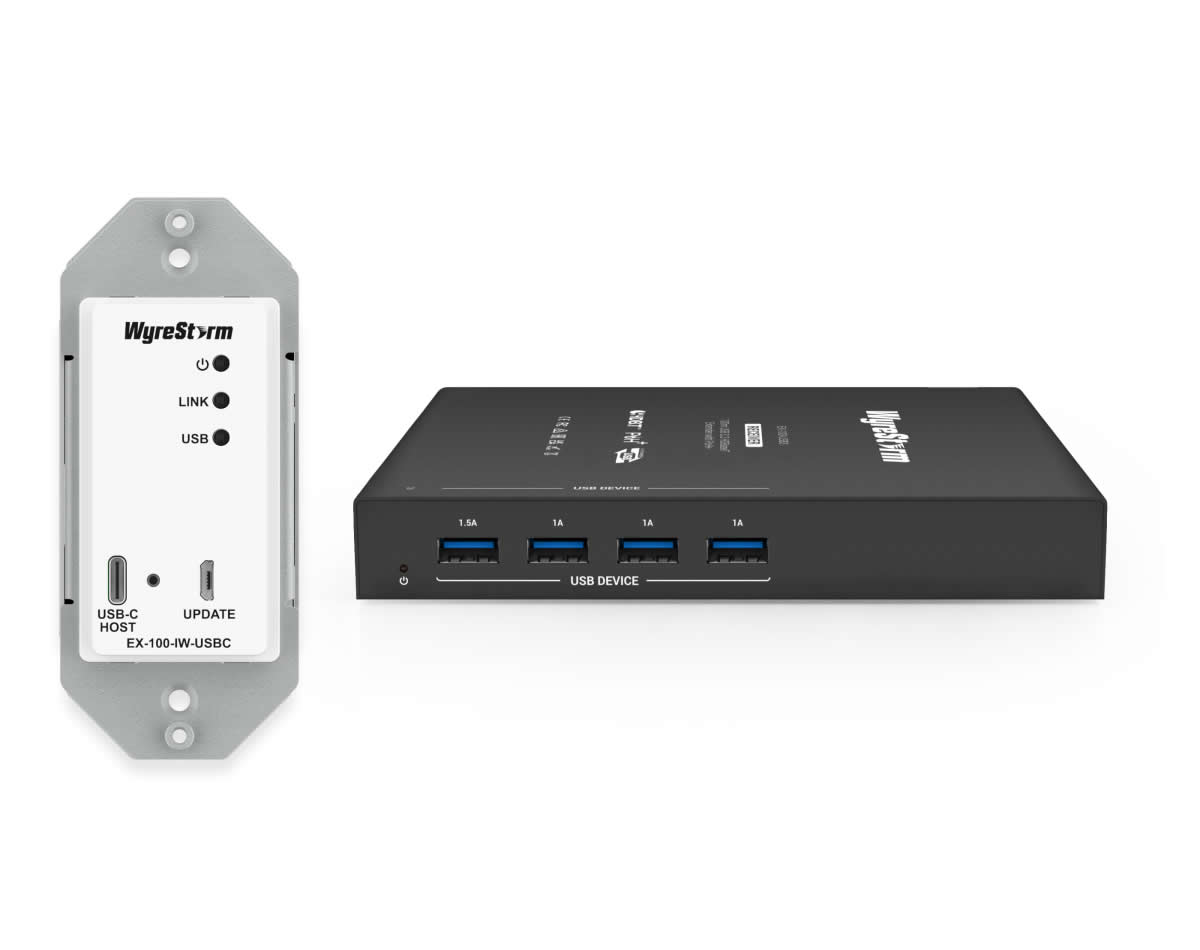

The EX-100-IW-USBC is an in-wall HDBaseT USB extender kit designed to move USB 3.2 Gen1 signals up to 100m over a single category cable. It pairs a single-gang transmitter and a matching receiver to place USB ports where they are needed while keeping host equipment centralized. The kit supports high-speed peripherals and maintains signal integrity across distance.

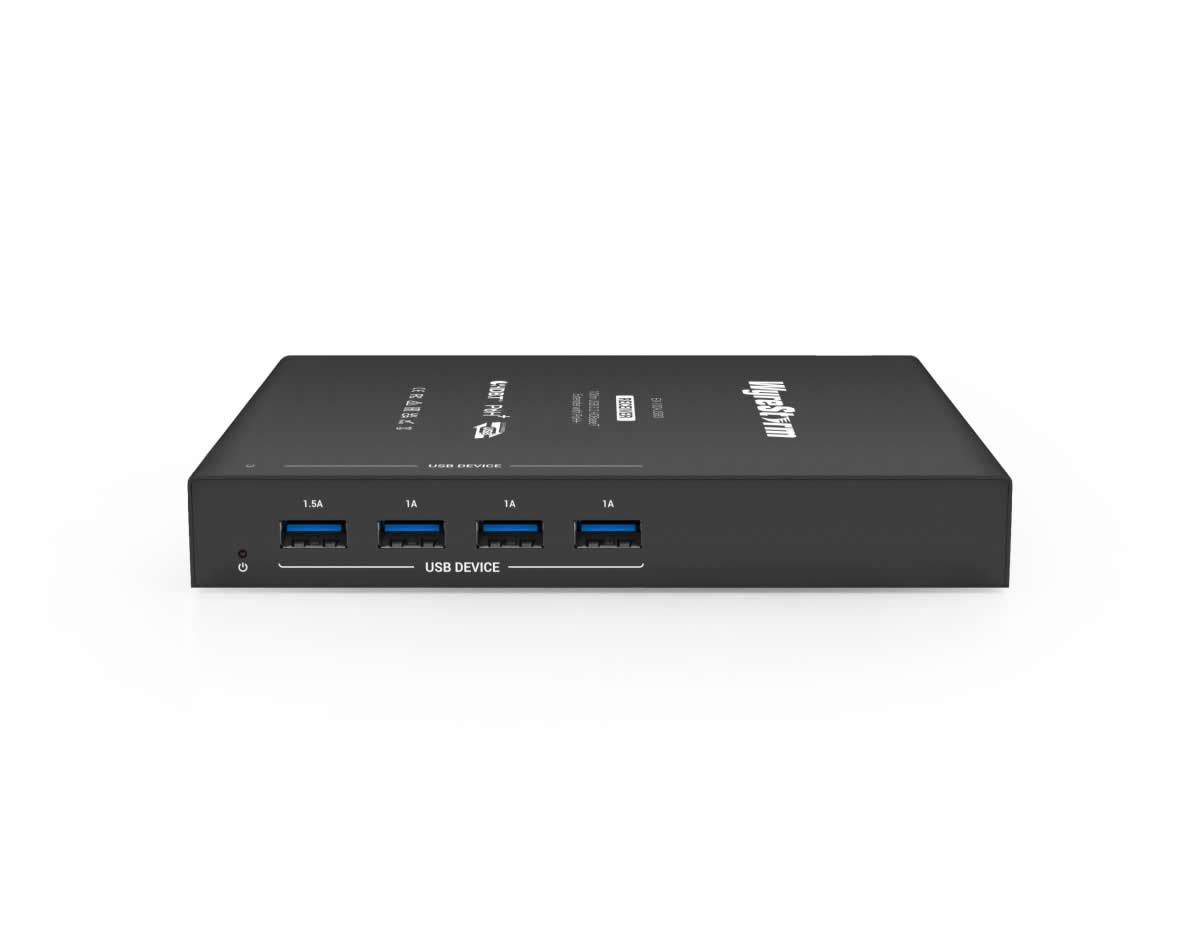

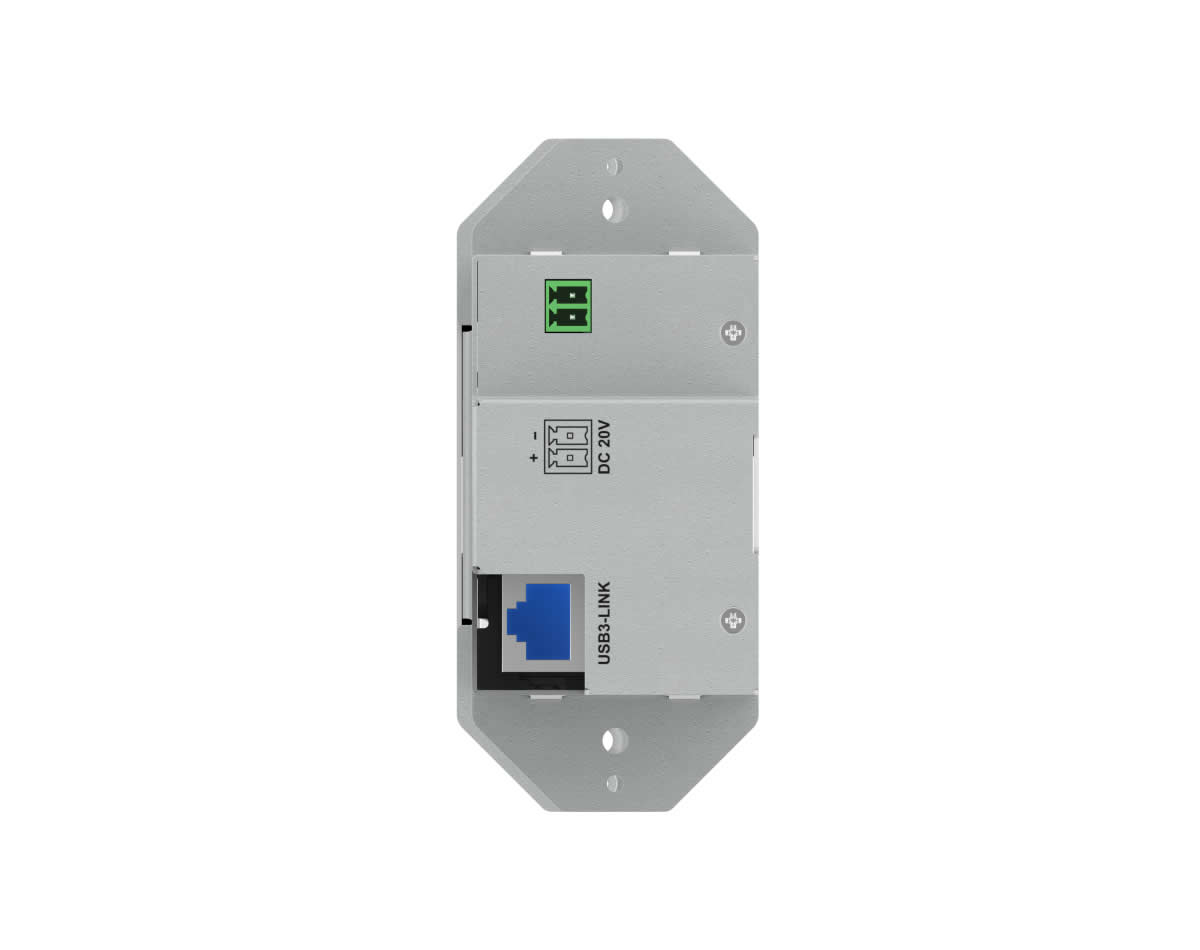

Key features include USB 3.2 Gen1 data rates up to 5Gbps and four downstream USB Type-A ports at the receiver. The transmitter provides a USB Type-C host connection and a dedicated RJ45 HDBaseT output to the receiver. Power options include receiver-powered operation or an auxiliary two-pin power input on the transmitter for redundancy.

Performance is optimized for low-latency USB data transport and sustained throughput for bandwidth-intensive devices. The extender reliably conveys USB 3.2 Gen1 traffic at distances up to 100m over Cat5e/Cat6 cabling. Power draw varies with peripheral load and is specified for both fully loaded and idle conditions.

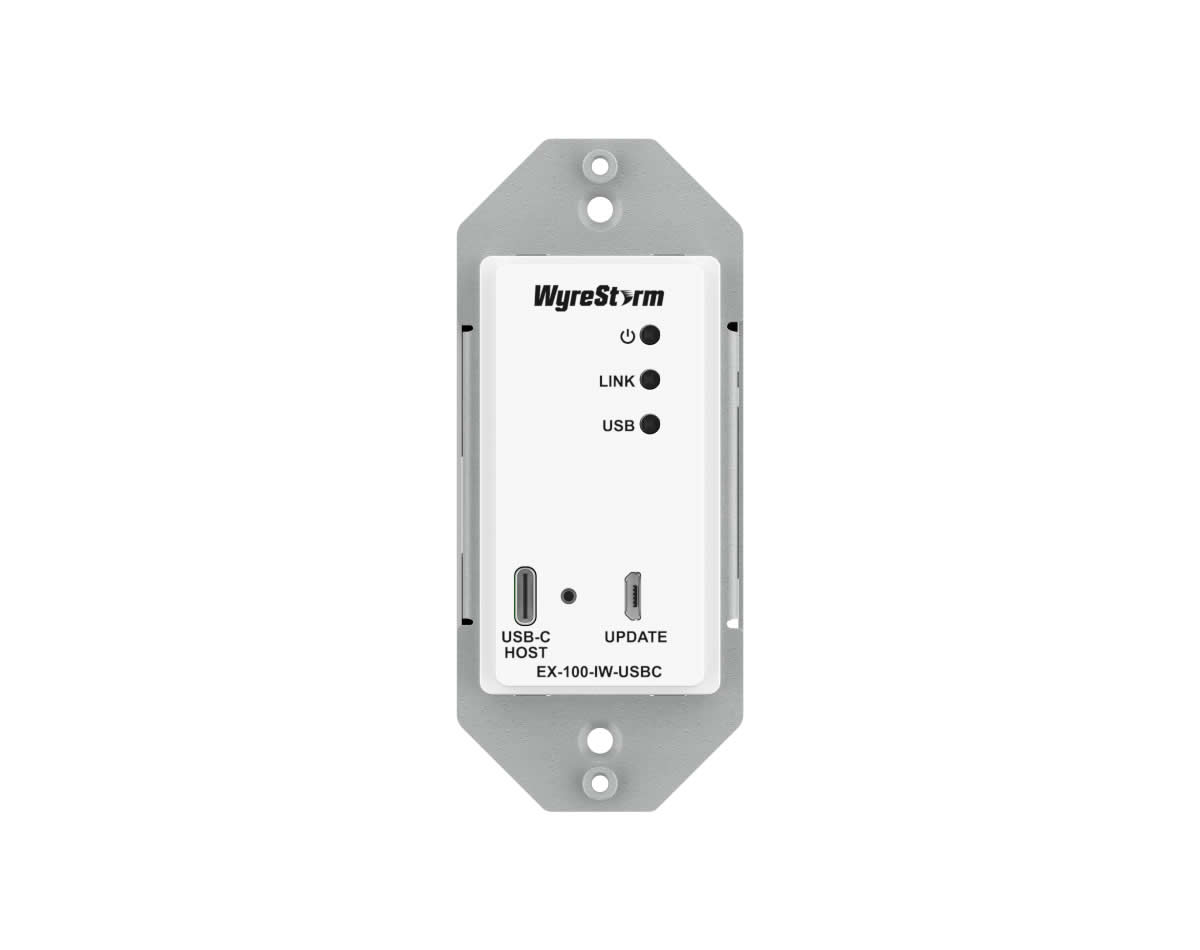

Connectivity is straightforward: the transmitter accepts a USB Type-C host connection and the receiver exposes four USB 3.2 Type-A ports plus an RJ45 input. The kit includes a DC 20V 3A locking power supply for installations that require local power. Firmware updates are supported via a micro USB service port on the transmitter.

Typical use cases include extending USB peripherals in AV racks, desks, or lecterns where physical access to ports is limited. It is suited to interactive devices such as touch panels, cameras, storage drives, and input devices that require USB 3.2 bandwidth. The in-wall single-gang form factor keeps installations neat and compliant with wall-box mounting practices.

Installation is designed for AV professionals and integrators and supports standard single-gang wall plate mounting. The transmitter and receiver offer robust metal enclosures and mounting brackets for secure installation. The kit is shipped with the necessary cabling and mounting hardware to simplify system deployment and commissioning.
