Description

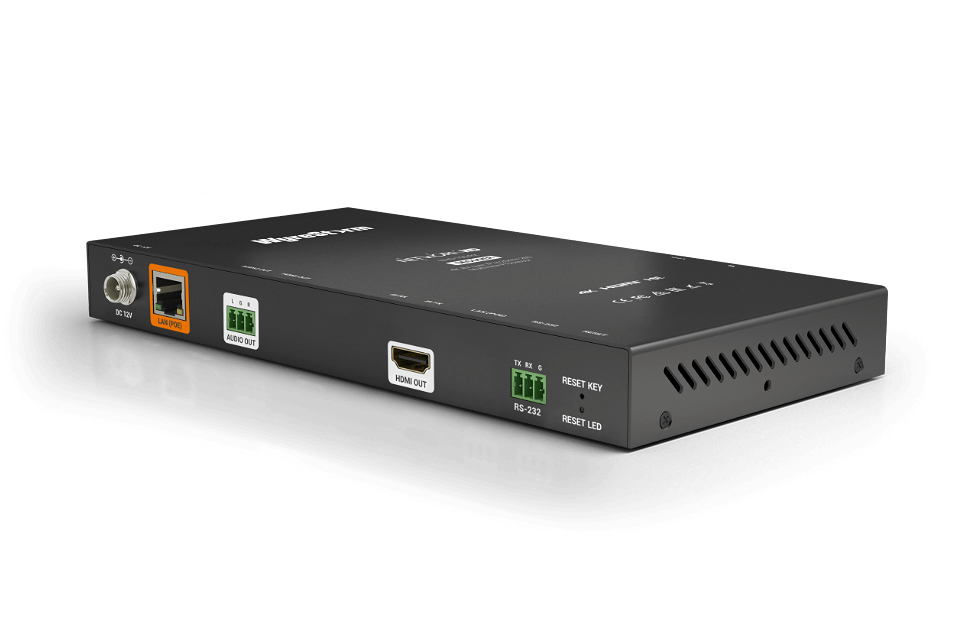

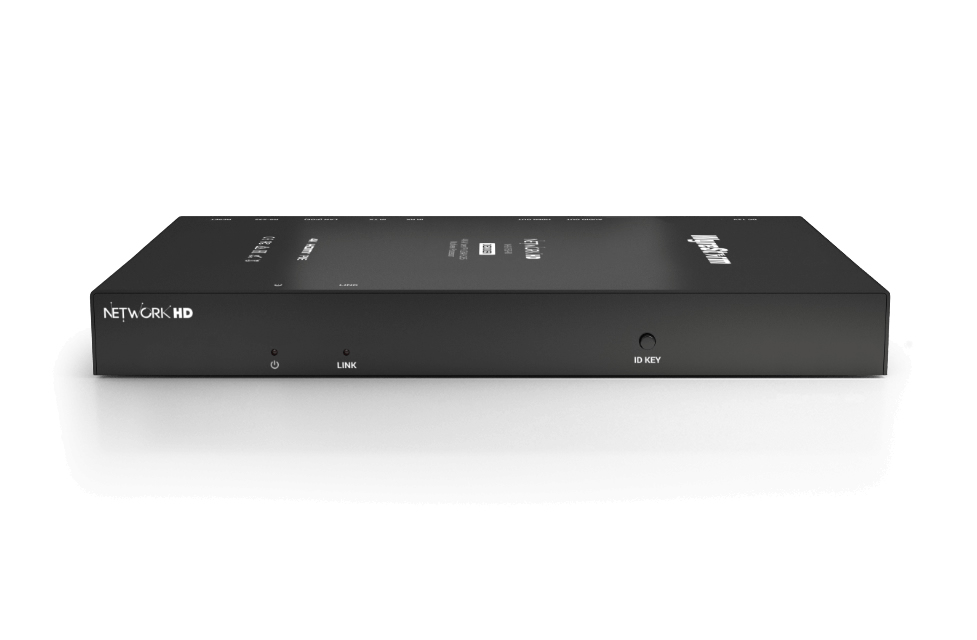

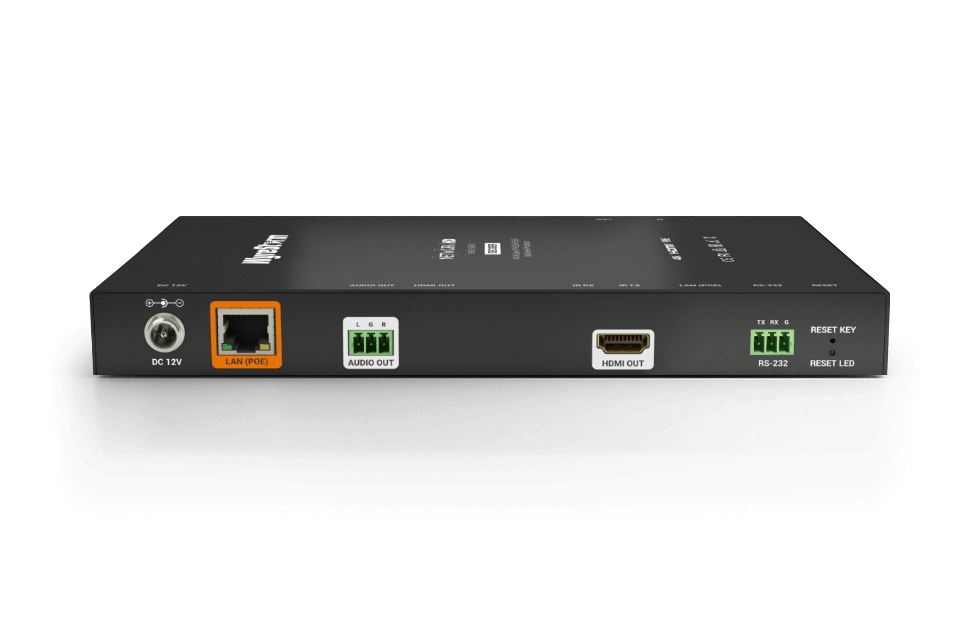

The NHD-150-RX is an enhanced MultiView display decoder compatible with the NetworkHD 120 Series, an ultra-low bandwidth AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. The NHD-150-RX decoder is intended for use with 120 Series encoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller complete control integration is simple.

TAILORED FOR MULTIPLE MARKETS
The NetworkHD™ 100 Series utilizes low bandwidth, infinitely scalable technology with the addition of powerful video wall support up to 16×16 for the best all-round solution for commercial AV installations. A 100 Series encoder can either be paired with a 100 Series decoder for matrix switching to individual screens or for video wall decoding, with both decoders including HDMI and analog audio breakout outputs, or an NHD-150-RX decoder for multiview monitoring.

LOW BANDWIDTH ENCODING
The NHD-150-RX can decode AV signal using low bandwidth compression technology. Using this technology provides incredibly efficient video streams.

MULTIVIEW MONITORING
The NHD-150-RX multiview processor is capable of displaying up to eight simultaneous video feeds on a single 4K display, with users able to select between many different layouts.

SERIAL AND HDMI DEVICE CONTROL
In addition to HDMI streaming over an IP Network, the 100 Series sends RS-232 control signals to a source or display and CEC control commands to a display device for single control signal deployment without the need for additional equipment.

AES ENCRYPTION
Security is key in today’s world. The NetworkHD 150 decoder supports AES 128-bit AV encryption over the network. Data sent to an NHD-150-RX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd-parties.

SECURITY
Equipped with the latest security protocols including SSH, TLS and HTTPS. Data and communications from the 100 series in encrypted end-to-end.

TWO TRANSMISSION METHODS
Low bandwidth or high-quality transmission methods. Low latency transmission methods of 150ms and high-quality of 400ms.

NHD CONTROL APP COMPATIBLE
Compatible with the NetworkHD Touch Control app. Control source, matrix and video wall switching with preview streams of each Encoder.

Additional Features

Provides 4K @ 60Hz multiview video content
Flexible encoding using low bandwidth encoding. Encoding is configurable between a constant bitrate or variable bitrate
Low bandwidth or high-quality transmission methods. Low latency ~ 150ms. High-quality ~400ms
Analog audio de-embed for easy connection to external audio DSP or amplifier
Supports arbitrary display of up to 9 windows (networking incoming video resolution <=1080P) or 8 windows (network incoming video resolution > 1080p)
Hugely scalable I/O, utilizing multicast technology
Live video preview streams for use with NetworkHD Touch or a custom control UI
Flexible IP address settings: AutoIP/Static/DHCP
Customizable RS-232 and CEC control of connected display
Infrared signal generation via API – supports Hex Global Cache formatBatch firmware update and batch settings functions offers a massive reduction on installation times
