Description
Download Manual The NetworkHD 120 series takes the award-winning 100 series and elevates to a new level. The 120 series components support both video encoding/decoding. With 4K resolution, video transmissions look better than ever and use up to 6x less bandwidth. AV stream are fully secure over the network using AES 128-bit encryption methods, ensuring any sensitive data cannot be maliciously accessed. Of course, the series would not be complete without retaining the powerful video wall and Multiview processing. The 120 series does one better by adding screen rotation and mosaic video wall ability.
TAILORED FOR MULTIPLE MARKETS
The NetworkHD™ 100 Series utilizes low bandwidth, infinitely scalable technology with the addition of powerful video wall support up to 16×16 for the best all-round solution for commercial AV installations. A 100 Series encoder can either be paired with a 100 Series decoder for matrix switching to individual screens or for video wall decoding, with both decoders including HDMI and analog audio breakout outputs, or an NHD-150-RX decoder for multiview monitoring.
Low Bandwidth Encoding
The NHD-120-TX can encode AV signal using low bandwidth compression technology. Using this technology provides incredibly efficient video streams.
4K Resolution

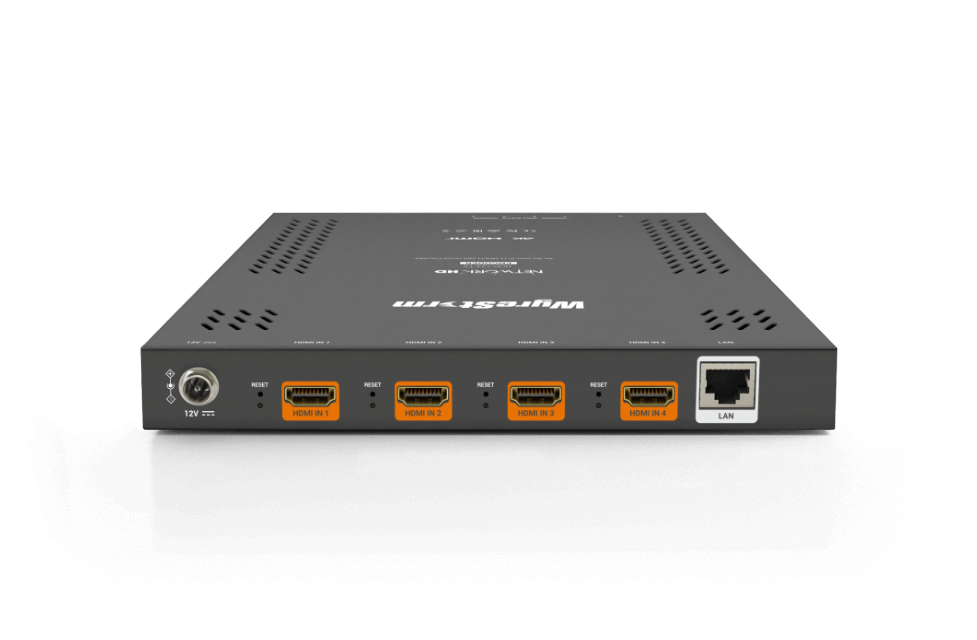

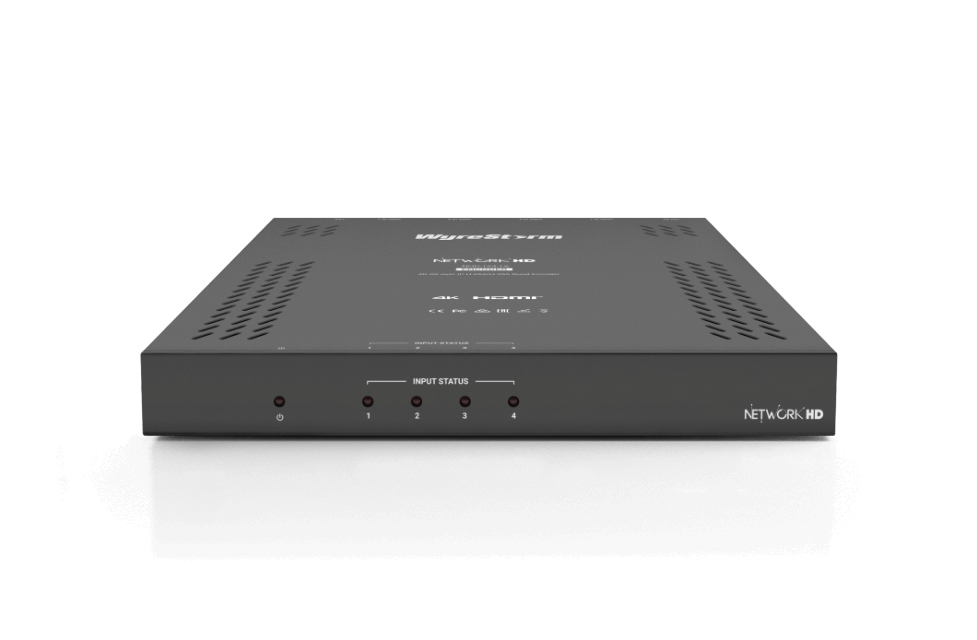

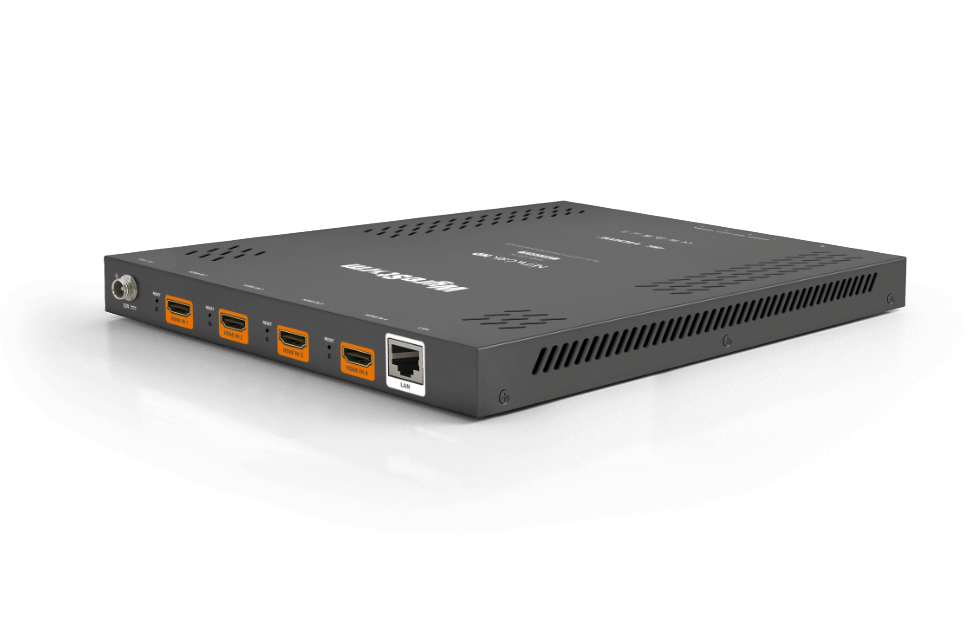

The NHD-124-TX is a 4 input to 4 network stream device encoder compatible with the NetworkHD 100 an ultra low bandwidth AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. With its standards-based approach to video encoding, fast and simple system configuration and robust feature set, it provides the best value in networked video distribution.
The NHD-124-TX encoder is intended for use with 120 series decoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller complete control integration is simple.
TAILORED FOR MULTIPLE MARKETS
The NetworkHD™ 100 Series utilizes low bandwidth, infinitely scalable technology with the addition of powerful video wall support up to 16×16 for the best all-round solution for commercial AV installations. A 100 Series encoder can either be paired with a 100 Series decoder for matrix switching to individual screens or for video wall decoding, with both decoders including HDMI and analog audio breakout outputs, or an NHD-150-RX decoder for multiview monitoring.
LOW BANDWIDTH ENCODING
The NHD-124-TX can encode AV signal using low bandwidth compression technology. Using this technology provides incredibly efficient video streams.
SPACE SAVING DEVICE
Space is always a factor when building an AV over IP system, and lack of it can cause headaches for any installer. Our NHD-124-TX solves this by combining four transmitters into one solution, allowing you to have the same functionality on a 1U footprint.
4K RESOLUTION
The NHD-124-TX is now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source.
AES ENCRYPTION
Security is key in today’s world. The NHD-124-TX support AES 128-bit AV encryption over the network. Data sent from an NHD-124-TX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd-parties.
SECURITY
Equipped with the latest security protocols including SSH, TLS and HTTPS. Data and communications from the 100 series in encrypted end-to-end.
TWO TRANSMISSION METHODS
Low bandwidth or high-quality transmission methods. Low latency transmission methods of 150ms and high-quality of 400ms.
NHD CONTROL APP COMPATIBLE
Compatible with the NetworkHD Touch Control app. Control source, matrix and video wall switching with preview streams of each Encoder.
Additional Features
- Supports up to 4K @ 30Hz video content
- Flexible encoding using low bandwidth technology. Encoding is configurable between a constant bitrate or variable bitrate.
- Low bandwidth or high-quality transmission methods. Low latency ~ 150ms. High-quality ~400ms
- Seamless video switching – no black screens or freeze frames
- Support all SD and HD formats – including interlaced content
- Compatible with NHD-150-RX Multiview receiver
- Live video preview streams for use with NetworkHD Touch or a custom control UI
- Flexible IP address settings: AutoIP/Static/DHCP
- Batch firmware update and batch settings functions offers a massive reduction on installation time
- Custom EDID management
- HDCP 2.2 compliant
- Supports AES-128 for audio/video decryption.
