Description

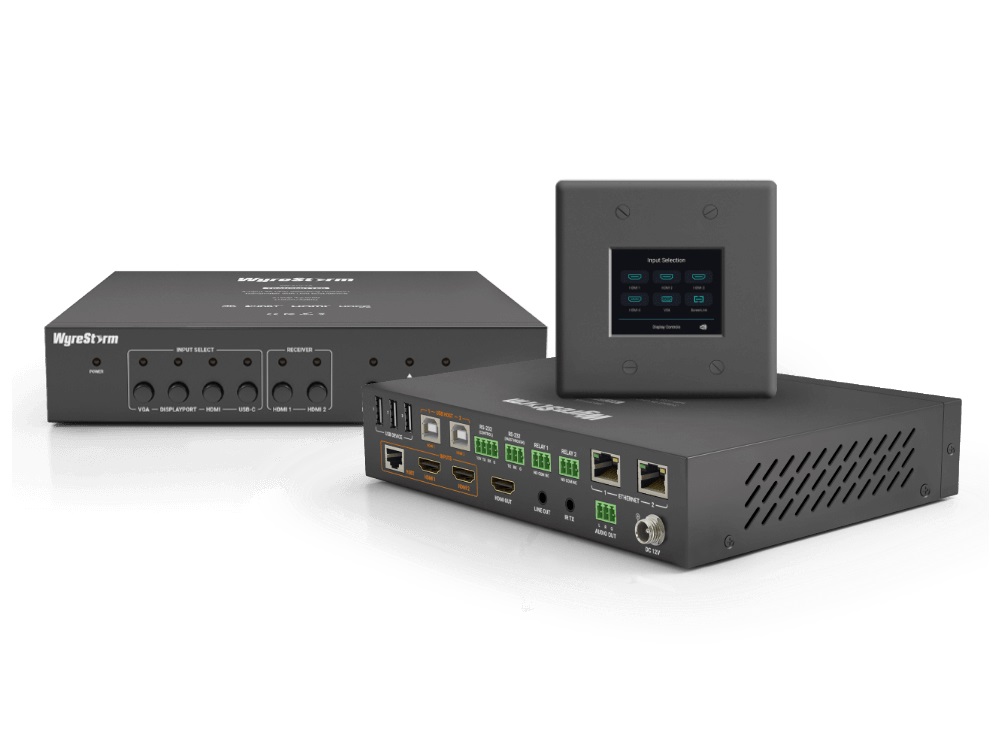

This Synergy kit provides an all-in-one solution for medium-sized presentation applications. Suited for corporate or education markets that require a comprehensive solution for AV distribution and control. This kit includes a 4-input HDBaseT switcher, a feature-packed HDBaseT receiver and a 2.8” touchscreen controller. Use this kit to create a robust solution for medium conference spaces, corporate boardrooms, training centers and many other presentation-based applications.

CONNECTIVITY FOR ALL DEVICES

Every major connection type is supported, including HDMI, USB-C, VGA and DisplayPort ensuring compatibility with all laptops, room PCs, document cameras or media players. AV signals can be sent up to 100m over HDBaseT, ideal for integrating into existing cable infrastructure.

SIMPLE CONTROL

The 2.8” touchscreen provides a simple yet effective user interface for switching inputs on the transmitter and the ability to send CEC commands to turn on or off a remote display. The interface has been pre-built by WyreStorm and doesn’t require any programming

USB EXTENSION

The transmitter and receiver support USB extension capabilities. This allows laptops to utilize connected peripheral devices such as a remote webcam & speakerphone for online meetings or a touchscreen/smart display for interactive learning experiences.

Features:

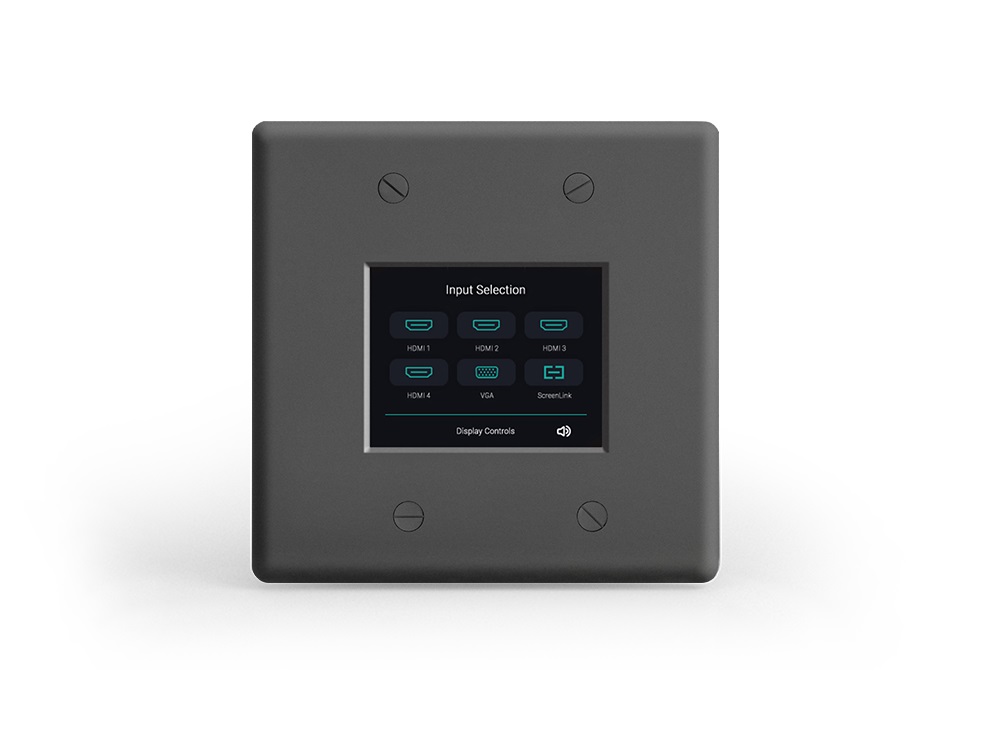

TS-280

2.8” color touchscreen perfect for WyreStorm switcher control
Backlit with automatic power off and wake on touch
Pre-configured UI’s designed for simple end-user experience
Easy update: Download UI from wyrestorm.com and load via MicroSD card
RJ45 connection and RS-422 communication to included RS-232 converter
300m/984ft transmission range to host device

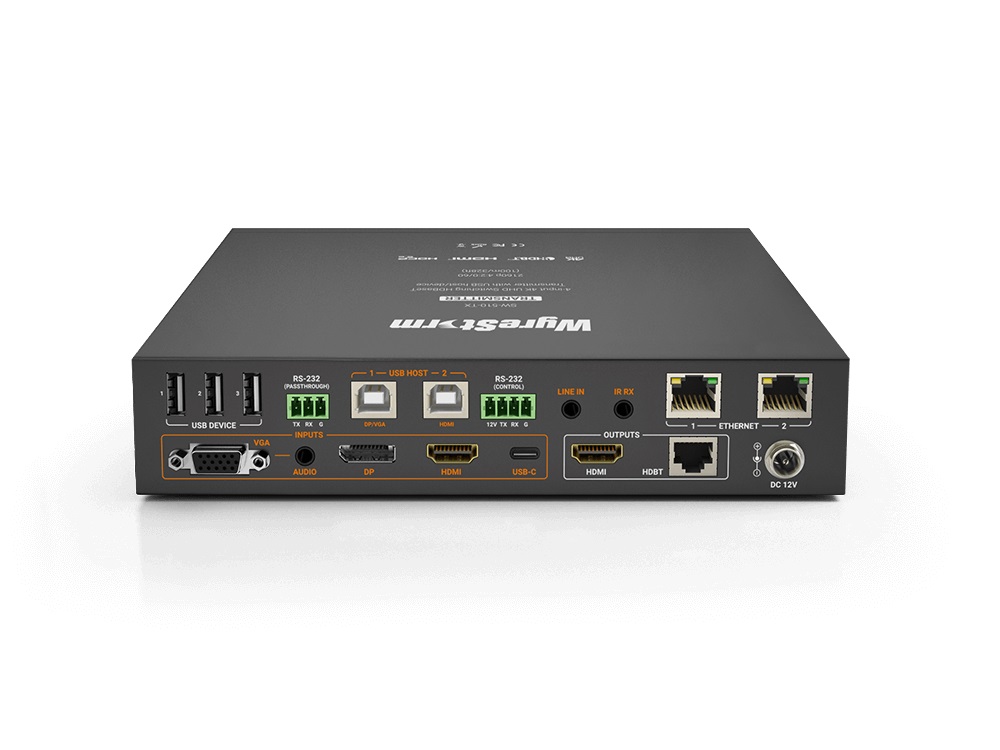

SW-510-TX

Professional switching transmitter for education & corporate meeting rooms
Automatic/manual switching between HDMI, VGA, DisplayPort & USB-C
Supports source content up to 4K/60 4:2:0 or 4K/30 RBG 8bit with HDCP 2.2
USB2.0 for connection of webcams, smart touchscreens and microphones
USB-C input supports Alt-mode functionality for AV and USB device connection through a single cable
LAN passthrough for connecting peripheral equipment

SW-515-RX

HDBaseT receiver for education/corporate meeting rooms
Supports source content up to 4K/60 4:2:0 or 4K30 RGB 8bit up to 100m/328ft
Includes 2 local HDMI inputs for switching to media players or signage when system is not in use.
Bidirectional USB2.0 for connection of webcams, smart touchscreens and microphones
Automatic/manual CEC & RS232 triggering for connected screens or projectors
2x condition based relays for lifting projector screens, shades or other relay-based components
