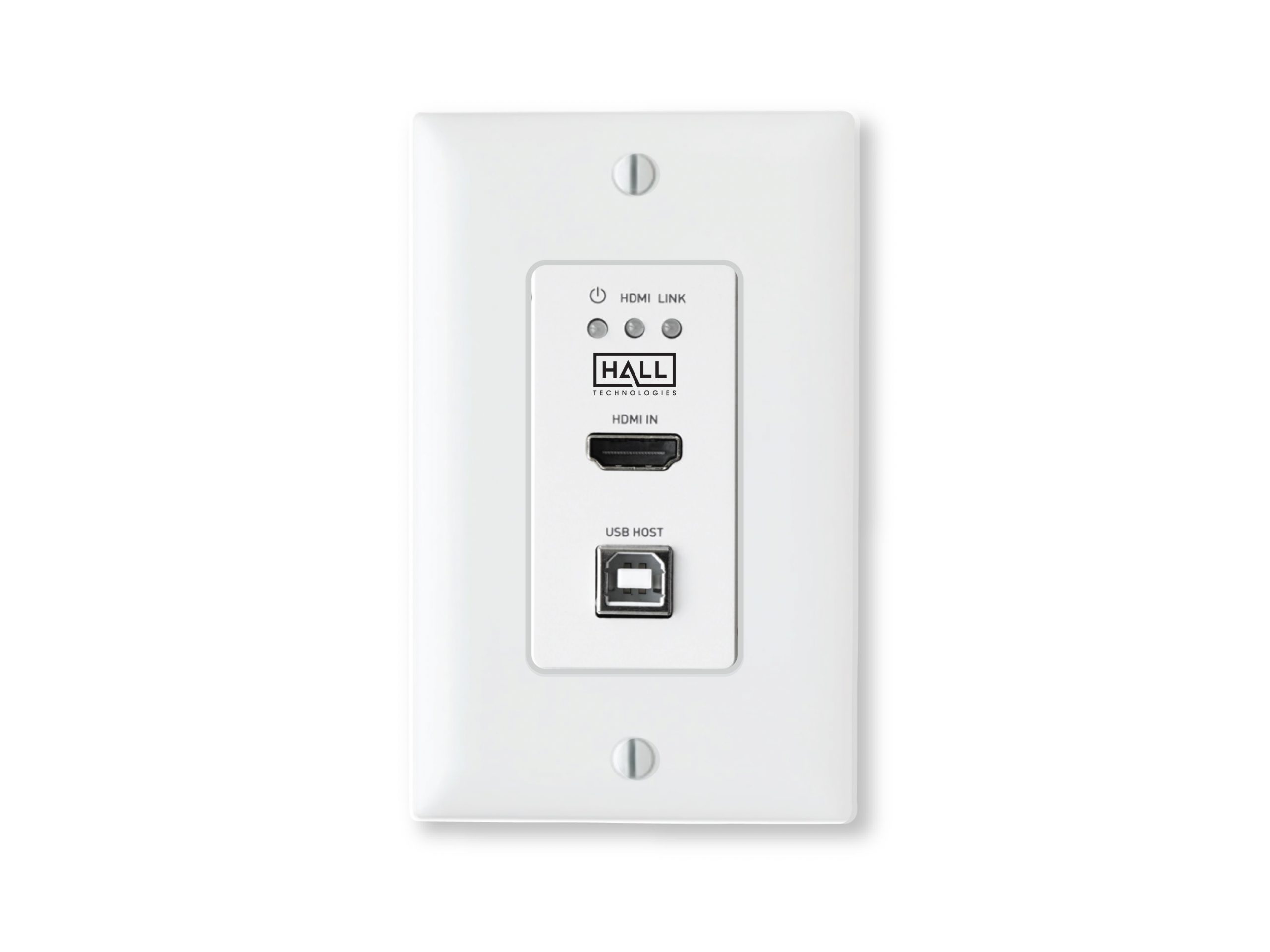

Hall Technologies HT-DSCV1-70-TX Single Gang HDBaseT Wall Plate Transmitter and Receiver with USB Hub and Audio Extraction

Description

Download Manual

Discovery 1 is a single gang wall-plate transmitter and receiver extender kit. It supports resolutions up to 4K@60 4:2:0 8bit, and HDCP 2.2 compatibility. It can transmit 4K signal up to 35m/115ft via a single Cat 5e/6 cable and up to 40m/131ft via a single Cat 6a/7 cable. With oneway PoH function, the transmitter can be powered by the receiver. The transmitter also features USB pass-through and RS232 pass-through over HDBT, and it also supports firmware upgrading through RS232 port.

Features:

• Cost-Effective 4K extension with flexible USB capabilities for software video conferencing and audio extraction.
• Can transmit 4K signal up to 35m/115ft via a single Cat 5e/6 cable and up to 40m/131ft via a single Cat 6a/7 cable
• Audio extraction at the receiver to engage with a complete room audio system
• The transmitter also features USB pass-through and RS232 pass-through over HDBT
• High-speed USB 2.0 over HDBT with the maximum bandwidth is 127Mbps
• Provide 4x USB 2.0 device ports on the receiver, of which 2 high-current ports (1.4A) for connecting high-power devices such as camera
