Description

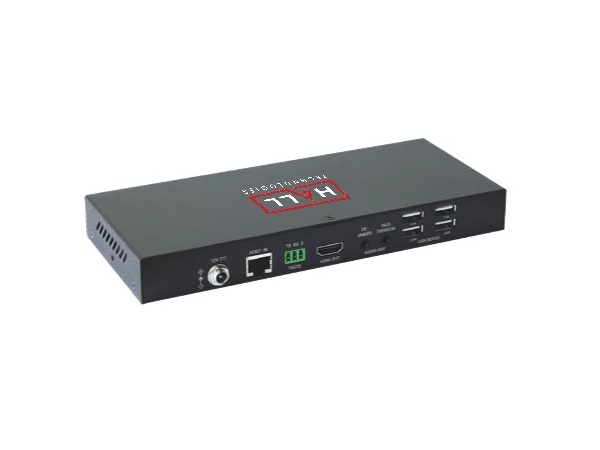

This product is an HDBT 2.0 receiver that is designed to work with an HDBT wall plate transmitter, reliably extending UHD video, multi-channel audio, USB 2.0, RS232 signal and power up to 40m/131ft using a single Cat 5e/6/6a/7 cable. With PSE module built-in, it can supply power to the transmitter with PD module via a single power supply.

It supports USB 2.0 pass-through, providing a solution for users who need remote control of PC resources sources such as keyboard, mouse, interactive display, or USB streaming devices over distance. The RS232 port allows bi-directional RS232 serial communication and firmware upgrade, the functions can be set via DIP switch.

Features:

Simple and cost-effective HDBT 2.0 receiver.
HDMI 1.4 with 4K@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDCP 2.2 compliant.
Transmits 4K@60Hz (YUV 4:2:0) signal up to 40m/131ft and 1080P@60Hz signal up to 70m/230ft via a Cat 6a/7 cable.
Transmits 4K@60Hz (YUV 4:2:0) signal up to 35m/115ft and 1080P@60Hz signal up to 60m/197ft via a Cat 5e/6 cable.
Supports analog audio pass-through from transmitter to receiver.
Supports analog audio de-embedding for HDMI output.
High-speed USB 2.0 pass-through over HDBT.
Provide two high-current USB device ports to connect high-power USB device.
Supports bi-directional RS232 serial communication to control a wall plate transmitter when paired with the wall-plate transmitter.
Supports firmware upgrade through the RS232 port.
Built-in PSE to power remote HDBT Wall plate transmitter with PD module.
