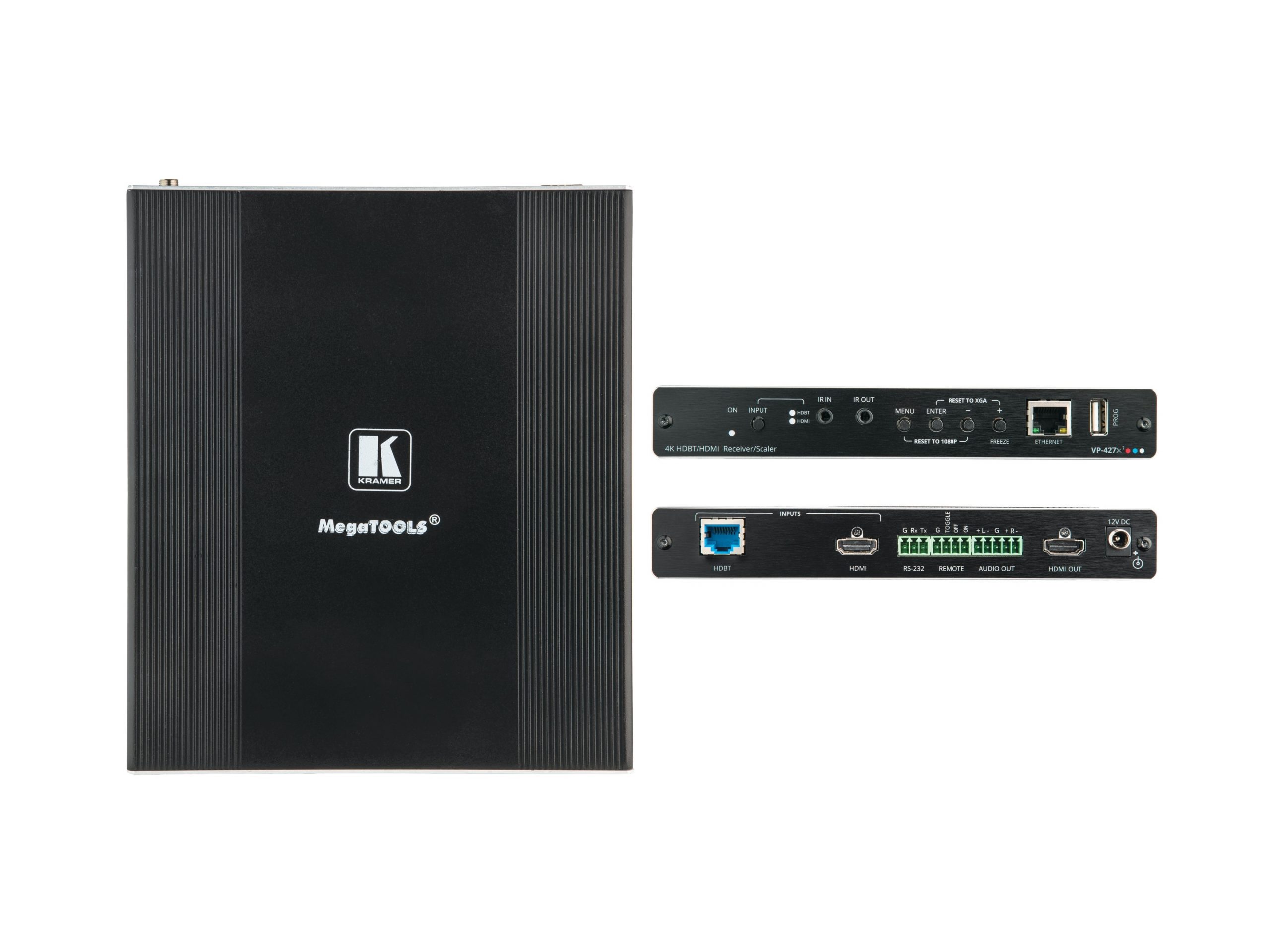

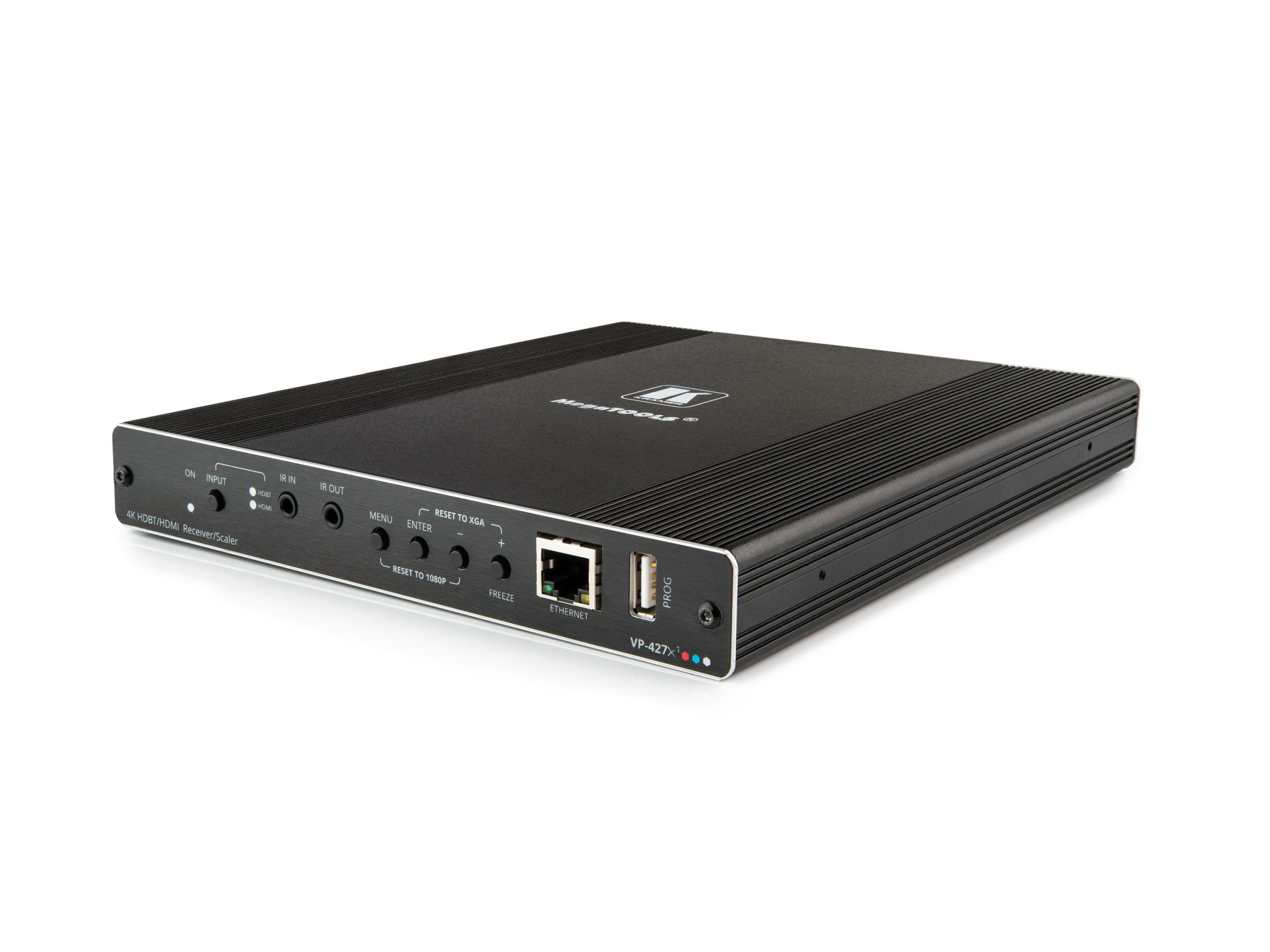

Kramer VP-427X1 4K HDR HDBT Receiver/Scaler Tool with HDBaseT and HDMI Input

Description

Download Manual

VP-427X1 is a high-performance auto-switcher/scaler receiver with 1 HDBaseT inputs and a local HDMI input for 4K HDMI™ over extended-reach HDBaseT. It supports automatic and manual glitch-free switching between the inputs, and up- or down-scaling to any resolution up to 4K@60Hz (4:4:4). The output scaling automatically matches the resolution of the HDMI display on the output, or it can be manually set by the user. VP-427X1 enables extending video signals up to 180m over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Features:

• Comprehensive Receiver/Scaler – Scales signals of all standard resolutions to any resolution, up to 4K@60Hz (4:4:4), for routing to the HDMI output. Constant output sync prevents signal disruption when switching between inputs and when no video is detected.
• HDMI Signal Extension – HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
• Audio De-embedding – Analog balanced stereo output for de-embedding the audio to speakers.
• Data Tunneling – Extend RS-232, IR, and Ethernet over the HDBaseT line.
• Built-in Automated Control – Includes easy connection to occupancy sensors and contact closure switches.
• CEC Support – Supports passing of CEC from input to output. Automatically sends CEC commands to shut down the output display after a timeout period when no input signal is found and to power up the display when the input returns.
• Cost-Effective and Convenient Control Options – Ethernet and RS-232 serial ports, and local control via front panel input selection and OSD menu buttons.
• ProcAmp Control – Contrast, brightness, color, etc.
• Convenient Unit Control and Configuration Options – Local control via front panel source switching buttons and OSD menu. Distance control via RS-232 serial commands transmitted by a PC, touch screen system or other serial controllers.
• Easy, Cost-effective Maintenance – Local firmware upgrade via USB connector.
• Easy and Elegant Installation – Single cable connectivity for both HDBaseT signals and power. Compact MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.
