Description

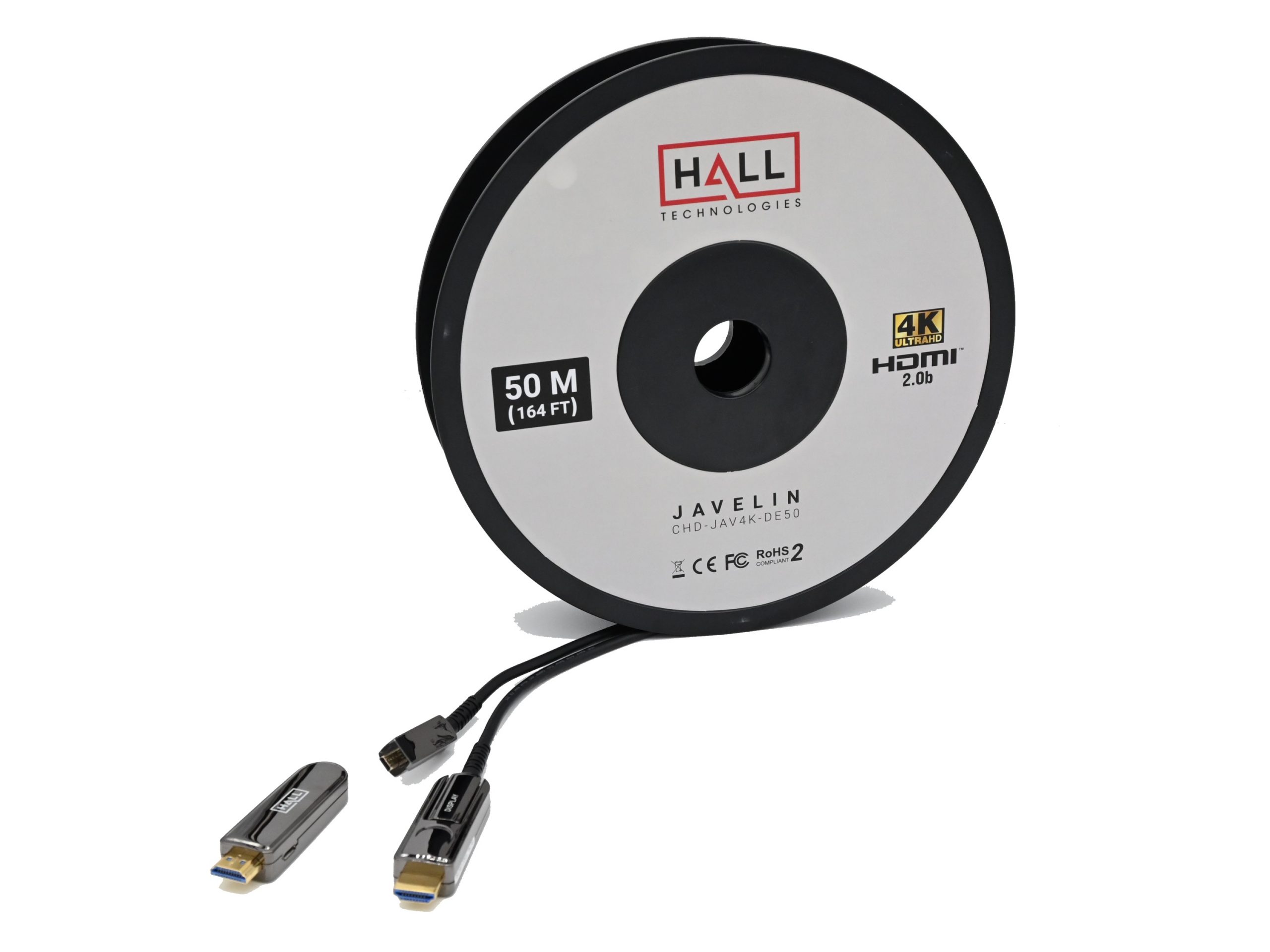

Our new Javelin™ 18Gbps 4K plenum-rated active fiber optic HDMI cable is engineered to be versatile to any application and installation. It supports 18Gbps while maintaining a lightweight and flexible design.

Currently the cable is available at lengths of 10, 15, 25, 30, 50, 75 and 100 meters (33, 50, 75, 100, 150, 200 and 333 ft). Replace * in part number with length in meter, for example CHD-JAV4K-DE15 is 15 meters long

The cable ships with detachable HDMI connectors so it is ready for connection to your video equipment, but users can purchase extra DVI detachable ends allowing for DVI-to-HDMI or DVI-to-DVI configurations using the same cable.

A pulling capsule with eyelet is provided in each package to aid with pulling. The capsule snaps onto the proprietary connector at the cable’s end.

The plug-n-play cable requires no external power supply. Power is drawn from the 5v signal pin of the source HDMI output. The cable draws less than 0.25w of power from the source.

The Javelin™ 4K Plenum-rated cable can be used as a regular HDMI cable but without the worry of boosters or equalizers; being Plenum rated, also makes it possible to be used in any installation environment. Applications include home theater, conference rooms, schools, airports, hospitals, and more.

Features:

Supports a wide range of resolutions up to 4K@60Hz (color space 4:4:4) 3D and Deep color
Supports 18Gbps Maximum Data Rate
Supports Multi-channel audio, Dolby True HD, DTS-HD Master Audio
HDMI compliant: EDID, CEC, HDCP (2.2), HDR (High Dynamic Range)
Reduced EMI and RFI
High pulling strength and compression load
