Description

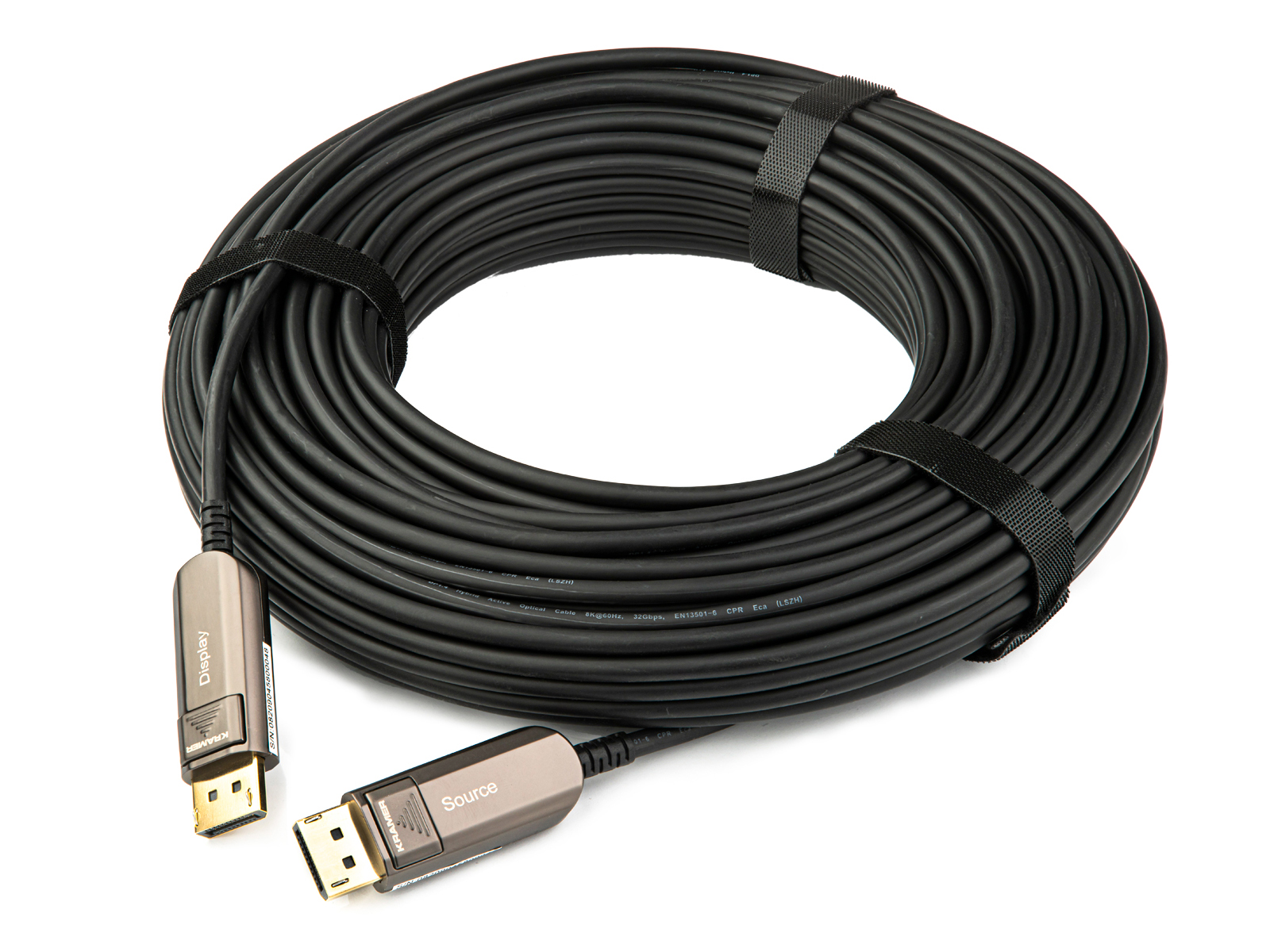

Download Manual CP-AOCDP/UF is a DisplayPort™ 1.4, 8K active optical cable (AOC) that features high resolution and data transfer rate. CP-AOCDP/UF is thin and flexible and requires no external power. User experience is maximized with integrator-oriented features and the latest advances in DisplayPort1.4 technology.
Features:
- Latest DisplayPort Technology — Supports 3D, HDCP, EDID, HBR3, DSC, and 8K@60Hz resolution.
- Streamlines Installations — Supports up to 8K@60Hz over long cable runs of up to 100 meters without the need for an external power supply or additional extenders.
- High Data Transfer Rate — Up to 32.4Gbps data rate with 8.1Gbps/lane (HBR3) link rate.
- Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate.
- No External Power Needed — Powers the active units via the DisplayPort connector.
- Thin Construction — 4.8mm diameter.
- Safe Construction — Low smoke & halogen free.
- Compliance — RoHS 2011/65/EU compliant, CE/FCC.
| MODEL | DESCRIPTION | LENGTH |
|---|---|---|
| CP–AOCDP/UF–98 | Active Optical DisplayPort Cable — Plenum Rated | 30.00m (98ft) |
