Description

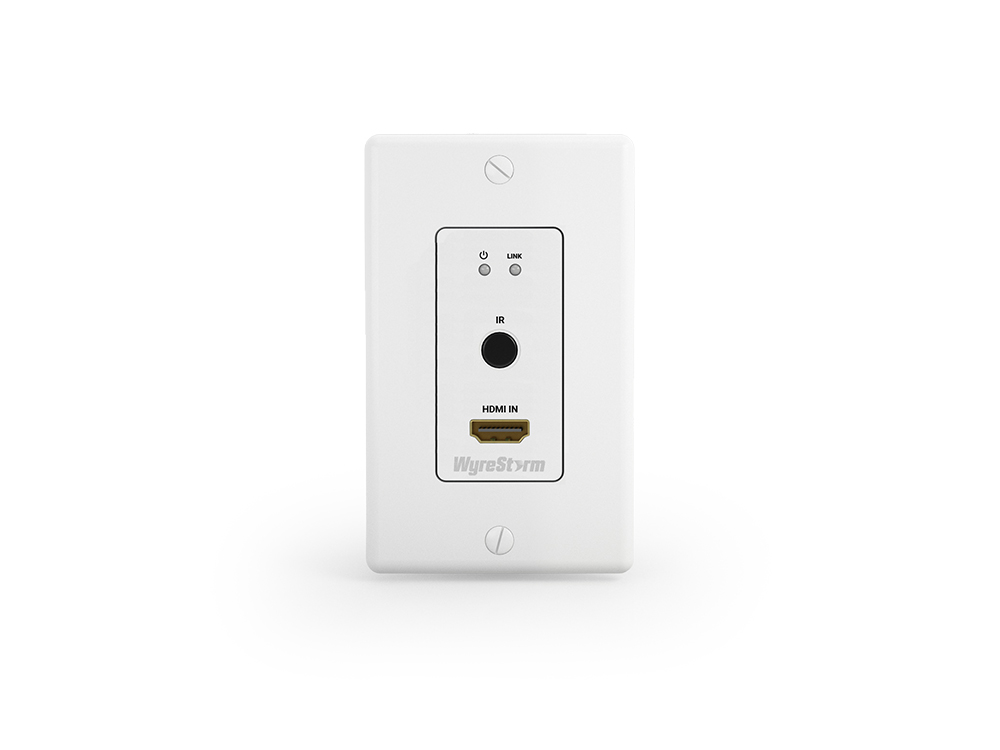

The TX-35-IW provides simple transmission of remote HDMI sources. Pair with the RX-35-POH for simple yet effective signal extension of 4K UHD content. The TX-35-IW uses standardized HDBaseT and PoH technology, meaning that it is compatible with many WyreStorm models including presentation receivers or the H2XC series of matrix switchers. The TX-35-IW is great for remote input applications including education environments such as training rooms or huddle spaces. It can be remotely powered from a compatible HDBaseT receiver and features IR and RS-232 control signal passthrough.

SMALL FOOTPRINT

Powerful HDBaseT technology in the smallest footprint possible. Install the TX-35-IW into standard 1-Gang US sized wall boxes. Keep your installations looking professional and tidy.

COST EFFECTIVE

Retaining core functionality, the TX-35-IW has the capability you need and gets rid of those you don’t. Easily transmit HDMI content, control signals and power over a single category cable.

POH

The TX-35-IW features PoH technology which allows it to be powered from a compatible HDBaseT receiver. Eliminate the need for bulky DC power supplies and remotely power the TX over category cable.

VERSATILITY

Using standard technologies such as HDBaseT and PoH makes the TX-35-IW compatible with a myriad of WyreStorm receivers such as the SW-515-RX, or even as a remote input into the MX-H2XC for larger deployments.

Features:

Reliable HDMI extension of 4K and HD sources from a 1-Gang US decora wall plate using HDBaseT transmission technology
Class B HDBaseT™ supporting 4K transmissions up to 35m (115ft)
PoH enables unit to be powered remotely from a compatible WyreStorm HDBaseT receiver (RX-35-POH recommended)
Additional 12v DC phoenix connection for local power when used with a non-PoH receiver (12v 1a PSU sold separately)

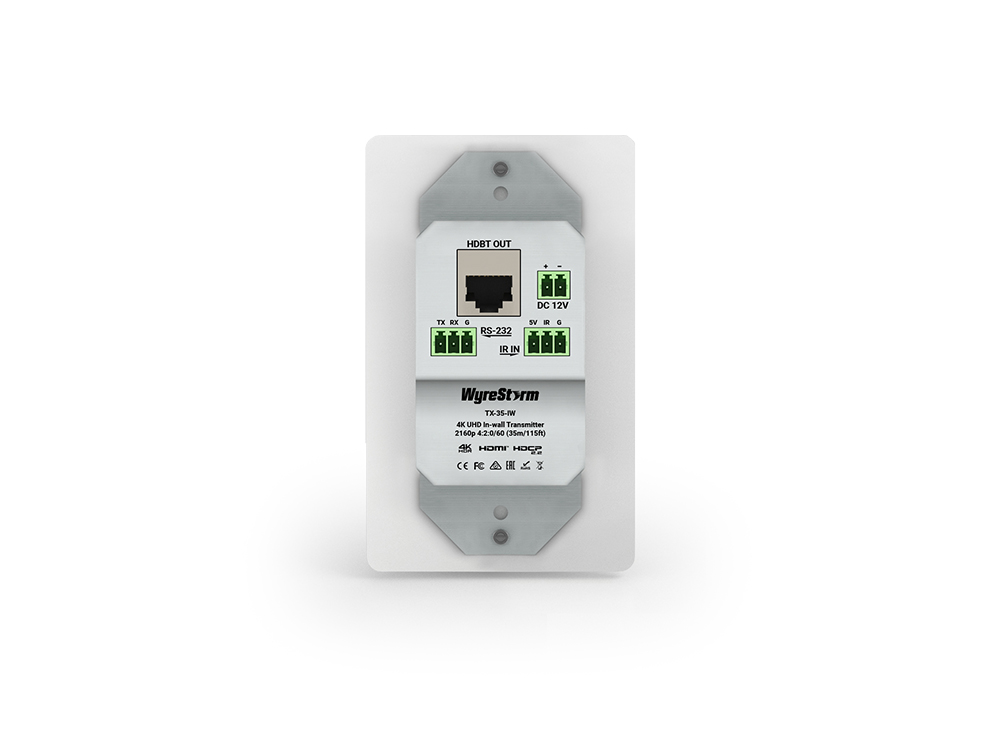

Built-in front panel IR receiver window and rear facing 3-pin phoenix connection for easy TV/projector control
Bi-directional RS-232 passthrough via rear facing 3-pin phoenix connection
Automatic EDID management
HDCP 2.2 compatible
Front panel LED indication for HDCP presence and transmission link between devices
Conforms to IEEE-568B standards
Compact design for convenient and unobtrusive installation
