Description

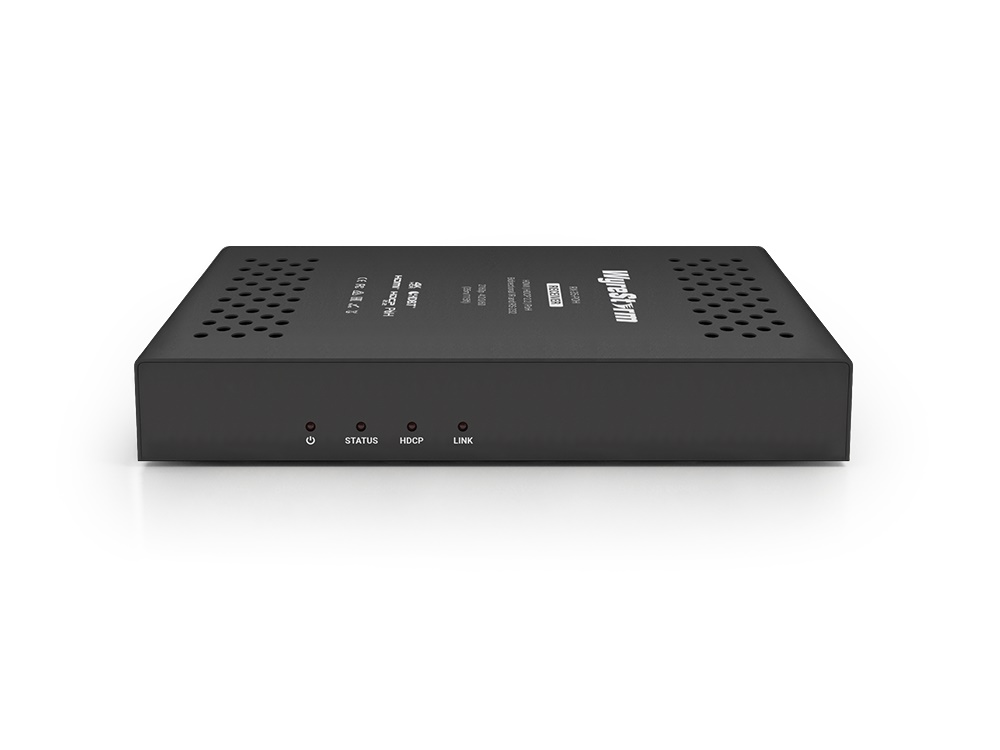

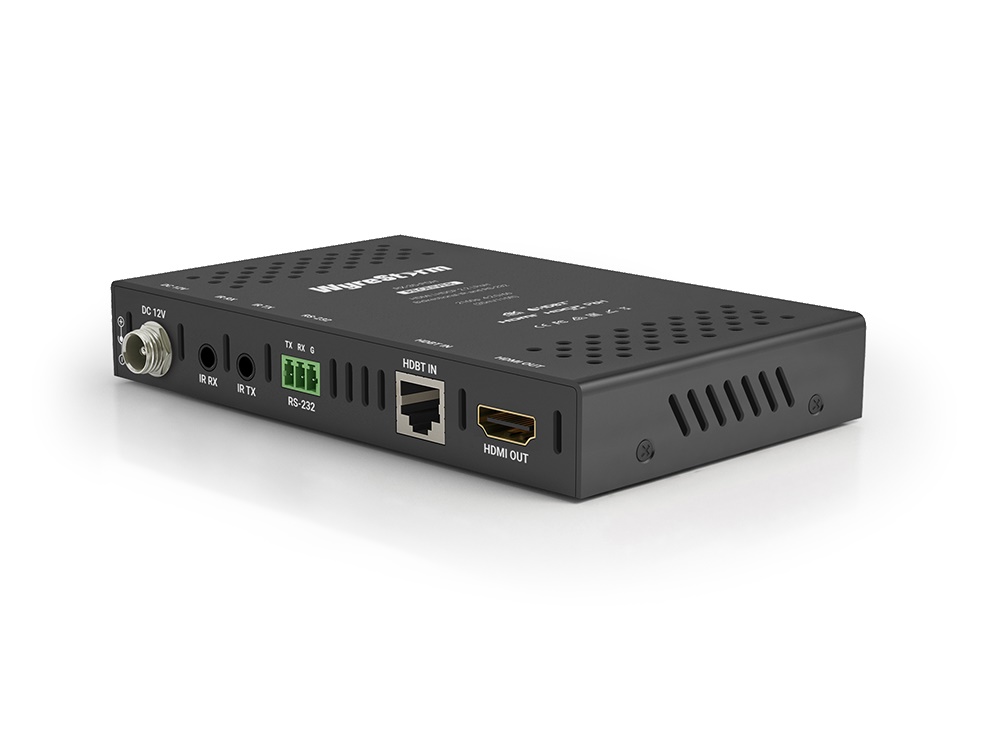

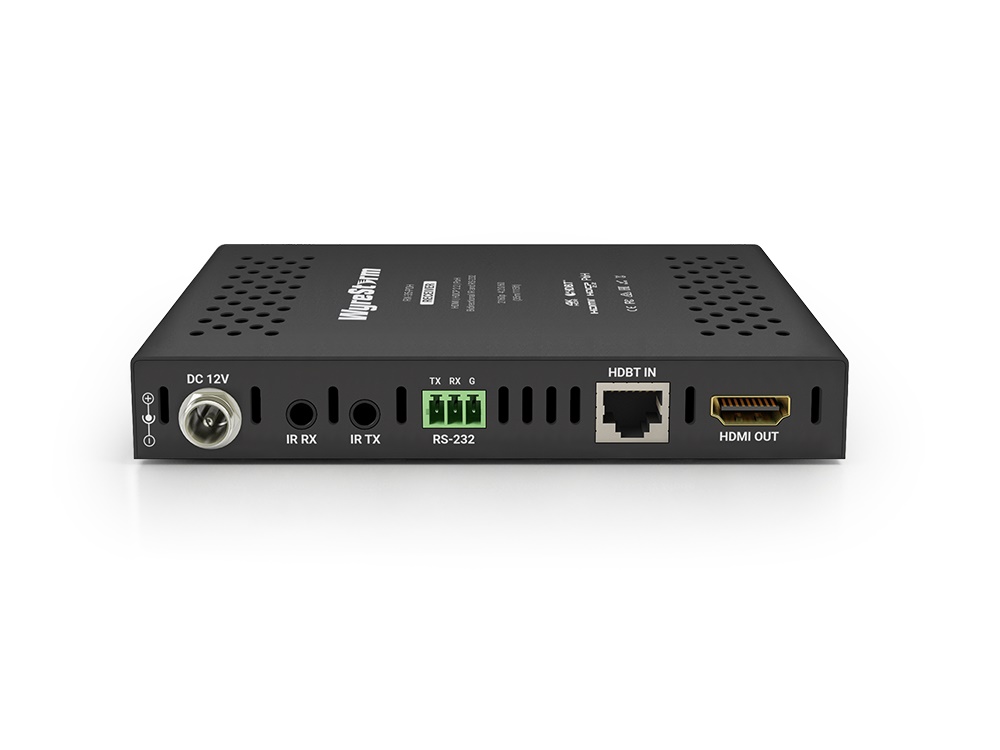

Download Manual Compact Class B HDBaseT receiver supporting 4K HDR transmissions up to 35 meters from a compatible HDBaseT matrix or presentation switcher. 2-way PoH allows the RX-35-POH to power over category cable from a PoH matrix or switcher and also allows for the receiver to power in-wall HDBaseT transmitters.
CLASS B HDBASET™
Small in size but not in specification, the RX-35-POH is no different to the modern H2 family of products, supporting pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 35m/115ft or 1080p to 35m/115ft.
POH
The RX-35-POH can be powered by a PoH compatible matrix or presentation switcher meaning one less thing to think about when specifying & installing a WyreStorm system.
CONTROL OPTIONS
Supports 3 methods of control pass-through. Being a pure HDBaseT™ device, the RX-35-POH can handle bi-directional IR, RS-232 and even CEC routing when used as part of a compatible WyreStorm matrix or extender system.
FULLY COMPLIANT WITH HDCP 2.2 ENCRYPTION
As with all of our HDBaseT Receivers, remaining relevant & legal is key to their operation. The RX-35-POH is compliant with the strict anti-piracy algorithms that prevent the unauthorized distribution of content, meaning a trouble-free installation.
Features:
- Receives 4K UHD HDBaseT transmissions up to 35m/115ft
- Compatible with 4K HDR source content
- Compatible with HDCP 2.2 protected content
- 2-way PoH enabled for convenient PSU-free installation
- RS-232 and IR passthrough for control of peripheral equipment
