Kramer 676R 4K60 4x4x4 HDMI and RS-232 Receiver over Ultra-Reach MM/SM Fiber Optic

Description

Download Manual

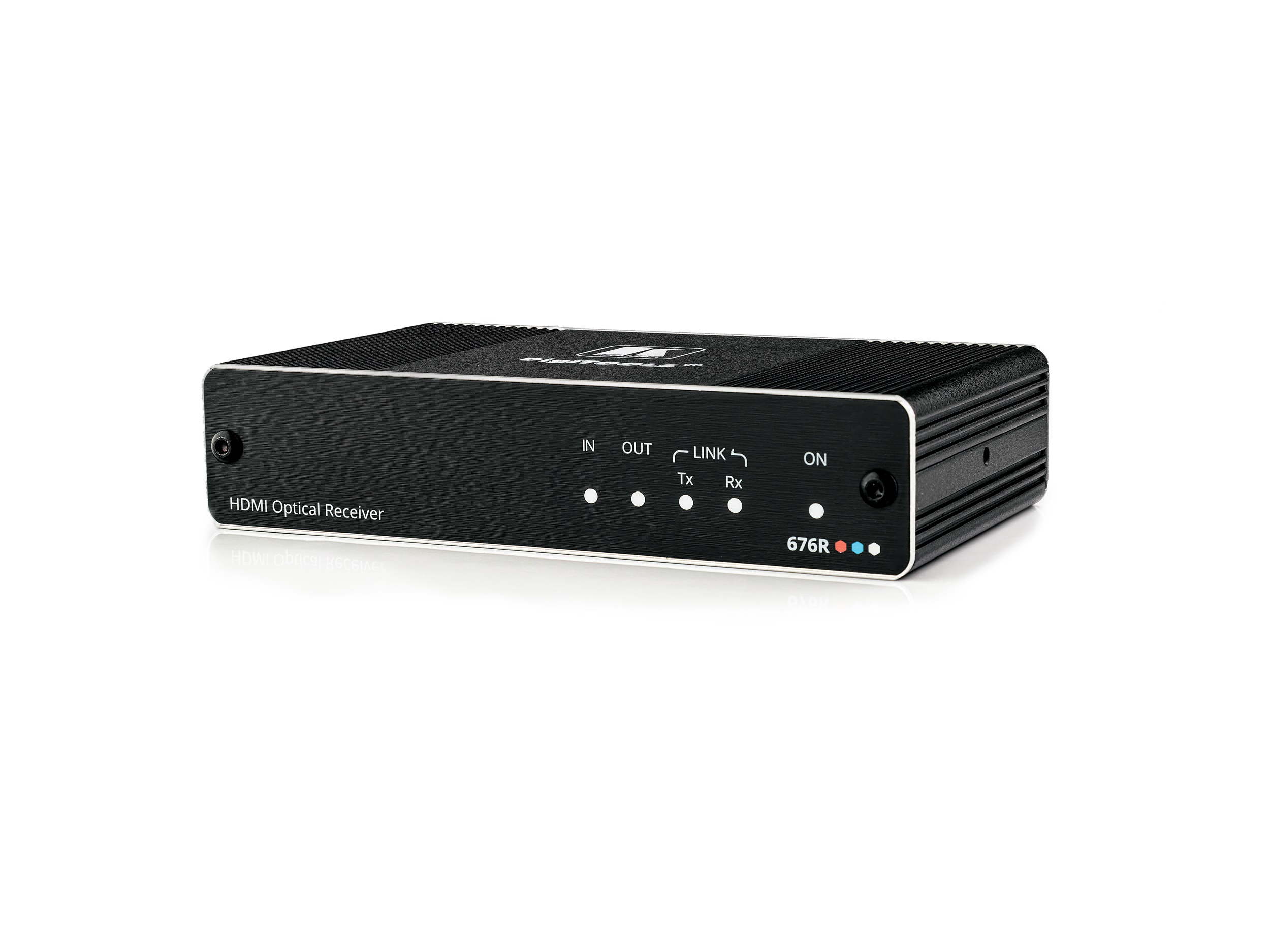

676R is a high-performance HDMI fiber receiver for ultra-reach extension of 4K@60Hz (4:4:4) HDMI signals. 676R receives the transmitted optical signal from a compatible transmitter and converts it to an HDMI and RS-232 signals. 676R includes a multi-mode SFP+ transceiver, but can be used with any Kramer certified SFP+ transceiver, such as a single-mode SFP+ transceiver.

Features:

• High Performance Standard Fiber Extender – HDMI fiber receiver for providing ultra-reach signals over either multi-mode or single-mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units (multi-mode SFP+ included). Near-zero latency video chroma sub-sampling conversion technology, is employed to auto-adapt above 10G HDMI signals to 10G optical link signal data-rate.
  Note: To ensure specified performance, support, and warranty of this product, use only Kramer’s certified hi-performance OSP SFP+ pluggable optical units.
• Multi-drop Signal Distribution – Use optical splitters to extend the input signals from a single transmitter to multiple receivers, for displaying the same content on multiple display devices using optical splitting only, with no need for AV distribution amplifiers.
• HDMI Signal Extension – HDCP 2.2 compliant and supports up to 18G (6G per channel) data rate, LPCM 7.1, Dolby True HD, and DTS-HD as specified in HDMI 2.0.
• Power Saving – With CEC ON/OFF function, shut down a display device automatically when not in use, and auto power it ON upon presentation start.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
• Bidirectional RS-232 Extension – Serial interface data flows in both directions, to enable data transmission and control of devices.

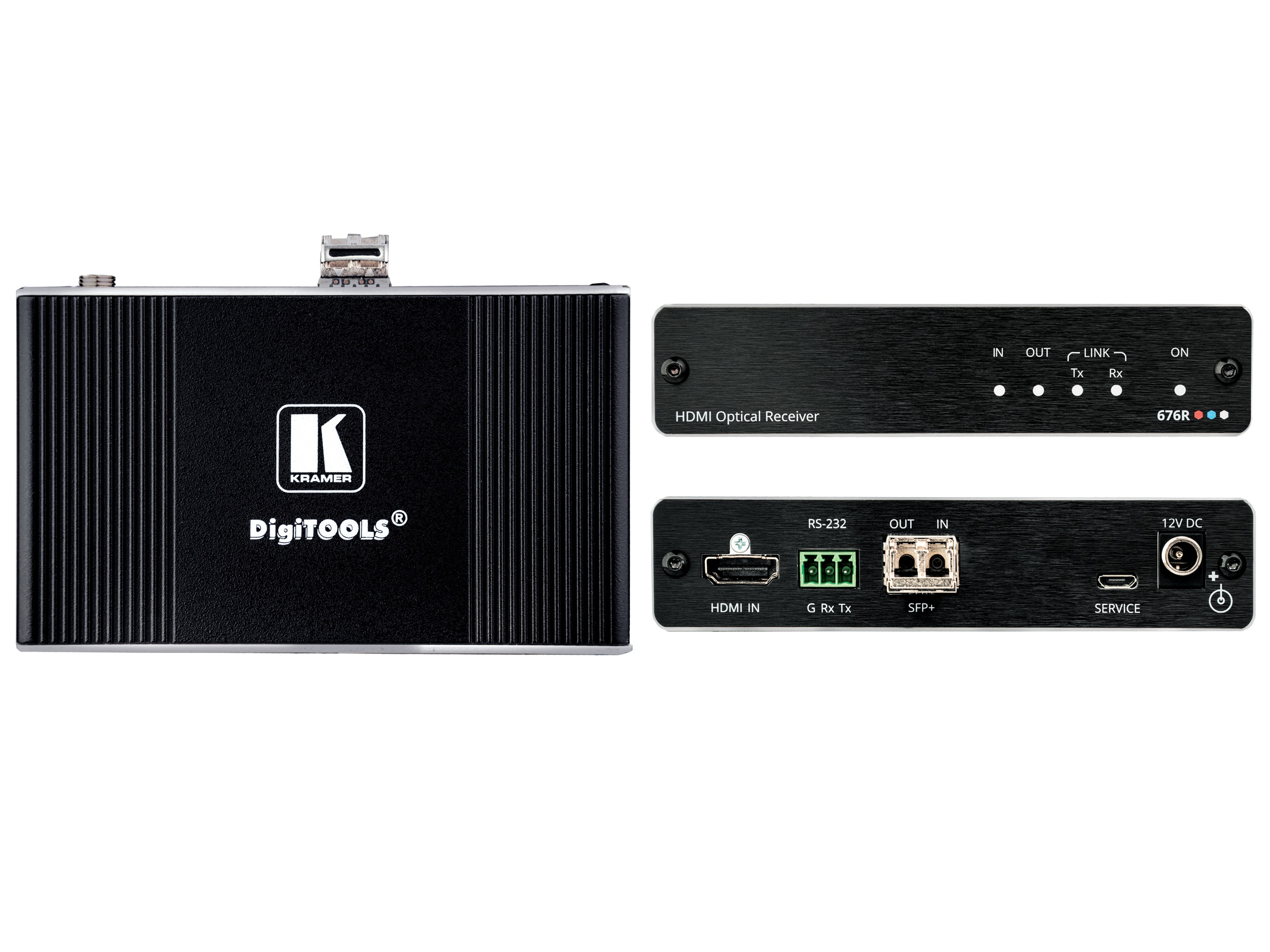

• Cost-Effective Maintenance – Status LED indicators for power, source, sink and fiber link connections detection facilitate easy local troubleshooting.
• Easy Installation – DigiTOOLS® rack mountable fan-less enclosure enables side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.
