Download Manual This listing is for UH18-S Transmitter (Sender) only. Use description below as a general reference.

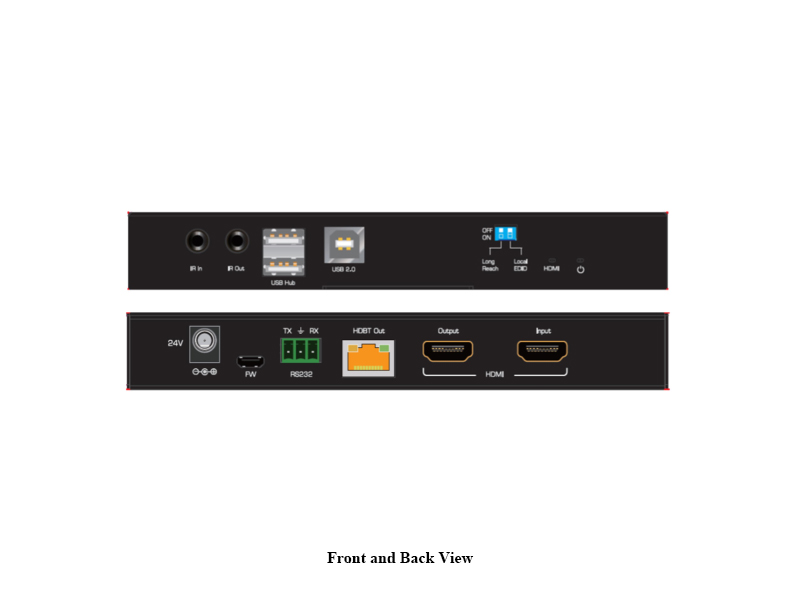

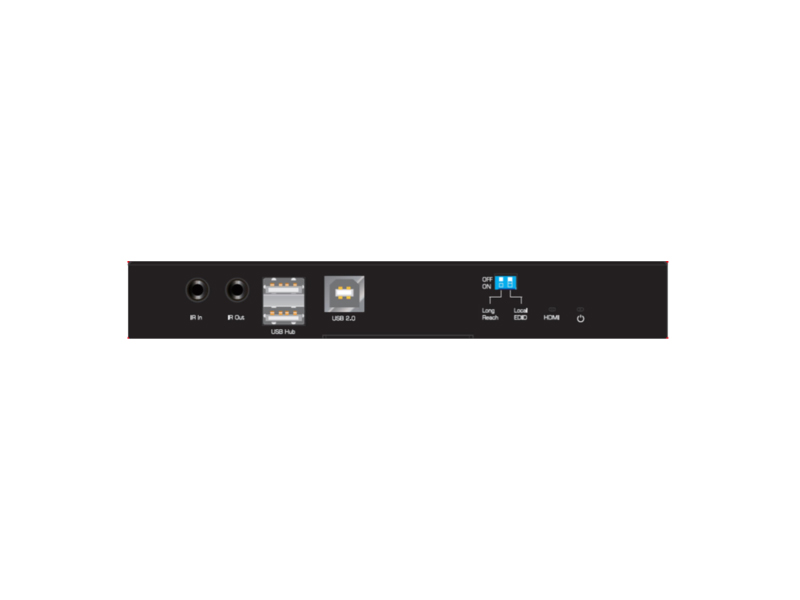

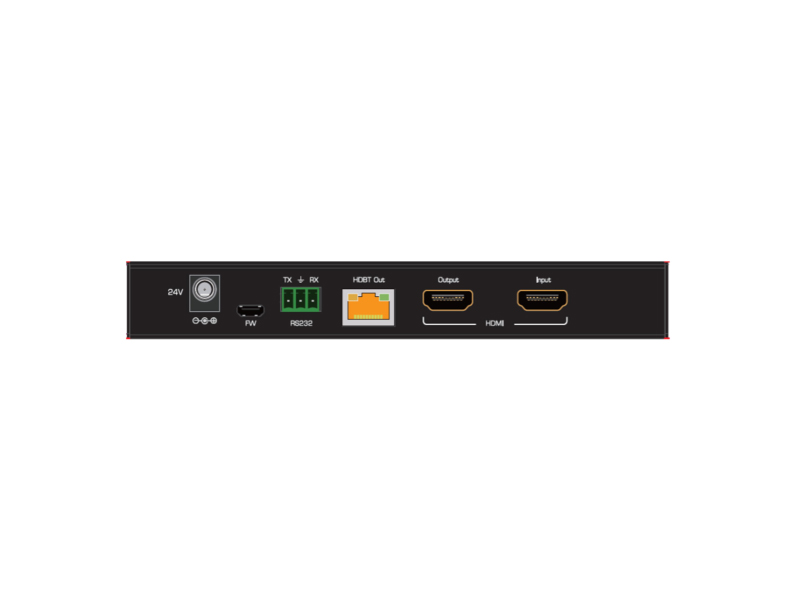

The UH18 is an HDMI and USB2.0 over single CAT5e/6 solution, which consists of a Sender (UH18-S) and Receiver (UH18-R). The solution can extend 4K@60 (UHD) Video, USB2.0, Bidirectional-IR, RS-232 and Power on a single CAT5e/6 up to 100 meters. The system only needs power on one side, either from the sender to the receiver or alternatively the receiver to the Sender. The UH18’s sleek design makes the installation easy behind monitors and tight spaces.
Features
- Supports and extends 4K@60Hz up to 100 m and 1080p@60Hz up to 150m
- HDMI 2.0, HDCP 2.2 compliant and supports HDR10
- Support LPCM 7.1, DTS-HD, Dolby-HD
- Audio Extraction on the Receiver(Analog and SPDIF)
- Fully compliant with HDBaseT™ 2.0 specifications
- Bi-directional IR and RS-232 Pass through
- Plug and Play Installation – takes minutes to setup
- EDID Management
- Power only on one side (Dual POC)
