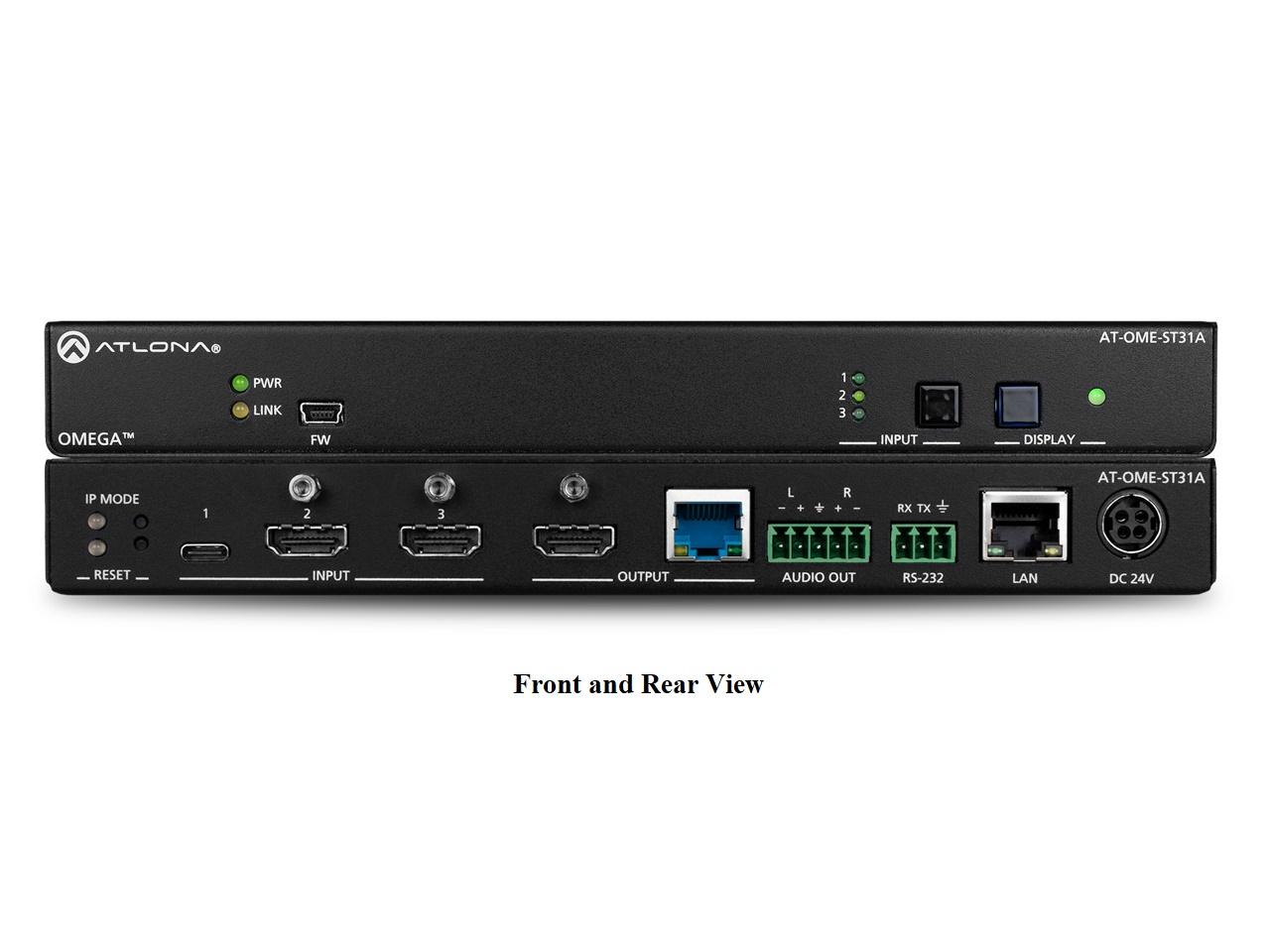

Atlona AT-OME-ST31A 3×1 4K/UHD HDBaseT Switcher with HDMI/USB-C and POE (Audio De-Embedding)

Description

Download Manual

The AT-OME-ST31A, a product of ATLONA is a 3 x 1 HDMI
switcher using HDBaseT technology housed with PoE and USB-C
inputs. The device was created as part of the Omega™
Series of integration products for modern Audio/Video
communications, is HDCP 2.2, IP, R-232 compliant, features
mirrored HDBaseT, HDMI outputs and can be used with the
latest Mac®, Chromebook™, and Windows® PCs,
as well as smartphones and tablets. Video signals can be
transmitted up to a distance of 330ft. The device serves as
an all-in-one controller, switcher, and extender. It can be
powered by Atlona HDBaseT-equipped devices or power a
compatible receiver through PoE, it can also be used to
charge mobile devices or laptops through the USB-C port.
The OME-ST31 also features remote management with Atlona
Management System, reliable auto-switching and automatic
display control when any device is connected or
disconnected. Ease of use and cost-effectiveness in one
complete system integration solution. The OME-ST31 is designed for use with
Omega Series switchers and receivers, AT-UHD-EX-100CE-RX
receiver, AT-HDVS-SC-RX scaler, and Atlona switchers with
HDBaseT inputs.

* Consumer
Electronics Control (CEC): Atlona does not guarantee the
function of CEC with all televisions.We can confirm proper
operation with many current Samsung, Panasonic, Sony, and
LG TVs. Many manufacturers do not support the CEC
“off” command when sent from a source and older
TVs use proprietary commands. Atlona only supports those
TVs that follow CEC command structure from HDMI 1.2a and
support the “off” command when issued by a
source.
