Download Manual HDMI 2.0 MAXED-OUT
At WyreStorm, we’re always looking ahead keeping up with
the speed at which the world of technology moves and that’s
why we bring you the next shift in technology in our
extender – the Visual Lossless Compression chipset: 60Hz
HDR and 4:4:4 60Hz
ON-DEMAND AUDIO
Free the audio content from within your smartTV using
theWyreStorm EX-35-H2-ARC HDBaseT™ extender which supports
optical audio return and True ARC (via HDMI)
HIGH FRAME RATE HDR
Both HDR-10, HLG and Dolby Vision(*Dolby Vision up to
30Hz)are readily available as the EX-35-H2-ARC remains one
of the top in the league allowing high frame-rates as those
available at 60Hz on certain discs and some games consoles
like the Xbox One X

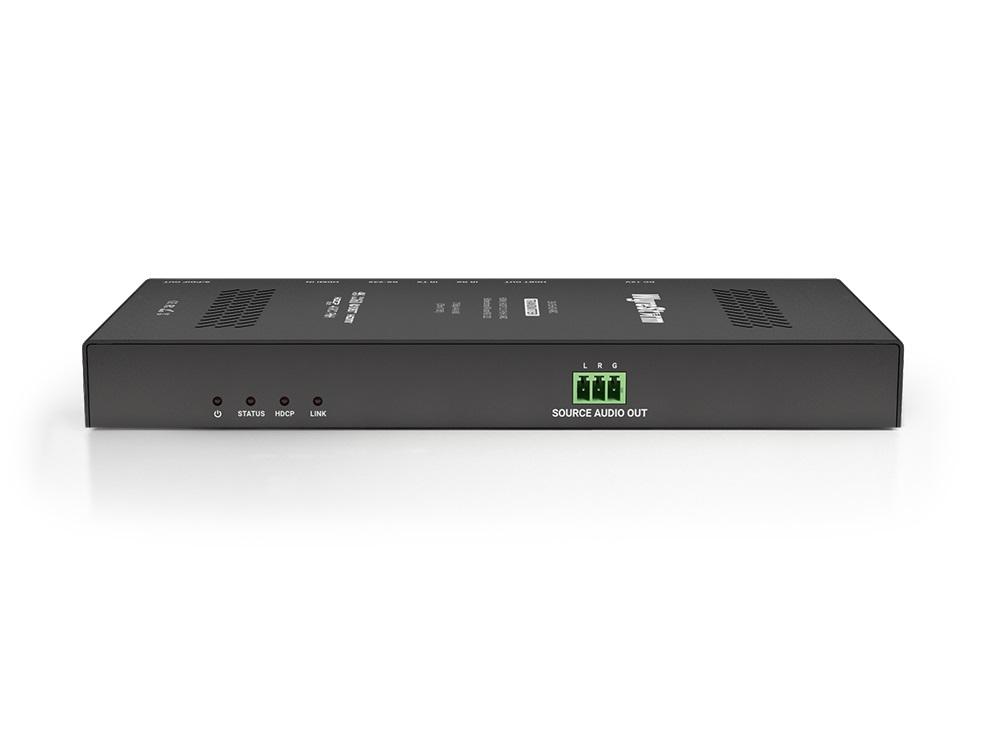

AUDIO DE-EMBED
The EX-35-H2-ARC transmitter offers full-featured
audioperformance. In addition to the ability to handle ARC,
users can extract 2channel PCM audio from source using the
3-pin phoenix port for connecting to an audio system
Features:
- Dynamic visually lossless compression enables extension
of up to 4K/60 4:4:4 or HDR 60Hz content over HDBaseT to
35m/115ft and 1080p to 70m/230ft - True ARC functionality extracts and sends 5.1 audio
from a Smart TV to a compatible AVR via HDMI - HDCP 2.2 compliant, with automatic variable compression
supporting full bandwidth HDMI content up to 17.8Gbps - Compatible with the latest HDR standards, including HDR-
10+, HLG content, with support for Dolby Vision™ up
to 30Hz - Class B HDBaseT extends 4K UHD 4:4:4 content to 35m/

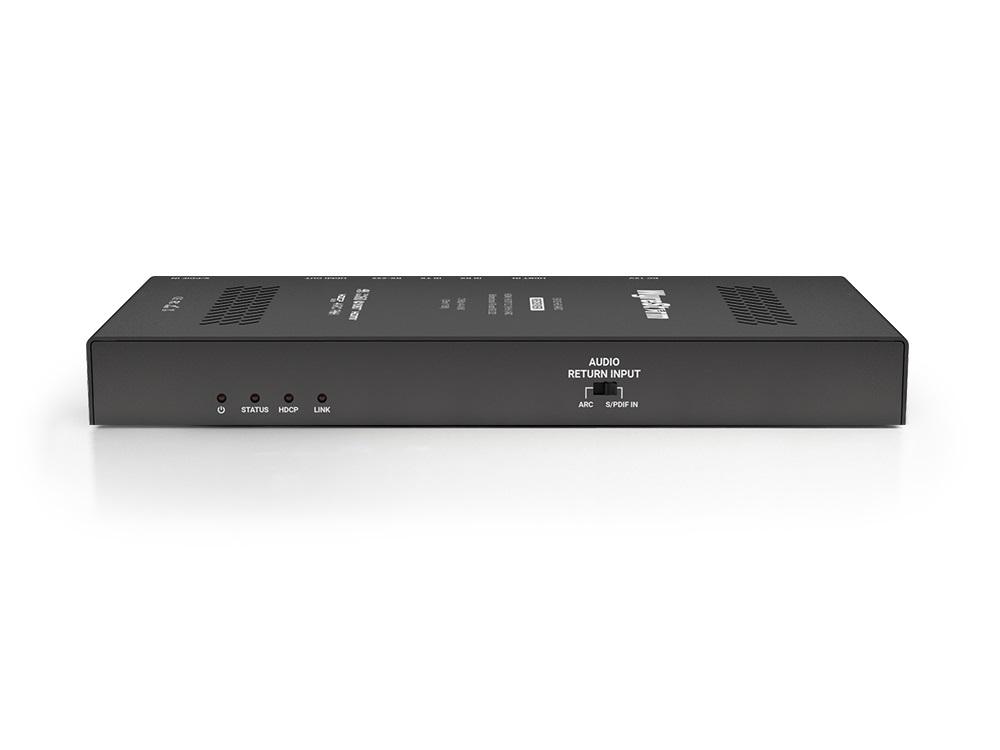

115ft with IR & RS-232 pass-through - Toslink input & output allows non-ARC audio to be
sent from RX-TX via selection switch - Analog stereo audio breakout of source audio on
transmitter - Advanced re-clocking chipset increases compatibility
with new 4K UHD source devices - 2-way PoH (Power over HDBaseT™) enables either
transmitter or receiver to be remotely powered by the other
unit - Slimline 21mm chassis for easier, more convenient
installation behind displays - 2ch PCM audio and multichannel HD audio supports 7.1,
DTS-X and Dolby Atmos - Switchable RS-232 function mode on transmitter and
receiver for firmware update Note: Serial control via RS-
232 only supported when connected to a compatible
HDBaseT™ transmission device with routable RS-232 - Threaded bushings allow use of both standard and
locking 18v DC power plugs - Visual LED indication for power supply to units, signal
status to show established display connection, HDCP
presence in signal and HDBaseT™ link between devices - Automatically adjusts equalization and amplification of
signal for easy installation
