Description
Download Manual TOUCHSCREEN INTERFACE

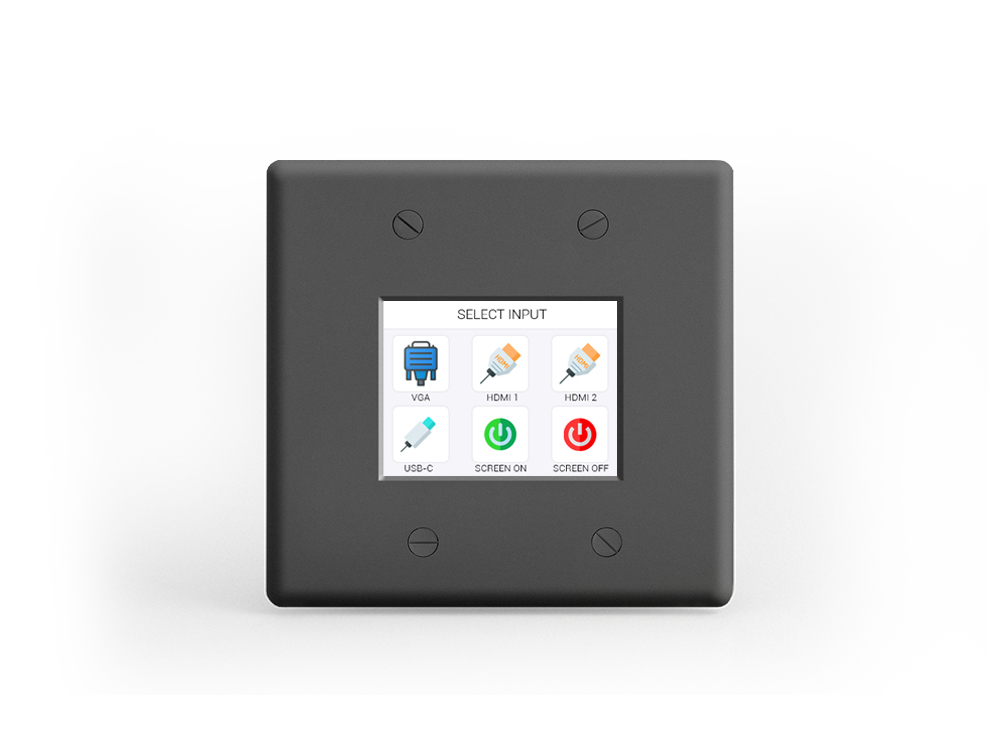

The TS-280-US popularly known as a simple control interface with an appearance that an advanced
control system is neatly tucked away, the 2.8” touchscreen ensures ease of use by firstly
eliminating the high-price processor within a control system and secondly it employs the Cat5e
cable to extend serial commands directly to the switcher.
INTUITIVE & SIMPLE USER CONTROL
Why use a stronger measure than necessary? The TS-280 is perfect for situations when a full
control system processor is considered extravagant for a small classroom or meeting space. Apart
from the automatic function of the switcher from WyreStorm, the simple interface touch control
essential functions like switching and CEC triggering.
SIMPLE SETUP
The device’s pre-configured UI’s is compatible with all WyreStorm presentation switcher units,
providing a fast & easy solution when the user requires manual manipulation of the meeting or
education space. Once you download from the website, you can upload the user interface file, and
it is ready for use within 30 seconds.
EXTENDED RANGE

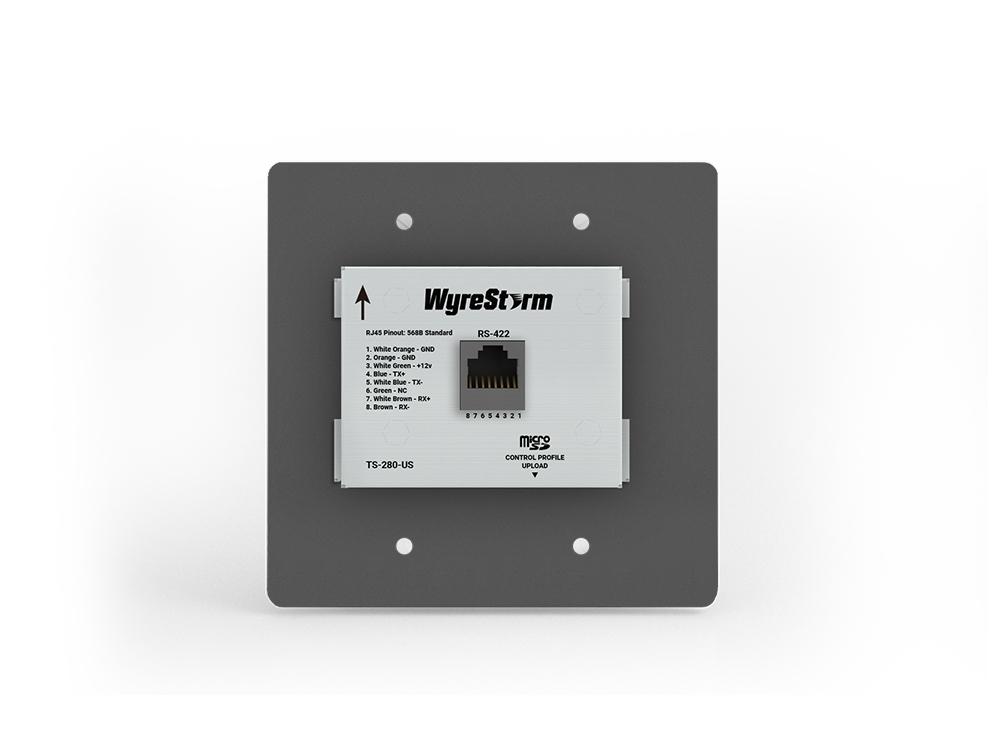

With the RS-422 communication connecting the touchscreen and the interface module, the product
can accommodate even the longest of cable runs; up to a distance of 100 meters/328feet between
switcher and control point. Draw power either directly from a compatible switcher or through 12v
PSU linked to the interface module.
Features:
- 2.8” color touchscreen perfect for WyreStorm
switcher control - Backlit with automatic power off and wake on touch
- Pre-configured UI’s designed for simple end-user
experience - Easy update: Download UI from wyrestorm.com and load
via MicroSD card - RJ45 connection and RS-422 communication to included RS-
232 converter - 300m/984ft transmission range to host device
