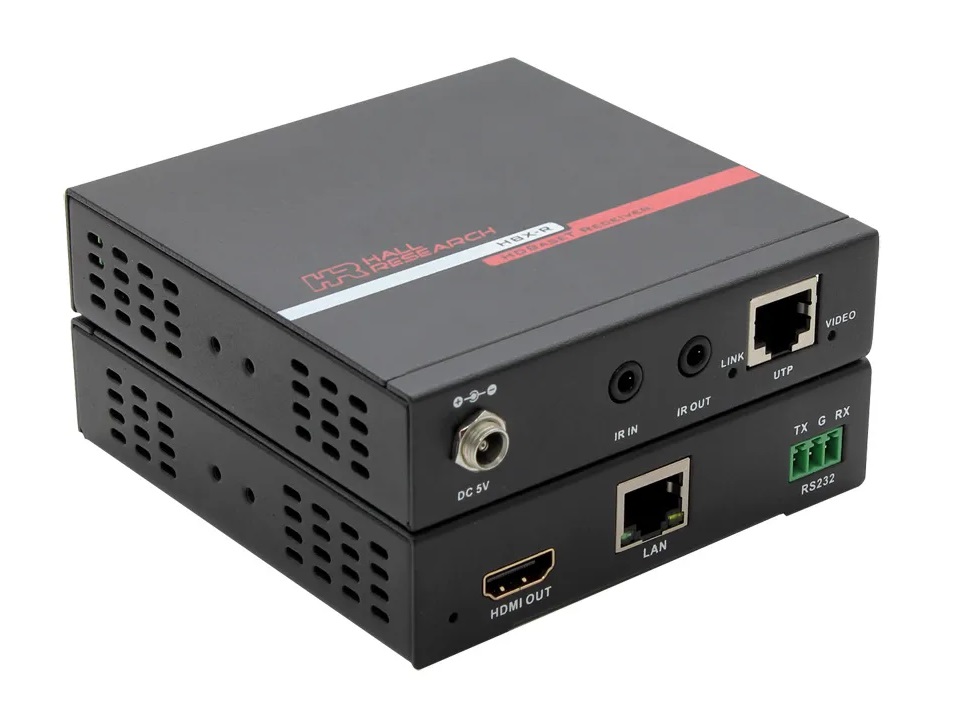

Hall Technologies HBX-R HDMI Video Extender (Receiver) With Ultra-HD AV/IR/RS232 and Ethernet

Description

Download Manual

The Hall Research’s HBX-R Receiver is a Class A
HDBaseT compliant with support for 100meter Cat6 range and
routing of RS-232, IR, HDMI, and Ethernet (100BaseT) up to
a distance of 328 feet (100 meters) using one Cat6 cable.
The unit employs the HDBaseT standard enabling distribution
of video pixel-by-pixel with no compression or degradation
of quality.

The Receiver supports all PC as well as HDTVResolutions
like 4K @ 30 Hz with 4:4:4 chroma subsampling or 4K @ 60 Hz
with 4:2:0 chroma subsampling. With its IR extension, it
maintains the modulation frequency thereby compliant to
most standards. The receiver features a universal 5v power
supply and has IR emitter and IR detector cables.

Features:

• Fully Compliant with HDBaseT standard
• Supports virtually all HDMI and DVI resolutions including 4K UHD
• Extends, Video, Audio, RS-232, IR, and Ethernet
• Supports extension to 100 m (330 ft)
• Fully isolates grounds between TX and RX sides
• Compact, Rugged, Reliable, and Economical
• Plug and play, no configuration needed
• Receiver can be powered via PoC from senders that provide PoC such as HSM-44-BX Matrix Switch with HDBaseT outputs
