Description

The WyreStorm’s EX-70-G2 is a professional device that
employs HDBaseT™ Class B technology with the ability to
transmit 4K UHD audio, video and control up to 35m/115ft.
It is of outstanding value and features reliability for
residential applications

Features:

2K extender set capable of transmitting AV content over
medium distances using a single category cable
HDBaseT™ Class B transmission supporting 1080p
@60Hz 36bit up to 70m/230ft
Extends 1080p HDMI signal to 70m/230ft over Cat5e
2ch PCM and multichannel audio supported up to DTS:X
and Dolby Atmos
2-Way PoH TX or RX to be remotely powered from either
end for flexible installation options that reduce potential
points of failure from a system
Bidirectional IR pass-through
Auto EQ and Auto EDID Management
Supports CEC communication between devices
4K UHD transmissions up to 4096x2160p 60Hz 4:2:0 8bit
also supported up to 35m/115ft (Cat6) or 70m/230ft (Cat6a/
7)
Low profile 15mm chassis allows quicker, easier
installation behind flushmounted screens
Threaded bushings allow use of both standard and
locking DC power plugs

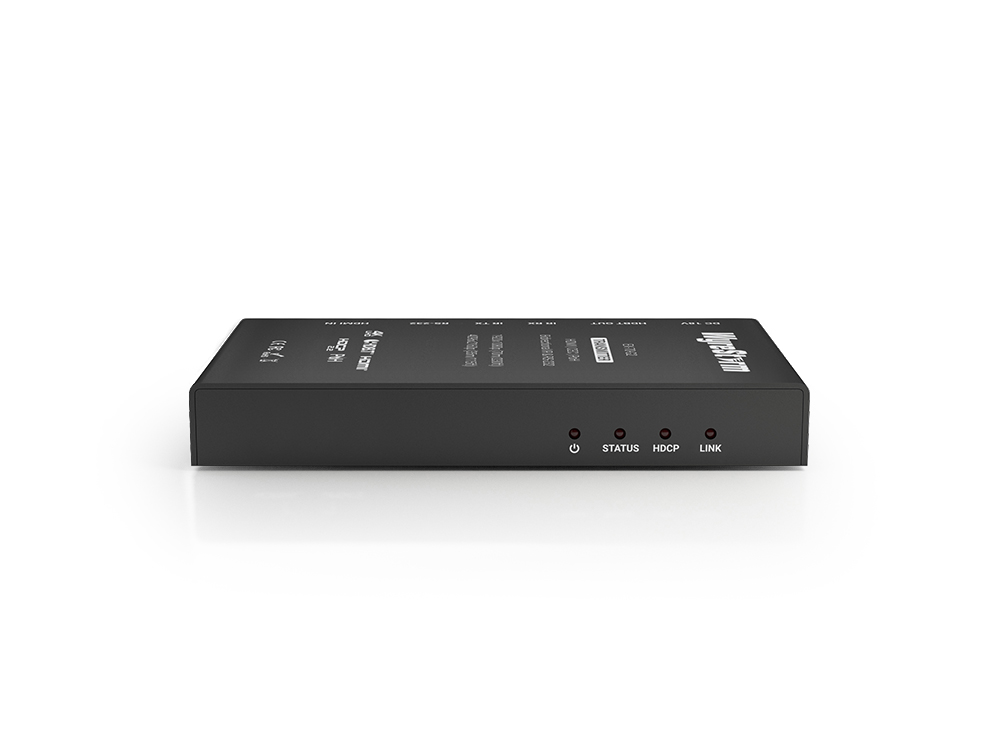

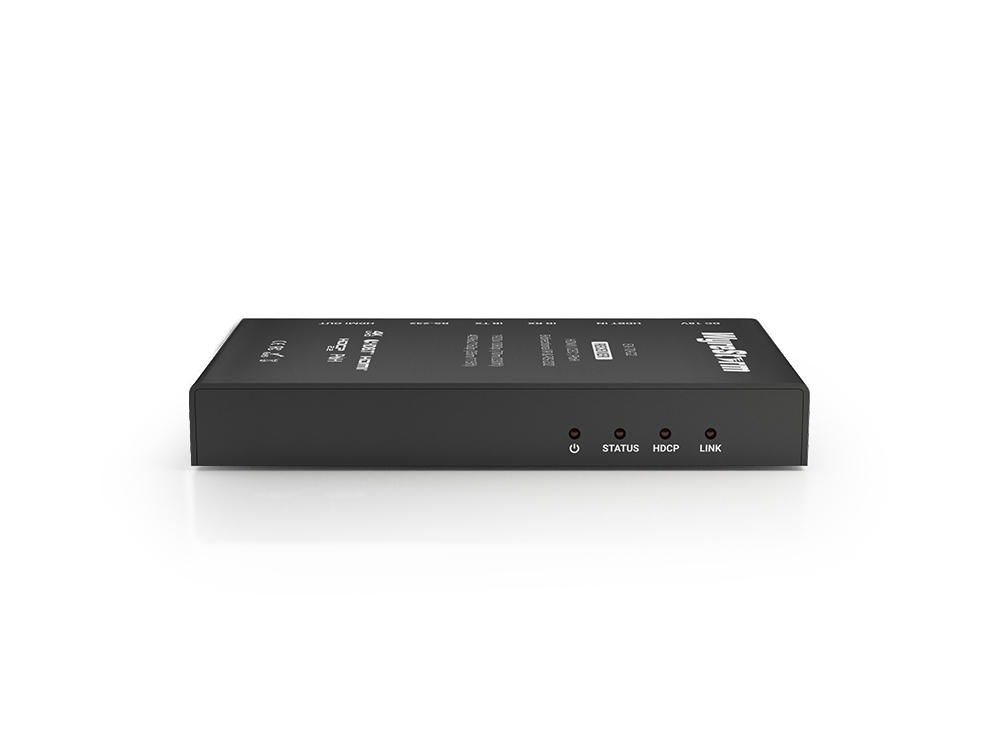

Visual LED indication for power supply to units, signal
status to show established display connection, HDCP
presence in signal and HDBaseT™ link between devices
Cable termination follows IEEE-568B standards
Energy efficient universal power supply included
