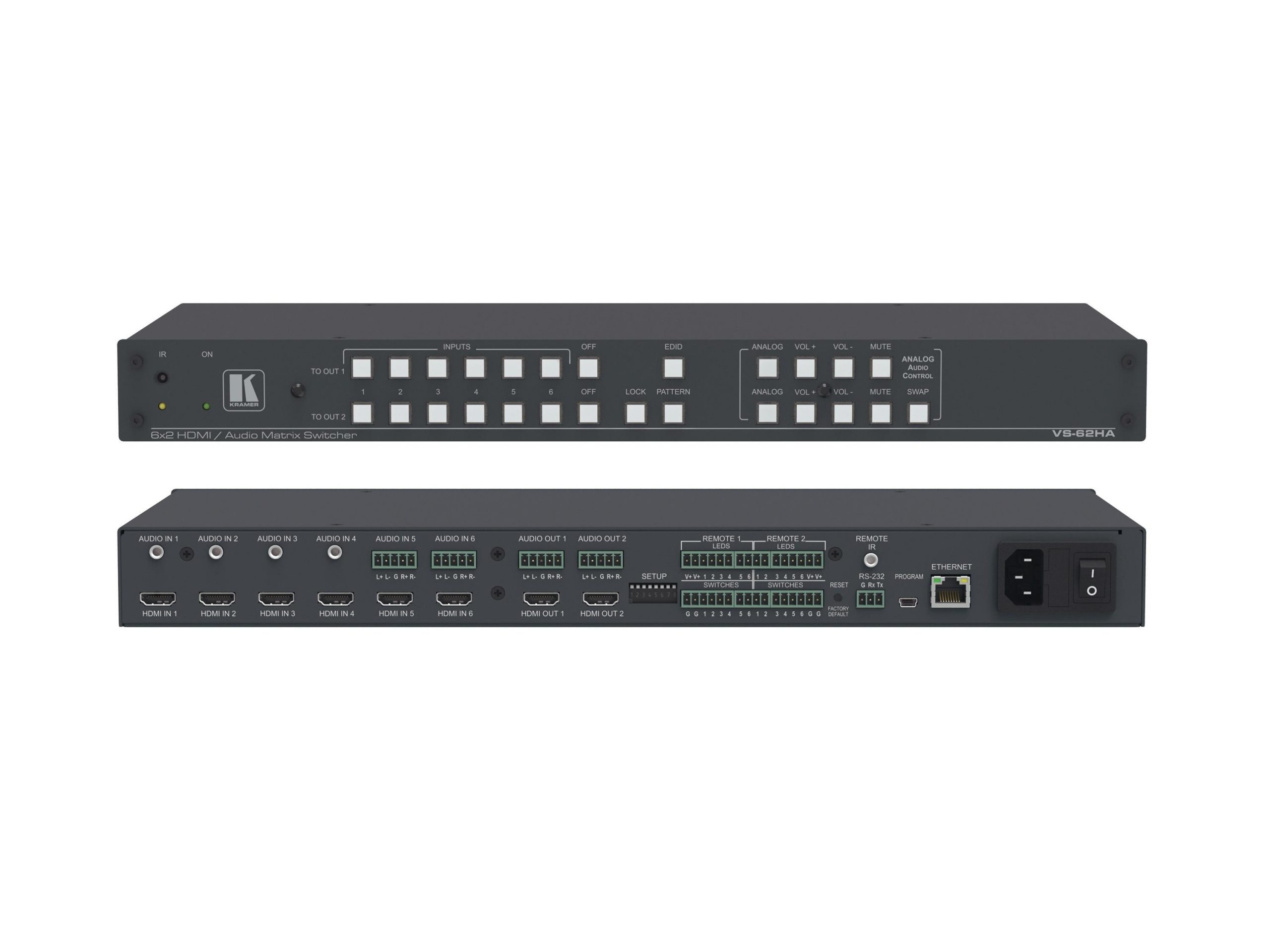

Kramer VS-62HA 6×2 4K UHD HDMI/Audio Automatic Matrix Switcher

Description

Download Manual

The VS-62HA is a high-performance matrix switcher for extending HDMI and analog audio
signals that use advanced auto switching systems and control options. The unit can
reclock and equalize the signals and is capable of routing any input to either/both
outputs simultaneously. The VS-62HA allows a maximum resolution of 4K UHD

and WUXGA, such as 4K @60Hz with 4:2:0 chroma subsampling.

It has a maximum data rate of 8.91 Gbps. It is HDTV Compatible, HDCP Compliant, and
features 3D pass-through. It is capable of auto-switching one or both outputs,
priority or last-connected switching. The unit allows audio resolution signals such
as Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 multi-channel audio.
The VS-62HA also has USB port for upgradable firmware and can be controlled via front
panel buttons, contact closure, Ethernet, IR remote, RS-232, embedded Web server. It
has a lock button which halts unwanted interference with the front panel. The unit
includes standard 19″” (1U) Rack ears.
