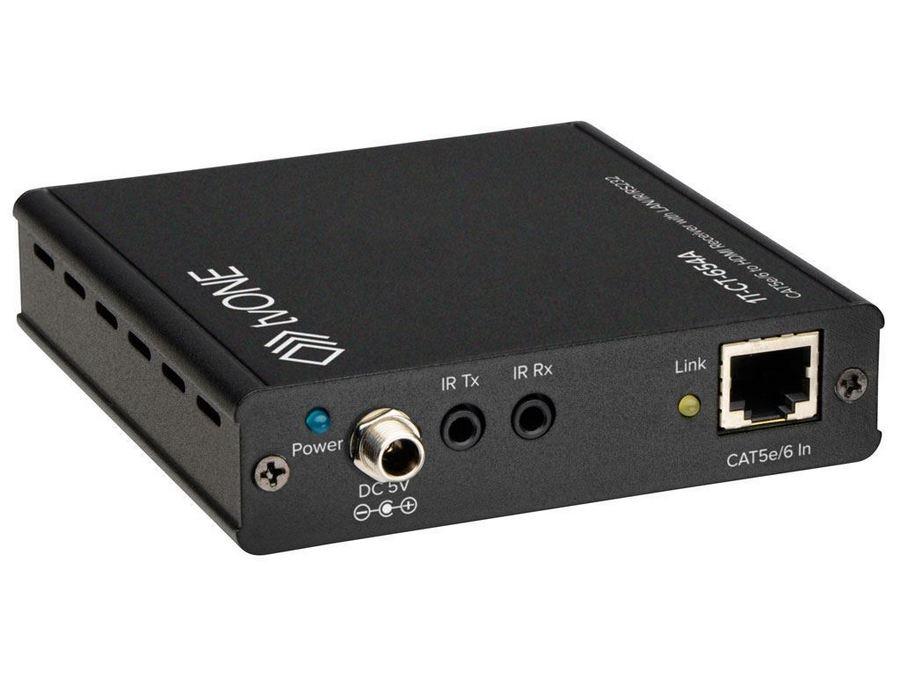

TV One 1T-CT-654A HDBaseT Extender (Receiver) with HDMI1.4/LAN/RS-232 and IR Extension Up to 100m

Description

Download Manual

1T-CT-653/1T-CT-654A is a high-performance kit which consists of 1T-CT-653 Transmitter and 1T-CT-654A Receiver (sold separately) that extends HDMI over Single Cat.5e/Cat.6 system. It transmits uncompressed 1080p signals via a single Cat.5e or Cat.6 cable using the HDMI v1.4 formats. It supports HDMI v1.4 signals with 3D and 4k UHD formats and allows DVI signal transmission with suitable DVI to HDMI cable adapters. It features Dolby TrueHD, Dolby Digital Plus, embedded LPCM 7.1CH, and DTS-HD Master Audio. Controlled via Infrared, RS-232 or Ethernet. It extends signals to a distance of up to 100 meters (325 feet) for uncompressed 1080p signals with no signal quality loss. With the support of Power-over-HDBaseT (PoH) and no local power connection, PoH Transmitter (1T-CT-653, MX-8488) powers the Receiver.
