Description

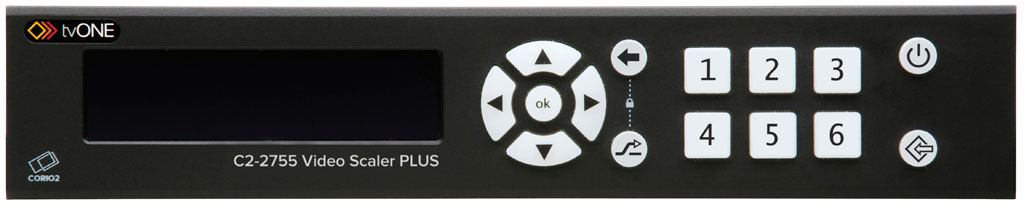

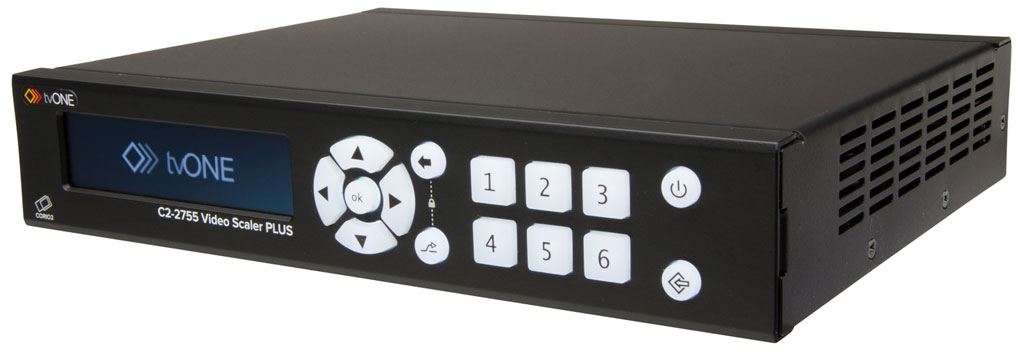

C2-2755 Video Scaler PLUS is a next-generation high-performance scaler that supports high-quality video scaling and format conversion along with interactive UI tools. Users can setup and control the unit via the crystal clear OLED display using color-modulated, backlit buttons. Alternately, use a graphical user interface for tablet or PC to set up and monitor the unit remotely via IP. Directly control third-party control systems via RS232. The video performance ensures high-quality bi-directional conversion and switching between different digital and analog video formats.

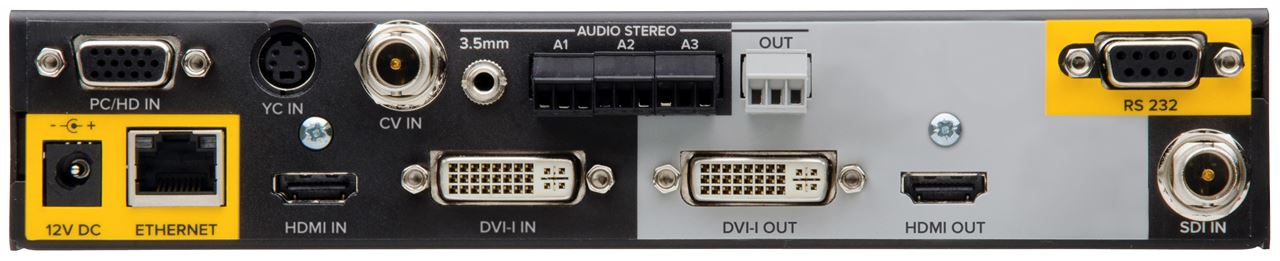

The C2-2755 serves as a Video Scaler supporting inputs of SD/HD/3G-SDI, DVI, HDMI, YC, YUV, Composite Video, YPbPr or RGB and outputs of HDMI and DVI-I. Adjustable control of signal parameters of the input video. It supports the user-definable high-resolution RGB/YPbPr output on almost all HDTV resolution. Twelve customizable presets available for users to switch between customized applications.

It has an integral 4×1 audio routing switcher that enables switching of Integral Stereo Audio. A 3.5mm jack socket and a rear panel terminal block give access to the audio. Enclose in a desktop case or rack-mount with an optional 19-inch rackmount kit that holds one or two units.
It is a one-box solution that uses the auto-switch function and allows electronic display on screens from a source without any manipulations. Setup is quick and easy. It is ideally used in medical environments, teaching spaces, meeting rooms or live staging events where little or no technical knowledge is needed.
