Description

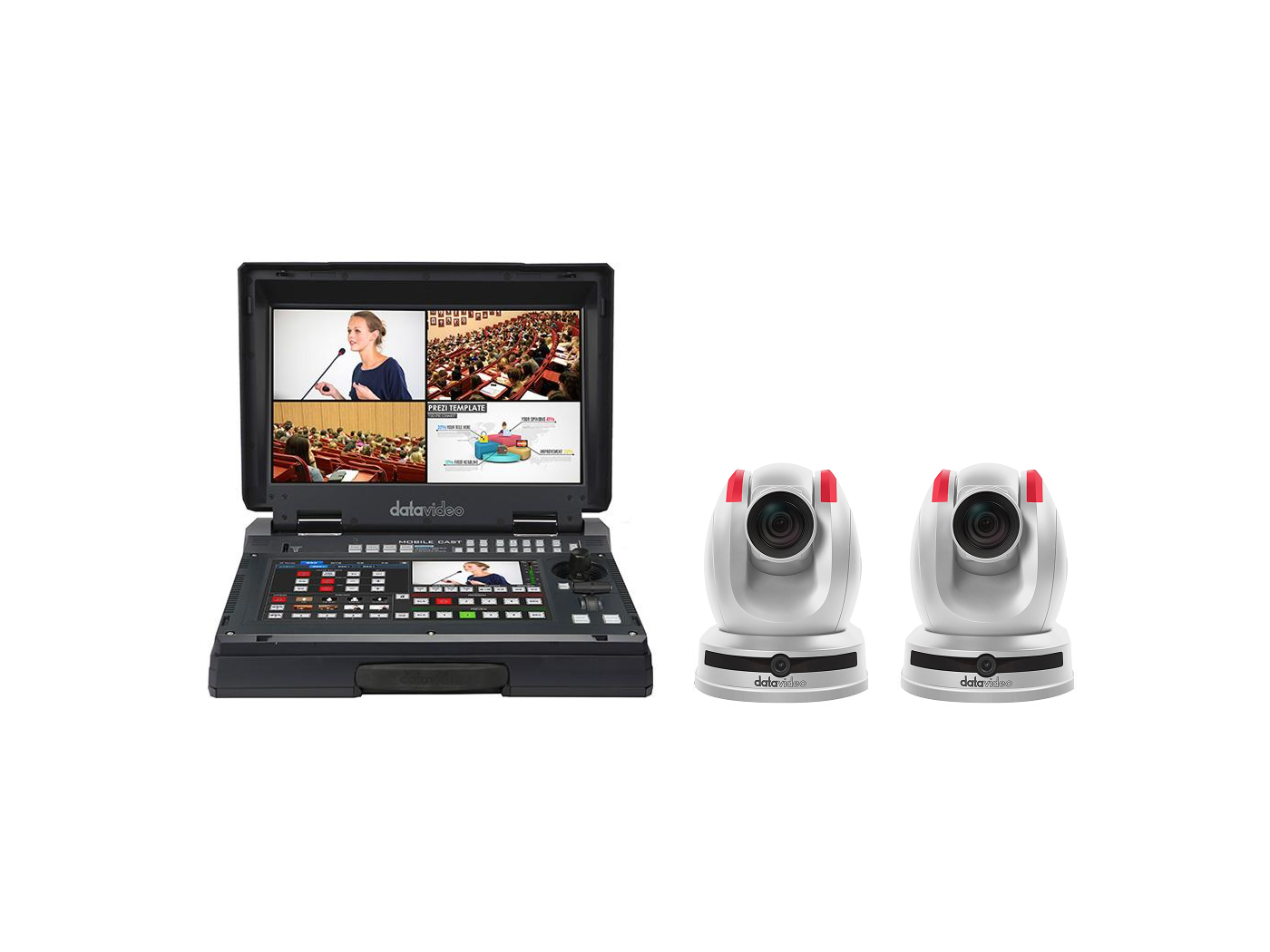

The EZ STREAM AI 30X W is an integrated production kit that combines an HDBaseT-enabled touch controller and auto-tracking PTZ cameras into a compact streaming solution. It delivers live switching, streaming, recording, audio mixing and camera control in a single portable system. The package is designed to simplify setup and accelerate live production workflows while maintaining professional image and audio quality.

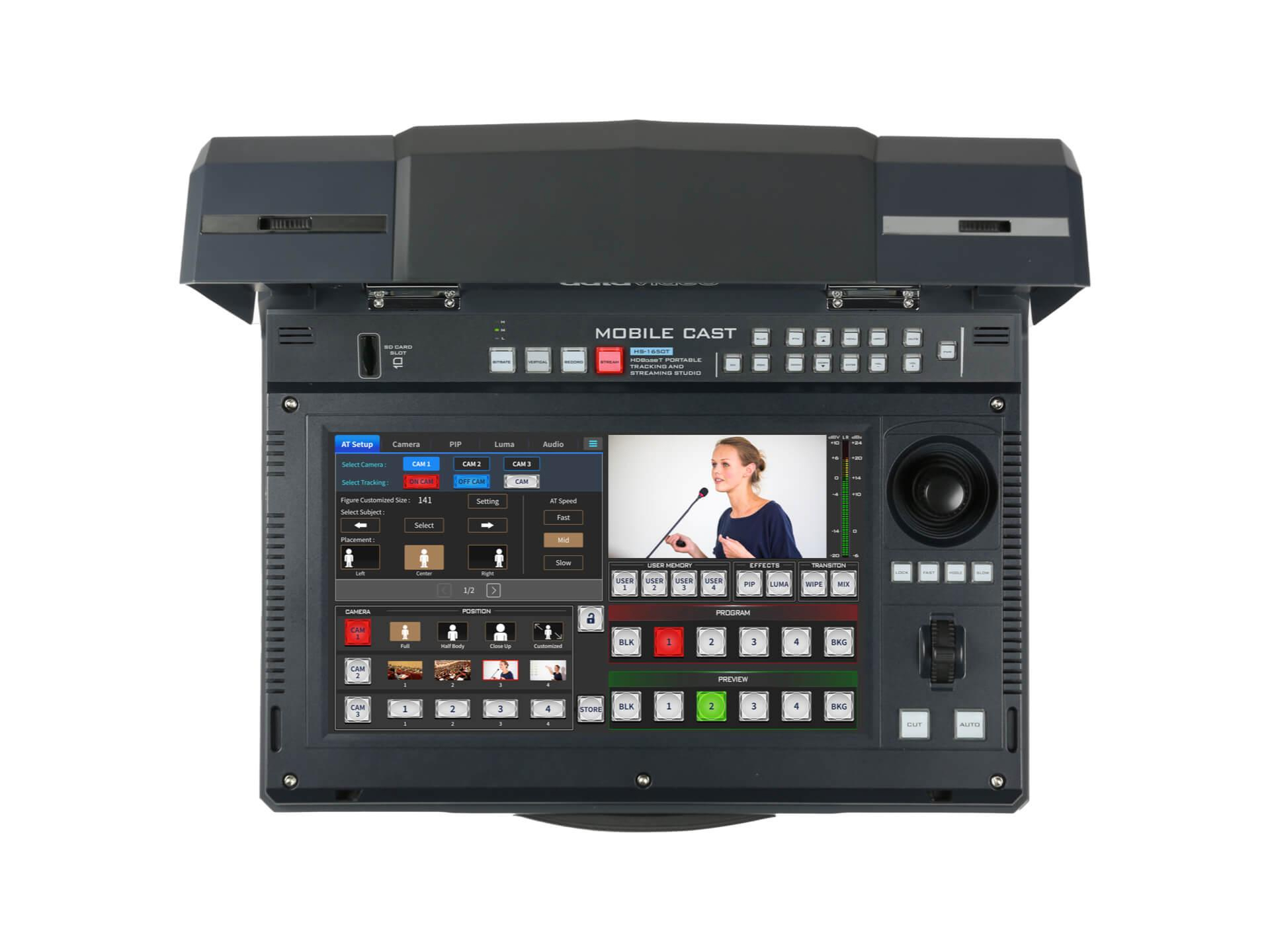

Key features include HDBaseT single-cable transmission, AI-powered dual-lens auto-tracking, 30x optical zoom and a capacitive touchscreen controller. The controller provides switching, multi-view monitoring and an onboard recorder that saves MP4 files to SD cards. Firmware upgrade support extends capabilities over time without hardware replacement.

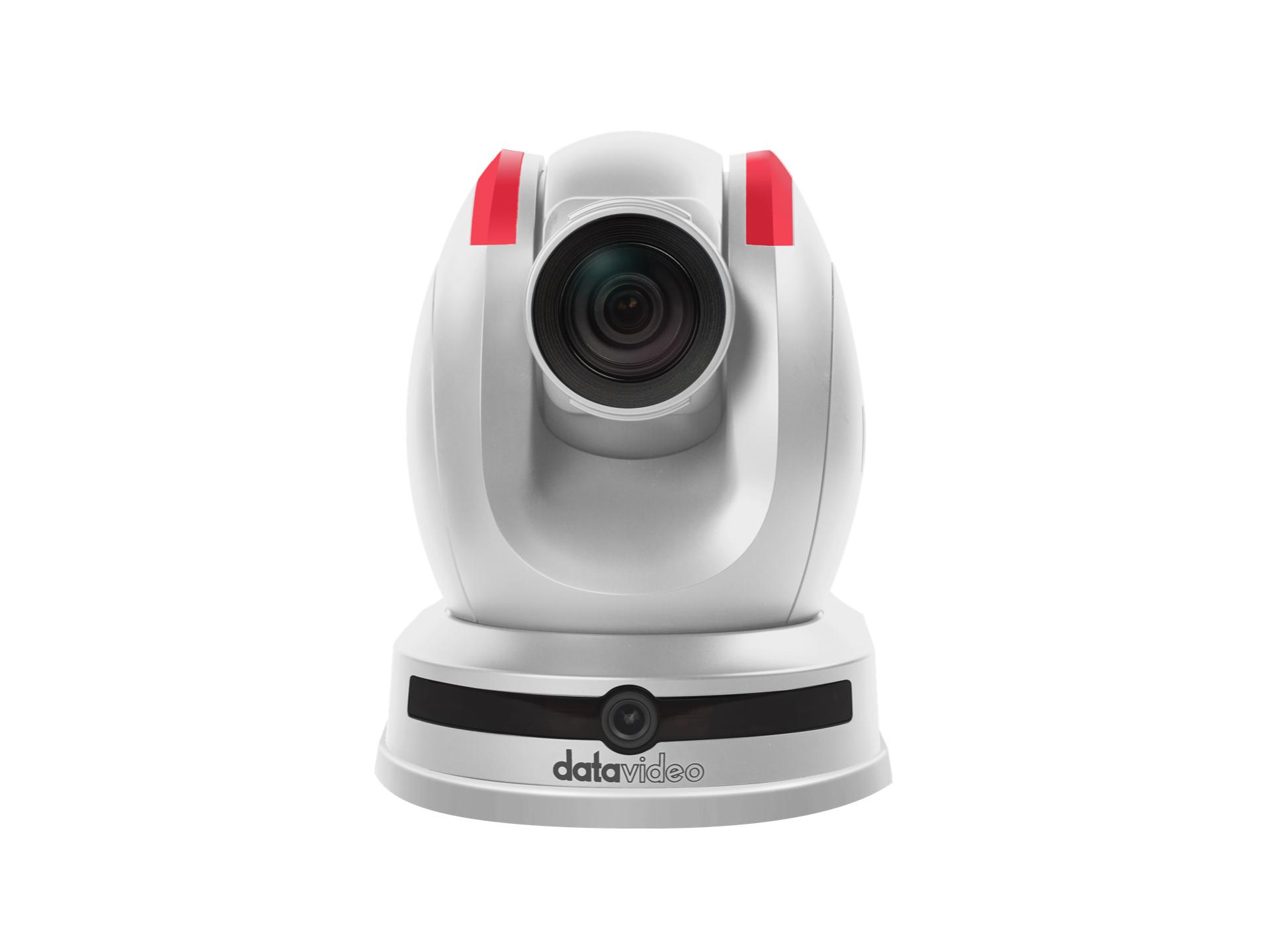

Imaging and performance are engineered for event and lecture capture with Full HD 1080p video at up to 60 fps and 4:4:4 10-bit sampling across inputs. The PTZ cameras use a 1/2.8″ Sony CMOS sensor, 30x optical zoom and 2D/3D noise reduction to preserve detail in varied lighting down to 0.5 lux. The system supports H.264/H.265 encoding, multiple streaming protocols and dual-stream output for flexible delivery.

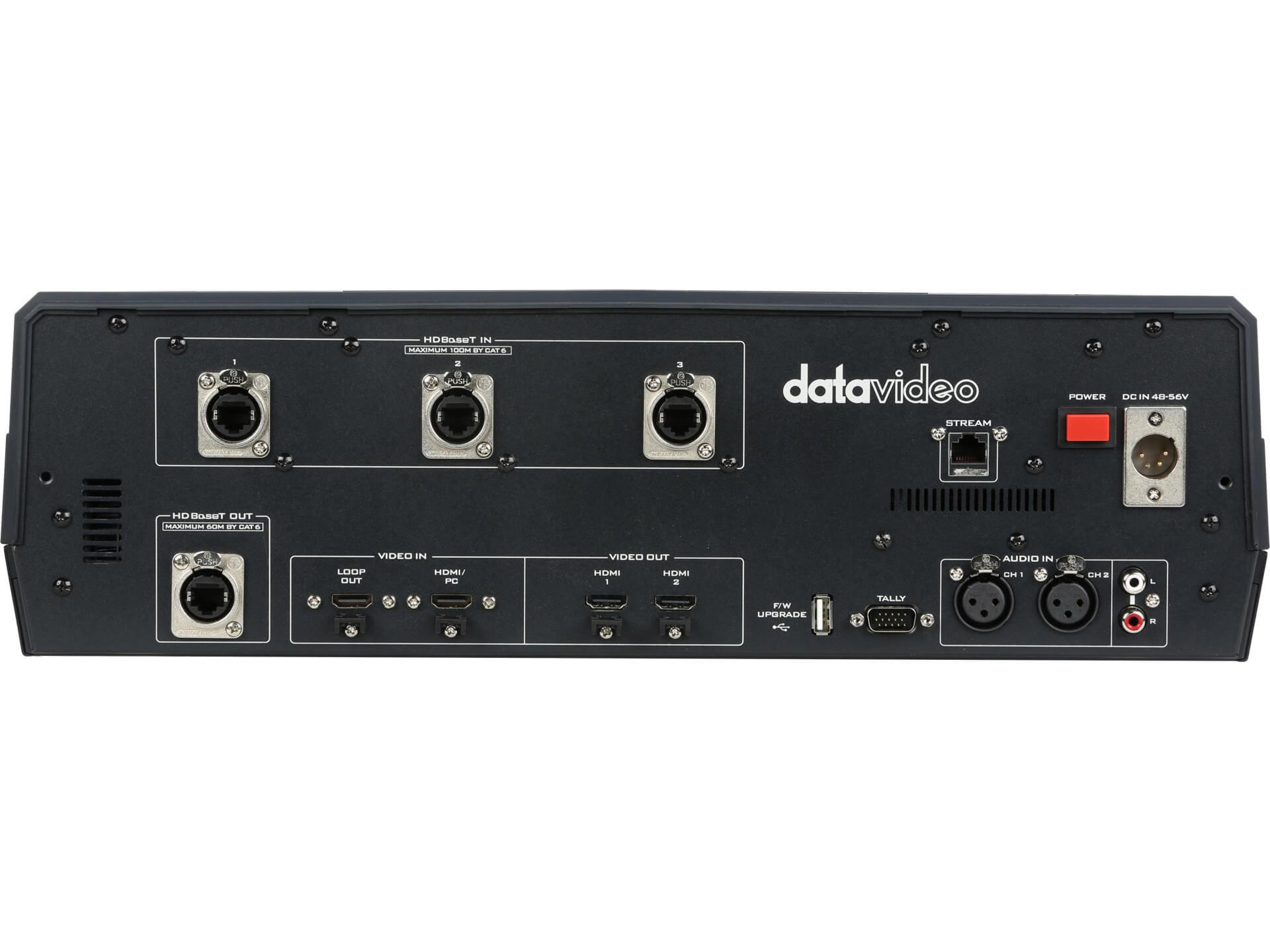

Connectivity is extensive and broadcast-ready – multiple HDBaseT inputs, HDMI program outputs, 3G-SDI, UVC and network streaming ports are provided. Audio integrates XLR balanced inputs, RCA stereo and a built-in 4-channel mixer with configurable streaming audio bitrates. Control options include VISCA, Pelco, RS-232/422, Web UI and HDBaseT control for seamless integration into AV systems.

Typical applications include live events, lecture capture, corporate presentations and worship services where single-operator workflows and automated tracking improve production efficiency. The system supports portrait framing presets, quick full-body/half-body/close-up selections and custom object linking to maintain focus on a designated presenter. Tally and intercom features assist multi-operator coordination during multi-camera productions.

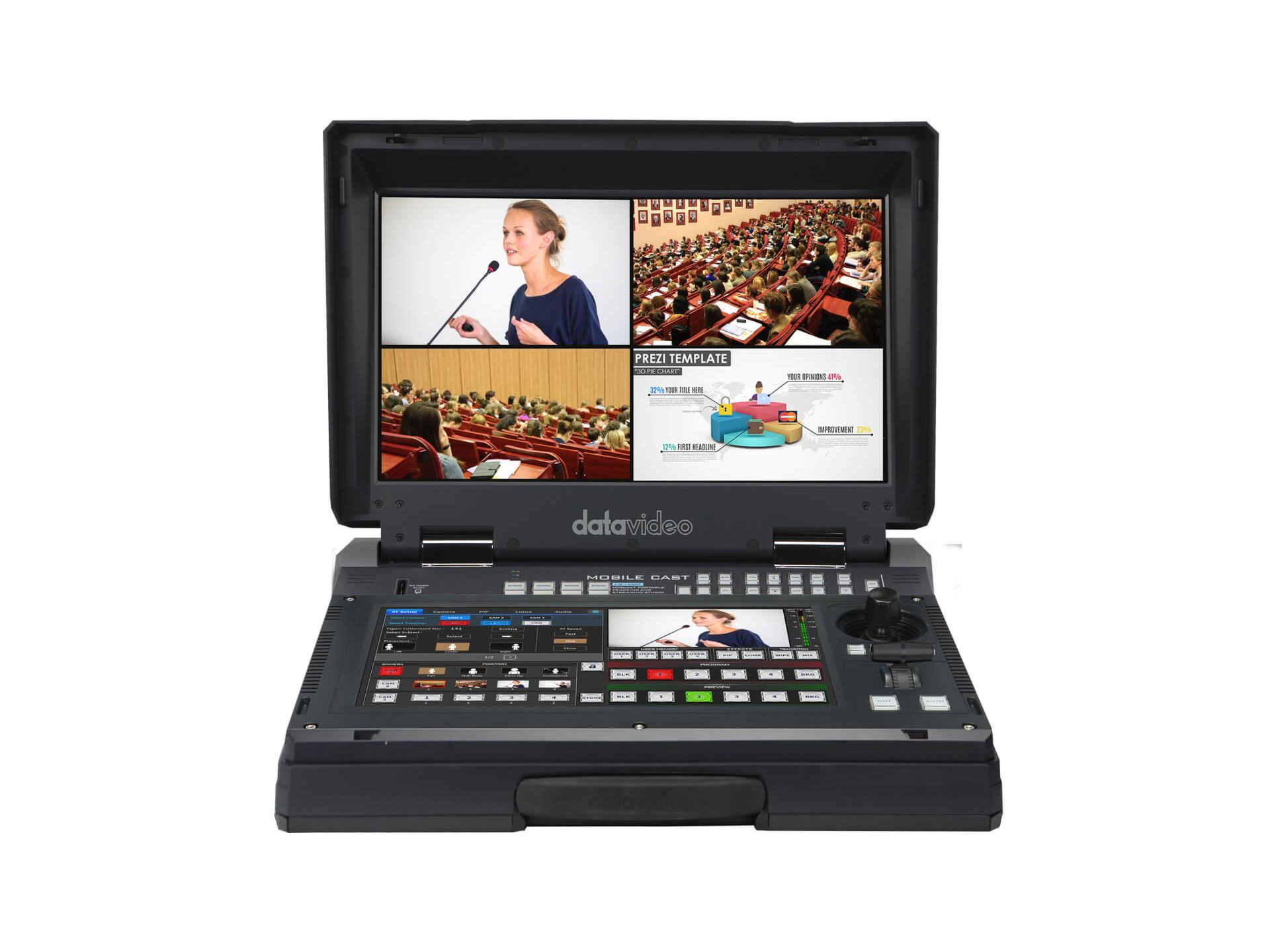

Installation is straightforward – HDBaseT reduces cabling by combining video, power and control on a single Cat cable up to 100 meters and the touchscreen provides intuitive on-screen camera control. The controller is housed in a reinforced portable case with a 17.3″ monitor for monitoring and configuration. Robust build quality and ongoing firmware updates ensure dependable operation and future feature growth.
