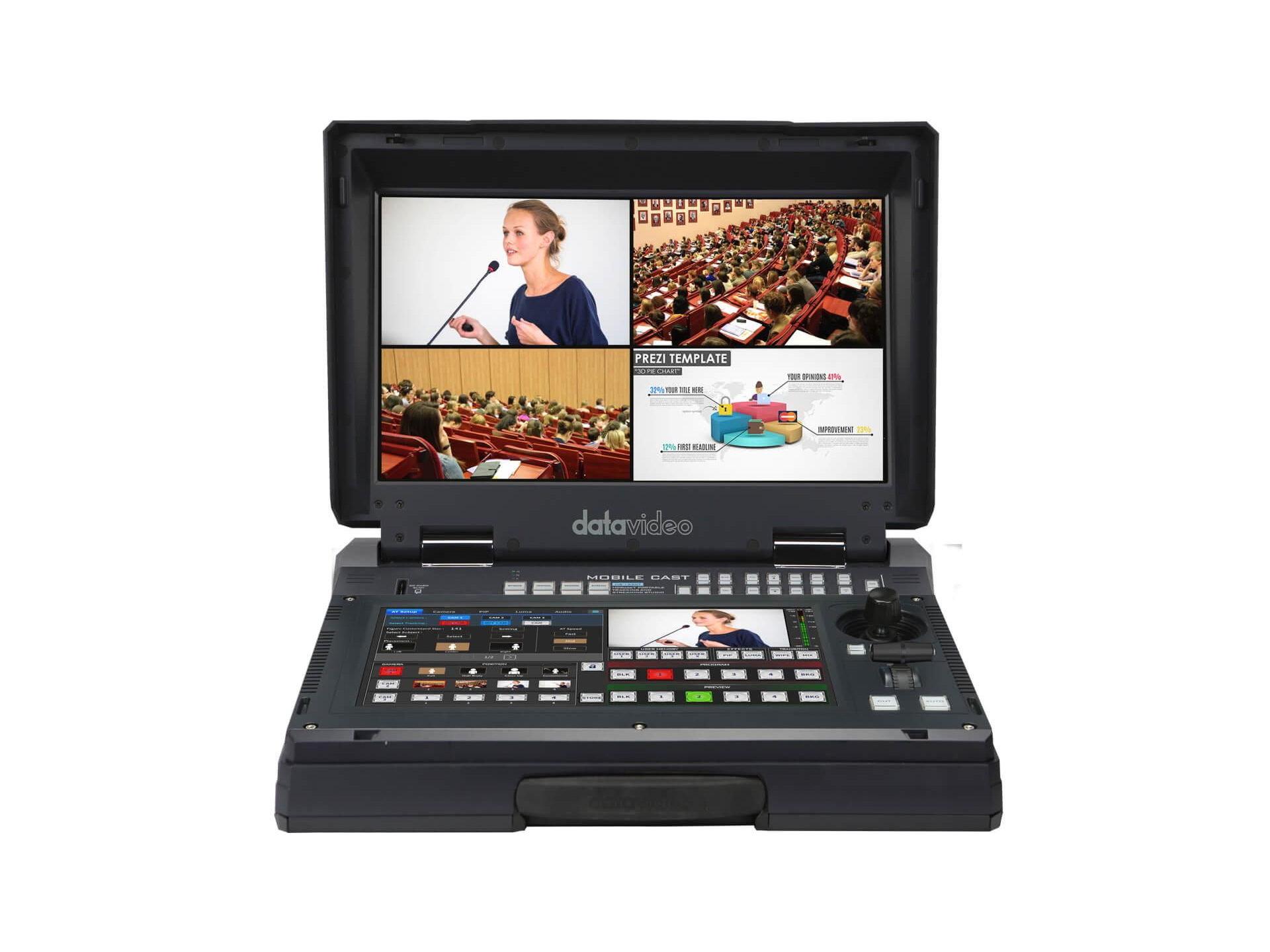

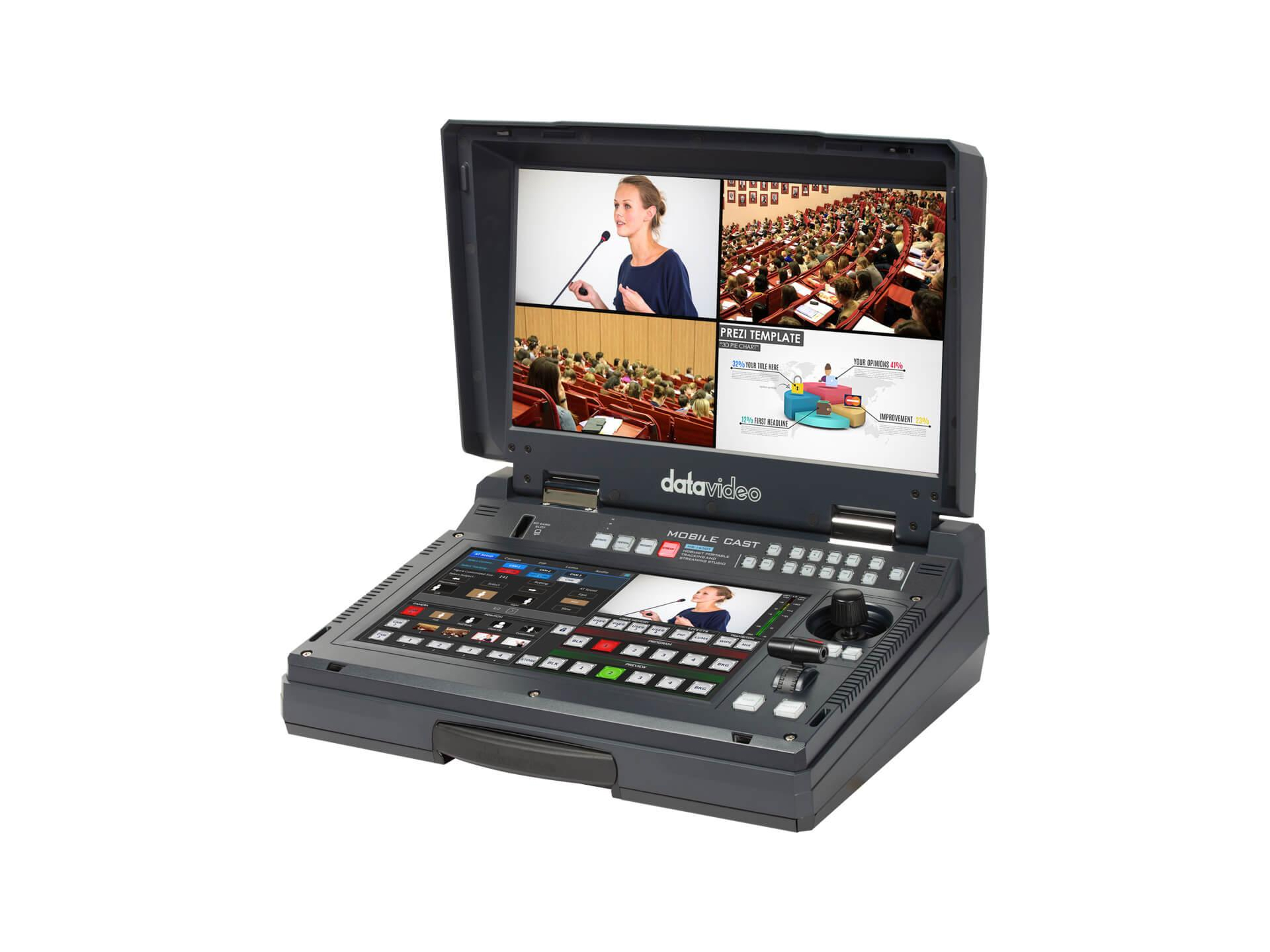

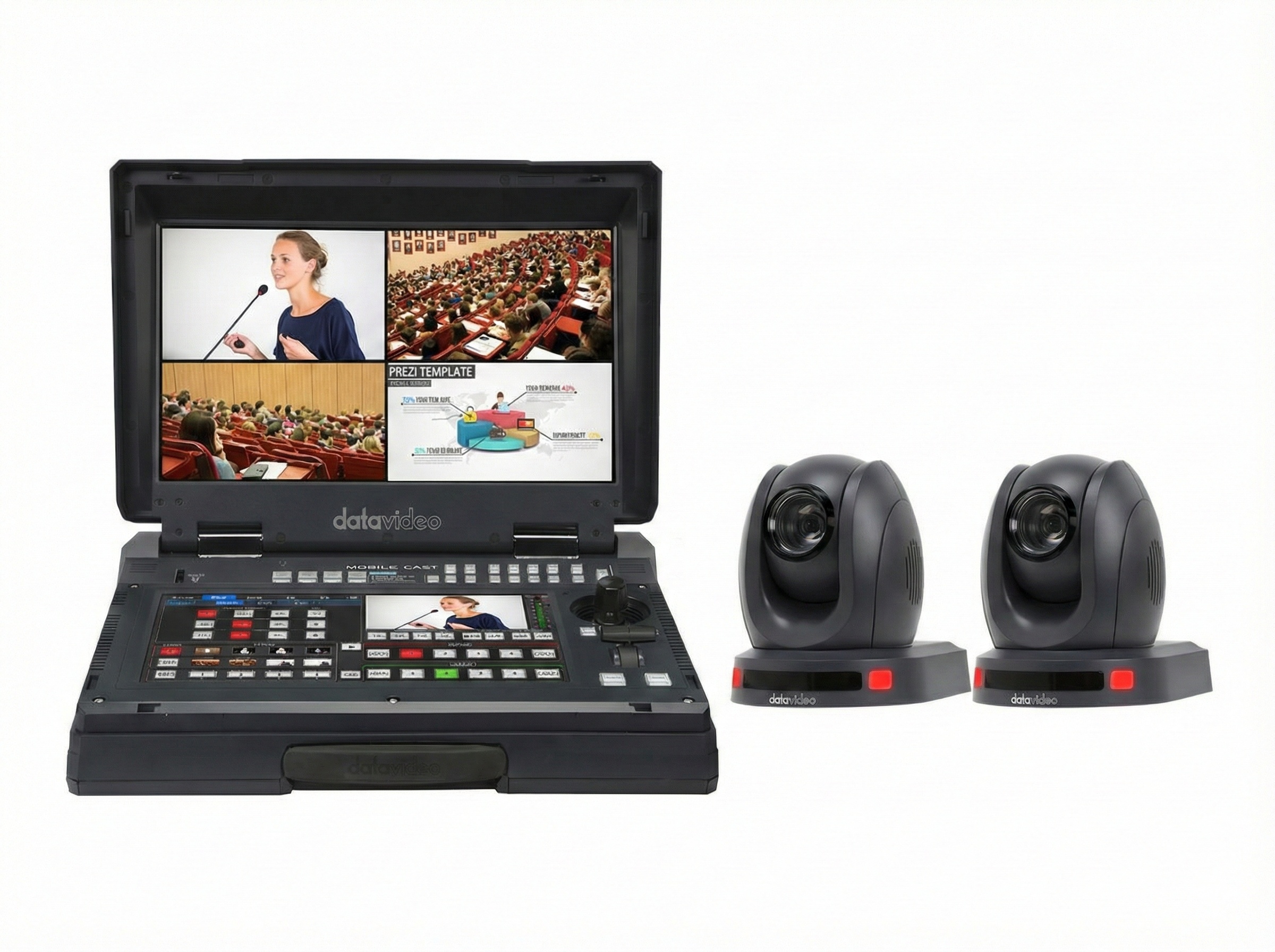

Download Manual The EZ STREAM AI 20X is an integrated HDBaseT production switcher and camera system designed to centralize live switching, streaming, recording and camera control in a single portable solution. It delivers multi-channel video ingest, built-in recording and live streaming capabilities combined with AI-assisted auto tracking. The system is optimized for event production, lecture capture and corporate broadcasts where streamlined operation and reliable outputs are required.

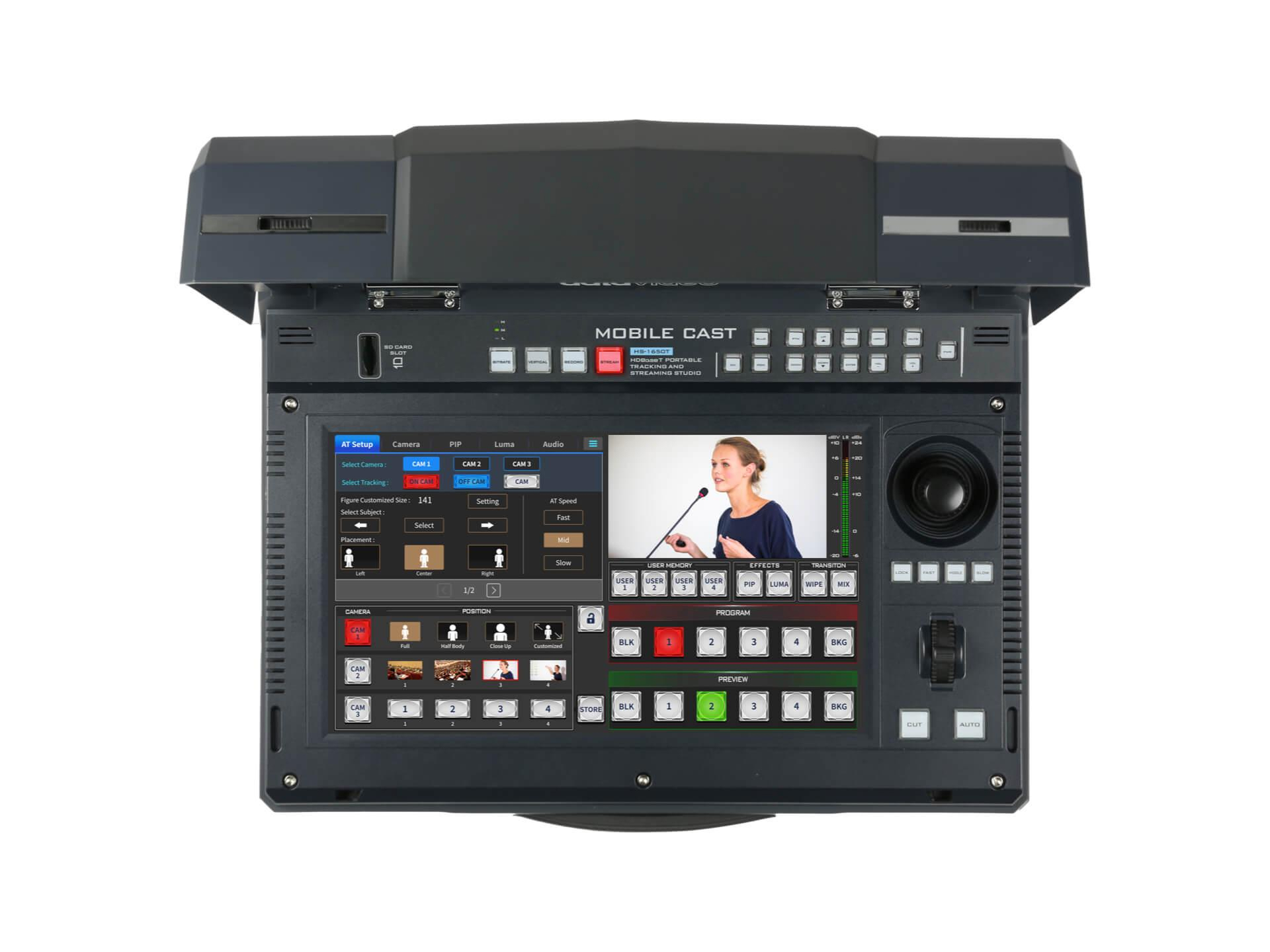

Key features include HDBaseT connectivity for long-distance signal and power delivery, a 14in touchscreen controller for real-time control, and support for H.264 streaming and MP4 recording. The platform supports Picture-in-Picture effects, a 4-channel audio mixer, and a 17.3in built-in monitor for program and multiview monitoring. AI auto tracking automates subject framing and switching to reduce operator load while maintaining professional production results.
Technical performance covers Full HD 1080p formats across common frame rates and down-converted outputs for downstream devices. The recorder accepts SD cards and writes MP4 files compatible with common platforms, while streaming supports RTMP/RTMPS, SRT, HLS and RTSP. Audio inputs include balanced XLR and stereo RCA and the system supports de-embedded audio and AAC-LC streaming audio encoding at 48 kHz.

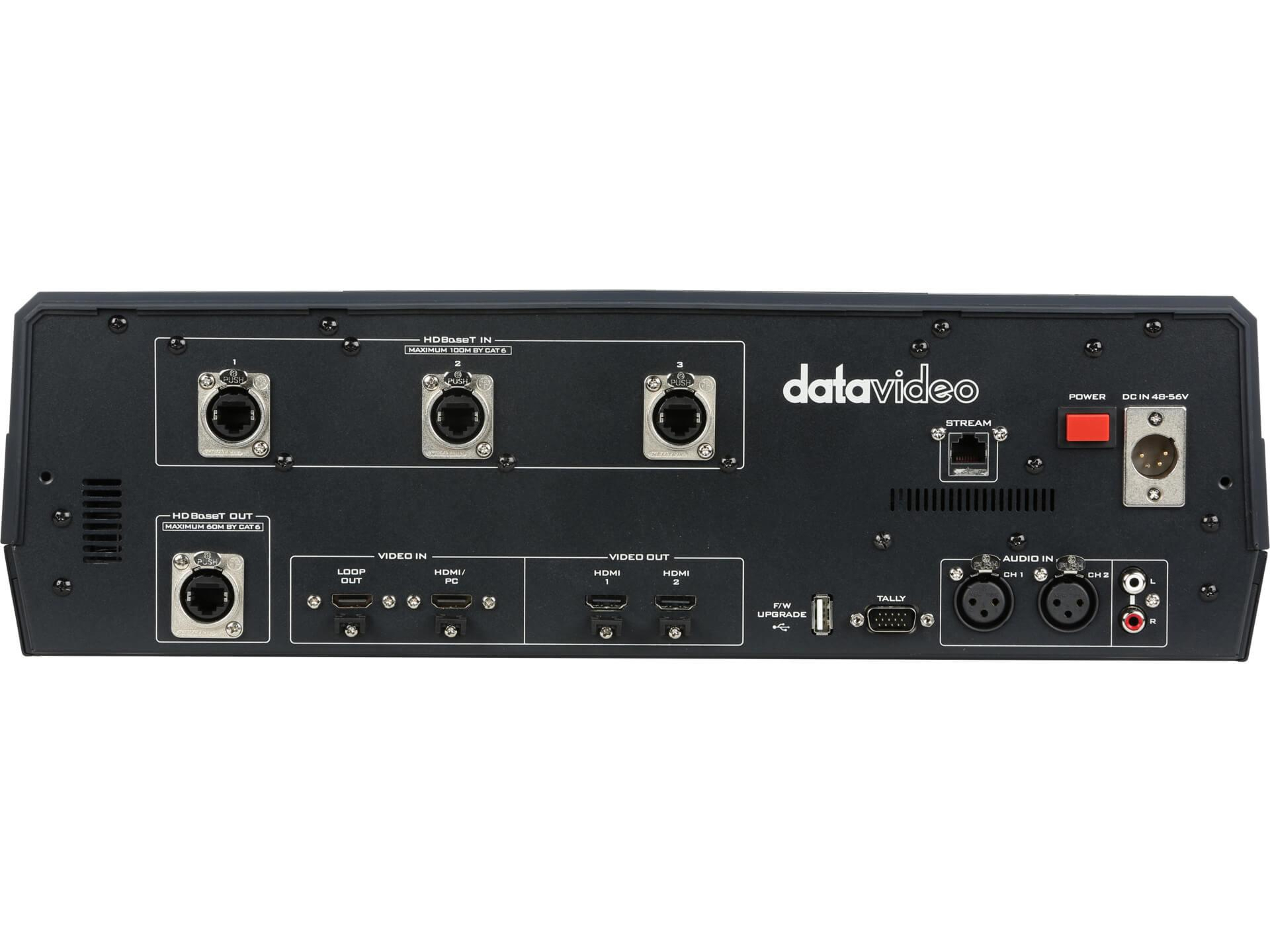

Connectivity is extensive – multiple HDBaseT inputs and HDMI I/O enable flexible signal routing while a single Cat6A cable carries video, control, power and tally up to 100 m. Network control and streaming setup are managed via a web UI and socket commands, and the system supports firmware updates to add features without replacing hardware. Camera control supports VISCA, Pelco and ONVIF compatibility for integration with third-party control systems.
This system is suited to classrooms, auditoria, houses of worship and corporate stages where automated PTZ tracking and streamlined production are required. Operators can rely on preset recall, multiple framing modes and an integrated audio mixer to produce multi-camera programs with minimal crew. The package supports simultaneous streaming and local recording for distribution and archive workflows.
Installation and daily operation are simplified by HDBaseT single-cable deployment, an intuitive 14in touchscreen, and built-in monitoring. The rugged reinforced case design and standard power inputs allow reliable field use and quick setup. Regular firmware upgrades and web-based configuration tools make maintenance and feature expansion straightforward.
