Description

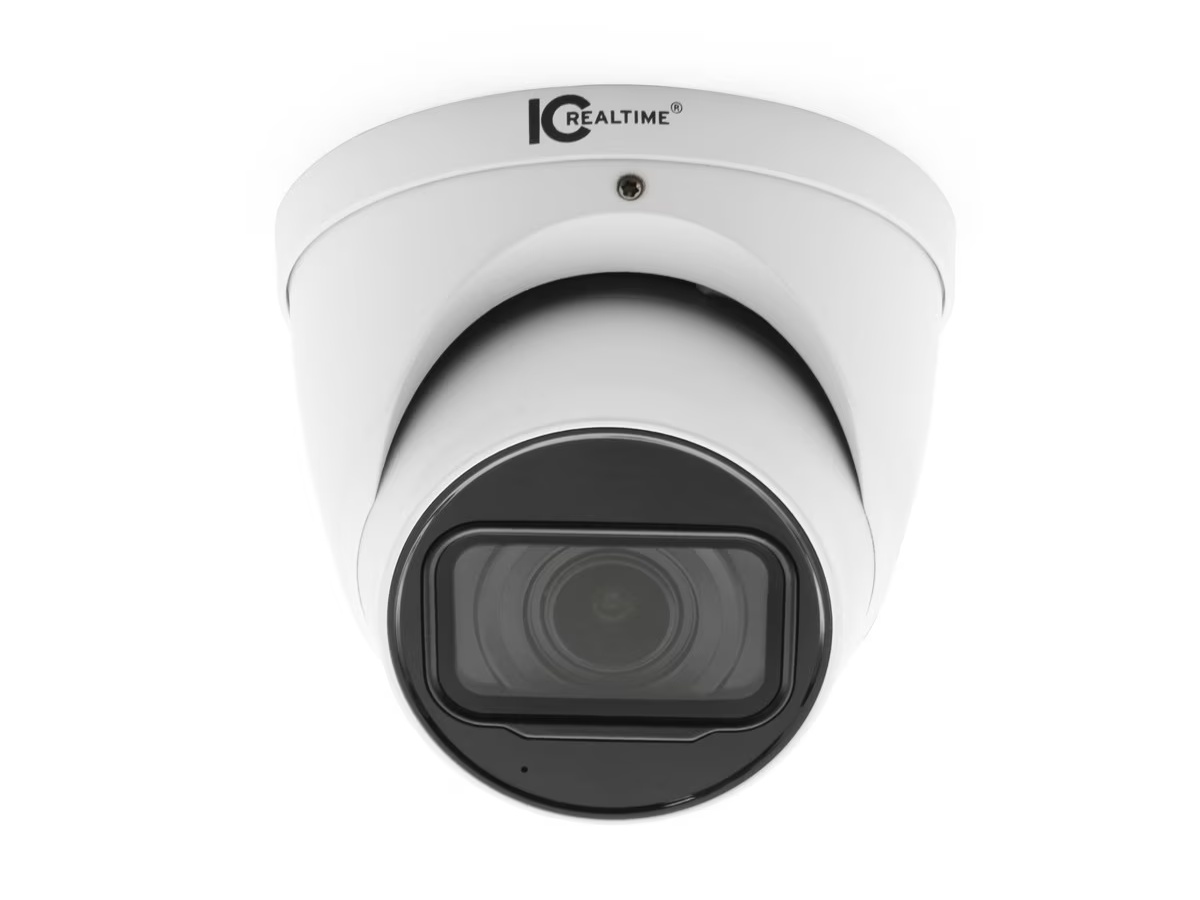

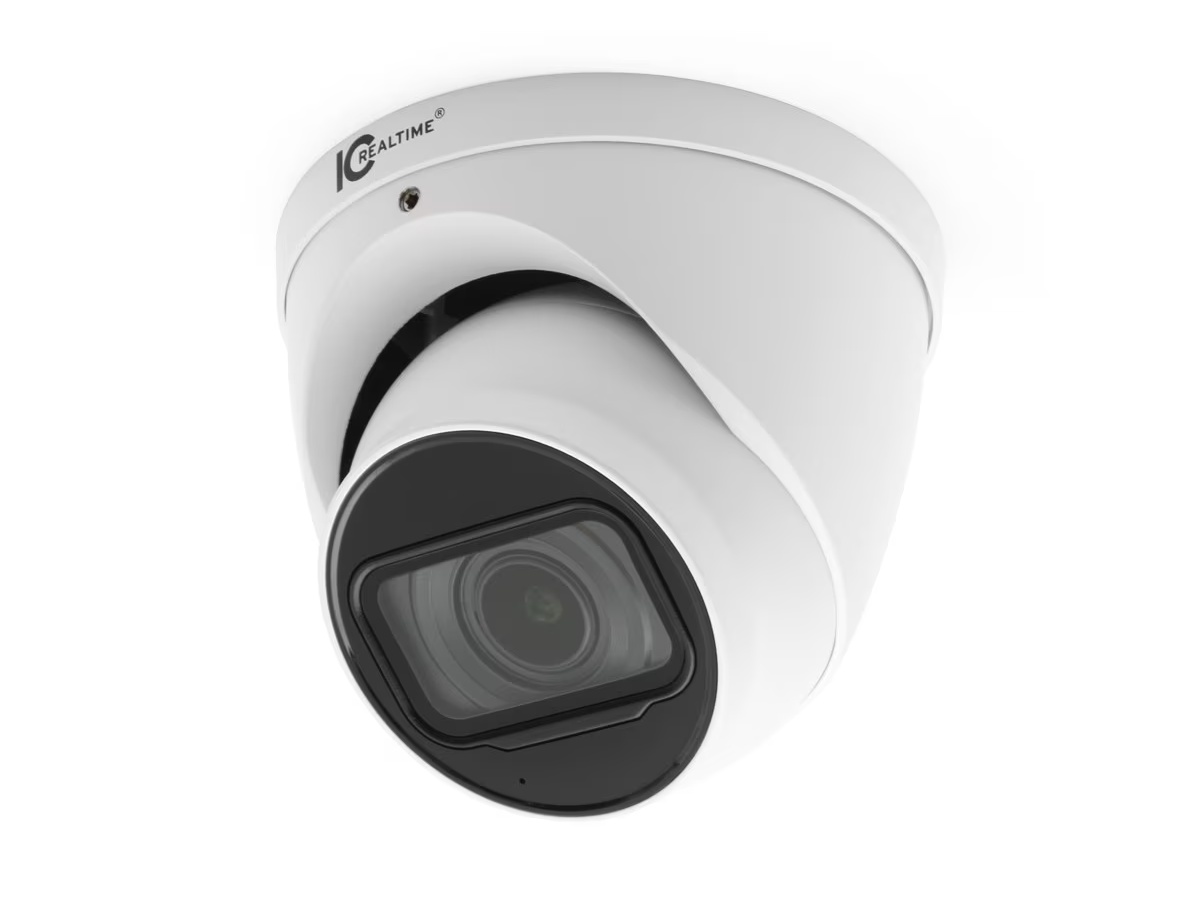

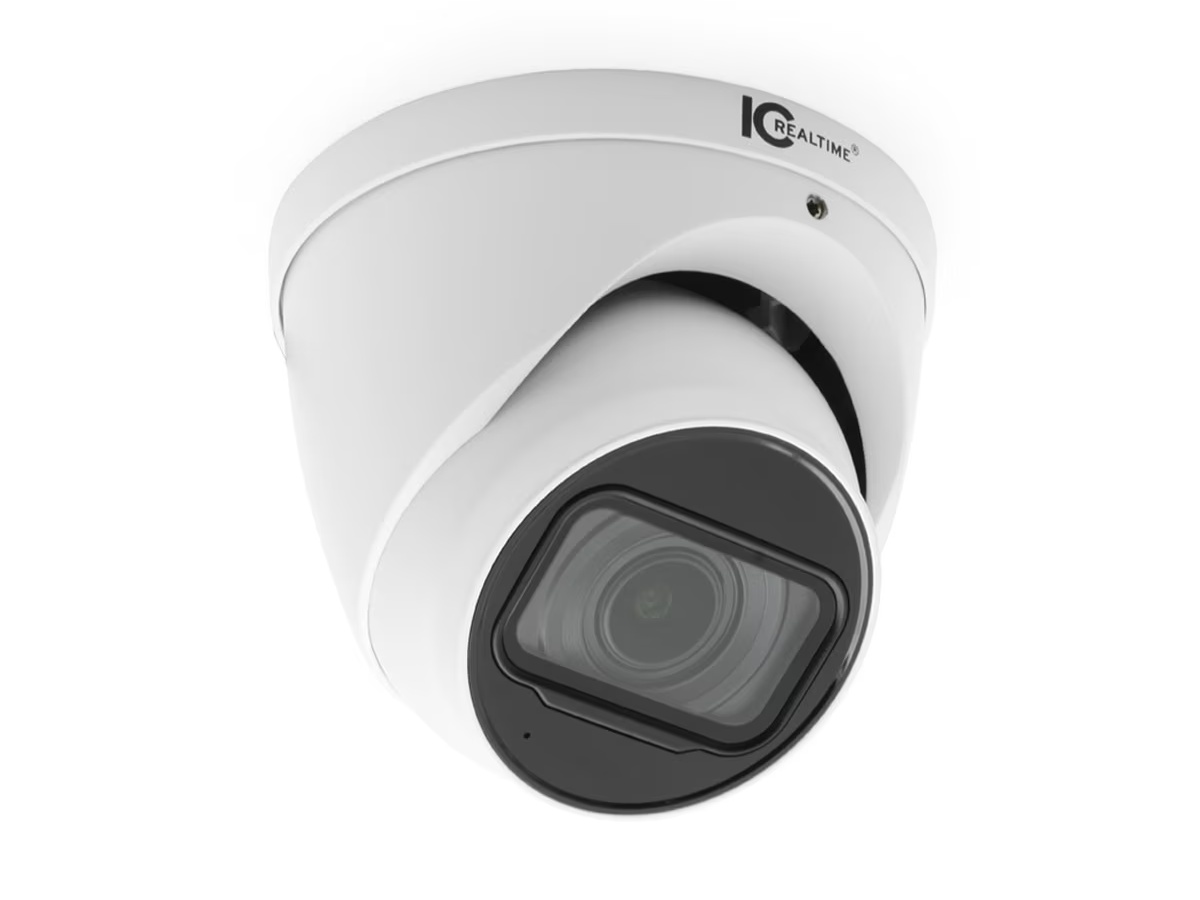

Download Manual The HDEG-E80V-IRM1 is an 8MP 4K HDAVS eyeball dome camera designed to upgrade coaxial HDVR systems with ultra-high resolution imaging – it delivers clear surveillance footage for indoor and outdoor environments. This camera combines a 4K 3840 x 2160 sensor and a motorized varifocal lens to capture wide-area scenes and long-range details. The compact turret form factor fits a wide range of mounting locations while maintaining a professional appearance.
Key features include a motorized 2.7-13.5mm varifocal lens, Smart IR illumination rated to 196 ft, and 120 dB WDR for high-contrast scenes. The camera uses Super Adapt and HLC-Pro algorithms to automatically optimize exposure and reduce glare, while advanced 3DNR reduces noise in low light. A built-in microphone adds audio context to recorded video streams for richer event detection.
Technical performance centers on an 8MP CMOS sensor with progressive scanning and selectable resolutions including 4K@15 fps. Minimum illumination is 0.01 lux at F1.5 in color mode and 0.001 lux in B/W, or 0 lux with IR active. The camera supports electronic defog, 4x digital zoom, and offers true 120 dB WDR to preserve detail in both bright and dark image areas.

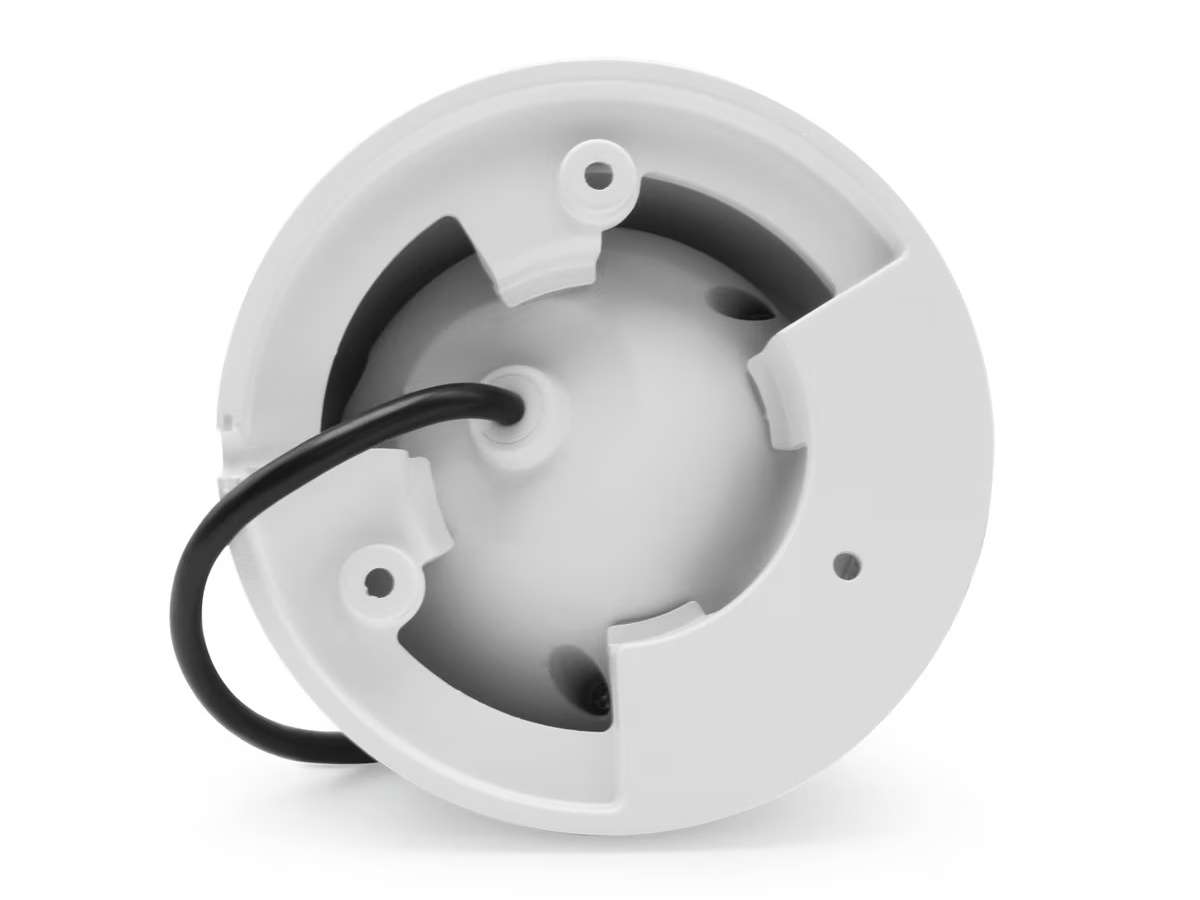

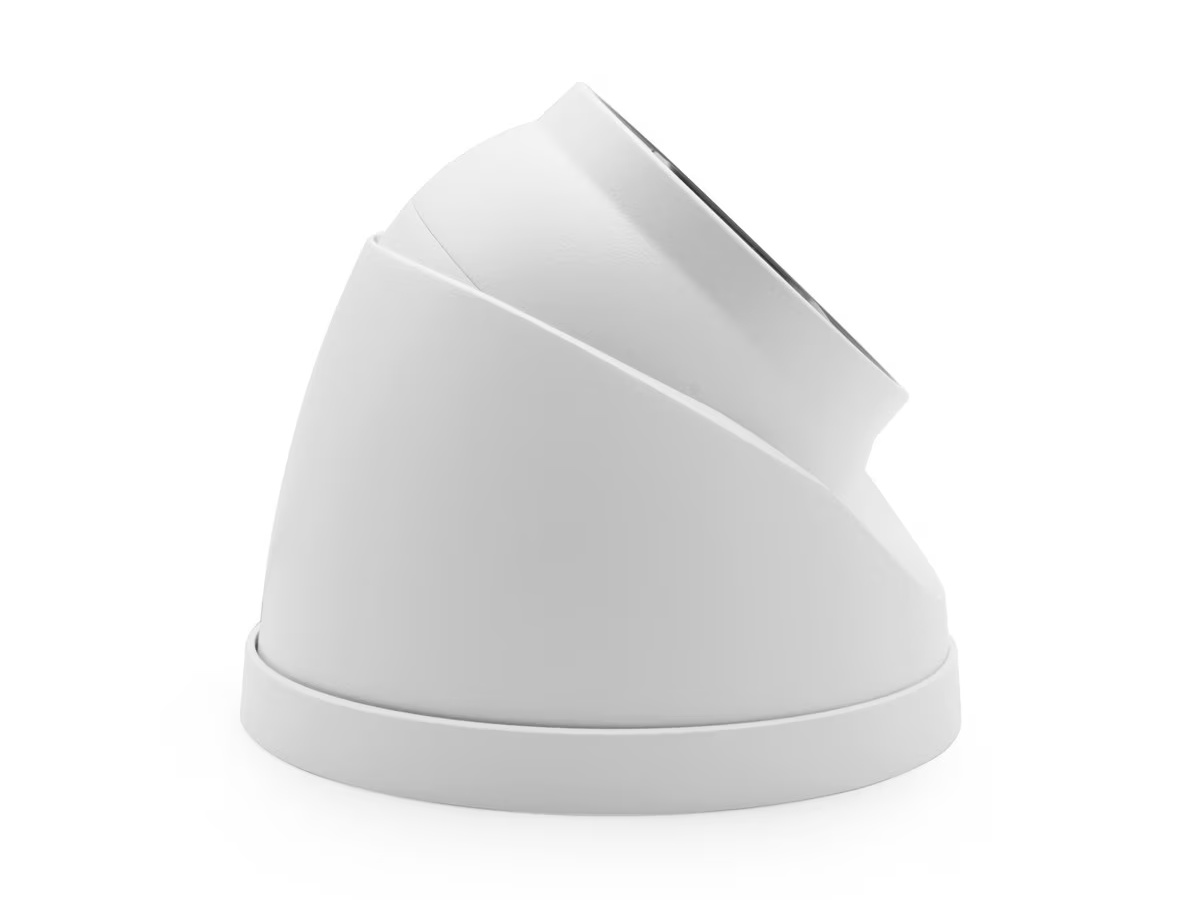

Connectivity uses a single BNC port with multi-format output – AVS, TVI, AHD, and CVBS selectable via OSD – enabling direct integration with legacy coax HDVRs. The unit runs on DC 12V power with ±30% tolerance and consumes up to 7.9W with IR active. The camera also provides pan/tilt/rotation adjustment ranges and an IP67-rated metal housing for weather resistance.
Typical applications include perimeter and parking surveillance where long IR range and high resolution are required, retail and lobby monitoring for face and detail capture, and building exterior observation where WDR and weather-proofing are necessary. The camera’s motorized zoom and autofocus simplify scene setup and enable remote framing when paired with compatible HDVR controls. Integrated audio enhances investigations by providing contextual sound.
Installation is straightforward thanks to motorized lens control and standard coax video output that preserves existing cabling during upgrades – no network configuration is required for HD-AVS systems. The camera’s metal construction and IP67 ingress protection ensure durable operation in harsh conditions, while IC Realtime technical support and a 7-year warranty provide long-term reliability. Overall, the HDEG-E80V-IRM1 offers a balance of high-resolution imaging, low-light capability, and rugged build quality for professional surveillance deployments.
