DESCRIPTION

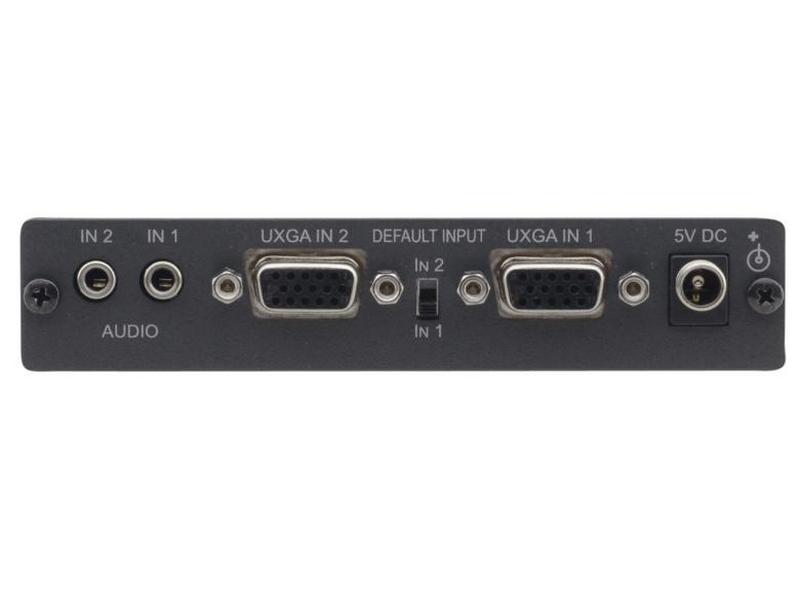

- The VP-211K is a high-performance switcher for computer graphics video signals, with resolutions up to and exceeding UXGA, and unbalanced stereo audio signals. When configured as a standby switcher, it switches to the secondary input upon loss of the primary input.
- High Bandwidth – 300MHz (-3dB).
- Looping Input – Input 1.
- Automatic Standby Switching – Switches from secondary input to primary input when a signal is detected.
- Control – Automatic or contact closure.
- Kr-isp® Advanced Sync Processing – Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr-isp® advanced sync processing can be enabled or disabled.
- Primary Input – Selectable.
- Active Input LED Indicators.
- Compact Kramer TOOLS™ – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Related Products: 19″ (1U): RK-3T This product replaces the VP-211 , VP-211DS , VP-211N This product replaces the : VP-214DS
SPECIFICATIONS
| INPUTS: | 2 computer graphics video on 15-pin HD connectors;2 unbalanced stereo audio on 3.5mm mini jacks. |
| OUTPUTS: | 1 computer graphics video on a 15-pin HD connector; 1 computer graphics video looping on a 15-pin HD connector;1 unbalanced stereo audio on a 3.5mm mini jack. |
| MAX. OUTPUT LEVEL: | Video: 1.6Vpp; Audio: >10.5Vpp. |
| BANDWIDTH (-3dB): | Video: 300MHz; Audio: >100kHz. |
| DIFF. GAIN: | 0.03%. |
| DIFF. PHASE: | 0.03Deg. |
| K-FACTOR: | <0.05%. |
| S/N RATIO: | Video: 71dB; Audio: 71dB weighted. |
| CROSSTALK: | Video: –59dB @5MHz; Audio: <–66dB @1kHz. |
| CONTROLS: | Contact closure remote control, input default selection switch. |
| COUPLING: | DC. |
| AUDIO THD + NOISE: | <0.032%. |
| AUDIO 2nd HARMONIC: | <0.004%. |
| POWER SOURCE: | 5V DC 200mA. |
| DIMENSIONS: | 12.1cm x 7.18cm x 2.42cm (4.76″ x 2.83″ x 0.95″) W, D, H. |
| WEIGHT: | 0.3kg (0.66lbs) approx. |
| ACCESSORIES: | Power supply, mounting bracket. |
| OPTIONS: | RK-3T 19″ rack adapter. |
