Description

The HT-HV55-Q is a 55 inch 4K UHD display with a built-in 2×2 quad video processor designed to show four HDMI sources simultaneously. This single-screen solution provides native 3840 x 2160 resolution at 60Hz and a 16:9 aspect ratio for accurate rendering of both 4K and 1080p content. Integrated loudspeakers provide audio playback without external amplification.

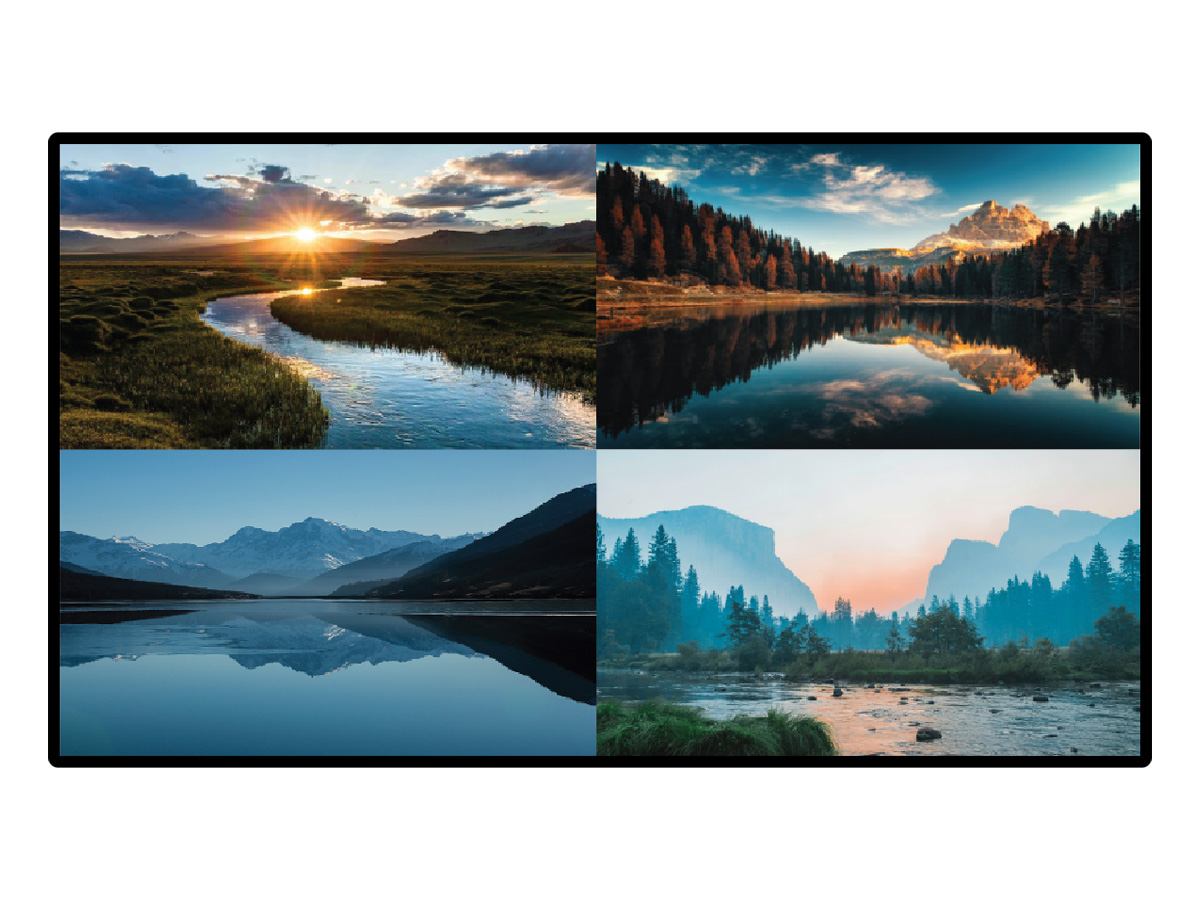

Designed for multi-source monitoring and presentation workflows, the display supports quad (2×2) view, full-screen, side-by-side and picture-in-picture layouts. An on-screen display (OSD) and IR remote enable layout selection and image adjustments such as brightness and contrast. A button lock prevents accidental changes in shared or public installations.

Image quality is driven by native 4K resolution at 60Hz, a 1200:1 contrast ratio and a 300 cd/m2 brightness with protective glass. The panel provides a wide 178 degree horizontal and vertical viewing angle to maintain consistent color and contrast across large rooms. Estimated panel lifetime is 50,000 hours under normal operating conditions.

Connectivity includes four HDMI inputs and one VGA input for video plus a 3.5mm line input and line output for audio routing. The display accepts standard digital audio over HDMI and routes audio to its built-in stereo speakers. The integrated quad processor eliminates the need for an external multiviewer or video wall controller for 2×2 monitoring.

Typical applications include control rooms, security monitoring, corporate conference rooms and collaborative workspaces where multiple sources must be viewed concurrently. The display supports both PC and video sources and is compatible with common resolutions and frame rates. Included wall mount hardware supports secure fixed installations.

Installation is straightforward with VESA 400mm x 400mm mounting and a metal wall mount included. The rear panel is engineered with a top-angled design to reduce dust ingress and simplify cable routing. The unit is FCC and CE (Class B) compliant and ships with an IR remote for day-to-day operation and OSD access.
