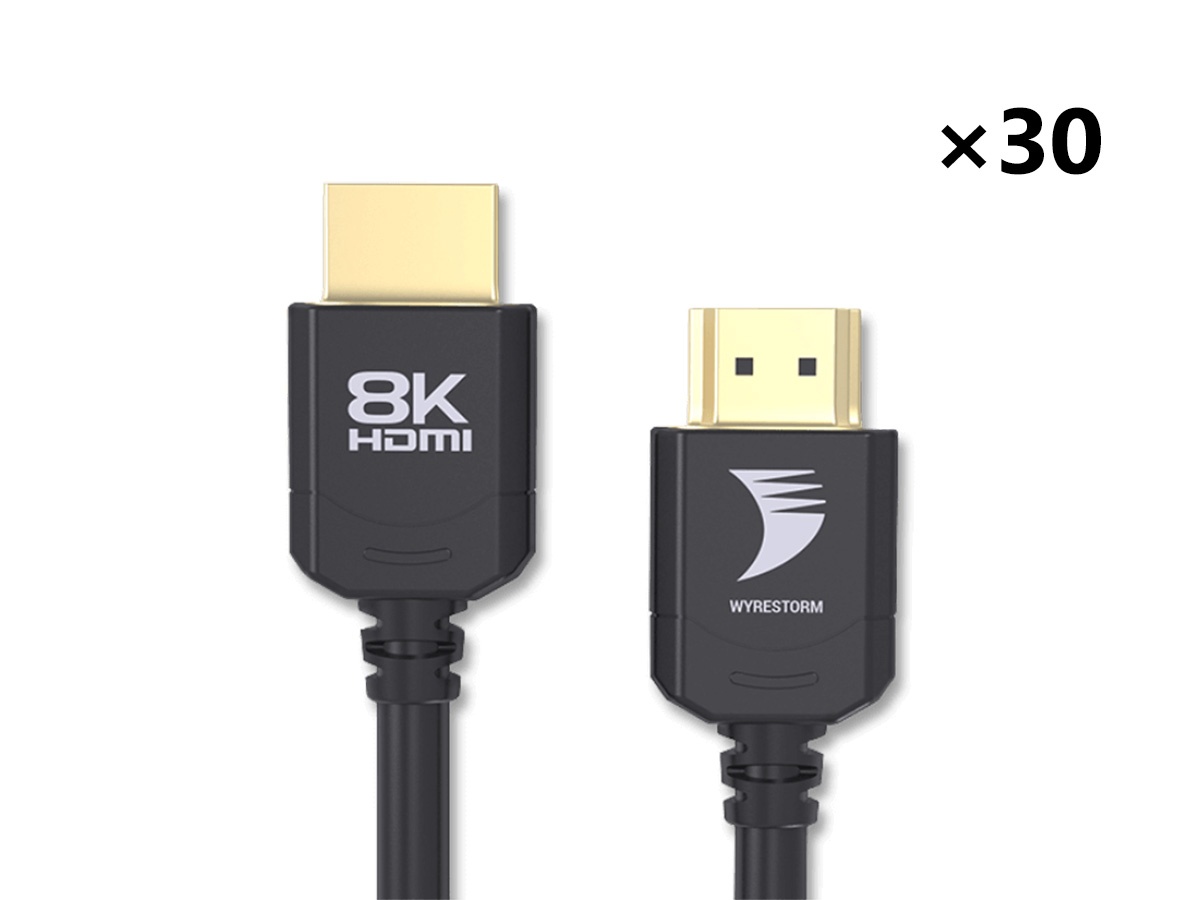

WyreStorm EXP-8KUHD-3.0 Case Qty (30) 3m 9.8ft HDMI 2.1 Cable / 48Gbps / 8K60Hz / 4K120Hz / eARC / CL3 VW-1

Description

Download Manual

This 3m 9.8ft HDMI 2.1 cable delivers an uncompressed 48Gbps link designed to connect modern 8K and high-refresh 4K sources to displays. It provides full HDMI 2.1 feature support and backward compatibility with legacy HDMI devices. The cable is intended for both residential and commercial AV installations that require reliable high-bandwidth connections.

Key capabilities include support for 8K60Hz, 5K60Hz and 4K120Hz signal formats, eARC audio, HDCP 2.3 pass-through and HDMI2.1 FRL signaling. The cable supports gaming and dynamic video features such as VRR, ALLM, QMS and QFT. It also carries a 100Mbps Ethernet channel for compatible devices.

Technically the cable provides uncompressed transmission up to 48Gbps and handles a wide range of resolutions and refresh rates including 1920x1080p@240Hz through 10240×4320@30Hz. Timings are quoted as 4:4:4 8-bit where applicable and the cable is tested for HDCP 2.3 readiness. Audio support includes eARC plus formats such as DTS-X and Dolby Atmos at sampling rates up to 192KHz and up to 32 channels.

Connectivity is via standard 19-pin Type A HDMI male connectors with gold plating and oxygen-free copper conductors for improved conductivity and corrosion resistance. The cable supports native HDMI CEC control and bidirectional EDID pass-through for reliable handshaking between source and sink. It is CL3 and VW-1 rated for in-wall and professional installations where those ratings are required.

Typical applications include connecting gaming consoles and PCs to high-refresh displays, linking Blu-ray players and media servers to 8K televisions, and integrating AV sources in conference rooms and digital signage where high bandwidth is needed. The cable supports streaming devices that require eARC for high-definition audio return. Use cases span homes, professional AV installs, and light commercial deployments.

Construction uses 99.999% oxygen-free copper conductors with gold-plated connectors and a flexible foil-insulated jacket to resist kinks and strain. The cable is available in multiple lengths including 0.5m, 1.0m, 2.0m and 3.0m to suit different installation needs. Its durability and HDMI2.1 feature set provide a future-proof link for AV systems that will support higher resolutions and advanced HDR formats.
