DESCRIPTION

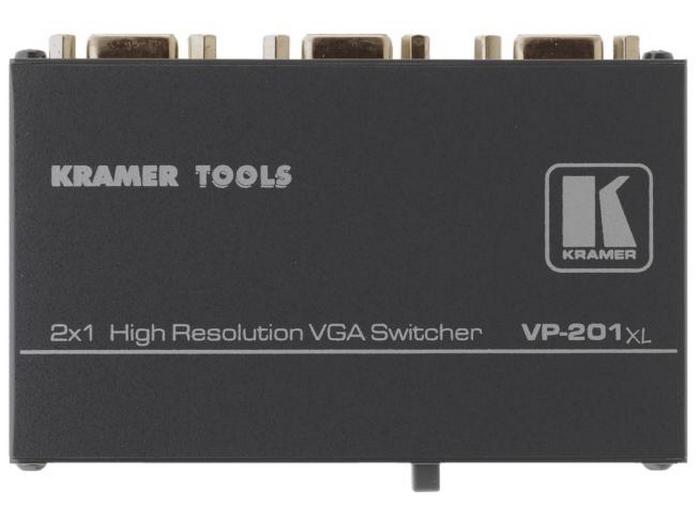

The VP-201xl is a high-performance switcher for computer graphics video signals with resolutions up to and exceeding UXGA. It switches either of two signals to a single output.
- High Bandwidth – 1300MHz (-3dB).
- HDTV Compatible.

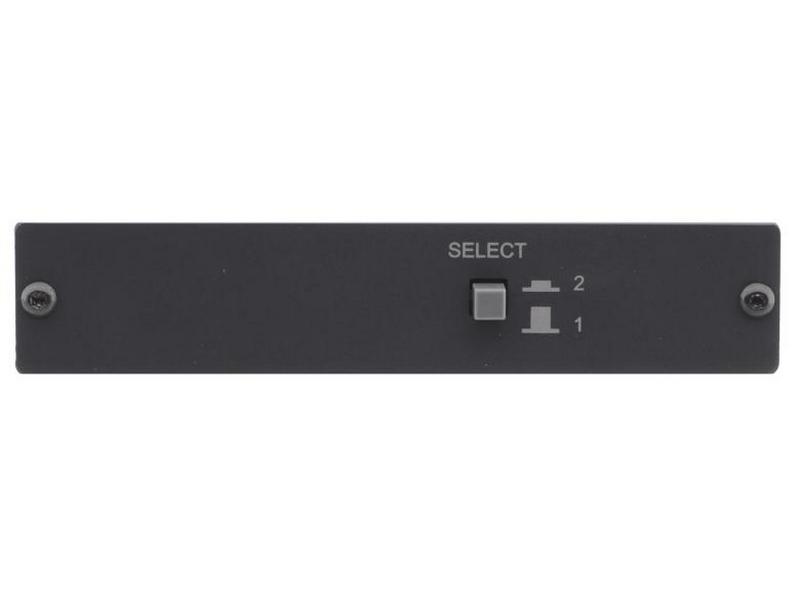

- Mechanical (Passive) Switching – No power required.
- Bidirectional Operation – Can be used as a 2×1 switcher (2 inputs, 1 output) or a 1×2 switcher (1 input, 2 outputs).
- Compact Kramer TOOLS™ – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
This product replaces the VP-201
SPECIFICATIONS

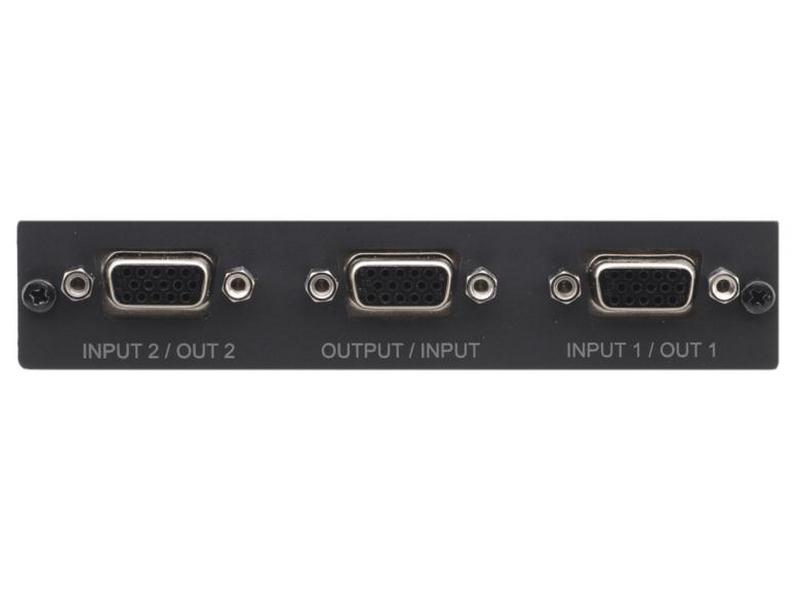

| INPUTS: | 2 analog red, green, blue signals: 0.7Vpp/75ohm, H & V sync, TTL level, on 15-pin HD (F) connectors. |
| OUTPUTS: | 1 analog red, green, blue signals: 0.7Vpp/75ohm, H & V sync, TTL level, on 15-pin HD (F) connector. |
| VIDEO BANDWIDTH (-3dB): | 1300MHz. |
| SWITCHING METHOD: | Mechanical. |
| DIMENSIONS: | 12cm x 7.5cm x 2.5cm (4.7″ x 2.95″ x 0.98″) W, D, H. |
| WEIGHT: | 0.26kg (0.58lbs) approx. |
| ACCESSORIES: | Mounting bracket. |
| OPTIONS: | RK-3T 19″ rack adapter. |
