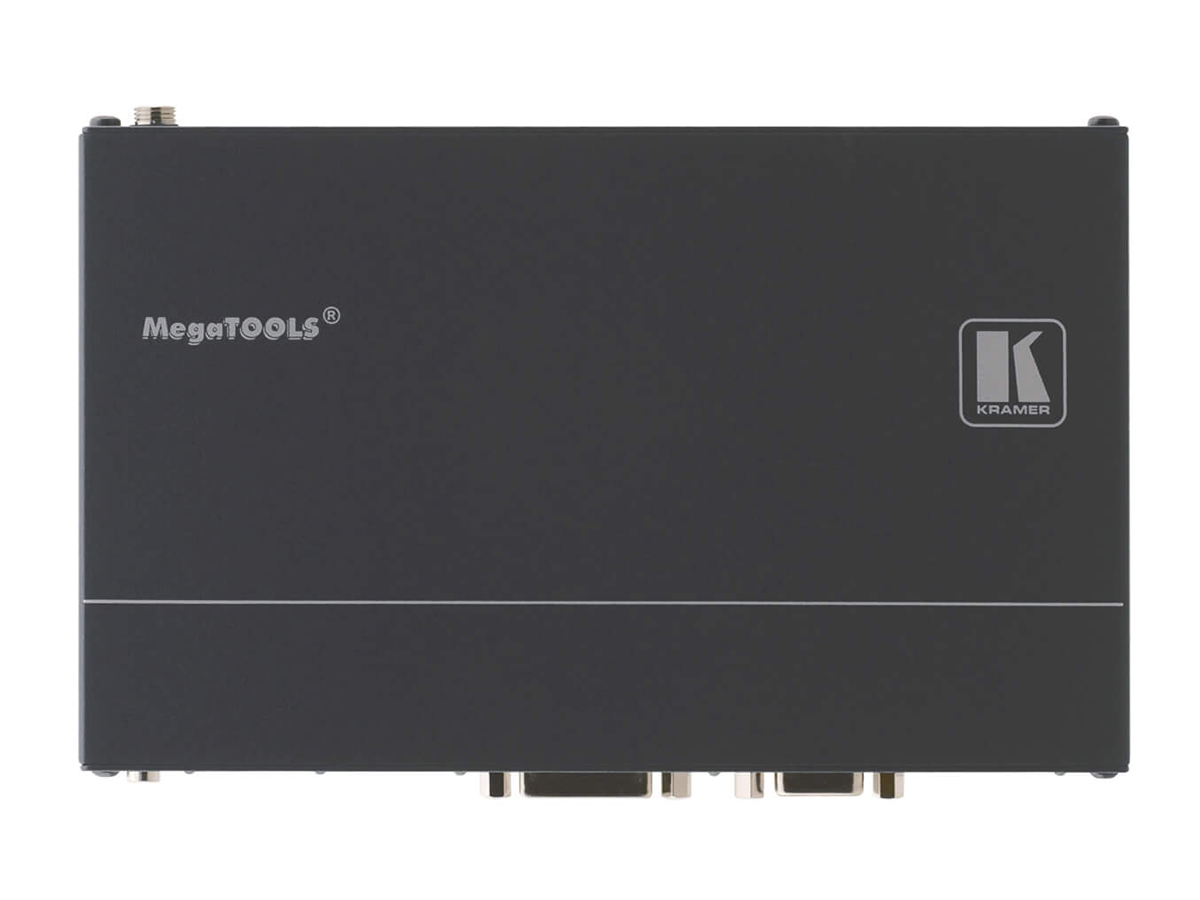

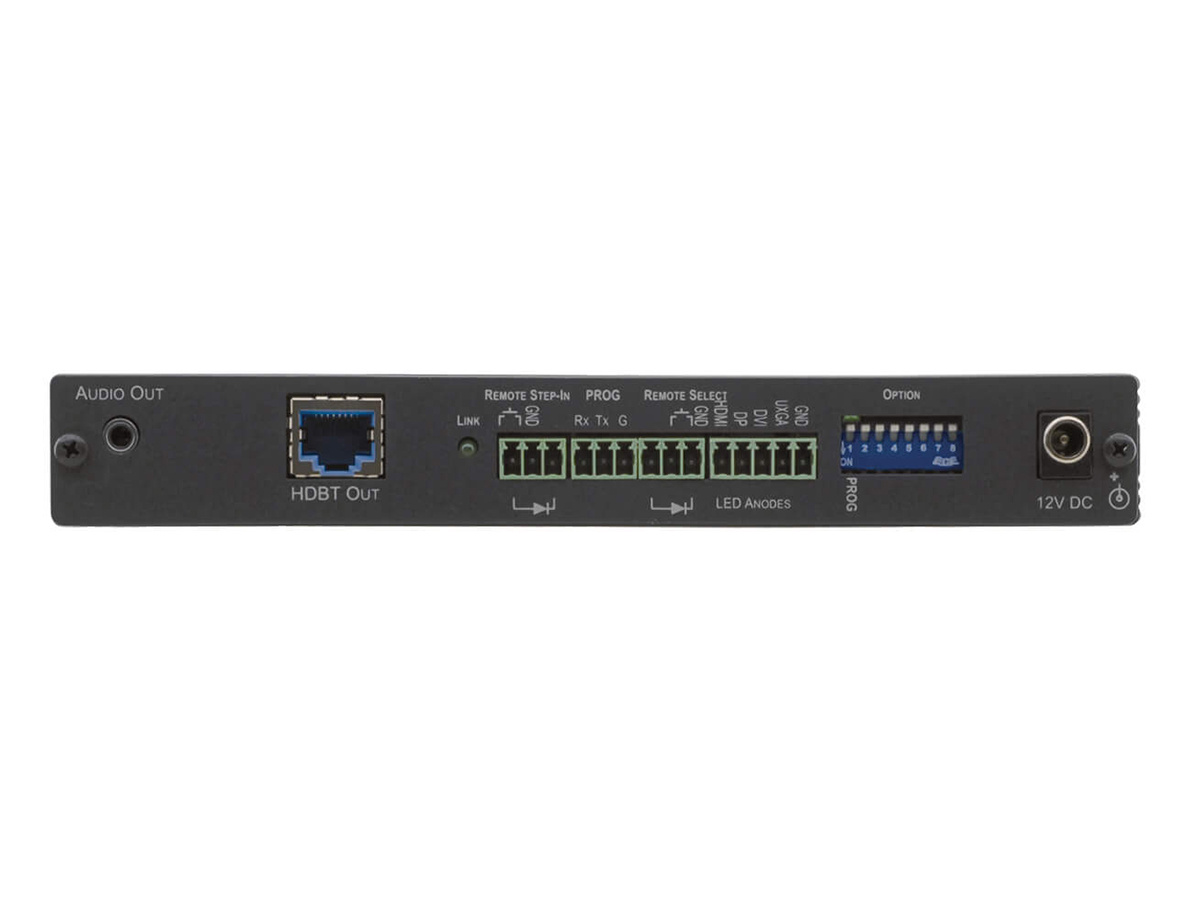

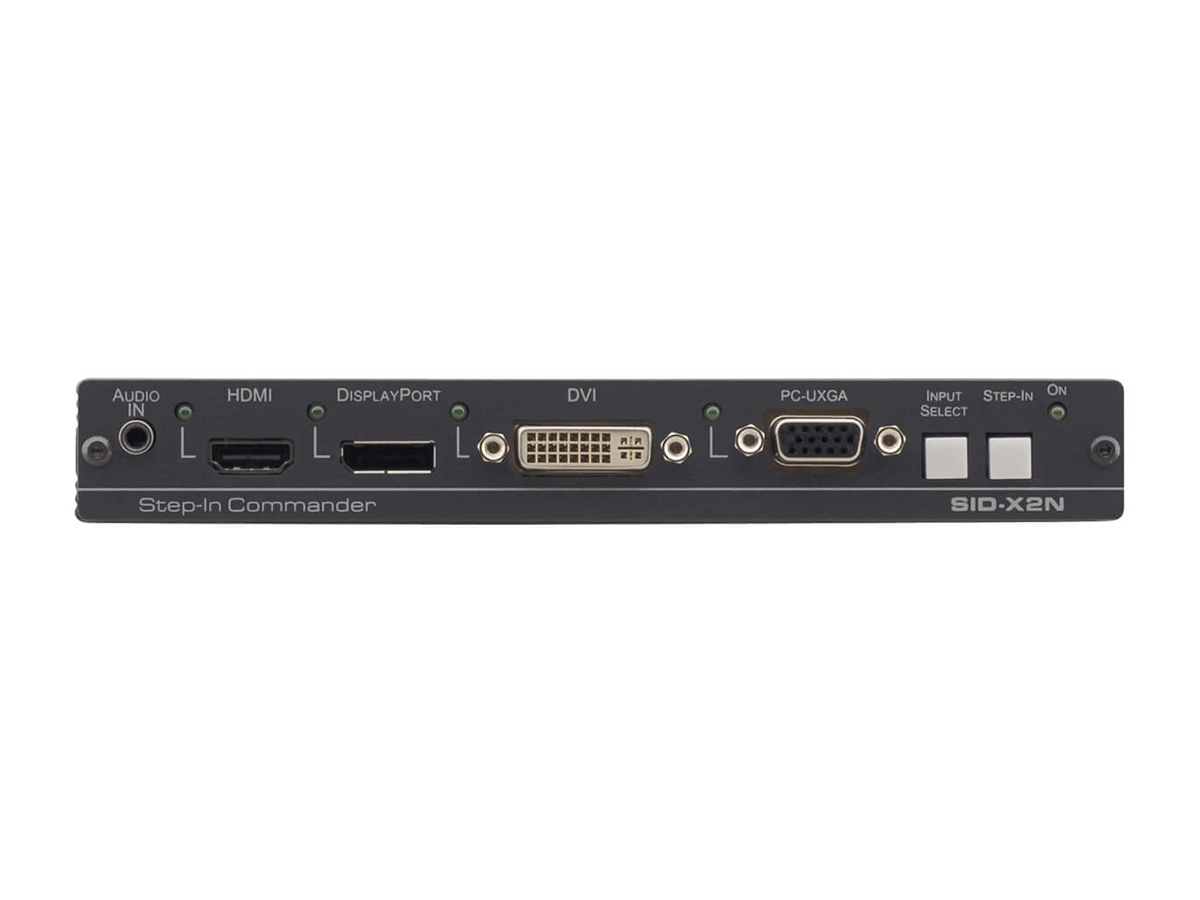

Kramer SID-X2N 4-Input Multi-Format Video over HDBaseT Transmitter and Step-In Commander

Description

Download Manual

The SID-X2N is an HDBaseT twisted pair transmitter and step-in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals.

Features:

• Max. Data Rate – 6.75Gbps (up to 1080p @60Hz 36bpp) in normal mode; up to 4.95Gbps (up to 1080p @60Hz 24bpp) in ultra mode.
• HDTV Compatible.
• HDCP Compliant – Works with sources that support HDCP repeater mode.
• HDMI Support – Deep Color, x.v.Color™ and 3D.
• EDID Pass-through – Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
• Data Equalization and Reclocking.
• Input Signal Detection – Based on video clock presence.
• Automatic Input Selection – Based on manual selection or last connected input.
• Automatic Analog Audio Detection and Embedding.
• Local Balanced Audio De-Embedding.
• Support for Digital Audio Formats.
• Lockable EDID.
• System Range – Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-HDKat6a cables.
• Local Step-In Switching – Button & contact closure.
• Power Supply – Requires independent power supply.
