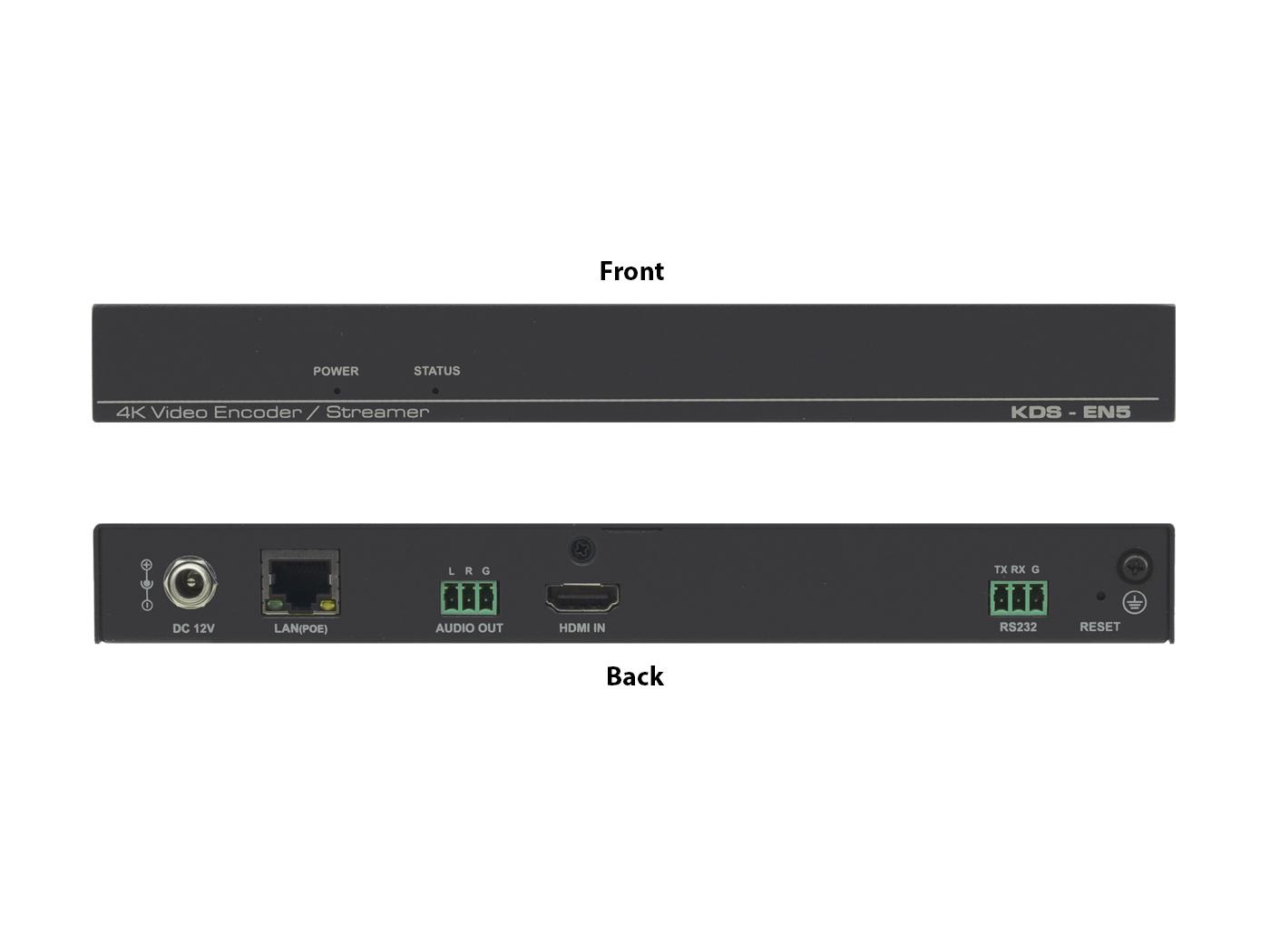

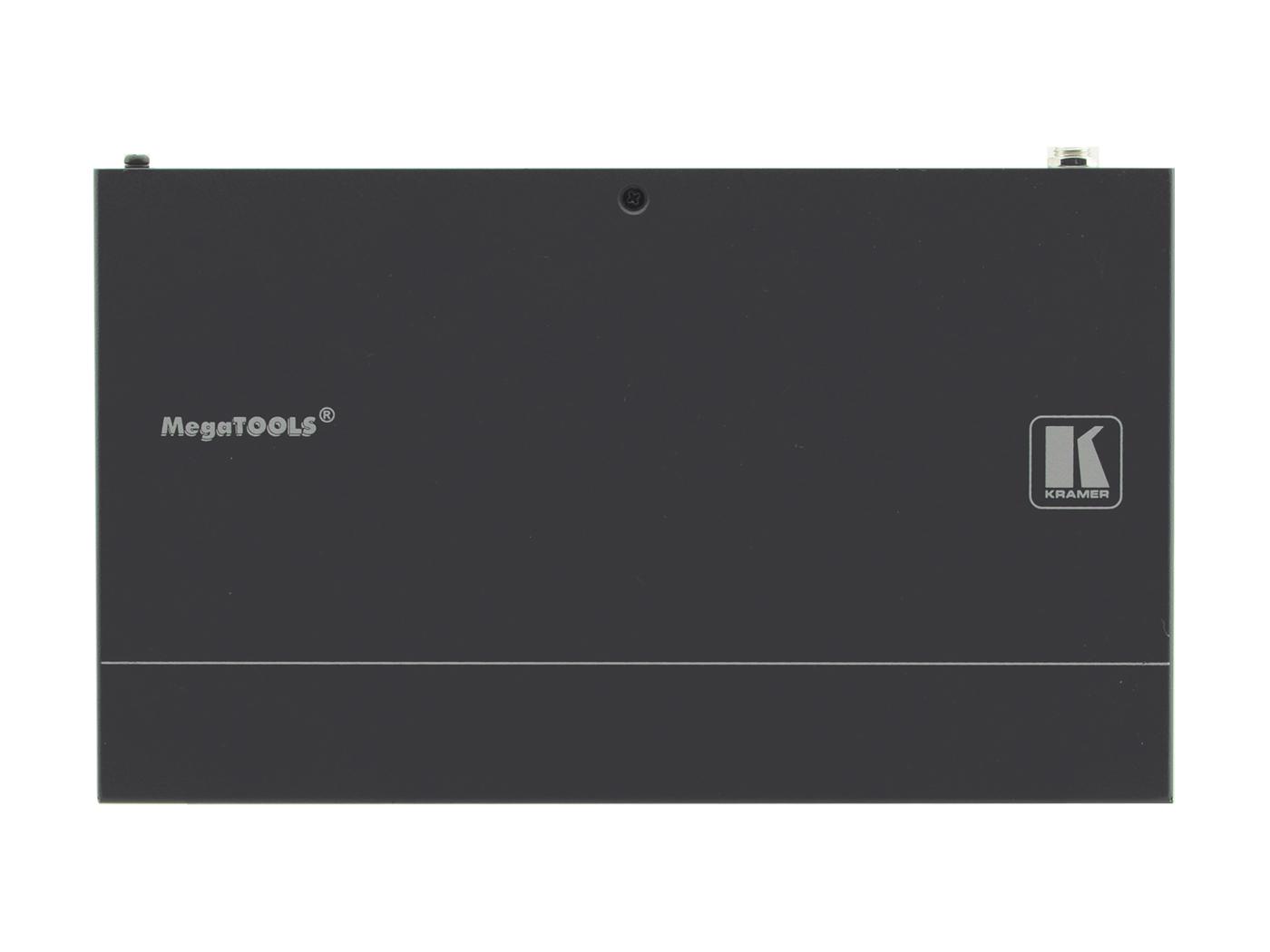

Kramer KDS-EN5 4K60 HDMI H.264 Video Encoder supporting PoE and Video Wall

Description

Download Manual

KDS−EN5 is a high performance 4K@60Hz (4:2:0), H.264 video encoder that supports PoE and video wall in unicast (one−to−one) or multicast (many−to−many) configurations.

Features

• Max. Data Rate — HDMI 4K@60Hz (4:2:0) input.
•  Flexible Audio Support — HDMI or analog line in.
•  Standard AVC Support — H.264 & AAC codecs.
•  Virtualization — RS–232 over IP.
•  Network and IP Support — Standard Ethernet network operation 10/100/1000 Mb. Managed switch: 1G, multicast, IGMP snooping, layer 2. Configurable DHCP, Static or Auto IP.
•  Streaming and Session Control — Unicast, multicast, and RTP over RTSP.
•  Management and Control Options — Embedded web pages and API
•  Video Wall — Up to 256 screens (16×16).
•  Power — PoE or external power supply (not included).
