Description
DESCRIPTION

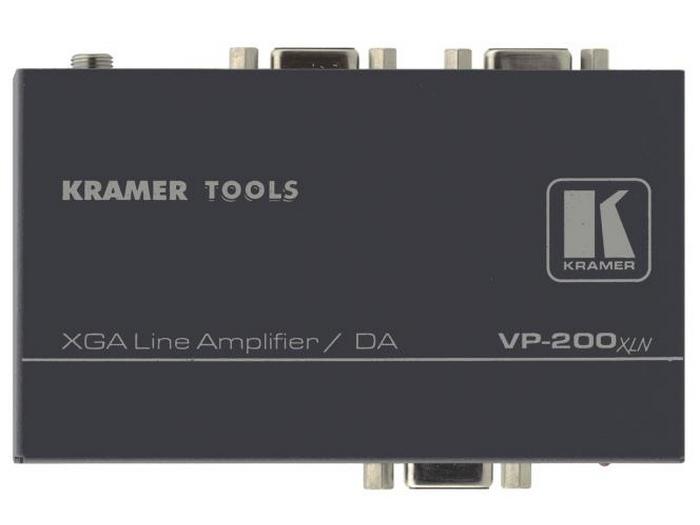

- The VP-200xln is a high-performance line and distribution amplifier for computer graphics video signals with resolutions up to and exceeding UXGA. It provides controls to compensate for signal losses inherent in long cable runs.
- High Bandwidth – 400MHz (-3dB).
- HDTV Compatible.
- Level (Gain) and EQ (Peaking) Controls.
- ID Bit Control.
- AC/DC Coupling Selection – Individually for R, G, & B signals.
- Compact Kramer TOOLS™ – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Rack Adapters: 19″ (1U): RK-3T This product replaces the VP-200xl
SPECIFICATIONS
| INPUT: | 1 XGA on a 15-pin HD (F) connector. |

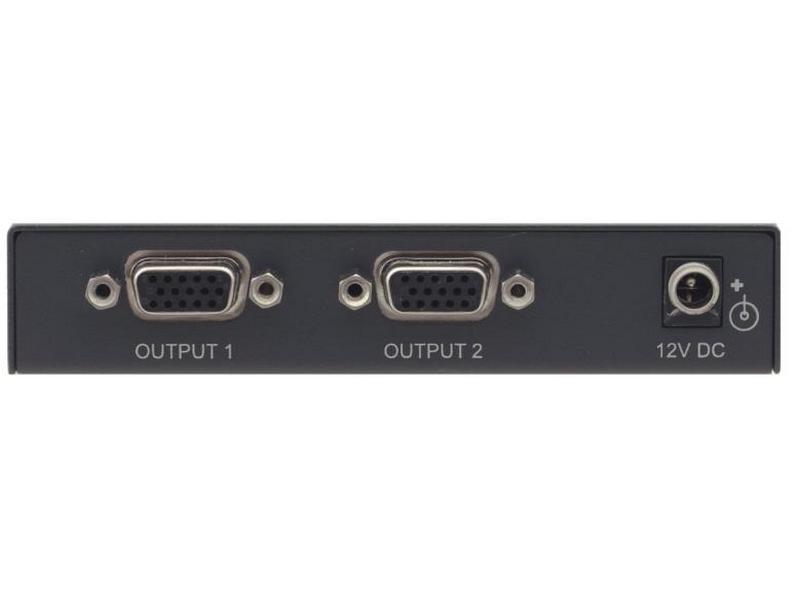

| OUTPUTS: | 2 XGA on 15-pin HD (F) connectors. |
| MAX. OUTPUT LEVEL: | 2Vpp. |
| BANDWIDTH (-3dB): | 400MHz. |
| DIFF. GAIN: | 0.05%. |
| DIFF. PHASE: | 0.03Deg. |
| K-FACTOR: | <0.05%. |
| S/N RATIO: | 71dB. |
| CONTROLS: | Level: –1.5dB to +6.1dB, EQ.: 0 to +7.3dB @50MHz. |
| COUPLING: | AC/DC. |
| POWER SOURCE: | 12V DC, 95mA. |
| DIMENSIONS: | 12cm x 7.15cm x 2.76cm (4.7″ x 2.8″ x 1.08″) W, D, H. |
| WEIGHT: | 0.3kg (0.66lbs) approx. |
| ACCESSORIES: | Power supply, mounting bracket. |
| OPTIONS: | RK-3T 19″ rack adapter. |
