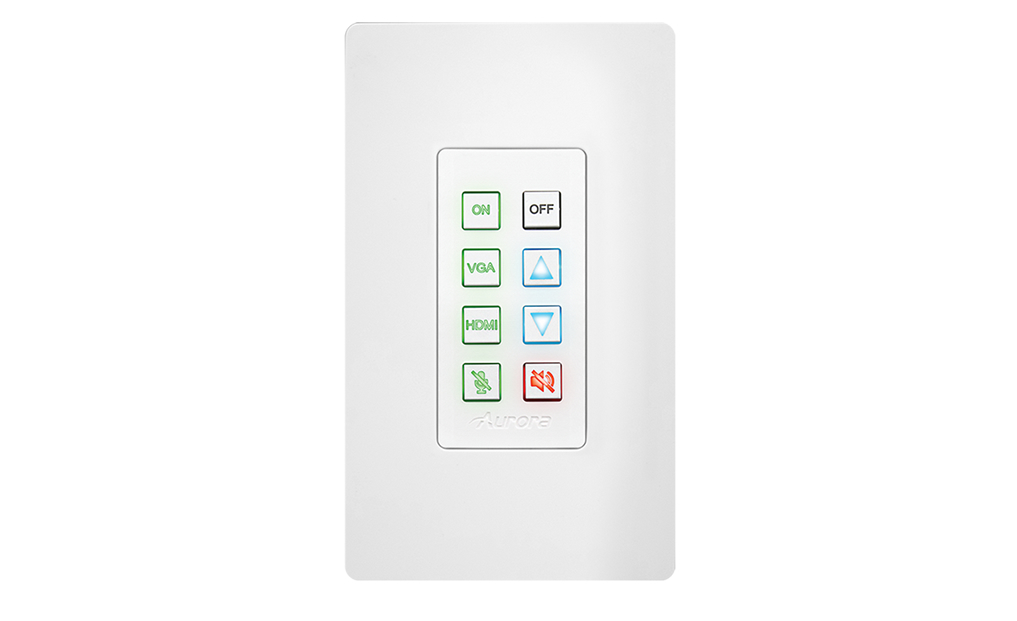

Aurora Multimedia DXB-8I-G2-W 8-Button 1-Gang Backlit Button Control Pad (Black) with No Tariffs, White

Description

This Aurora Multimedia DXB-8i-G2-W 8-Button 1-Gang Backlit Button Control Pad with Serial, IR, and Ethernet Control Ports (Black) is a low cost 8 button single gang button panel. Designed to work with just about any Ethernet, RS-232, or IR device on the market, this unit allows any Ethernet, RS-232, or IR string to be assigned to the press, release, toggle, and hold of each button. The buttons can individually be lit red, green, or blue so in dimly lit areas it can be seen. Available in Decora® white or black, this button panel is designed to match. Low cost, low power, simplicity, and compatibility with just about any device on the market makes the DXB-8i the simple solution of choice.

This product is tariff-free, offering a more budget-friendly and cost-efficient solution for your AV installations.

Features

• 8 Backlit Buttons (Red, Green, Blue)
• Fits in Standard 1 Gang Decora® Style Outlet
• 1 LAN PoE
• 1 RS-232 port, with 5vdc OUTPUT
• 1 IR port
• Buttons Individually Programmable for RS-232, IR, TCP, & Telnet Commands
• Programmable on Press, Release, Toggle, and Hold
• Macro Functions and Interlocking Buttons
• 9600 – 115k Baud Rate Selectable
• Variety of Button Caps Available
• Buttons Can Be Made to Order
• Low Power
• 48v DC Aux Power
• Low Depth 0.98" for Floor & Table Boxes
• Available in Black
