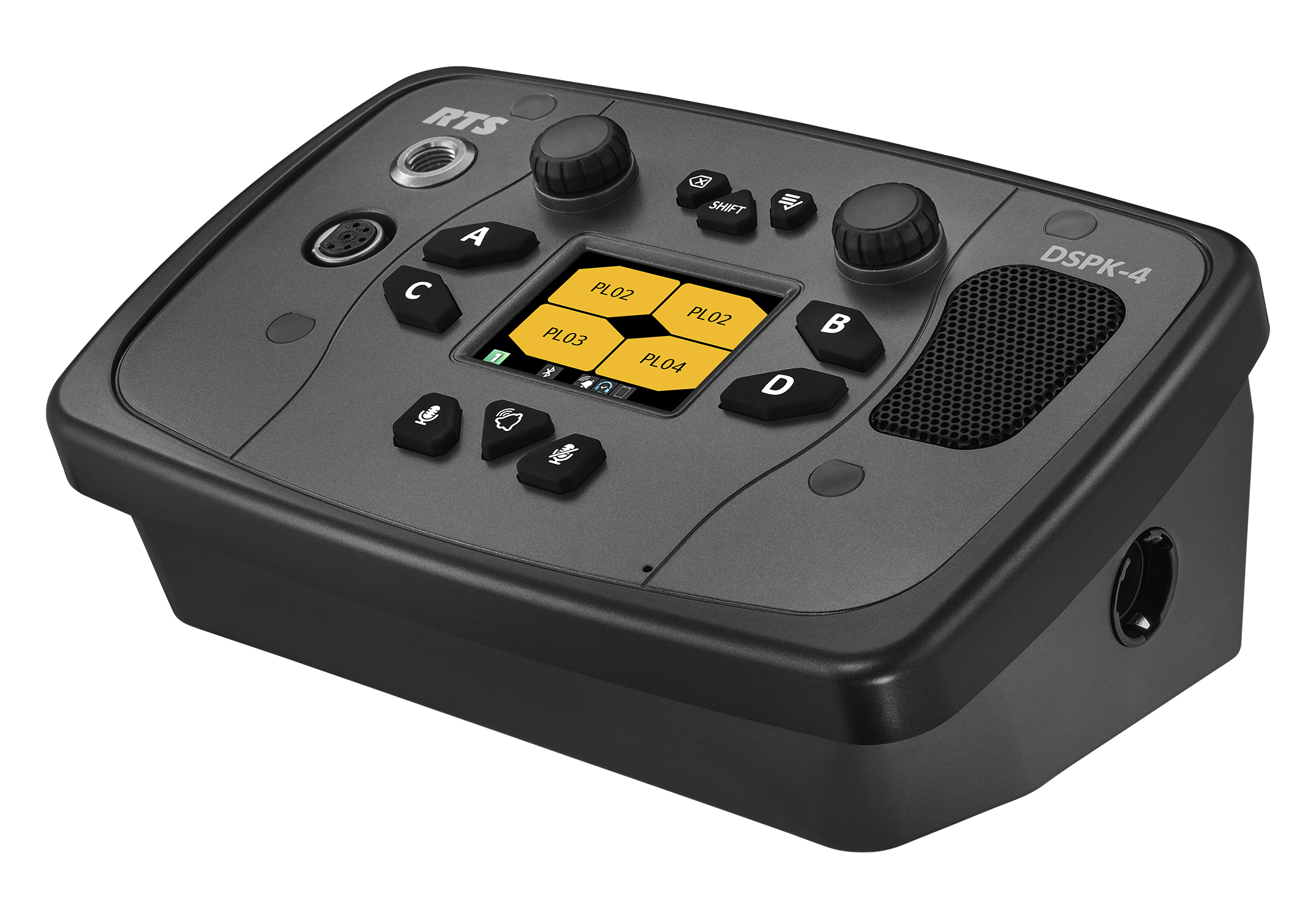

RTS DSPK4-D 4 ch desktop user station

Description

The DSPK4 (Digital Speaker Station) is an IP-based
version of its wired analog speaker station
predecessor, with several key enhancements, such as
high quality digital audio and the use of standard
Ethernet, making it compatible and versatile to fit into
any environment.
Building on the versatility, DSPK4 comes in three
different variants: a desktop version, a wall mount
version, and a flush mount version. There is a model
for every situation. The flush mount version comes
with 4-pin female, 4-pin male, or 5-pin female front
panel XLR connector. The wall mount and desktop
versions have all three XLR connectors.
Power the DSPK4 via an external AC/DC power
adapter, a DC +24 V terminal block, or by PoE+ / PoE+
+ (Power over Ethernet). In addition, you can have
peace of mind when powering the DSPK4 local DC
power because PoE+ / PoE++ is ready to take over as
a redundant power supply with no interruptions if the
unexpected happens.
The DSPK4 has a full-color TFT display and an iconbased menu interface, which allows for local
configuration of essential customer preferences.

Features

• Desktop and Wall Mount devices come with 4- and 5-pin headset connectors.
• Supports connections to an OMNEO Main Station (Digital Party Line) or an OMNEO capable matrix (ADAM or ADAM M with OMI installed or ODIN).
• Features a high-resolution TFT display, allowing user setup and configuration using an icon-based GUI.
• Supports power redundancy from an external DC power supply or the Local +24V terminal block to PoE+ / PoE++.
• Supports Bluetooth audio connectivity via Bluetooth-enabled USB dongles and phone connectivity.
