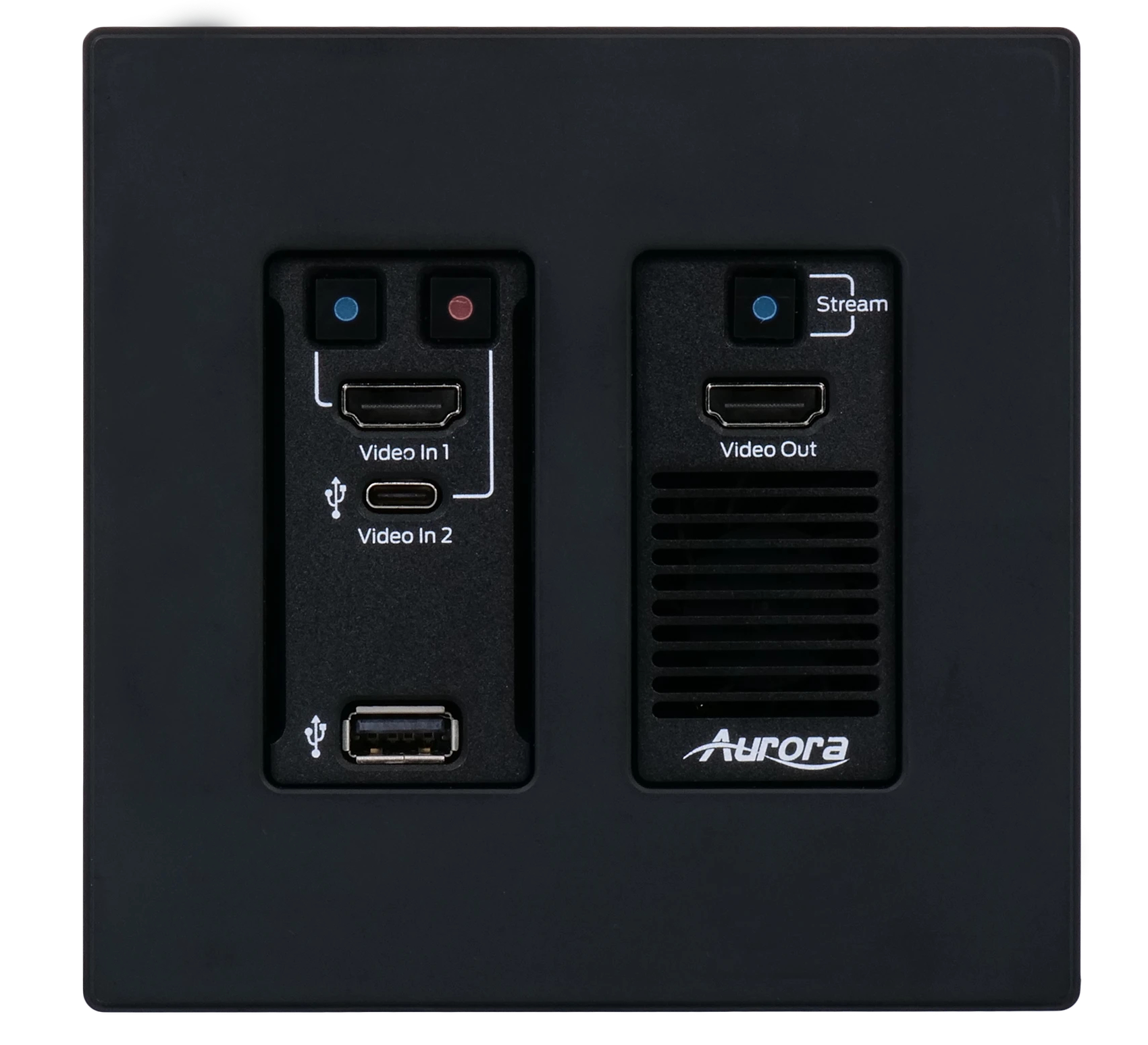

Description
The VPX-TC1-WP2-PRO transceiver wall plate provides one of the most advanced 1G IP Streaming solutions on the market utilizing Aurora’s new Mimix™ CODEC technology. Mimix™ compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K60 4:4:4 over 1G networks. It has zero frame (1.78ms) of latency and seamless switching for fast lag free content.
InfoComm 2024 ReAX Room Demo Video
Power consumption is important as the VPX-TC1-WP2-PRO uses as little as 8 watts. It does this with in a small form factor saving a lot of money in utility bills as it uses 1/3 the power of comparable systems.
Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 1G RJ-45 Ethernet switch. The 2 video inputs can be selected from the buttons, auto sense, or IP command. The audio can be de-embedded at any location, and/or be sent to or received from a Dante® enabled device.
The USB is also flexible, working as a KVM and/or a high-speed data transfer for memory sticks & another port just for cameras. Together with the VPX-TC1 Pro box version, the possibilities are nearly limitless and scalable.
Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost of the VPX-TC1-WP2-PRO.
Features
- 4K60 4:4:4 UHD up to 120 m over 1G CAT 5e
- Zero Frame Latency (1.78 ms)
- HDR10, HDR10+, Dolby Vision
- LPCM up to 12 channels, Dolby Digital Plus, Dolby TrueHD, DTS HD Master Audio, Dolby ATMOS
- 12-bit color depth processing, 16-bit OSD
- Enterprise Security (AES-256, 802.1X, HTTPS & SSH)
- Seamless Switching, Video Wall and Image Rotation
- EPG & Channel Mapping
- MJPEG Preview up to 720p30
- 1 × HDMI Input, 1 × USB-C Video/Data
- USB 2.0 Type-A
- Line In/Out on Rear for Add-on Audio Wall Plates
- 1G LAN PoE
- RS-232 Serial Port
- Integrated Web Server for Configuration
- AES67 Included
- Dante® 2-Channel Audio License Option
- Low Power at 8 Watts
- 2 Gang Mounting Available in White and Black
