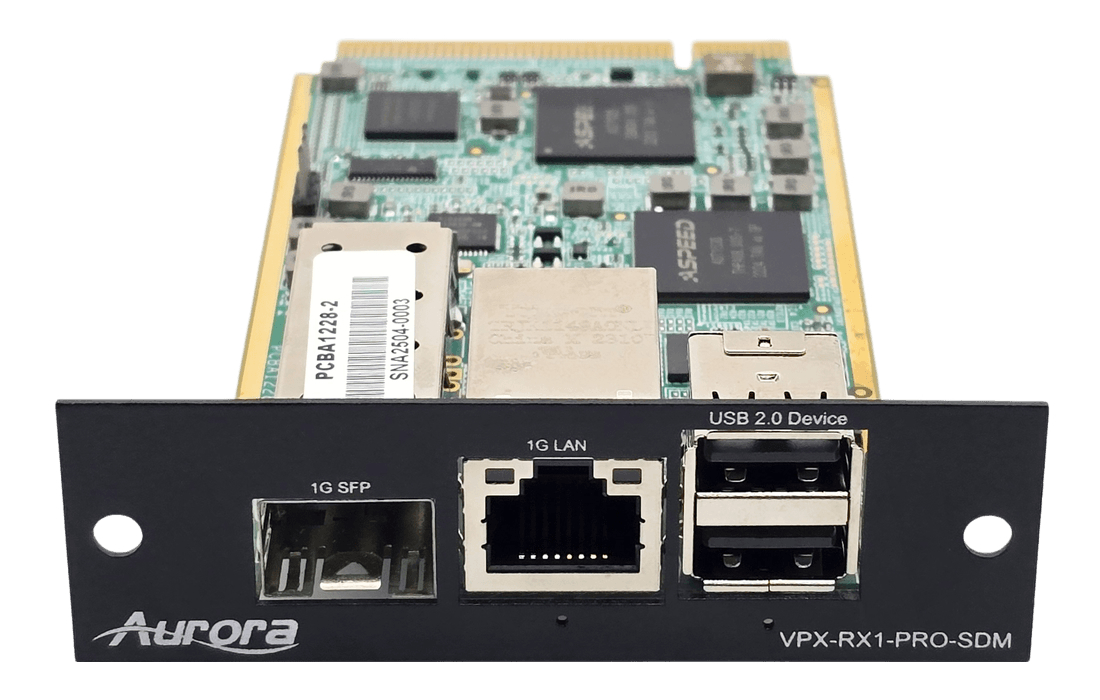

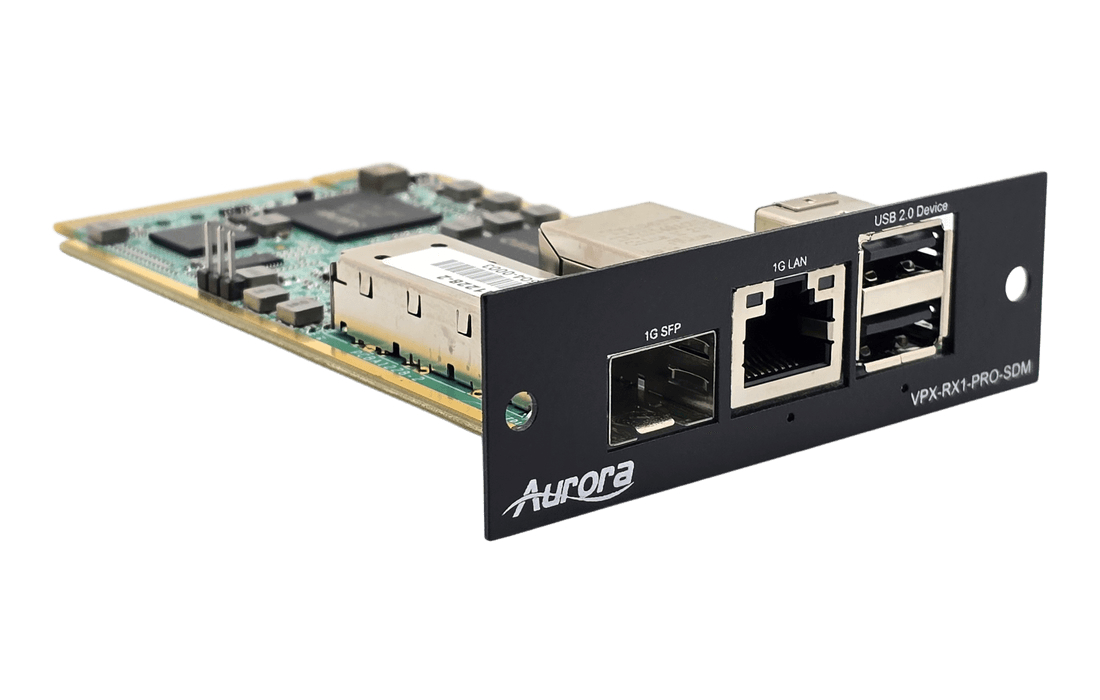

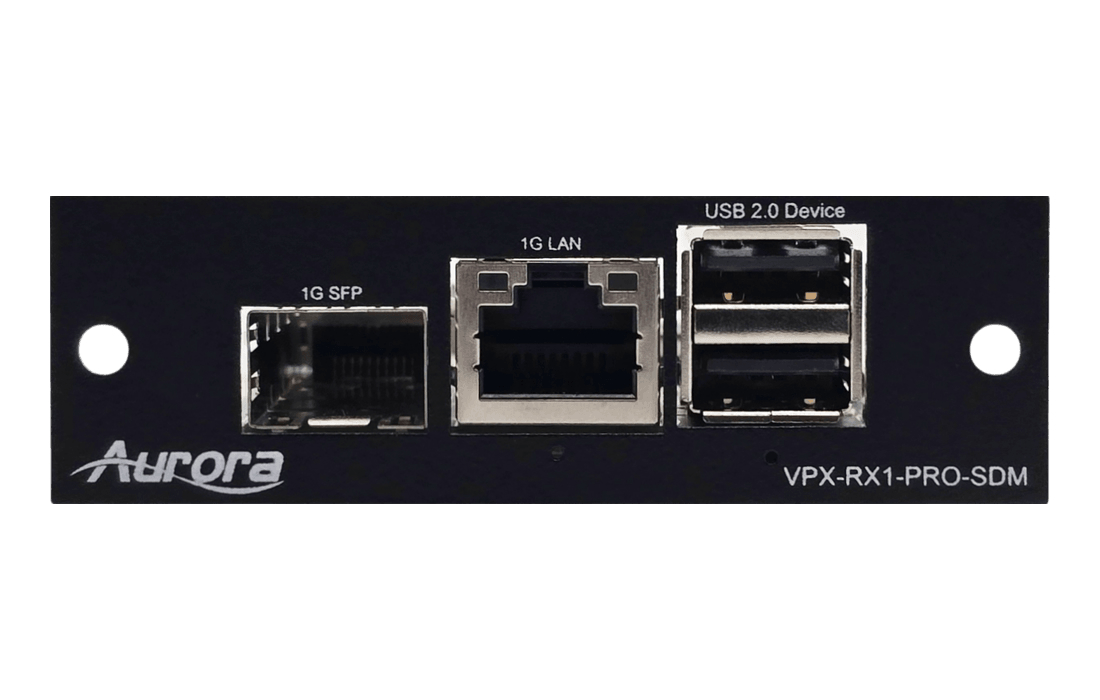

Aurora Multimedia VPX-RX1-SDM 1G 4K60 AV over IP Smart Display Module (SDM Card)

Description

The VPX-RX1-SDM is a 1G 4K60 AV over IP Smart Display Module (SDM Card). This will allow displays with Intel’s SDM slot to receive 4K 60 4:4:4 over the network using Aurora’s Mimix™ CODEC technology. Mimix™ compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K60 4:4:4 over 1G networks. It has zero frame (1.78ms) latency and seamless switching for fast lag free content. The best part with SDM is no external boxes as everything is built into the display. The VPX-RX1-SDM also has advanced features like videowall, image rotation, channel mapping, 720p30 remote preview, roaming mouse, hotkeys, and more.

Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost of the VPX Series.

Features

• 4K60 4:4:4 UHD Decoder
• Zero Frame Latency (1.78 ms)
• HDCP 2.2
• HDR10, HDR10+, Dolby Vision
• LPCM up to 12 channels, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio & Atmos
• 12-bit color depth processing, 16-bit OSD
• Enterprise security (AES-256, 802.1X, HTTPS & SSH)
• Low power design
• Scaling & seamless switching
• MJPEG preview up to 720p30
• Video wall with image rotation
• 1G LAN PoE and SFP for fiber or second RJ-45
• Channel mapping with on-screen preview
• Roaming mouse & hotkeys
• Integrated web server for configuration
• USB 2.0 ports for cameras, HID devices, mass storage, etc.
• Dante® 2-channel audio license options & Dante Controller support
