Aurora Multimedia TPG-8K 8K HDMI 2.1 Test Pattern Generator & Analyzer with SDVoE Option and AVoIP Tests

Description

The TPG-8K is the first test 8K test pattern generator with analyzer to focus on AV over IP in addition to HDMI. AVoIP has quickly become the leading distribution for our industry which is why we built a device to properly test the image quality from end to end. The latency performance of the stream is just as important which is why we added the ability to measure end to end latency including the network switch latency. Along with HDMI, HDCP, and EDID analyzing assures an install or lab testing goes smooth and quickly. We even made it rack mountable for use at a headend to send patterns or view content of the HDMI or SDVoE with optional expansion card.

Features

• Supports video resolution outputs up to 8K60 4:2:0 10-bit, 8K30 4:4:4 & 4K2K @120Hz
• Supports HDR: 4K2K @60Hz 4:2:0 10-bit / 12-bit
• Built-in motion video patterns
• HDMI input and output support up to HDMI 2.1 & HDCP 1.4 / 2.3
• Fundamental HDMI feature analysis up to 8K4K @60Hz 4:2:0 8-bit HDMI 2.1 input
• HDCP & EDID analysis
• AV over IP test patterns and latency analyzer
• SDVoE option card for simultaneous transmit and receive of 10G AV over IP
• Wide frequency range: 25MHz–1188MHz
• 40G input & 48G output video bandwidth

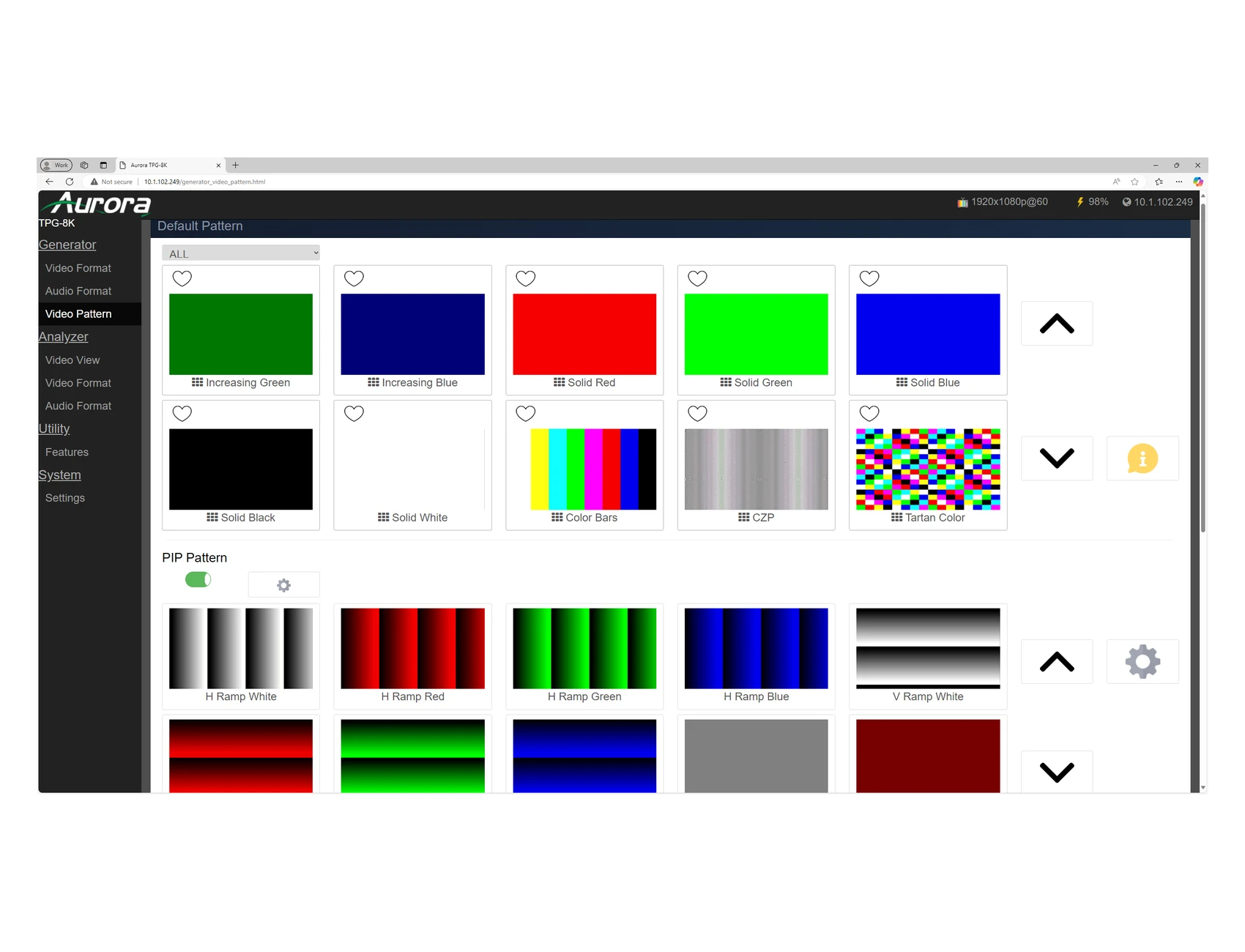

• 7” capacitive touch screen & web server for remote control
• Stereo speakers for audio verification
• Battery powered for portability; up to 3 hours operation at full load
• PoE+ power support
• Plastic protective case included
• Rack mount option
• 2-year warranty
