Aurora Multimedia ASP-882S 8×8 4K60 HDMI Matrix

Description

Elevate your audio-visual experience with the ASP-882S 8×8 4K60 HDMI Matrix from Aurora Multimedia, a powerhouse designed for both home theater enthusiasts and professional AV installations! This cutting-edge 18Gbps HDMI Matrix seamlessly connects 8 HDMI sources to 8 HDMI displays, delivering breathtaking 4K2K@60Hz (YUV 4:4:4) video resolution and multi-channel high-resolution digital audio for an immersive entertainment setup. Whether you’re streaming movies, gaming, or managing a multi-display system, the ASP-8825 ensures flawless performance with support for advanced HDR formats like Dolby Vision, HDR10+, and HLG, alongside HDCP 2.2 and HDMI 2.0b compliance.

Unleash the full potential of your audio setup with versatile de-embedding capabilities—extract audio to analog and coaxial outputs from all 8 HDMI ports. With the ARC (Audio Return Channel) function enabled, effortlessly pull ARC audio from your HDMI display devices to coaxial outputs, perfect for integrating with your audio amplifier or surround sound system. Each HDMI output also features independent 4K-to-1080P downscaling, ensuring compatibility with a wide range of displays without compromising quality.

Control is at your fingertips with multiple intuitive options: use the front panel buttons with an OLED display for quick adjustments, the included IR remote for convenient operation, or dive deeper with RS-232, LAN, and Web GUI for advanced management. The 1U rack-mounted design, complete with a sleek black metal enclosure, fits seamlessly into any setup, while its robust build ensures durability with a weight of just 2.8kg.

Features

• HDCP 2.2 and HDCP 1.4 compliant
• Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports, as specified in HDMI 2.0b
• Support 18Gbps video bandwidth
• Dolby Vision, HDR10+ and HLG are supported.
• Support 4K->1080P Down Scaler for each output port
• HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
• Audio de-embedded is supported via analog and coax ports
• ARC, CEC and smart EDID management are supported

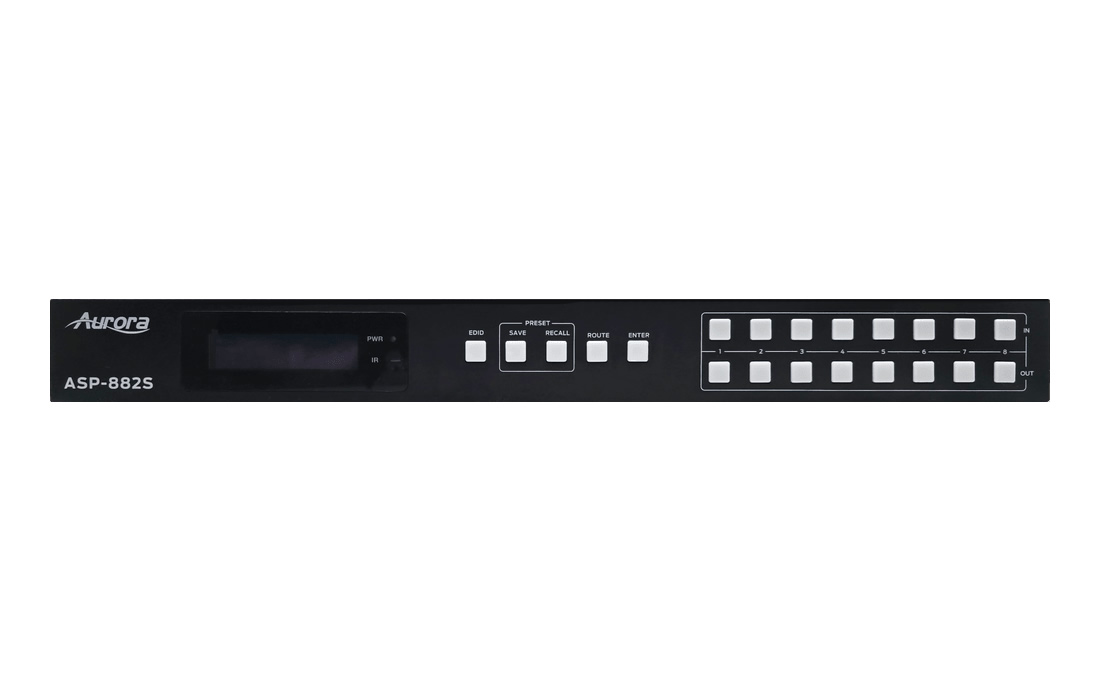

• 1U rack mounted design with front panel OLED display
• Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
