Description
Experience seamless collaboration and efficient decision-making with the ATEN VP2420 Presentation Switch,
a 4×2 True 4K HDMI Presentation Switch with Multi View. It delivers a stunning viewing experience across
mixed resolution displays and ensures smooth switching between two screens with multiple sources. With
multi-view functionality, it enables comprehensive data presentation, allowing participants to workshop
ideas and compare information on a single screen. Its smart layout adjustment maintains a seamless flow as
sources connect or disconnect, keeping meetings smooth and uninterrupted.
The VP2420 supports versatile audio setups with options for audio embedding or separate extraction. Whether
used standalone or integrated with control systems, it offers easy source control and future scalability
with up to four presentation switches cascaded, making every presentation captivating, smooth, and efficient.
Multi-View Display with Automatic Layout Adaptation
Elevate team collaboration and discussion with the VP2420, capable of displaying up to four video content
sources on a single screen. This versatile setup facilitates side-by-side data comparison and the exchange
of ideas among multiple participants, enhancing effective teamwork and decision-making. New video sources
can be integrated into the existing layout at any time for a smooth and dynamic display experience.
Visual Excellence with True 4K Clarity and Advanced Scaler
Experience stunning True 4K/60 resolution with the VP2420, delivering exquisite detail and intricate visuals
for an unparalleled viewing experience. Its advanced scaler seamlessly handles most common input resolutions
up to True 4K or downscales to 1080p, enabling smooth and simultaneous display of mixed-resolution sources.
Unlock Perspectives with Matrix Output on Two Displays
Beyond simply splitting sources across two screens, the VP2420 features two independent display outputs:
one capable of presenting up to four sources simultaneously, and the other dedicated to highlighting
content for discussion. This configuration ensures focused conversations and accelerates the
decision-making process.
Six Preset Rapid Multi-View Layouts
The VP2420 allows video content to be flexibly presented in six different multi-view layouts, including
quad view, triple view, picture-in-picture (PiP), picture-by-picture (PbP), and full screen. All layouts
can be switched seamlessly within one second, providing a dynamic and efficient display solution for any
presentation scenario.

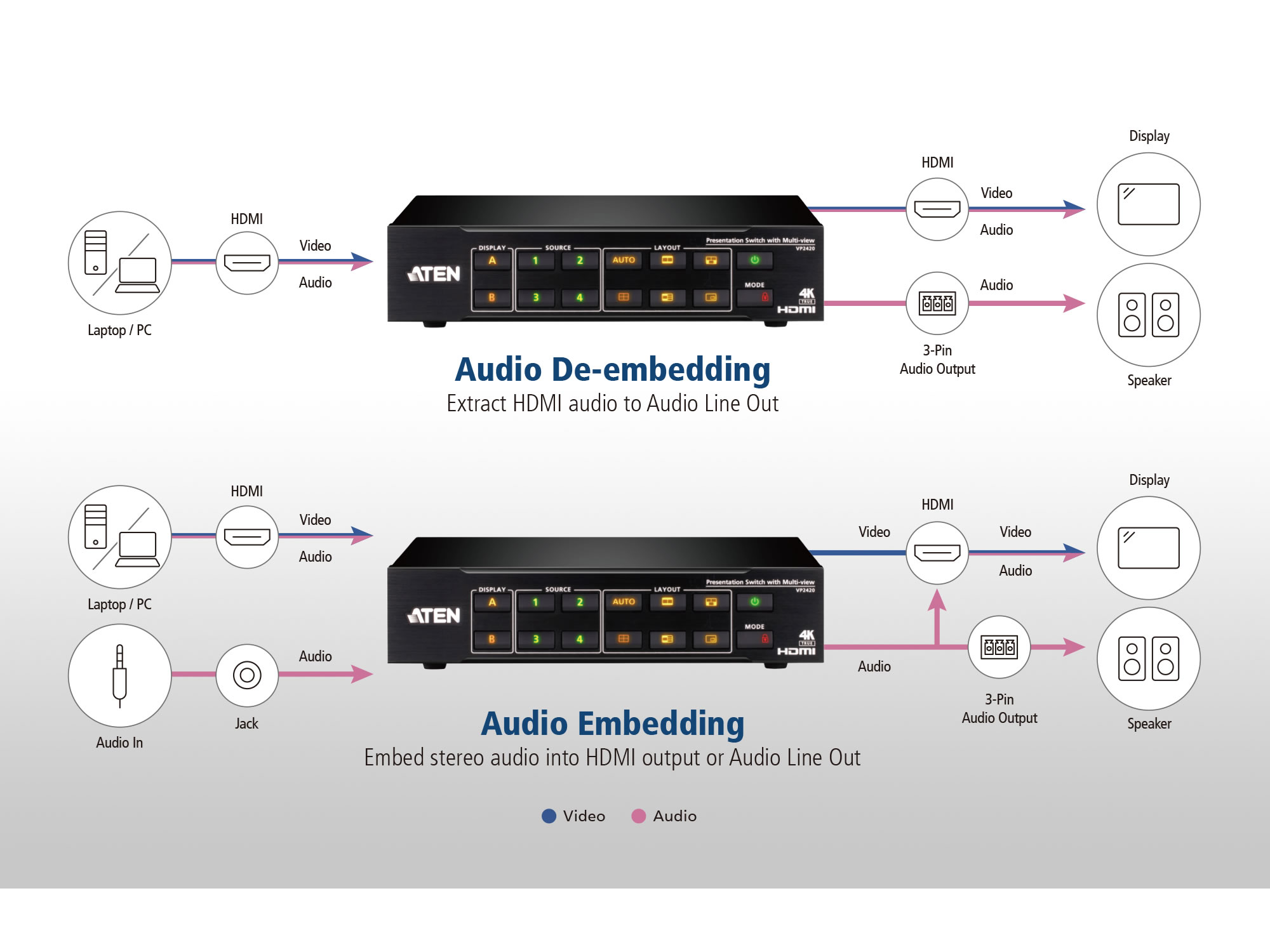

Audio Flexibility with Embedding and De-Embedding
Enhance presentations with flexible audio options that allow separate audio tracks to be embedded into
video content or de-embedded from the video signal for independent processing through external amplifiers
or speaker systems.
Multiple Methods for Streamlined Presentation Management
Managing presentations with the VP2420 is effortless thanks to its wide range of control options, including
front panel push buttons, IR controllers, web-based GUI, mobile app, RS-232, and Ethernet. Seamless
integration with control systems further enhances operational efficiency.
Perfect for Meeting Spaces and Classrooms
The VP2420 is ideal for huddle rooms, medium-sized meeting rooms, and classrooms, delivering collaborative
presentations and training sessions through a dynamic and engaging viewing experience.
Features
The VP2420 is a presentation switch featuring 4 HDMI inputs and 2 HDMI outputs and is capable of displaying video content in full screen, PiP, PbP, triple/quad multi-view. With display mode (Matrix/Mirror) and layout mode (Auto/Manual) selectable and its capability of seamless switching* among multiple sources, the VP2420 delivers a dynamic viewing experience in any conference settings. In addition to the support for 4096 × 2160/3840 × 2160 @ 60Hz (4:4:4), a True 4K scaler is also built in the device to ensure crisp and detailed visual quality. Thanks to the audio embedding and de-embedding functionalities, users can adapt suitable audio/video combinations based on various environments.
Designed with flexibility in mind, the VP2420 offers versatile control options including front-panel pushbuttons, RS-232, IR, Telnet, Web GUI, and ATEN Video Presentation Control mobile app, allowing multimedia signals to be easily managed and incorporated into a collaborative event. The VP2420 can be cascaded up to 2 levels by connecting additional 4 VP2420 units to reach the maximum of 16 HDMI video sources being simultaneously displayed on a single screen. Rack-mounting is supported for flexible installation. With a set of features coming in a compact, all-metal casing, which enhances durability, the VP2420 serves as a perfect solution for smooth presentation flow and seamless transition in any education or commercial conferencing applications.
*Note: The function is only available on Display A and applicable to single port switching. Multiview layout switching is inapplicable.
- Seamless AV Matrix Switching
- Supports 4 × HDMI inputs and 2 × HDMI outputs
- Supports multi-view (full screen, PiP, PbP, triple/quad multi-view), Matrix/Mirror display modes, and Auto/Manual layout modes
- Supports audio embedding and de-embedding
- Seamless switching* at near-zero-second speed
- Auto switching – automatically detects and switches to the latest active source connection
- Visually Stunning True 4K Outputs
- Supports up to 4096 × 2160 / 3840 × 2160 @ 60Hz (4:4:4) and 4K HDR
- Built-in True 4K scaler – supports video upscaling to True 4K
- EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and best video resolution across connected devices
- HDMI (Deep Color, 4K); HDCP 2.2 compliant
- The Ultimate Flexibility in Streamlining Operation
- Multiple control options – front-panel pushbuttons, RS-232, IR, Telnet, Web GUI, and ATEN Video Presentation Control mobile app
- Consumer Electronics Control (CEC)
- Can be cascaded up to 2 levels by connecting additional 4 VP2420 units, supporting up to 16 video sources displayed simultaneously
- Long-distance transmission – up to 5 m via a High Speed HDMI cable
- Supports standby mode for power saving and fast wake-up
- Rack-mountable design
- All-metal casing enhances durability
* Note: Seamless switching is available on Display A only and applicable to single-port switching.
Multiview layout switching is not supported.
