Aten VE8962T True 4K HDMI over IP Transmitter with PoE

Description

The VE8962 is a flagship HDMI-over-IP video extender that delivers pristine True 4K resolution with ultra-low latency over both Ethernet and fiber optic connectivity, making it ideal for versatile digital signage requirements. Whether in point-to-point or multipoint-to-multipoint installations, the VE8962 integrates seamlessly into existing networks, delivering uncompromised audiovisual content and control signals via HDMI, audio, USB, RS-232, and IR interfaces.

It is also flexibly scalable through daisy-chain deployment without the need for additional network switches, simplifying AV installations with cost, time, and space efficiency. Designed with sustainable service uptime and streamlined AV management in mind, the VE8962 features both network and power redundancy, along with intuitive web-GUI management – delivering a truly high-performance and cost-effective solution for any professional AV deployment.

Network Redundancy to Sustain System Availability

The VE8962 ensures smooth and reliable over-IP AV transmission over long distances via both LAN and optical network connections, maintaining system uptime through connection failover.

Versatile AV Configuration via Embedding / De-Embedding Audio

By embedding audio directly into the HDMI signal, both audio and video streams can be consolidated into a single HDMI connection, simplifying connectivity. Additionally, the audio can also be de-embedded to separate it from the video stream, ensuring compatibility with various audio systems when necessary.

Video Wall Distributions

The VE8962 can integrate easily into any video wall setup for comprehensive, large-scale audiovisual presentations, delivering content across up to 80 displays (e.g., 8×10 array) in either portrait or landscape orientation (90°/270°).

Local HDMI Input for Real-Time Source Updates

In situations where a timely update is required on the spot, the VE8962’s HDMI input allows plug-and-play connection to a source device for quick content setup at the receiver site. With a remote switch connected to the Contact port, you can easily switch between local and remote content sources as needed.

Streamlined AV Management via Web GUI

What you see is what you get. All audiovisual content is easily managed through the intuitive web GUI, which allows drag-and-drop placement of selected AV sources into customizable display layouts and backgrounds.

Scalable AV over IP Deployment

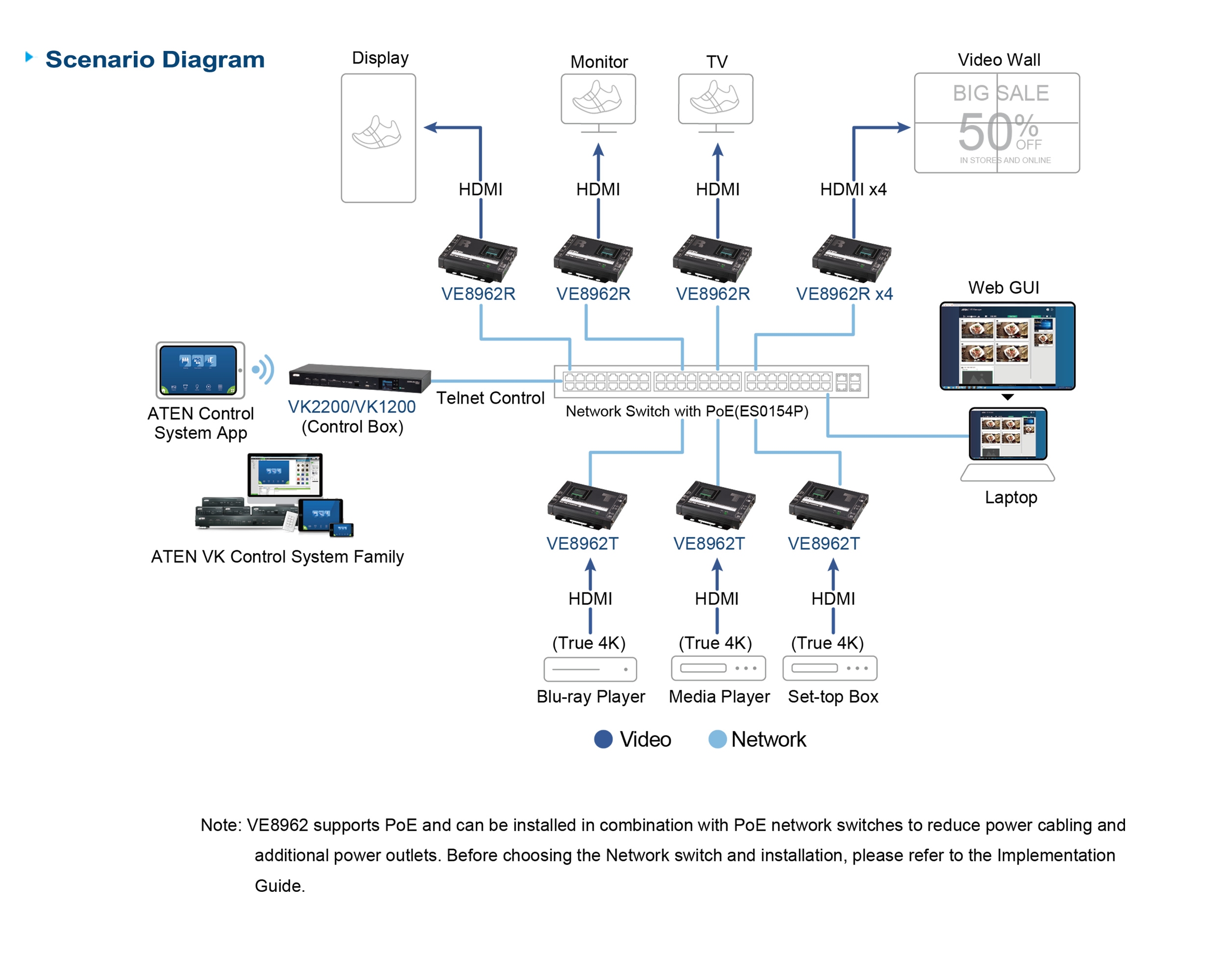

The VE8962 supports scalable AV over IP deployment with hundreds of endpoints across network infrastructure, enabling both point-to-point and multipoint-to-multipoint installations without distance limitations – offering the flexibility to adapt and expand your AV infrastructure as needed.

Daisy-Chaining Up to 30 Units

The networked AV infrastructure is scalable with up to 30 daisy-chained receiver units streaming video content from a single source, enabling flexible video distribution over the existing network – minimizing the need for additional network switches while maximizing efficiency in cost, time, and space.

Applications

Designed for scalable networked AV deployments with pristine audiovisual clarity in mind, the VE8962 excels in any digital signage application.

Features

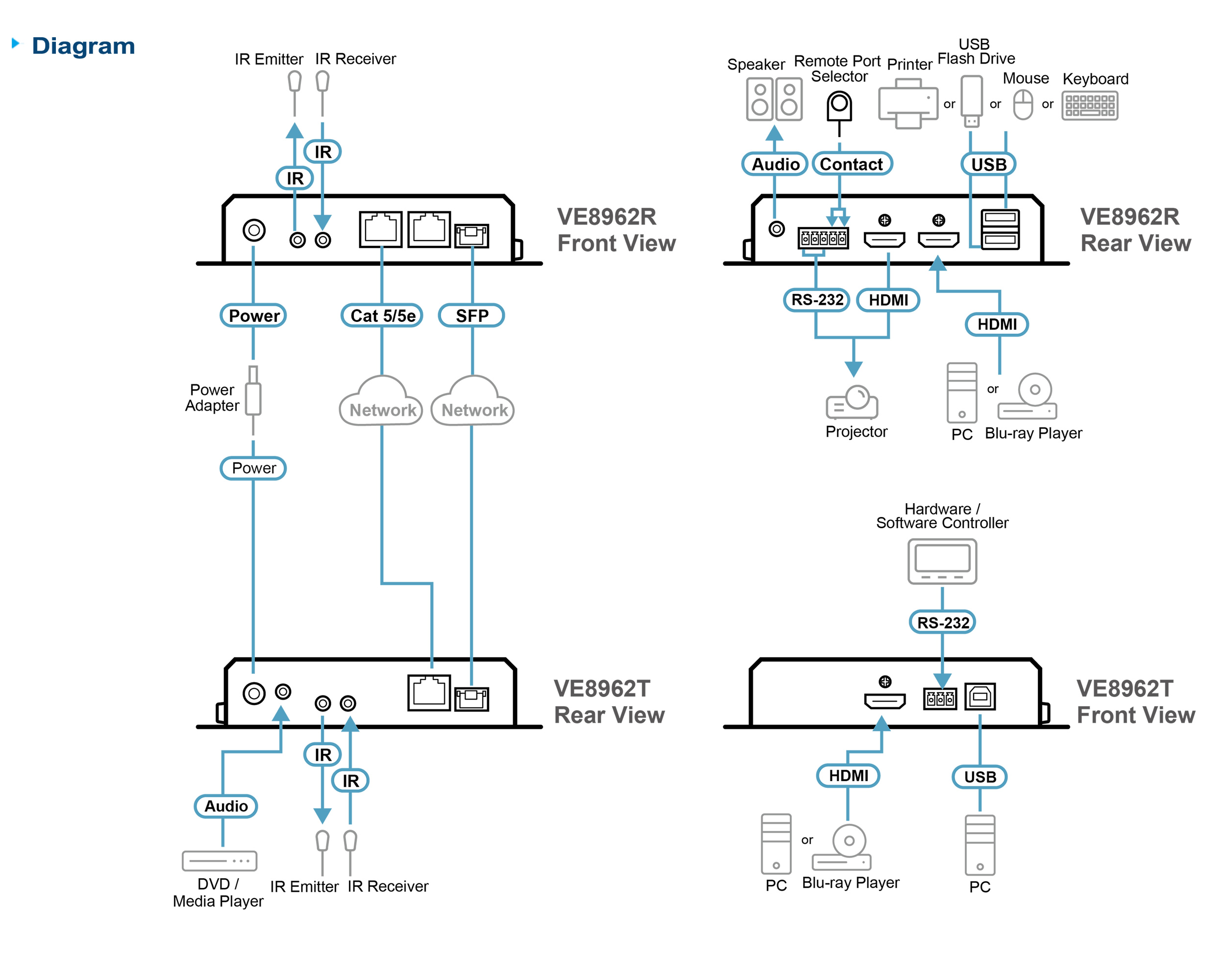

Adopting advanced compression technology, the ATEN VE8962 Video over IP Extender consists of a transmitter VE8962T and a receiver VE8962R that can transmit up to 4096 x 2160 @ 60 Hz (4:4:4) HDMI, audio, USB 2.0, IR, RS-232 signals with ultra-low latency via a single Cat 5e/6 or fiber optic cable.

Additionally, the VE8962 features power redundancy with DC in and Power over Ethernet, over IP redundancy with copper cable and fiber optical cable, operation redundancy with user-friendly web GUI, and control commands by control system.

With a built-in scaler, the VE8962 can easily upscale various input resolutions up to 4096 x 2160 @ 60 Hz, giving viewers the best visual quality across all displays. Moreover, the VE8962 is capable of embedding and de-embedding audio, allowing it to be either embedded in the HDMI stream or extracted and delivered separately.

The extender supports multiple ways of controls including pushbuttons, web GUI, RS-232, bi-directional IR, and Telnet/Reslink. The VE8962 also provides users with user-friendly web GUI to customize control rooms over web for contextual and practical usage. The VE8962 supports USB 2.0 compatibility, enabling users to access USB 2.0 peripherals. For additional local input usage, the VE8962R is equipped with local HDMI input and pushbutton for easy port switching.

Engineered to meet today’s demands of large scale, multi-display, True 4K signal transmission, the VE8962 supports AV matrix switch and video wall configurations with up to 80 displays, allowing you to design creative video walls, with a combination of horizontal and vertical displays.

With limitless scalability and flexibility, the VE8962 Video over IP Extender can transmit signals from floor to floor with over IP structure via simple installation, making it an ideal and reliable solution for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.

• Lightweight Compression with Ultra-low Latency
  • Extends True 4K HDMI signals over IP up to 100 m point-to-point via a single Cat 5e/6 or up to 10 km via fiber optic cable with ultra-low latency
  • Delivers visually lossless high-quality video up to 4096 × 2160 @ 60 Hz (4:4:4)
  • Supports HDR10 with HDCP 2.2 / 2.3 compliant for content protection
  • Supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
  • EDID Expert selects the optimum EDID settings for smooth power-up, high-quality display, and best video resolution across different screens
• Multiple Redundant Mechanisms

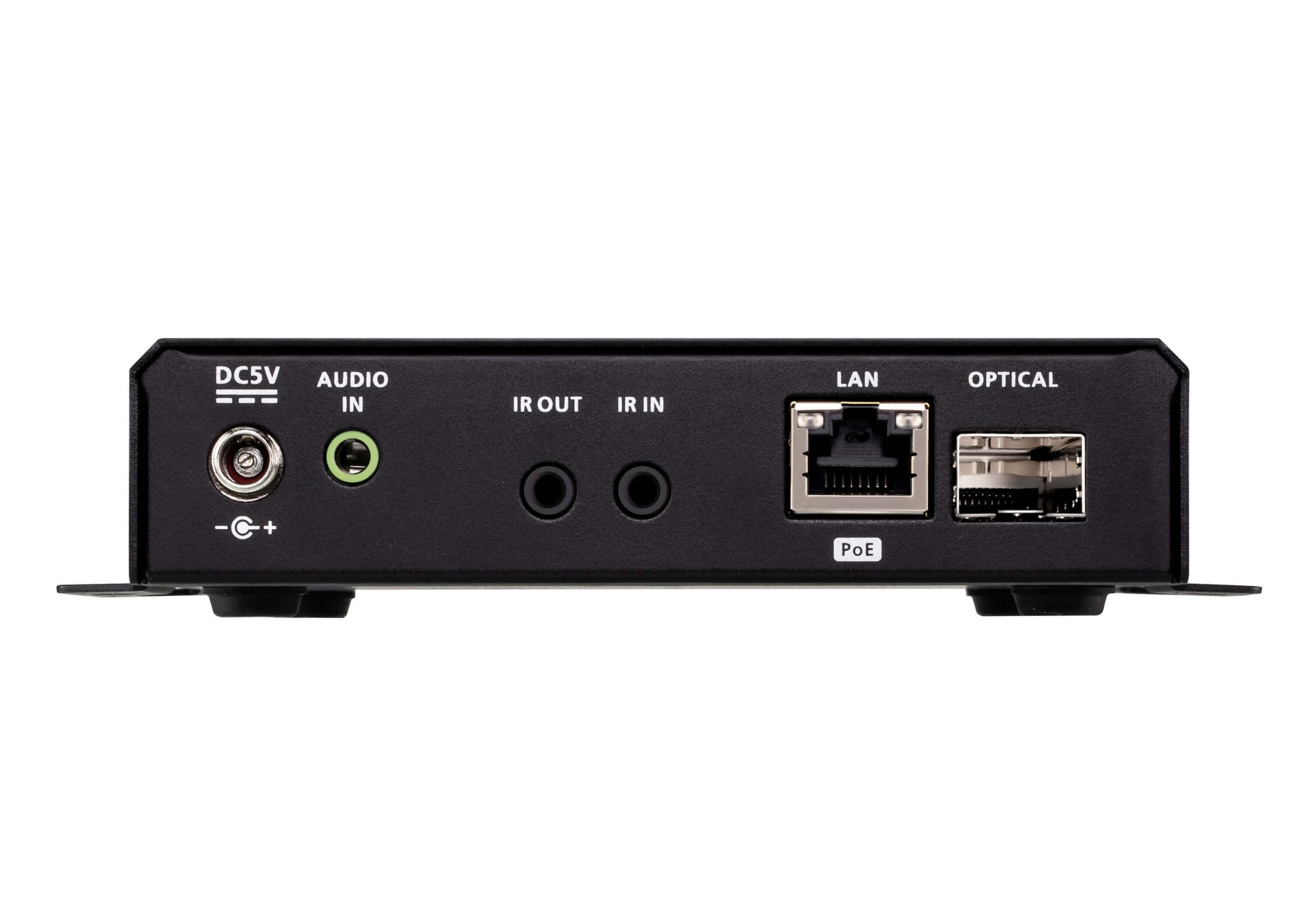

  • Power redundancy with automatic switching between DC Jack and Power over Ethernet (PoE), compliant with IEEE 802.3at
  • Over-IP redundancy via copper or optical fiber cable
  • Operation redundancy with user-friendly Web GUI and multiple control methods
• Limitless Scalability and Flexibility
  • Supports point-to-point and multi-point to multi-point AV over LAN without distance limitations
  • Multi-functionality: extender, splitter, matrix switch, video wall, and daisy chain
  • True 4K Scaler converts input resolutions to optimal display resolutions
  • Built-in 8KV / 15KV ESD protection
  • Rack-mountable design
• Quick IP Setup
  • No extensive IT experience or additional learning required
  • ID-based installation without complex IP configuration
  • Easy input switching via top-panel push buttons
• Web GUI-Based Management (No Additional Server or Software Required)
  • Centralized management via intuitive web GUI across major operating systems
  • Auto-discovery of VE8962 devices through the “Add Device” page
  • Visual and contextual GUI with support for importing environment images
  • Smooth and clear 720p live preview of sources on the web GUI
• Spontaneous Scheduling Management
  • Advanced scheduling tools for pre-planned display control
  • Minute-level event scheduling with calendar-based management
  • Profile grouping for individual receivers or video walls
  • Multiple profiles playable in sequence over defined periods
• Scalable Display Networks with Daisy Chain
  • Daisy-chain support for up to 30 VE8962R units*
  • Connects multiple displays through a single network port
  • Reduced cabling and no need for large network switches
  • Ideal for large-scale deployments such as trade shows, airports, campuses, and shopping centers
  • Note: Daisy chain supported via copper cable only
• Video Wall Support
  • Supports up to 8 × 10 video wall configurations (80 displays)
  • Landscape or portrait orientation (90° / 270° rotation)
  • Layout switching and drag-and-drop source assignment via web GUI
  • Boundless switching for intuitive multi-screen control*
  • Note: Some features to be supported in a future firmware release
• Embedded / De-embedded Audio Support
  • Transmitters embed separate stereo audio into HDMI stream
  • Receivers extract audio from HDMI stream as separate output
  • Audio Matrix allows flexible routing between transmitters and receivers
• Multiple Control Channels
  • Local HDMI input with push-button source switching

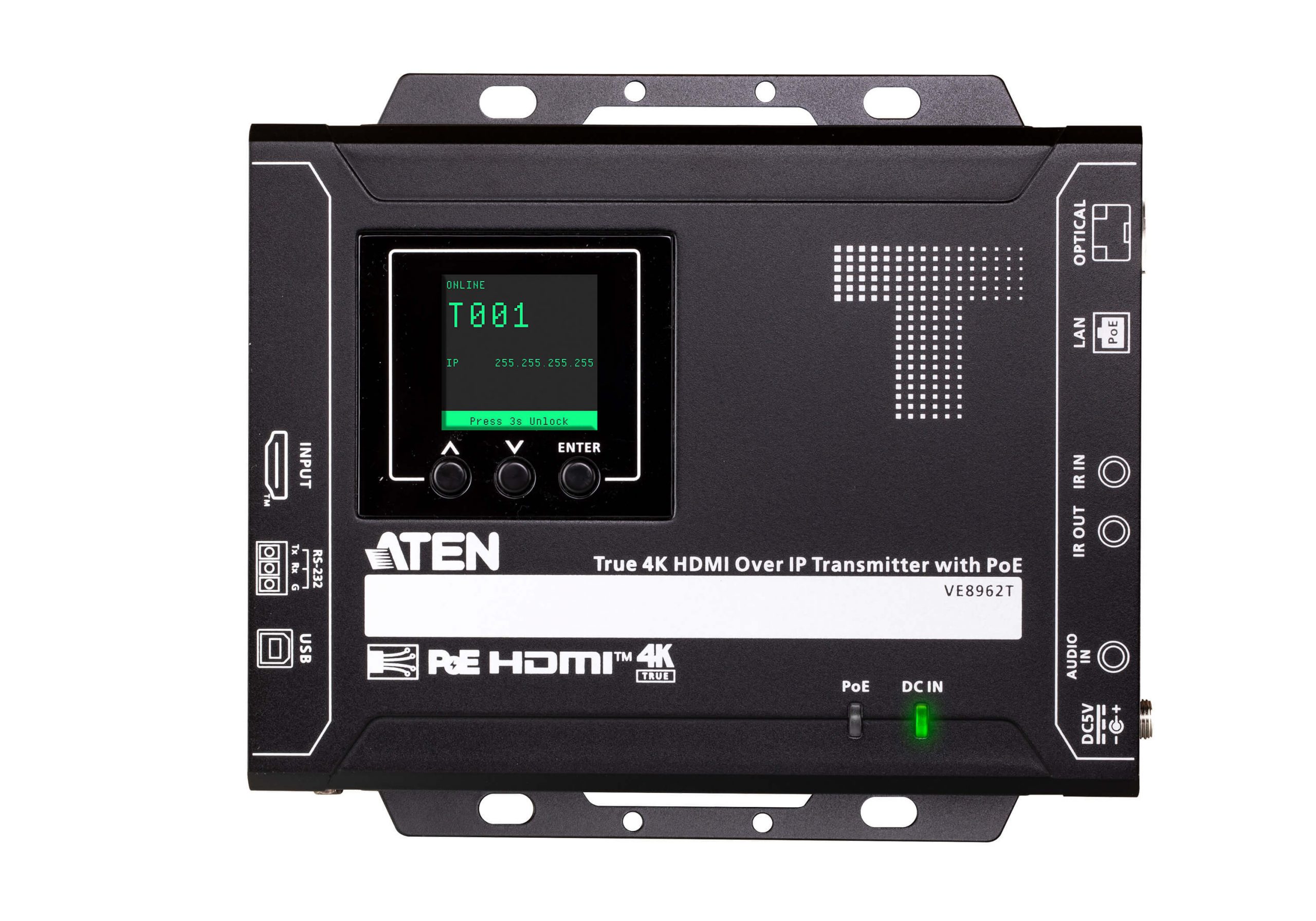

  • Top-panel LCM display for ID, IP address, and device status
  • USB 2.0 connectivity for peripherals (keyboard, mouse, touch screen, etc.)
  • Bi-directional IR channel (one direction at a time)
  • Bi-directional RS-232 serial communication
  • Supports Telnet / CLI and SSH for secure remote management
• Collaboration with ATEN Control System
  • Compatible with ATEN Control System via CLI, Telnet, RS-232, and Reslink
  • Simple touch-panel operation for integrated AV equipment control
• High-Security Protection
  • AES-256 encryption for AV streaming via SRTP
  • HTTPS for secure communication
  • Supports PoE installation to reduce power cabling requirements
