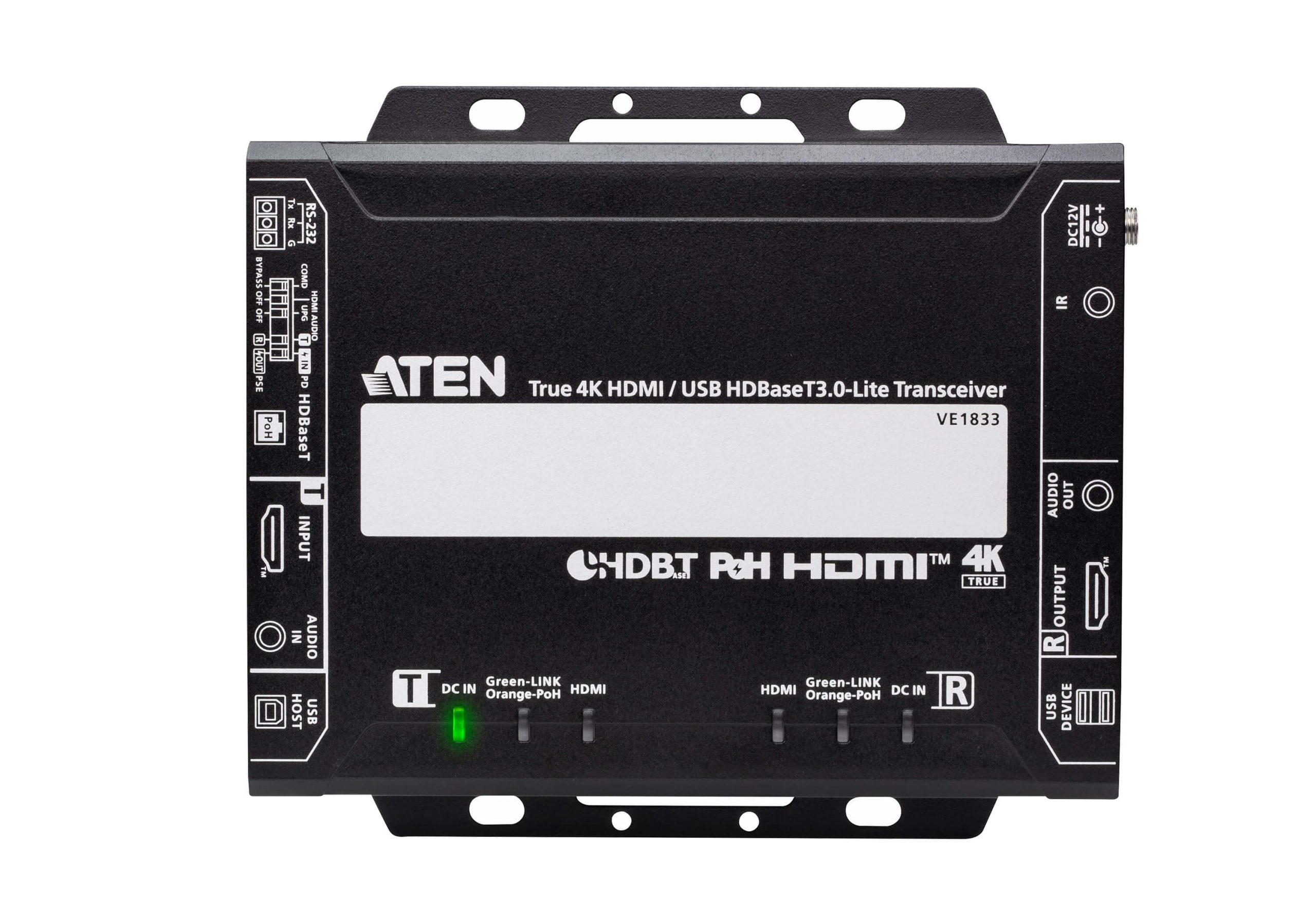

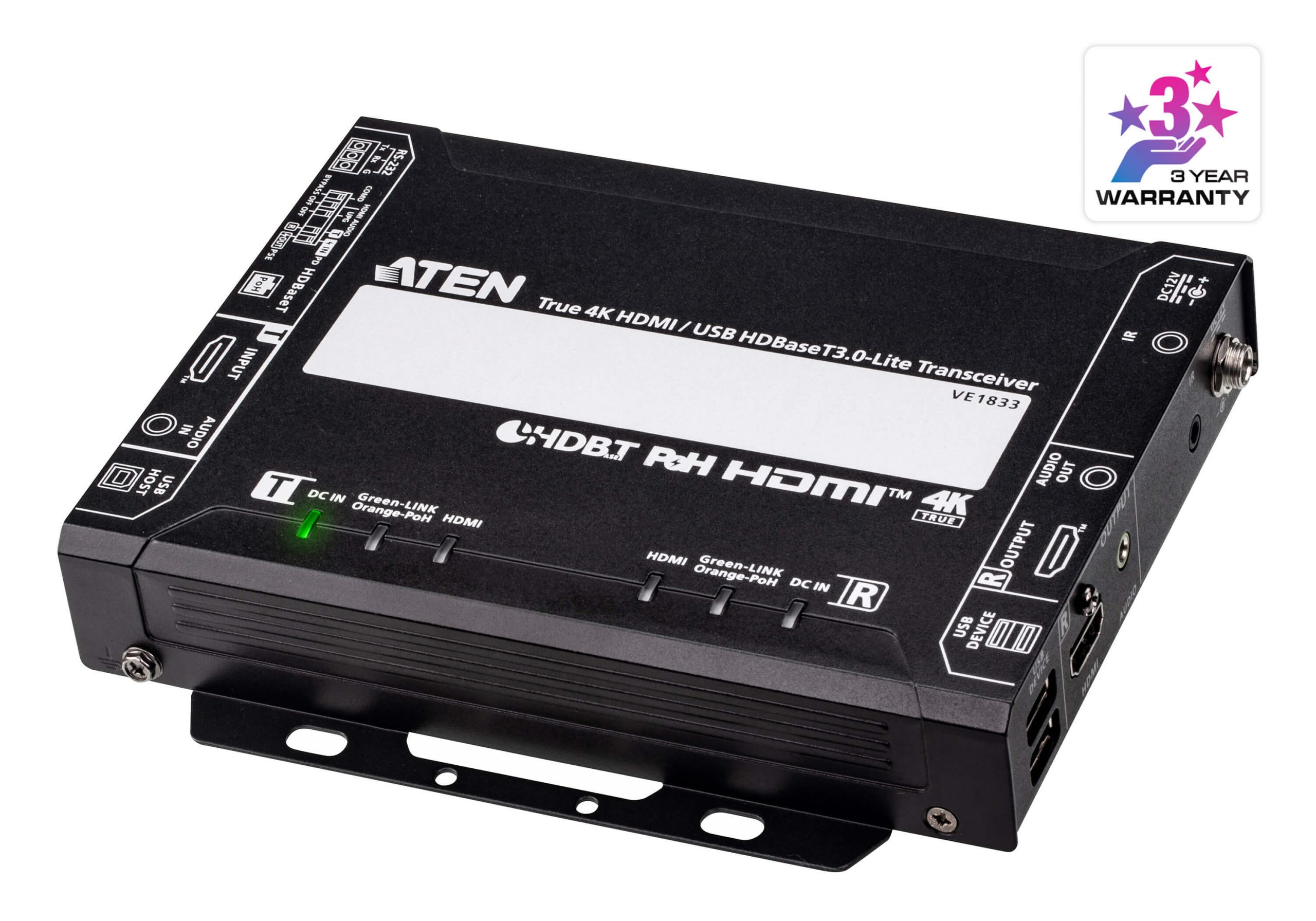

Aten VE1833 True 4K HDMI / USB HDBaseT 3.0 – Lite Transceiver with PoH (True 4K@40 m)

Description

The ATEN VE1833 True 4K HDMI / USB HDBaseT 3.0 – Lite Transceiver with PoH integrates both transmitter and receiver functions in one compact unit, allowing users to flexibly configure it through a DIP switch according to diverse AV setup. Leveraging HDBaseT 3.0 technology, the VE1833 delivers uncompressed True 4K HDMI signals over distances up to 40 m via a single Cat 6a cable (HDBaseT 3 Certified Cat 6a U/FTP / ATEN’s tailor-made HDBaseT cable*).

Designed for professional AV environments, the VE1833 supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and advanced video formats including HDR, HDR10+, and Dolby Vision, along with HDCP 2.2/2.3, 3D, and Deep Color, ensuring superior video quality. The VE1833 features bi-directional PoH with power redundancy, ensuring continuous operation for critical missions.

The VE1833 extends not only HDMI video but also independent stereo audio, USB 2.0, IR, and bi-directional RS-232 signals all over a Cat 6a cable. It also provides HDMI audio embedding and de-embedding, making it easy to route audio separately when needed, and ideal for setups involving external speakers or audio processors. This all-in-one design streamlines complex installations and allows for seamless integration with video matrix switches, splitters, and more.

Empowered by its versatile feature set and flexible deployment options, the VE1833 is an ideal solution for conference halls, auditoriums, lecture theaters, museums, exhibition spaces, and any environment that demands high-performance AV transmission with simplified setup.

Features

• Extends uncompressed True 4K HDMI signals up to 40 m over a single Cat 6a cable
• Compliant with HDBaseT 3.0 standards – transmits high-quality video, full-range IR, bi-directional RS-232, independent stereo audio, and USB 2.0 signals
• Superior video quality – up to 4096 × 2160 @ 60 Hz (4:4:4); supports HDR, HDR+, Dolby Vision
• Supports HDMI audio embedding / de-embedding functions
• Bi-directional PoH with power redundancy for continuous operation

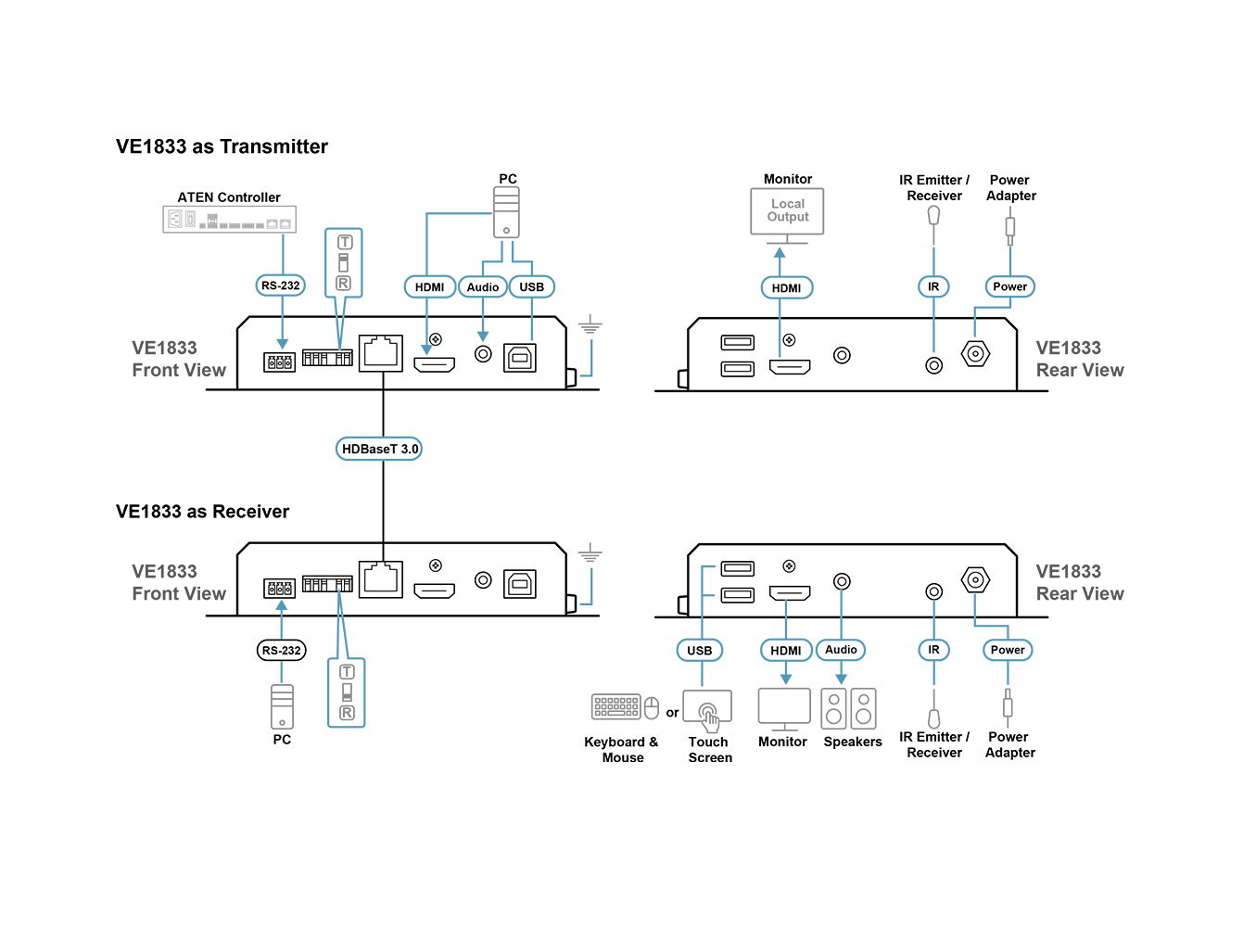

• Flexible deployment – configurable as a transmitter or receiver depending on AV solution
• HDMI (3D, Deep Color, 4K/60Hz); HDCP 2.2 / 2.3 compliant
• Supports HDMI local output
• Compliant with USB 2.0 standard for wide peripheral compatibility
• LED indication of HDBaseT and HDMI signal status for easier recognition
• Supports extremely high refresh rates up to 240 Hz for connected displays
• Firmware upgradable
• Built-in 8KV / 15KV ESD protection
• Plug-and-play
• Rack-mountable
