Aten UH3240 11-in-1 USB-C Multiport Dock with Power Pass-Through

Description

Transform Your Laptop into the Ultimate Workstation

Transform your laptop into the ultimate workstation with unparalleled productivity.

The Uh4240 is a powerful 11-in-1 USB-C multiport dock that expands your
connectivity through a single USB-C cable. Designed in a light, compact form factor,
it allows you to charge your device up to 100W while transferring data at
speeds of up to 5 Gbps.

Dual 4K Display

Extend your workspace to two 4K displays with
Multi-Stream Transport (MST) support.

Enjoy Impeccable Visual Quality

Optimize your screen resolution to perfectly match the task at hand for enhanced
clarity and productivity.

Vivid & Sharp 8K Display

Experience an enthralling level of visual immersion, delivering an entertainment
experience at the apex of clarity.

100W Power Delivery with PD 3.0

Power and charge your devices seamlessly to support demanding multitasking workflows.

Note: A self-supplied USB-C Power Delivery adapter and cable from the source device
is highly recommended.

11-in-1 USB-C Dock with Power Pass-through

Simplify your setup by connecting up to 11 devices through a single USB-C
connection with integrated power pass-through.

Multiplatform Support

Compatible with multiple operating systems.
*Relevant compatible devices must be USB-C enabled.

Features

A one-stop upgrade for your hybrid workstation with a USB-C host and an 8K display / dual 4K displays. 11 ports provide extra expansion capabilities for HDMI, USB-C, USB Type-A, SD / MicroSD, Ethernet, and audio devices while allowing Power Delivery 3.0 up to 100W.

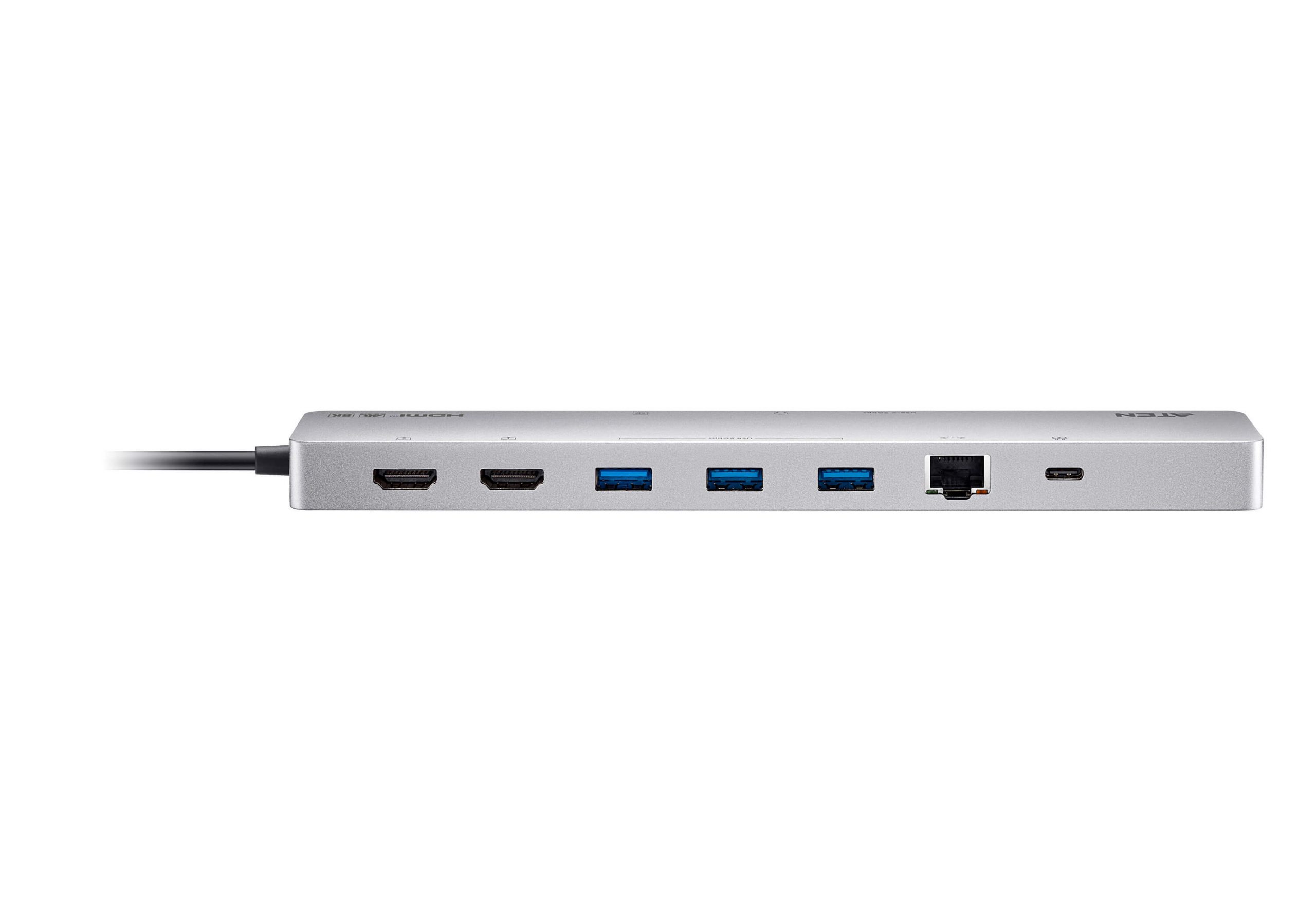

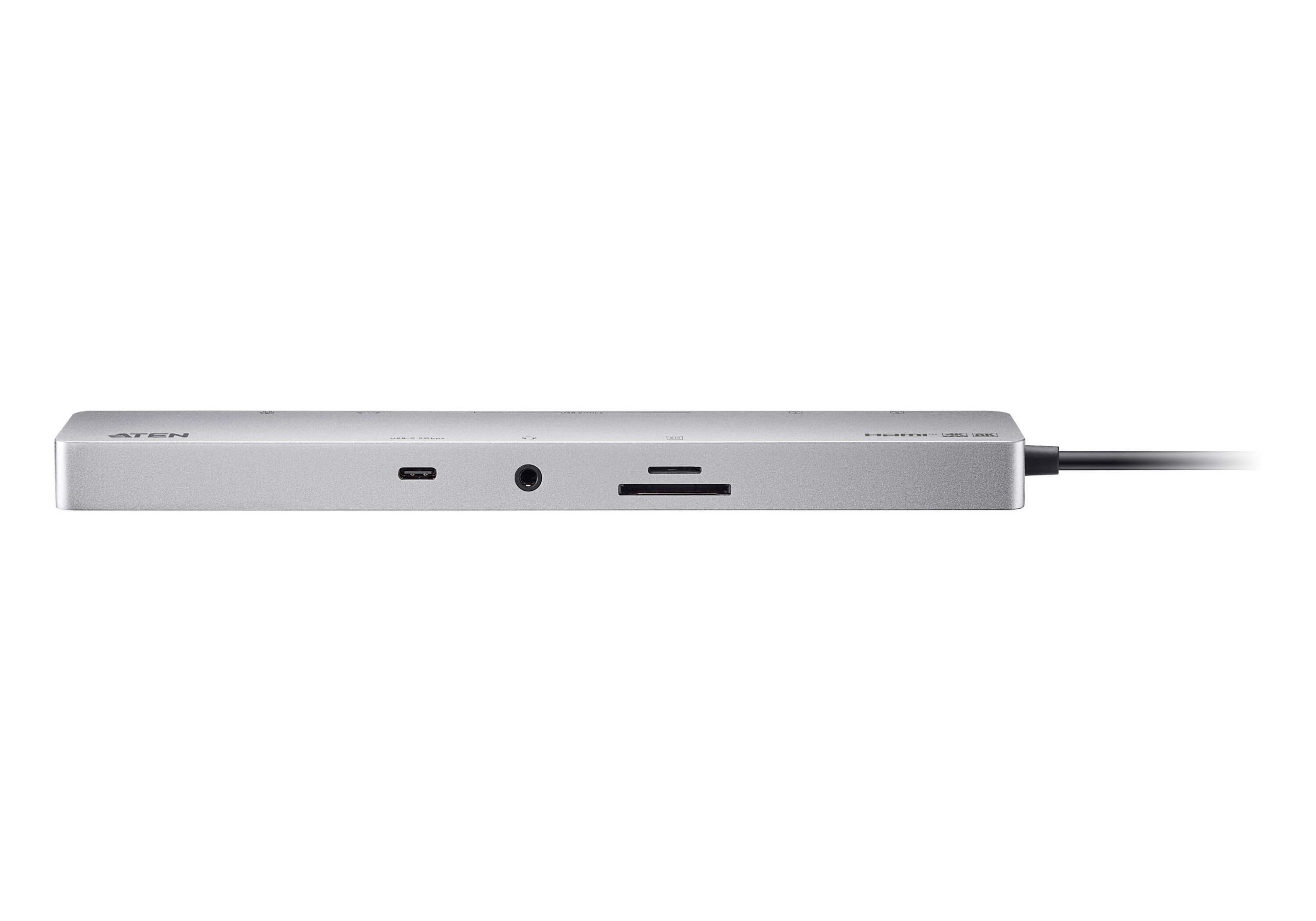

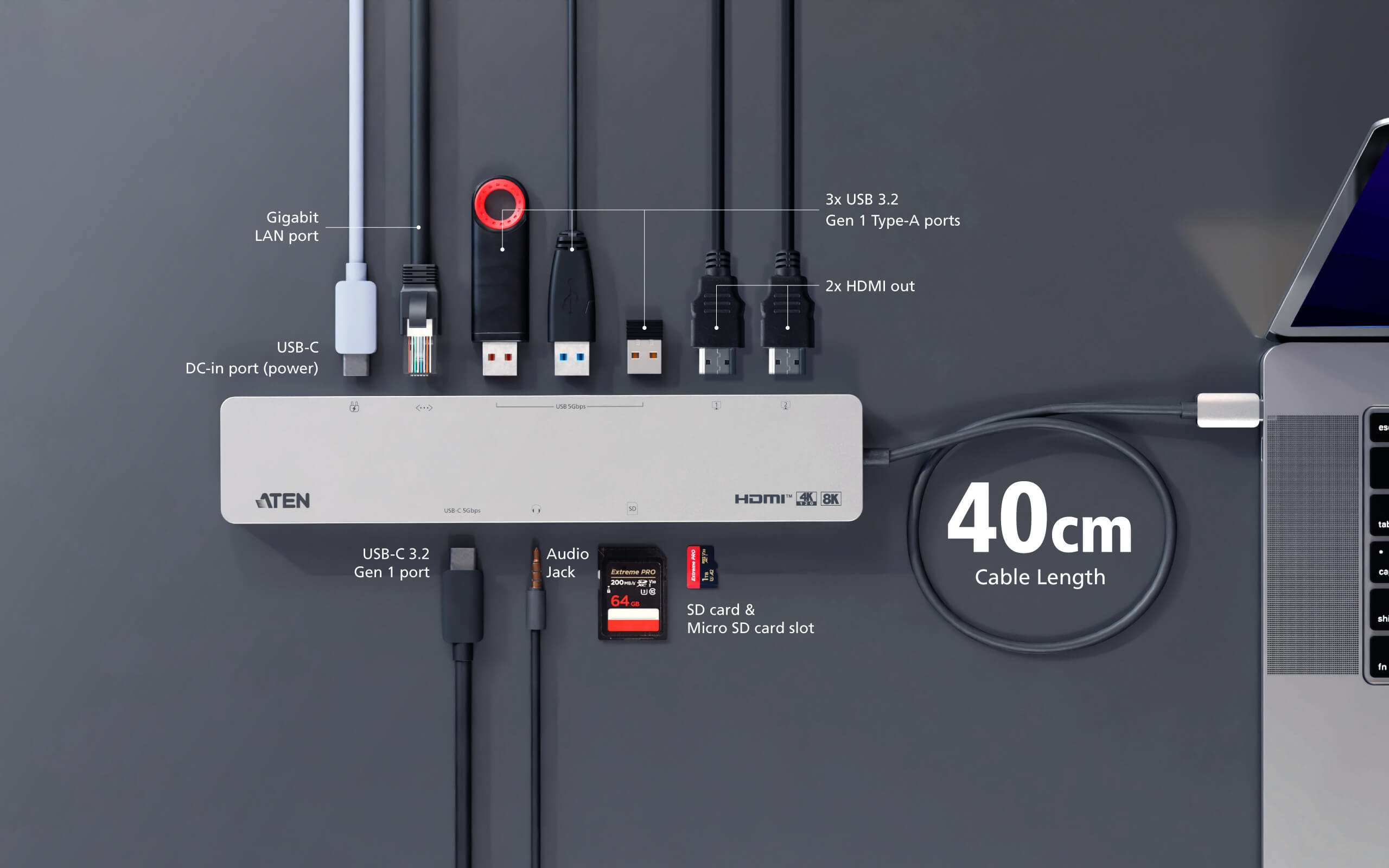

• Multiport dock with 11 essential ports:
  2 × HDMI, 2 × USB-C (1 for power delivery, 1 for data transmission),
  3 × USB Type-A, 1 × SD, 1 × Micro SD, 1 × Ethernet, and 1 × Audio Jack
• Supports up to 8K¹ (7680 × 4320) for single video output or
  4K for dual video outputs^2,3
• Supports high refresh rates up to 4K @ 120 Hz⁴
• Supports USB Power Delivery 3.0 for charging up to 100W via USB-C PD adapter⁵,
  with PD profiles of 5V, 9V, 12V, 15V, and 20V
• USB 3.2 Gen 1 compliant with data transfer rates up to 5 Gbps
• Supports DisplayPort 1.4 Alt Mode
• Plug-and-play operation with support for major operating systems:
  Windows, macOS, iOS, iPadOS, and Android™
• Compatible with Thunderbolt™ (USB-C) technology and Apple M1 / M2 / M3 chips
• Compact enclosure designed for space-constrained workspaces
• Drives dual-monitor workstation performance for graphically intensive
  applications such as photo and video editing

Notes:

1. HDMI 2.1 cable is recommended for 8K resolution
   (ATEN 2L-7D02H21 HDMI cable supported). Intel 12th-Gen Core Processor is recommended.
2. Maximum bandwidth requires DP 1.4 Alt Mode with DSC 3:1 and HBR3.
   DP 1.2 Alt Mode limits HDMI output to 4K @ 30 Hz.
3. Extend mode requires GPU MST support; macOS supports single-extended display
   with identical content on dual monitors.
4. The maximum resolution supported on HDMI 2 alone is 4K @ 120 Hz.
5. A self-supplied USB-C PD power adapter and cable from the source device
   is highly recommended.
